Butterfly valves Elephant WBV1432E-2W-Fb-ISO-R, body - cast iron GGG50 – Valve Elephant
Elephant  |  SKU: D050-62889

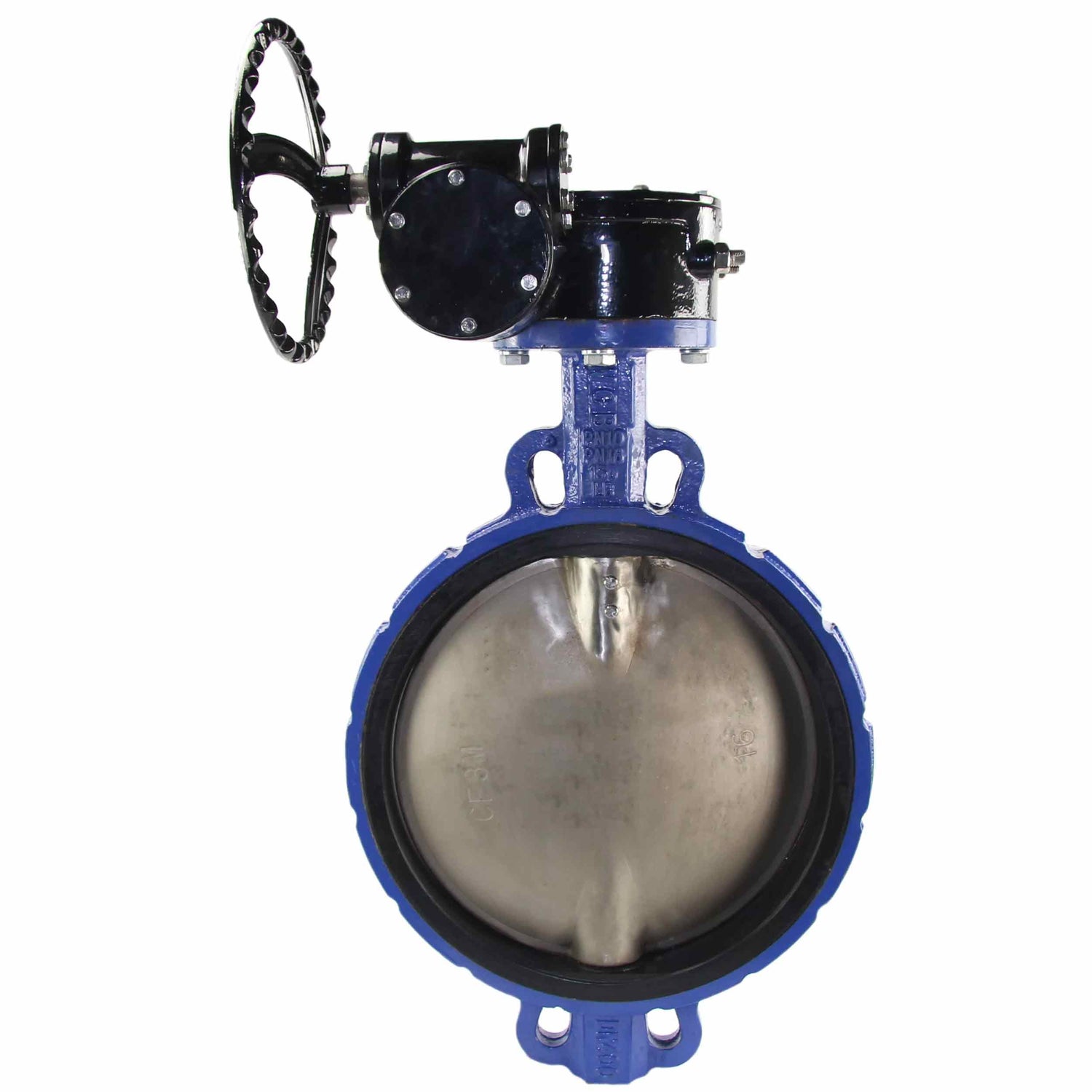

Butterfly valves Elephant WBV1432E-2W-Fb-ISO-R, body - cast iron GGG50, disk - stainless steel 316L, seal - EPDM, with gearbox

€3.373,76
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The butterfly valve is designed for use as shut-off or regulating valves for controlling flows in heat and water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.





Technical parameters of Water Butterfly Valve Elephant WBV1432E-2W-Fb-ISO-R, body - cast iron GGG50, disk - stainless steel 316L, seal - EPDM, with gearbox:

Nominal diameter DN, mm 500; 600
Nominal pressure PN, bar 16
Working medium temperature t, ⁰C -20 to +120
Working medium water, air, natural gas, petroleum products, other media neutral to materials of gate construction
Flow direction double-sided
Control type reducer
Gearbox housing material cast iron QT450 (analog of BCh45)
Pipeline connection interflanged
Disk material cast iron GGG40 (analog of BC40) or stainless steel AISI 316L
Seal material EPDM
Average service life, years 3

Butterfly valves WBV1432E-2W-Fb-ISO-R, body - cast iron GGG50, disk - stainless steel 316L, seal - EPDM, with gearbox





Dimensions and dimensions of butterfly valves Elephant WBV1432E-2W-Fb-ISO-R, body - cast iron GGG50, disk - stainless steel 316L, seal - EPDM, with gearbox:

DN L D D1(PN16) D1(PN10) Z–Ød H H1 H2 K
500 127 715 650 620 20–Ø33 467 363 65 175
600 152 840 770 725 20–Ø36 548 424 70 210

Sketch Butterfly valves WBV1432E-2W-Fb-ISO-R, body - cast iron GGG50, disk - stainless steel 316L, seal - EPDM, with gearbox





Materials of butterfly valves Elephant WBV1432E-2W-Fb-ISO-R, body - cast iron GGG50, disk - stainless steel 316L, seal - EPDM, with gearbox:

№ Part name Material
1 Body cast iron GGG50
2 Disk stainless steel AISI 316L
3 Stem stainless steel AISI 416
4 Seal EPDM
5 Gearbox -

Sketch of parts and materials Butterfly valves WBV1432E-2W-Fb-ISO-R, body - cast iron GGG50, disk - stainless steel 316L, seal - EPDM, with gearbox



Dimensions and dimensions of the gearbox:

A B C D E F H K
mm
DN500 270 260 145 235 280 200 98 145
DN600 385 320 200 280 330 275 126 170

Gearbox sketch

Specifications
  • Country of origin
    China
  • Body material
    High-strength cast iron GGG50
  • Maximum allowable temperature
    120 °C
  • Connection type
    compact flanged
  • Control type
    Manual (handle, gearbox)
  • Operating environment
    Water, air, petroleum products, neutral media, gaseous media
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    stainless steel AISI 316L
  • Limit switches
    No
