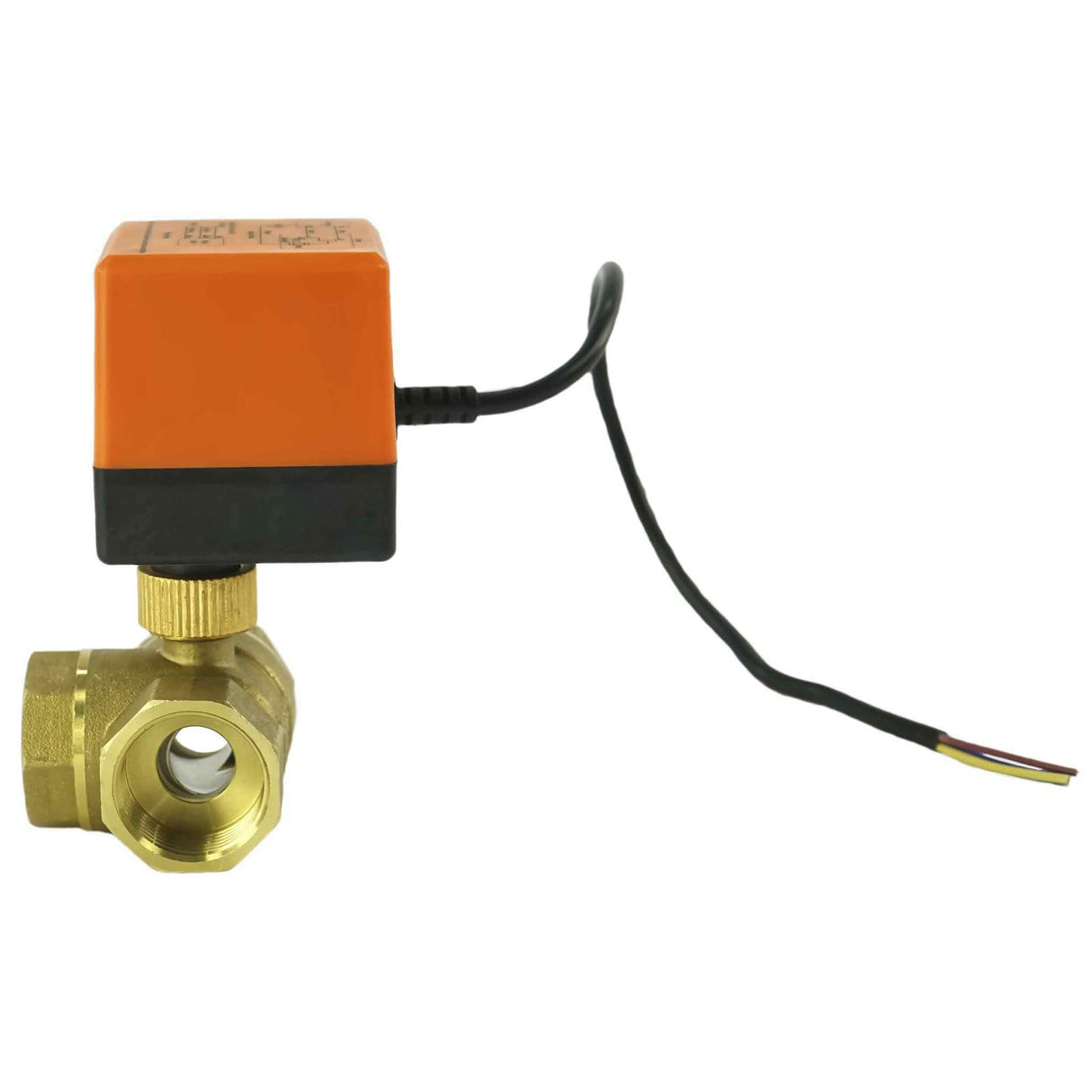

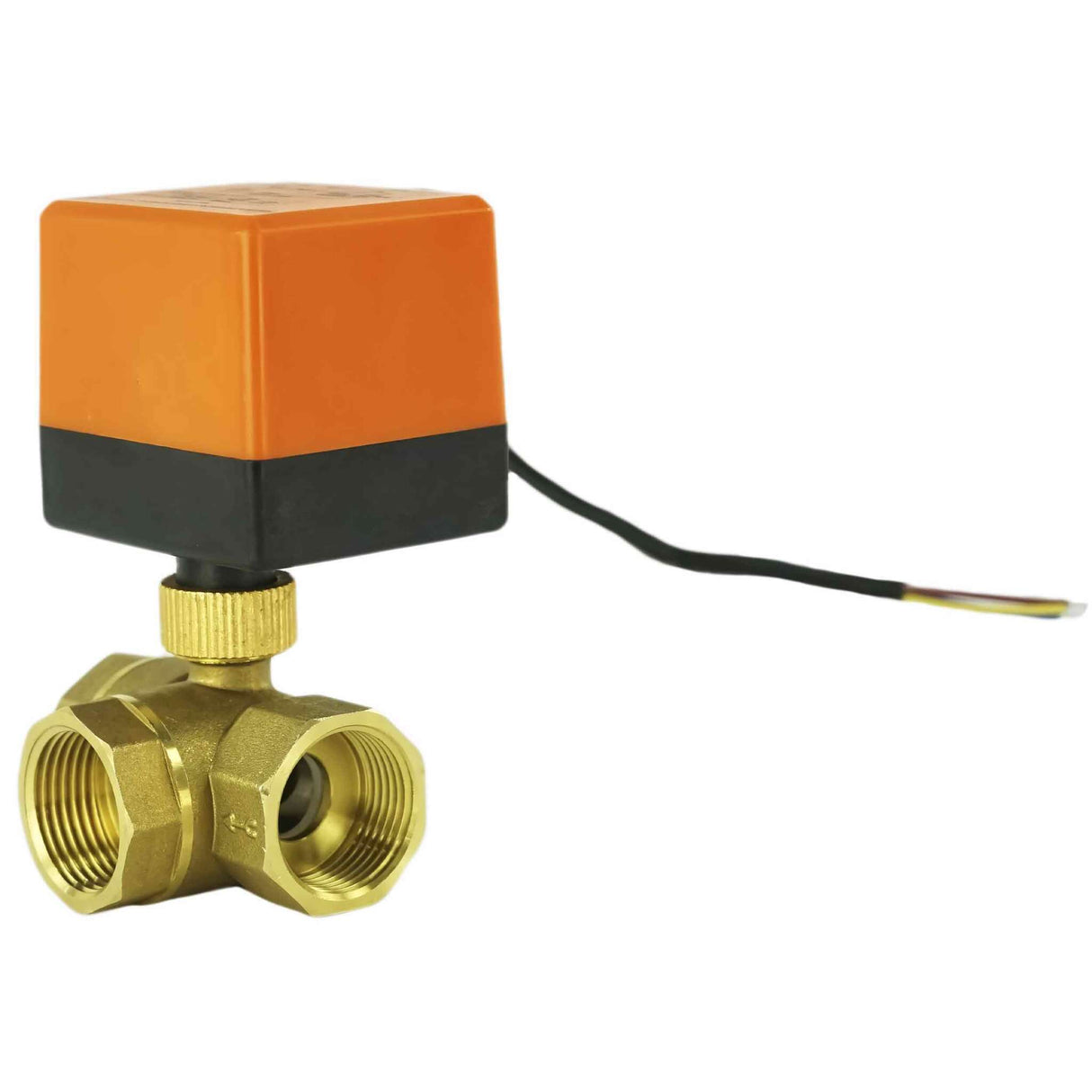

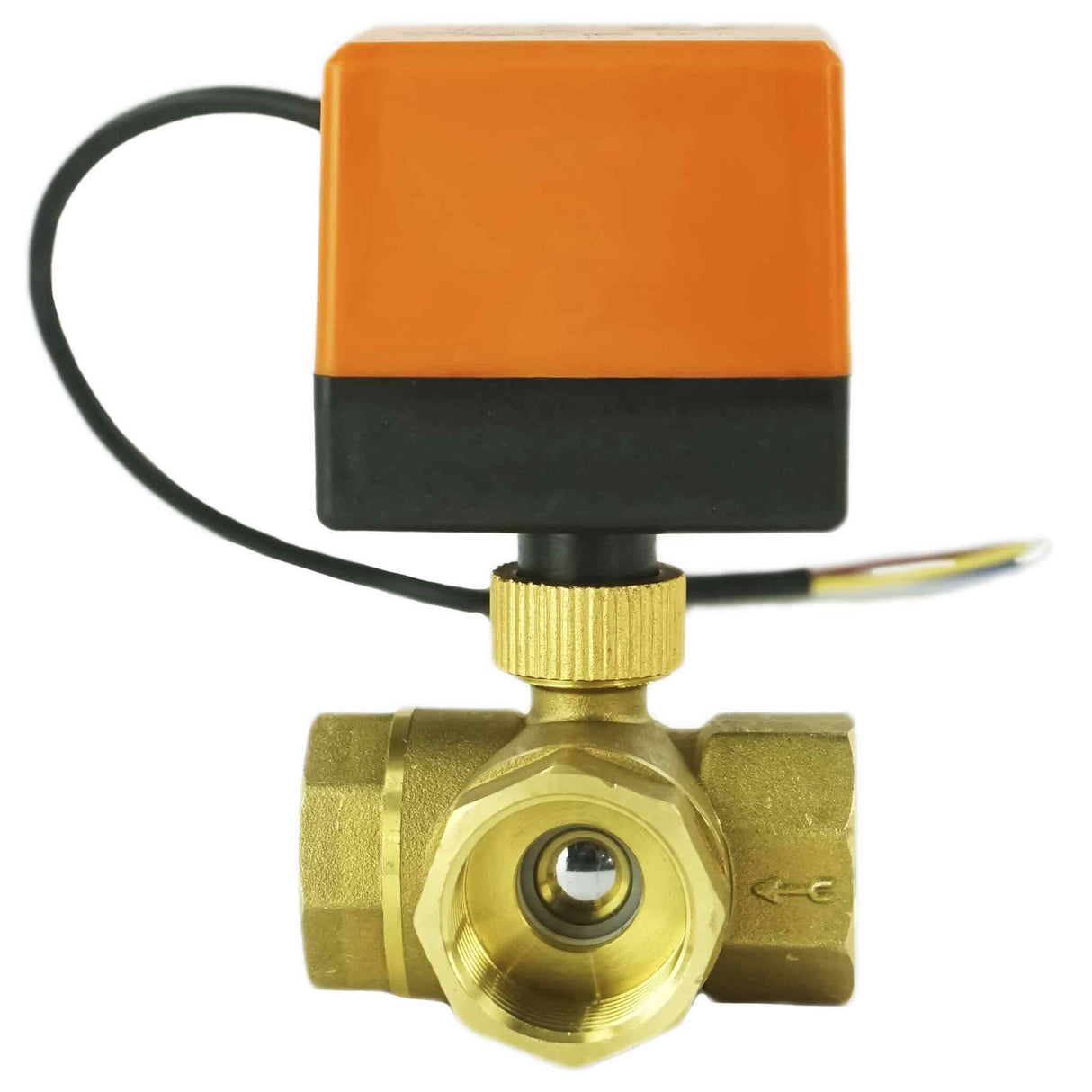

Brass ball 3-way valve Threaded NPT/BSP L-type standard port Elephant RP.BRASS.120.MM L-type with Elephant 110VAC without limit switches
Brass ball 3-way valve Threaded NPT/BSP L-type standard port Elephant RP.BRASS.120.MM L-type with Elephant 110VAC without limit switches - DN20 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Brass ball 3-way valve Threaded NPT/BSP L-type standard port Elepha...
Description
Description
Brass ball 3-way valve threaded L-type standard port Elephant RP.BRASS.120.MM L-type with Elephant 110VAC without limit switches controls water, air, oil and other media compatible with the materials of construction. Ideal where lead free construction are required for potable drinking water as well as general industrial applications. Elephant electric actuated valves use power-to-open and power-to-close, stays in the last known position with loss of power. The actuator will rotate the output drive 90° to change the position of the ball valve. A manual override is provided for use in setup or power failure situations. The override is operated with a standard hex wrench. The housing is rated Type 3X (IP65). Heavy duty motor is integral to the actuator housing, providing the smallest physical size to power ratio of typical actuators on the market.
Overall and installation dimensions brass ball valve with actuator Elephant 110VAC without limit switches
Brass ball valve sketch Elephant 110VAC without limit switches
| DN, mm | H, mm | W, mm | L, mm | Ø section, mm | A, mm | B, mm | C, mm | X, mm | Y, mm | Z, mm |
| 15 | 127 | 43 | 55 | 10 | 80 | 63 | 84 | 63 | 71 | 83 |
| 20 | 137 | 53 | 67 | 14 | 80 | 63 | 84 | 63 | 71 | 83 |
| 25 | 142 | 61 | 80 | 17 | 80 | 63 | 84 | 63 | 71 | 83 |
Specifications
Specifications
-
Country of origin
-
Port opening
-
Configuration
-
Body material
-
Material ball
-
Material ball seal
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environment
-
Applications
