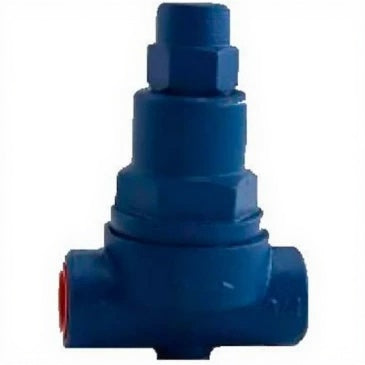

Bimetallic steam traps Elephant STB2136-T DN15-25 25 bar steel, thread – Valve Elephant
Elephant  |  SKU: D150-01334

Bimetallic steam traps Elephant STB2136-T DN15-25 25 bar steel, threaded, body - low carbon steel A105, valve material - martensitic stainless steel, maximum pressure drop dP=16 bar

€195,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Main technical characteristics of bimetallic steam traps Elephant STB2136-T

Name Meaning
Condensate trap type Bimetallic
Nominal pressure, bar 25
Connection type Coupling (threaded)
Maximum operating temperature, °C 220
Operating medium Steam, condensate
Application Heat supply, steam condensate systems





Overall and mounting dimensions of bimetallic steam traps Elephant STB2136-T

Model value, mm M, inch Weight, kg
L H
DN15 90 125 G 1/2 1.5
DN20 90 125 G 3/4 1.6
DN25 95 128 G 1 1.8

Dimension sketch of bimetallic steam traps Elephant STB2136-T





Materials for bimetallic steam traps Elephant STB2136-T

№ Name Material
1 Body A105 steel
2 Valve seat martensitic stainless steel
3 Gasket copper
4 Filter AISI 304 stainless steel
5 Ejector martensitic stainless steel
6 Valve disc martensitic stainless steel
7 Cover gasket copper
8 Valve spring AISI 304 stainless steel
9 Ejector spring AISI 304 stainless steel
10 Valve cover martensitic stainless steel
11 Bimetallic element composite metal
12 Condensate trap cover A105 steel
13 Gasket copper
14 Stem 35 steel
15 Nut AISI 304 stainless steel
16 Protective cap A105 steel
17 Ejector seat martensitic stainless steel

Sketch of materials for bimetallic steam traps Elephant STB2136-T

Specifications
  • Body material
    Steel
  • Operating environment
    Steam, Condensate
  • Applications
    Heat Supply, Steam, Condensation Systems

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUSizePresurePrice AvailabilityQuantity Add to cart
    D150-01334DN1525 bar €195,00 Sold out
    D150-01335DN2025 bar €206,00 Sold out
    D150-01336DN2525 bar €225,00 Sold out
