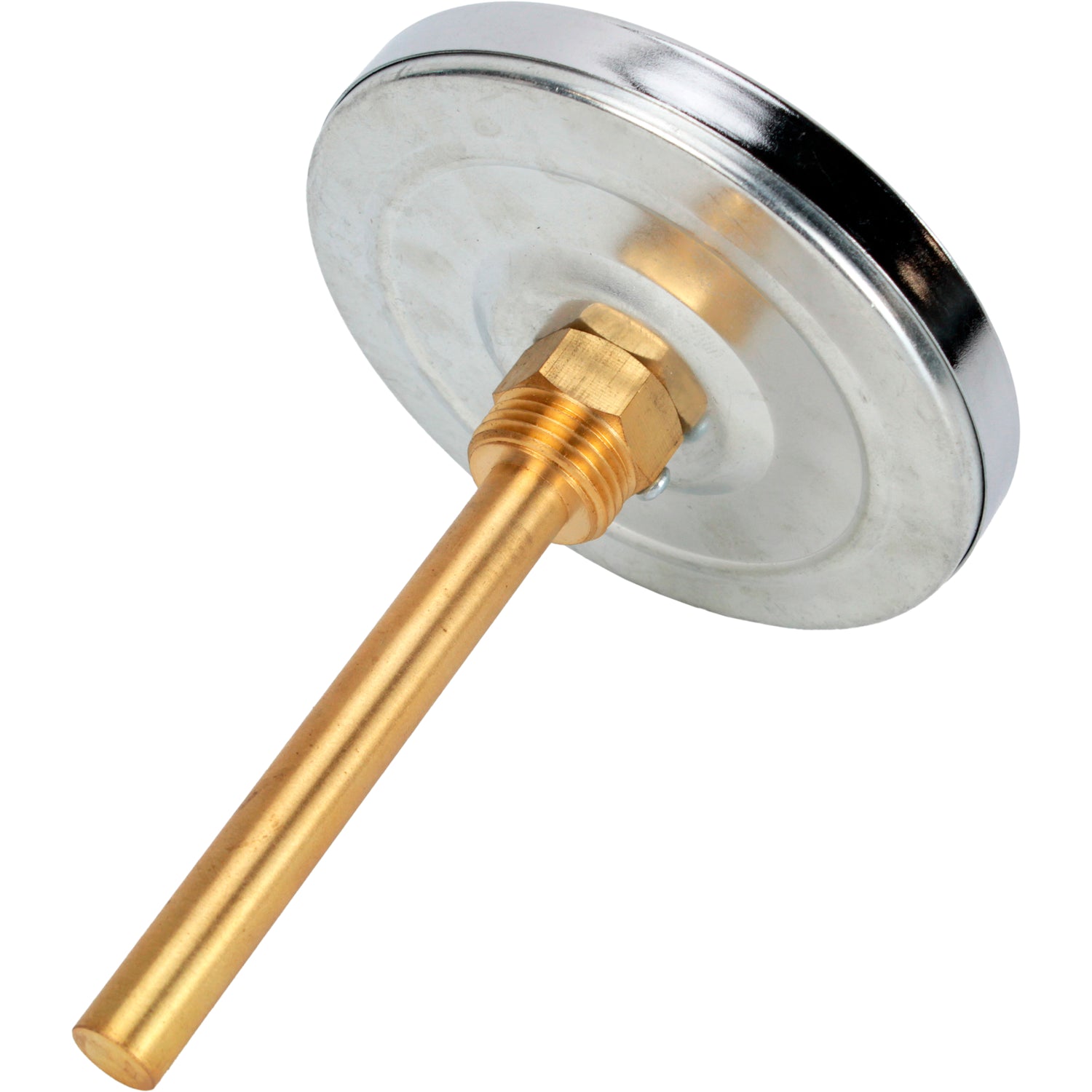

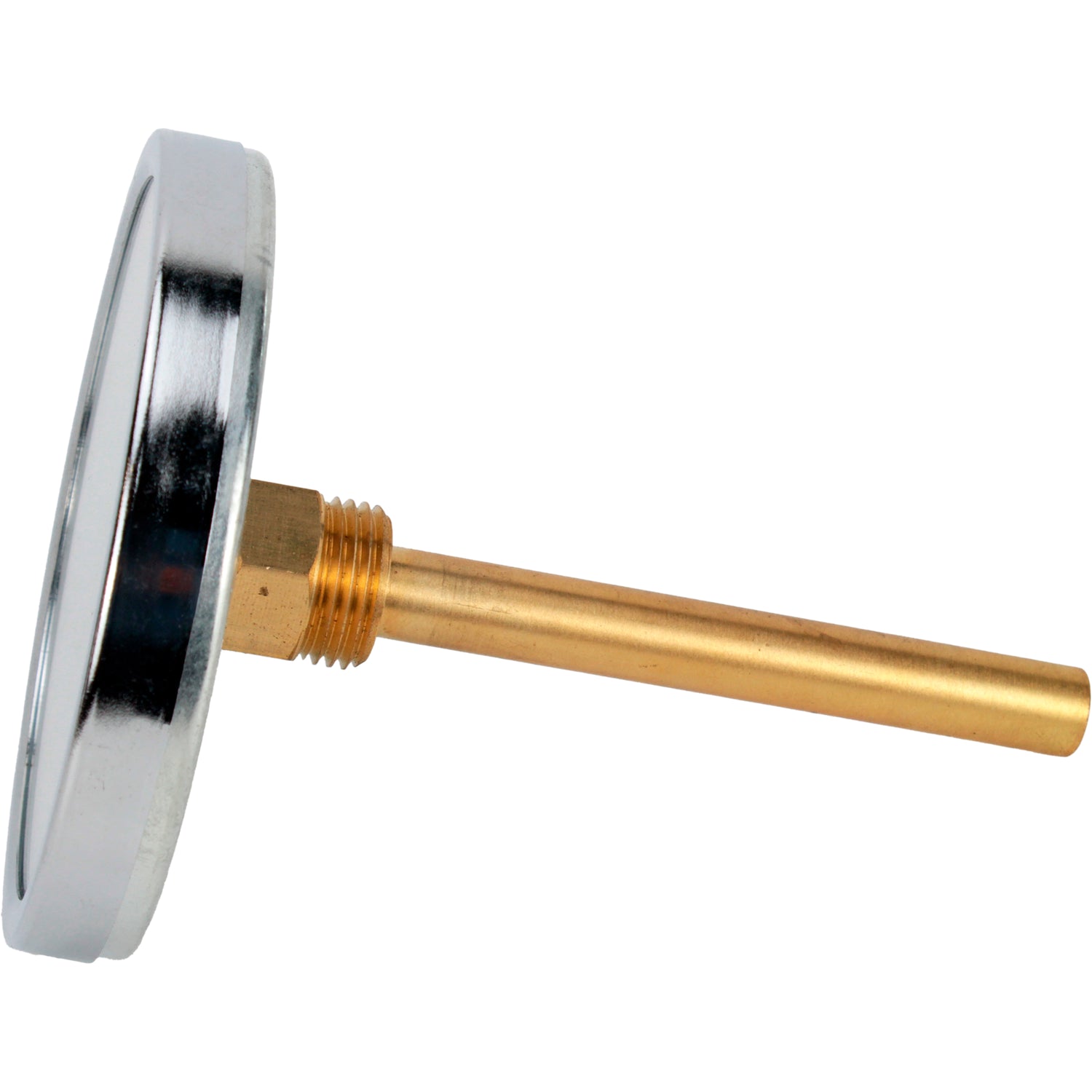

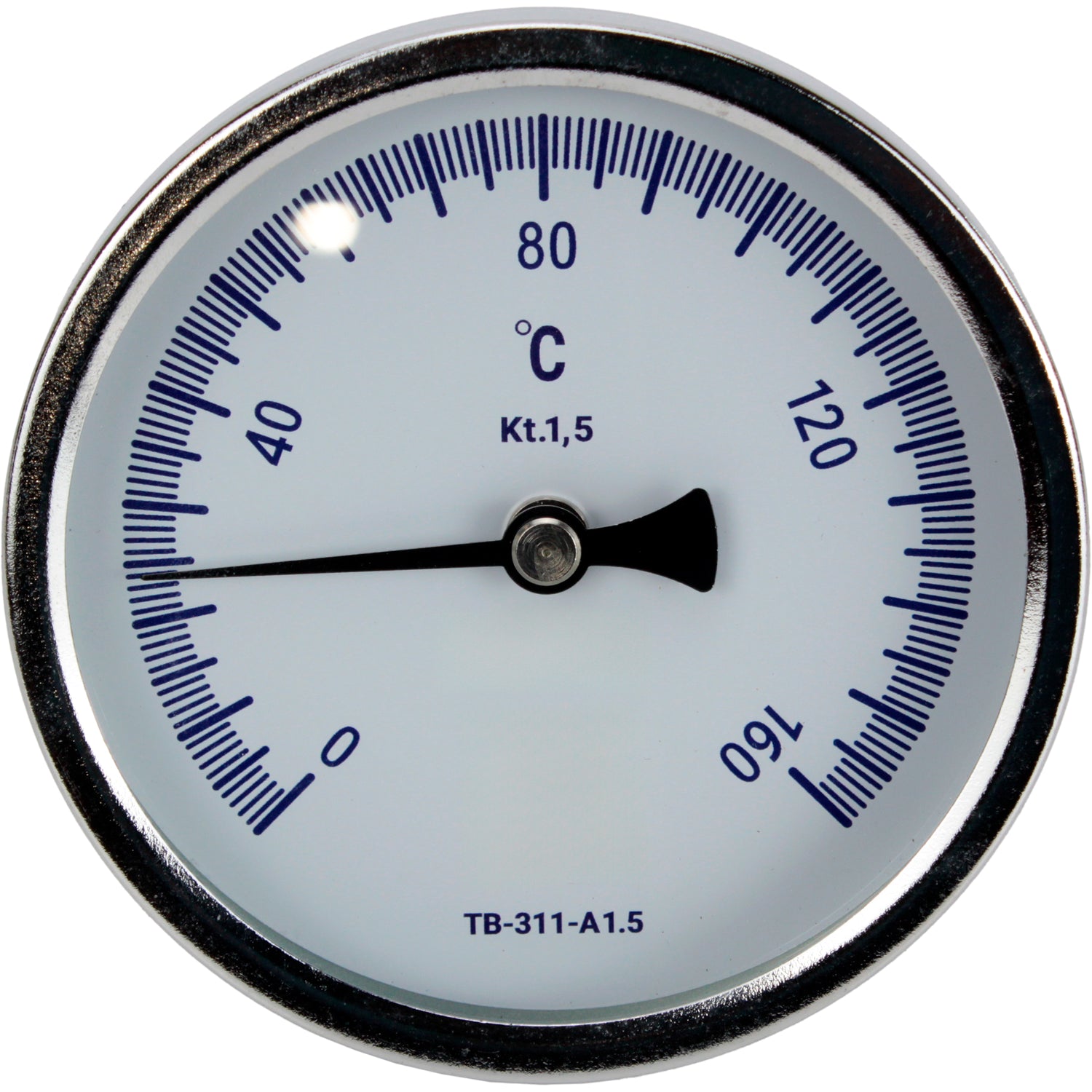

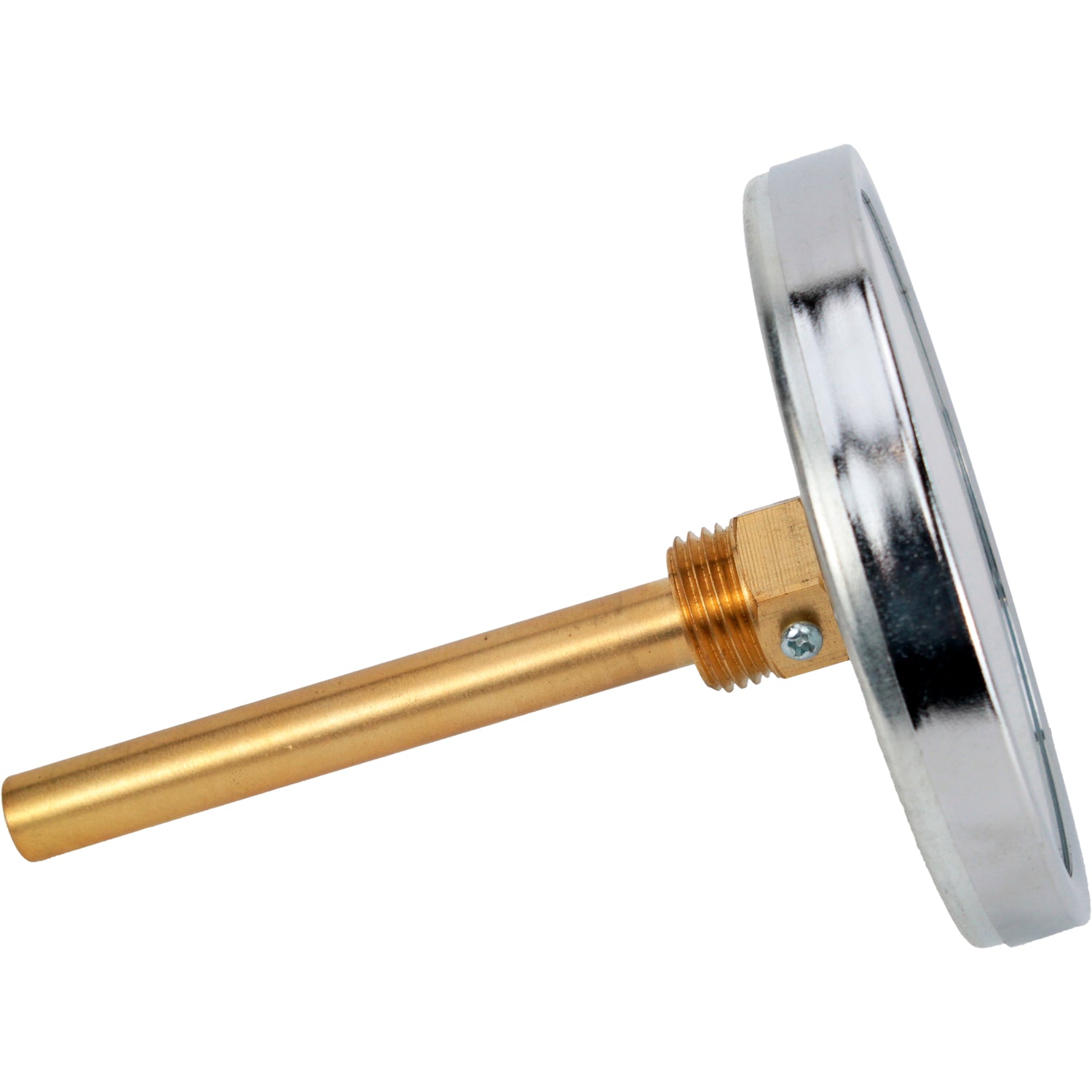

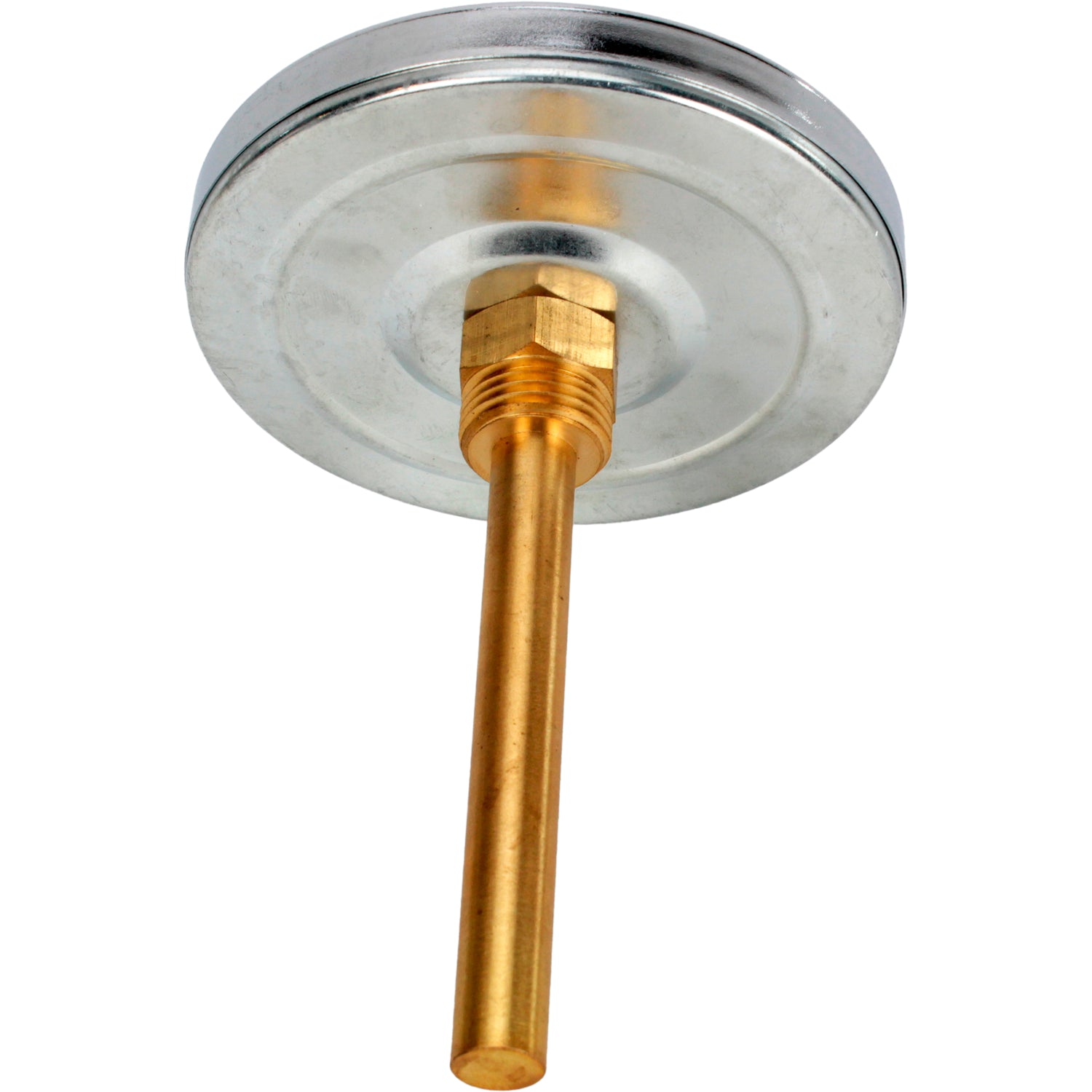

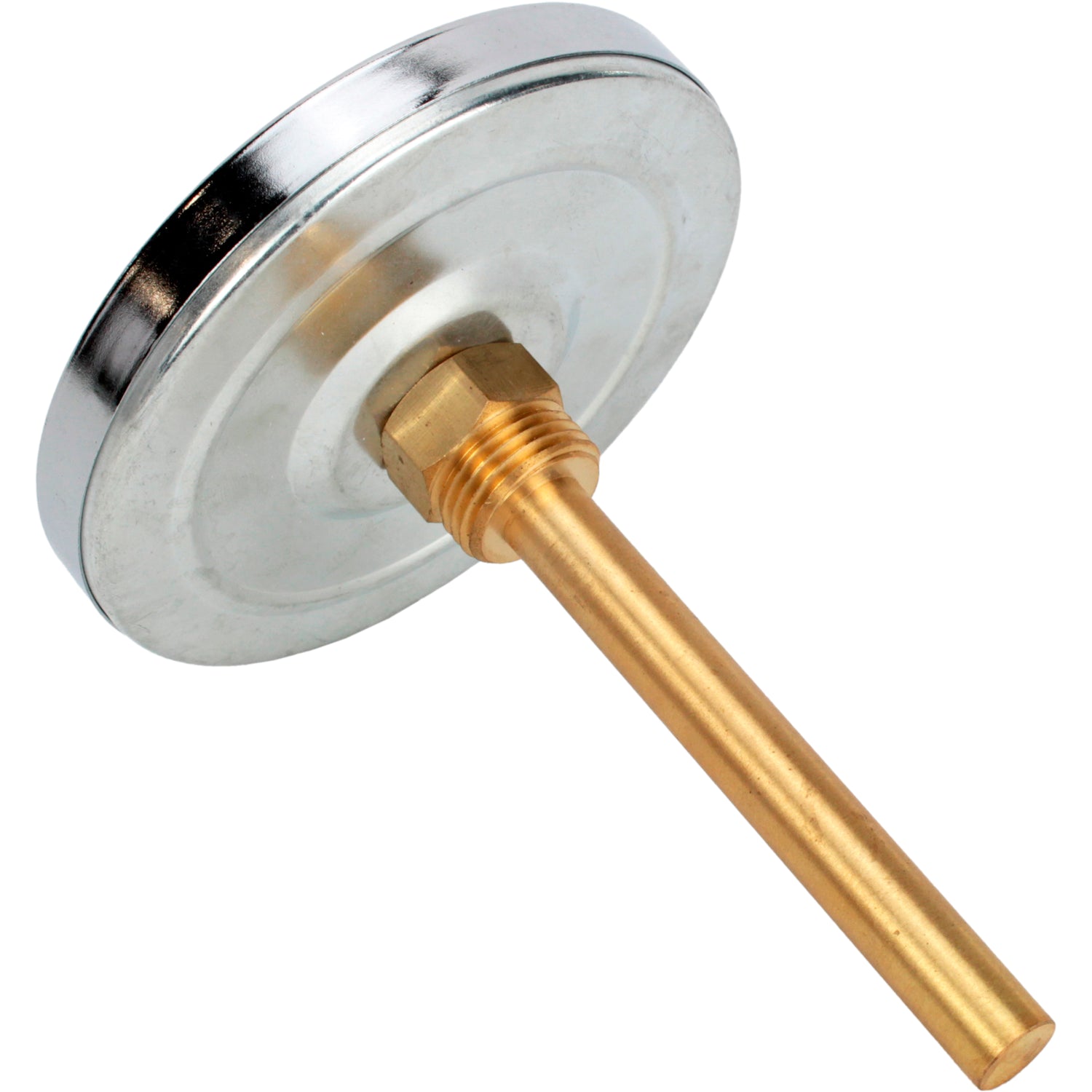

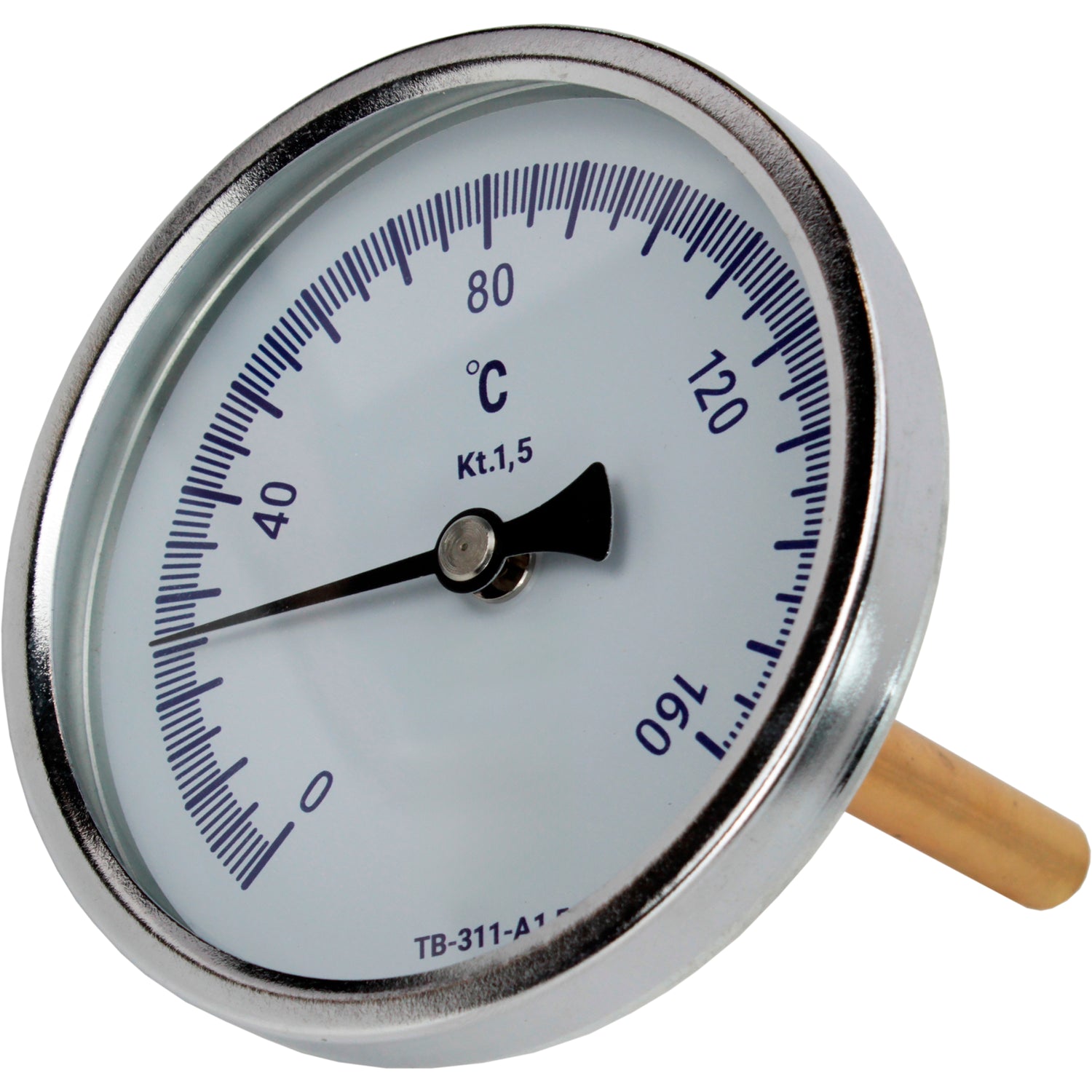

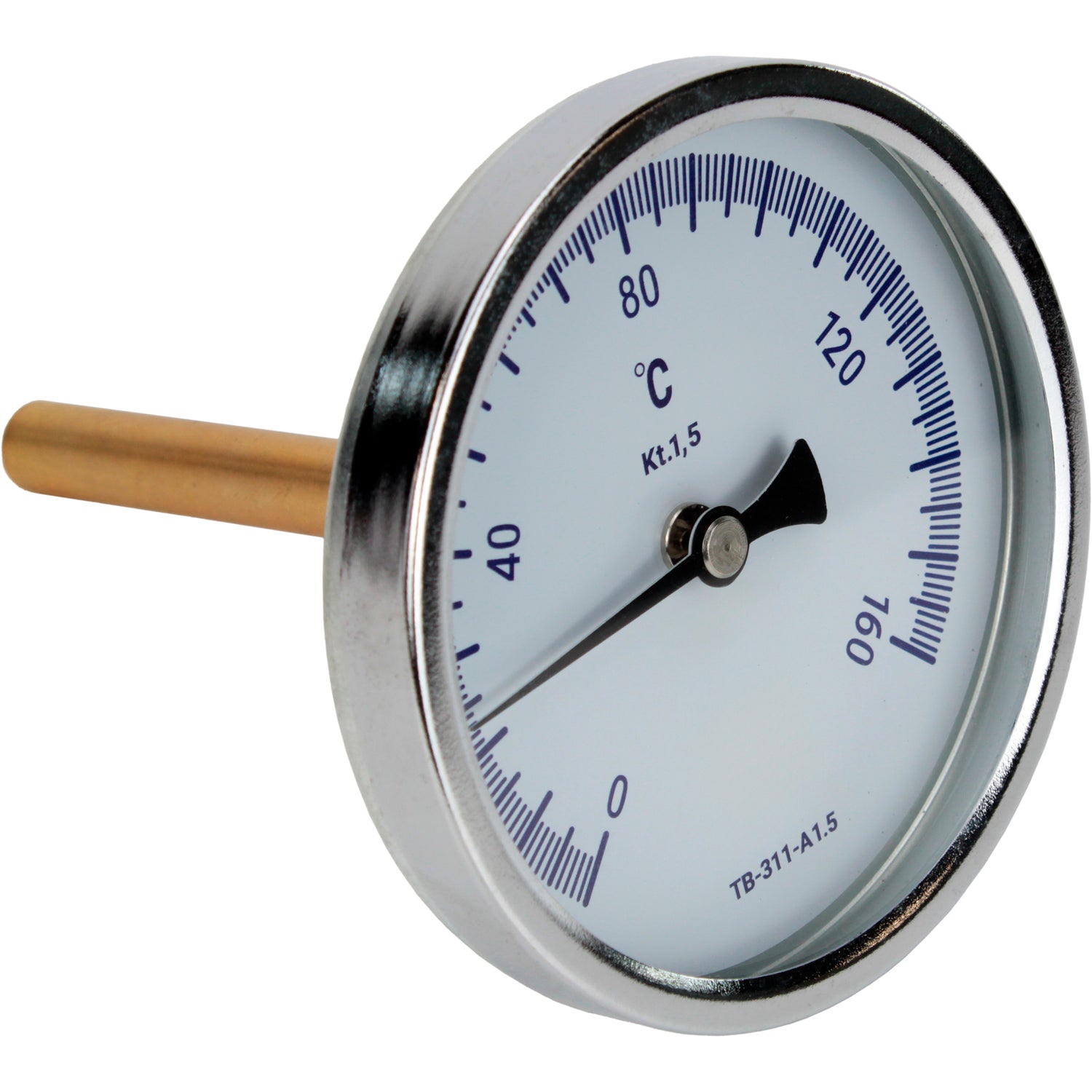

Bimetallic radial thermometers Elephant TB-301-R1.5 PN10-25, stainless steel, length of immersion part 46-150mm, accuracy class - 1.5
Bimetallic radial thermometers Elephant TB-301-R1.5 PN10-25, stainless steel, length of immersion part 46-150mm, accuracy class - 1.5 - 63 mm (0-160°C) L64 / 10 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Bimetallic thermometer is designed to measure the temperature of liquids, steam and gases in heating and sanitary installations, in air conditioning and ventilation systems. The principle of operation of bimetallic thermometers is based on the dependence of the deformation of the sensitive element on the measured temperature. A bimetallic spring is used as a sensing element. A bimetallic spring is made of two firmly connected metal plates having different temperature coefficients of linear expansion. As the temperature changes, the spring bends and rotates the thermometer arrow. One end of the spring is fixed inside the stem and the other end is connected to the arrow axis.
Dimensions of bimetallic radial thermometers Elephant TB-301-R1.5 PN10-25, stainless steel, length of immersion part 46-150mm, accuracy class - 1.5
| Model | Size | ||||
| D | Z | B | c | L | |
| 63 mm (0-160°C) L64 | 63 | 10 | 21 | 40 | 64 |
| 100 mm (-30-70°C) L64 | 100 | 10 | 21 | 51 | 64 |
| 100 mm (0-120°C) L46 | 100 | 10 | 21 | 51 | 46 |
| 100 mm (0-120°C) L64 | 100 | 10 | 21 | 51 | 64 |
| 100 mm (0-120°C) L100 | 100 | 10 | 21 | 51 | 100 |
| 100 mm (0-120°C) L150 | 100 | 10 | 21 | 51 | 150 |
| 100 mm (0-160°C) L64 | 100 | 10 | 21 | 51 | 64 |
| 100 mm (0-160°C) L100 | 100 | 10 | 21 | 51 | 100 |
| 100 mm (0-160°C) L150 | 100 | 10 | 21 | 51 | 150 |
Sketch of dimensions of bimetallic radial thermometers Elephant TB-301-R1.5 PN10-25, stainless steel, length of immersion part 46-150mm, accuracy class - 1.5
Materials of bimetallic radial thermometers Elephant TB-301-R1.5 PN10-25, stainless steel, length of immersion part 46-150mm, accuracy class - 1.5
| Name | Material |
| Housing material | stainless steel 304 |
| Sleeve material | copper alloy |
Reviews (0)
Reviews (0)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Available Variants
| SKU | Other length of the immersion part | Pressure | Price | Availability | Max Temperature | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|
| D070-06850 | 63 mm (0-160°C) L64 | 10 bar | €95,00 | Out of stock | - | ||
| D070-06851 | 100 mm (-30-70°C) L64 | 10 bar | €95,00 | Out of stock | - | ||
| D070-06852 | 100 mm (0-120°C) L46 | 10 bar | €95,00 | Out of stock | - | ||
| D070-06853 | 100 mm (0-120°C) L64 | 10 bar | €95,00 | Out of stock | - | ||
| D070-06854 | 100 mm (0-120°C) L100 | 25 bar | €95,00 | Out of stock | - | ||
| D070-06855 | 100 mm (0-120°C) L150 | 25 bar | €95,00 | Out of stock | - | ||
| D070-06856 | 100 mm (0-160°C) L64 | 16 bar | €95,00 | Out of stock | - | ||
| D070-06857 | 100 mm (0-160°C) L100 | 25 bar | €95,00 | Out of stock | - | ||
| D070-06858 | 100 mm (0-160°C) L150 | 25 bar | €95,00 | Out of stock | - |
