Elephant  |  SKU: D140-01114

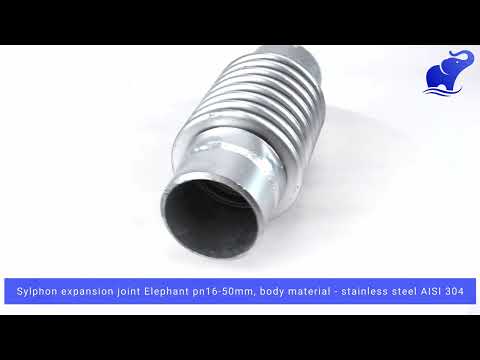

Bellows expansion joint Elephant pn16-60-80mm, body material - stainless steel AISI 304

€10,00
Shipping calculated at checkout.
Connection size
Pressure

Leave your email

Get notified as soon as this product is available, along with the latest updates on new collections, sales, offers, and product arrival dates.

Secure Your Preorder

Please fill out the form to submit your preorder request. Include your full name, email, phone number, shipping address, product SKU, quantity, preferred payment method, and any additional notes or questions.

Description

Bellows expansion joints, also known as bellows expansion joints, are devices consisting of a flexible metal bellows capable of absorbing thermal expansion, compression, or angular deflection in pipelines and systems. They are used to compensate for axial, lateral, and angular movements, providing stability to the system amidst temperature and pressure fluctuations. Bellows expansion joints are typically made from specialized materials, often stainless steel, and find wide applications in various industries where compensating for thermal expansions and contractions is essential, preventing damage to pipelines and equipment.

Overall dimensions of bellows axial expansion joints Elephant pn16-60-80mm, body material - stainless steel AISI 304

Overall dimensions of bellows axial expansion joints Elephant pn16-60-80mm, body material - stainless steel AISI 304

Sketch of overall dimensions of bellows axial expansion joints Elephant pn16-60-80mm, body material - stainless steel AISI 304

DN Permissible tensile strength, mm Permissible compression,mm OAL,
mm		 D,
mm		 A,
mm		 Axial stiffness, N/mm Weight, kg
50 30 30 240 57 4 150 0,6
65 30 30 240 76 4 184 1,5
80 30 30 250 88,9 4 203 2,1
100 30 30 270 108 4 226 2,5
125 30 30 250 133 4 239 2,6
150 30 30 270 159 5 211 3,8
200 40 40 300 219 6 284 9,2
250 40 40 315 273 6 339 12,6
300 40 40 320 325 8 313 13,8

Specifications
  • Body material
    Stainless steel AISI 304/1.4301
  • Maximum allowable temperature
    550 °C
  • Connection type
    For welding
  • Operating environment
    Water,air,liquid medium
  • Applications
    Heating systems,irrigation systems,ventilation systems
  • Nominal pressure
    16 bar
  • Type of seal
    None
  • Compression
    40 mm
