Ball valves Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball ma – Valve Elephant
Elephant  |  SKU: D160-63558

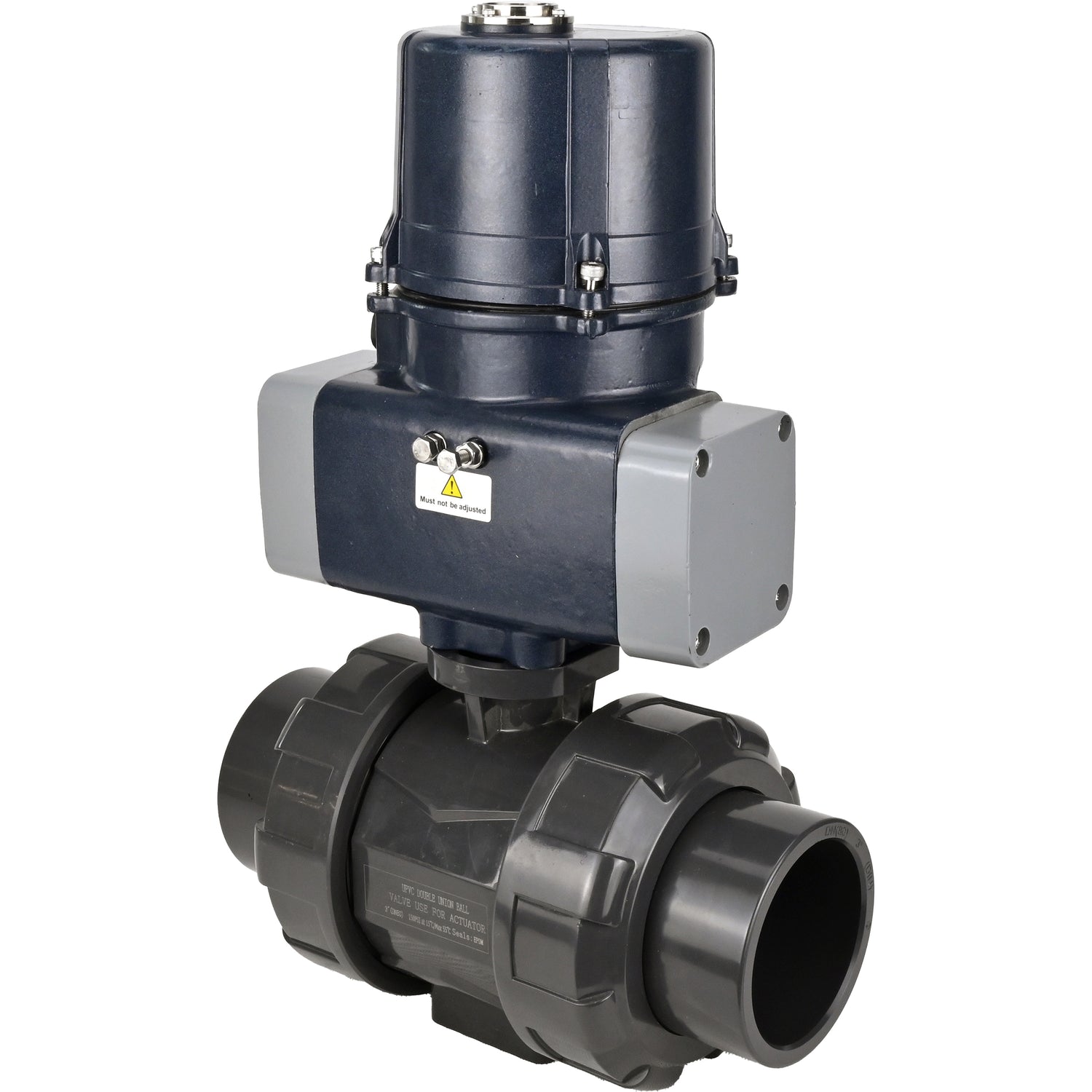

Ball valves Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with quarter-turn actuator QTSA-N-EM-O0-220VAC, spring return

€0,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A ball valve is used as a shut-off valve to shut off the flow of the working medium in pipelines.

Electric actuator with spring red color is designed for safe control of valves or dampers in case of loss of supply voltage. When changing in various industries.



Technical parameters of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Characteristic Meaning
Type of flow section full bore
Diameter 15-100 mm
Nominal pressure 10 bar
Working medium temperature from 0 to +45°C
Application Water Supply
Operating environment Liquids, Air and Gases
Connection type adhesive, with a detachable
coupling connection
Control type under the drive
Sealing class A
Manufacturer's country China
Warranty 12 months

Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem



Dimensions of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Model DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100
D, mm 56 65 75.5 86.5 101 121.5 153 175 194
d, mm 15 20 25 32 40 50 63 75 90
d1, mm 20.3 25.3 32.3 40.4 50.4 63.4 75.5 90.5 110.5
d2, mm 20 25 32 40 50 63 75 90 110.1
L, mm 123.5 137 148 165 176 197 279 307 354
L1, mm 23 26 29 32.5 35.5 38.5 65 70 84
L2, mm 67 74 77 88 93 105 134 148 157.5
H1, mm 66 77.5 89.5 103 116.5 138 171 194 220
H2, mm 27.5 32 37.5 43 50 60 76 88 99.5
H3, mm 8 8 8 12 12 13 16 16 17.5
SxS, mm 9x9 9x9 9x9 11x11 11x11 11x11 14x14 14x14 14x14

Sketch Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem





Materials of parts Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

№ Part Name Material
1 Body UPVC
2 Ball UPVC
3/4/
5/6		 O-ring seals EPDM
7 Rod Stainless steel AISI 304

Sketch of parts and materials Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem



Technical parameters of Elephant electric drives QTSA-N-EM-O0-220VAC:

Characteristic Meaning
Supply voltage 220V
Electric drive type quarter turn with spring return
Mechanical limiter yes
Angle of rotation 90±5°
Ambient temperature from -25 to +65 °C
Degree of protection IP67
Cable entry 2xM20x1.5
Body material aluminum alloy with polyester powder coating

Electric drives Elephant QTSA-N-EM-O0-220VAC



Dimensions of Elephant electric drives QTSA-N-EM-O0-220VAC:

Model A,
mm		 B,
mm		 C,
mm		 D,
mm		 E,
mm		 H,
mm
QTSA-N-003EM-O0-220VAC 229 303 162 145 75 17
QTSA-N-005EM-O0-220VAC 266 380 199 177 96 19
QTSA-N-007EM-O0-220VAC 266 380 199 177 96 19
QTSA-N-014EM-O0-220VAC 377 436 240 206 120 25
QTSA-N-020EM-O0-220VAC 377 436 240 206 120 25
QTSA-N-030EM-O0-220VAC 406 535 280 260 120 30

Sketch Electric drives Elephant QTSA-N-EM-O0-220VAC

Specifications
  • Country of origin
    China
  • Body material
    UPVC
  • Material ball
    UPVC
  • Maximum allowable temperature
    45 °C
  • Connection type
    Threaded
  • Control type
    Electric actuator
  • Operating environment
    Liquids, Air and Gases
  • Applications
    Water Supply
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Voltage
    220V
  • Explosion-proof
    No
  • Pneumatic actuator
    No
  • Manual override
    No
  • Limit switches
    Yes
  • Type of electric actuator
    Quarter-turn
  • Feedback sensor
    No
  • Angle of rotation
    90°
