Ball valves Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball ma – Valve Elephant
Elephant  |  SKU: D160-63879

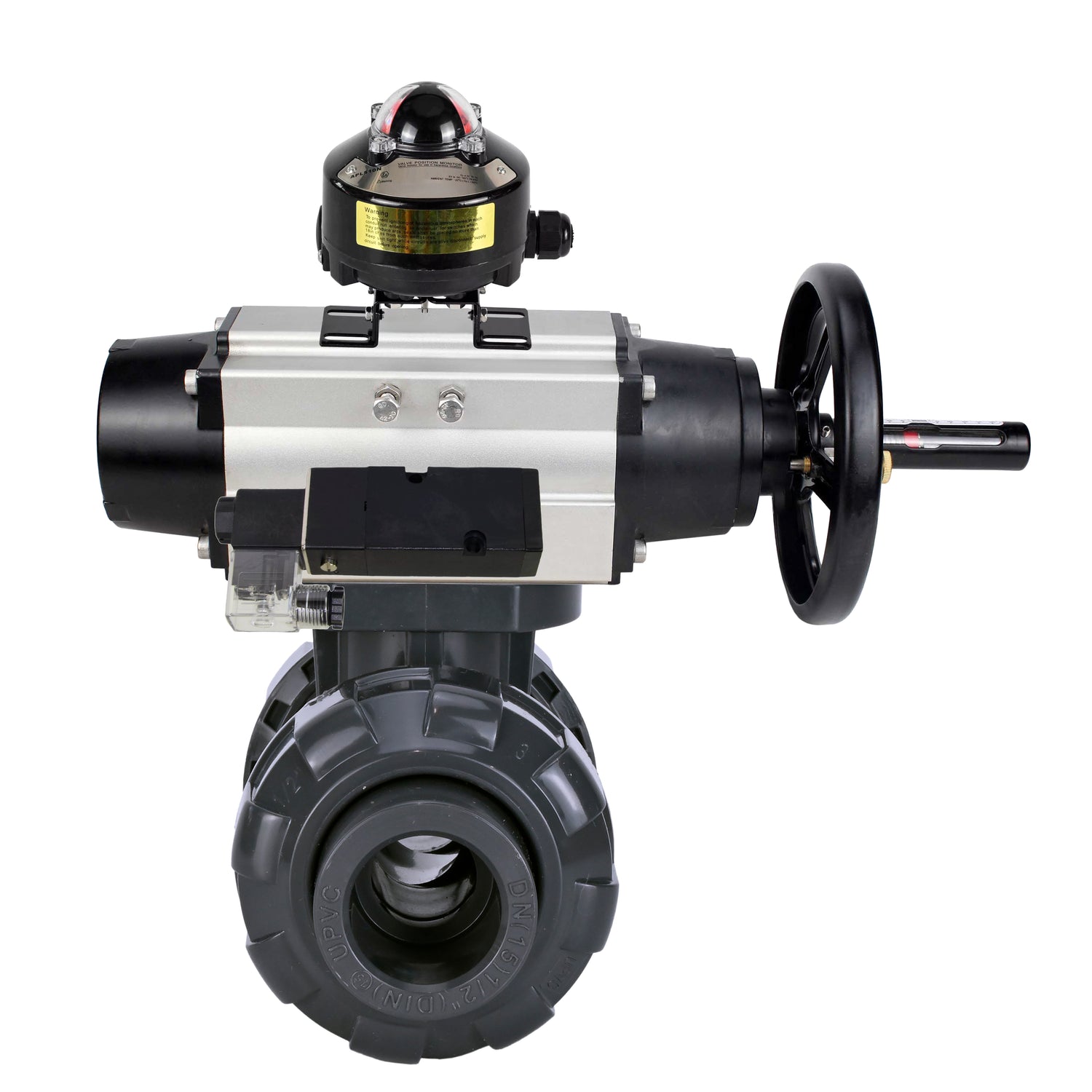

Ball valves Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA-105-1, pneumatic distributor 4M310-08 220V and LSU APL-510N EX

€0,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A ball valve is used as a shut-off valve to shut off the flow of the working medium in pipelines.

The rotary pneumatic actuator is designed to automate the process of controlling industrial valves.

The limit switch unit is an electrical device designed for opening and closing of the working circuit and for visualisation of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalise extreme positions.

Pneumatic valves are used for control in pneumatic systems with NAMUR docking surface, for installation of valves through holes in the housing.



Technical parameters of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Characteristic Meaning
Type of flow section full bore
Diameter 15-100 mm
Nominal pressure 10 bar
Working medium temperature from 0 to +45°C
Application Water Supply
Operating environment Liquids, Air and Gases
Connection type adhesive, with a detachable
coupling connection
Control type under the drive
Sealing class A
Manufacturer's country China
Warranty 12 months

Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem



Dimensions of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Model DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100
D, mm 56 65 75.5 86.5 101 121.5 153 175 194
d, mm 15 20 25 32 40 50 63 75 90
d1, mm 20.3 25.3 32.3 40.4 50.4 63.4 75.5 90.5 110.5
d2, mm 20 25 32 40 50 63 75 90 110.1
L, mm 123.5 137 148 165 176 197 279 307 354
L1, mm 23 26 29 32.5 35.5 38.5 65 70 84
L2, mm 67 74 77 88 93 105 134 148 157.5
H1, mm 66 77.5 89.5 103 116.5 138 171 194 220
H2, mm 27.5 32 37.5 43 50 60 76 88 99.5
H3, mm 8 8 8 12 12 13 16 16 17.5
SxS, mm 9x9 9x9 9x9 11x11 11x11 11x11 14x14 14x14 14x14

Sketch Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem





Materials of parts Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

№ Part Name Material
1 Body UPVC
2 Ball UPVC
3/4/
5/6		 O-ring seals EPDM
7 Rod Stainless steel AISI 304

Sketch of parts and materials Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem



Technical parameters of Elephant pneumatic drives PA-DA-105-1:

Characteristic Meaning
Pneumatic drive type double acting
Control pressure 2-8 bar
Operating temperature from -20 to +80 °C
Angle of rotation 90±5°
Visual position indicator open / closed
Manual control flywheel
Air supply connection thread G1/4

Pneumatic drives Elephant PA-DA-105-1



Dimensions of Elephant pneumatic drives PA-DA-105-1:

Model A,
mm		 B,
mm		 C,
mm		 D,
mm		 G,
mm		 W,
mm
PA-DA-105-1 495 133 109.5 153 26 200

Sketch Pneumatic drives Elephant PA-DA-105-1



Technical parameters of Elephant limit switch APL-510N EX:

Characteristic Meaning
Terminal Block 8 cells 0.08-2.5mm2
Voltage 250V
Rated current 16A
Indicator Position CLOSED: red, OPEN: yellow
Ambient temperature from -20 to +66 °C
Cable Entry Thread 2 x NPT3/4"
Sensor two mechanical switches,
two proximity sensors
Body IP67/NEMA4 4X,7,9;
E EX d IIC T6

Limit switch Elephant APL-510N EX



Dimensions of Elephant limit switch APL-510N EX:

A, mm 118
B, mm 118
C, mm 138.4
D, mm 17
E, mm 19
F, mm 7
G, mm 3
H, mm 4
I, mm 59
J, mm 59
K, mm 59
L, mm 59
M, mm 121.4
Ød1, mm 50
Ød2, mm 5

Sketch Limit switch Elephant APL-510N EX

Technical parameters of Elephant pneumatic distributor 4M310-08 220V:

Characteristic Meaning
Design spool type
Body material anodized aluminum
Mounting through holes in the housing
Ambient temperature +5 to +50 °C
Working pressure 1.5-8 bar
Nominal pressure 12 bar
Supply voltage 220V
Protection class IP65

Pneumatic distributor Elephant 4M310-08 220V



Dimensions of Elephant pneumatic distributor 4M310-08 220V:

Depth, mm 27
Height, mm 69
Width, mm 134.5

Sketch Pneumatic distributor Elephant 4M310-08 220V

Specifications
  • Country of origin
    China
  • Body material
    UPVC
  • Material ball
    UPVC
  • Maximum allowable temperature
    45 °C
  • Connection type
    Threaded
  • Control type
    Pneumatic actuator
  • Operating environment
    Liquids, Air and Gases
  • Applications
    Water Supply
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Voltage
    220V
  • Electropneumatic positioner
    No
  • Pneumatic actuator
    Yes
  • Manual override
    Steering wheel
  • Limit switches
    Yes
  • Manual understudy
    No
  • Type of pneumatic actuator
    Double acting
  • Angle of rotation
    90°
