Ball valves Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball ma – Valve Elephant
Elephant  |  SKU: D160-63327

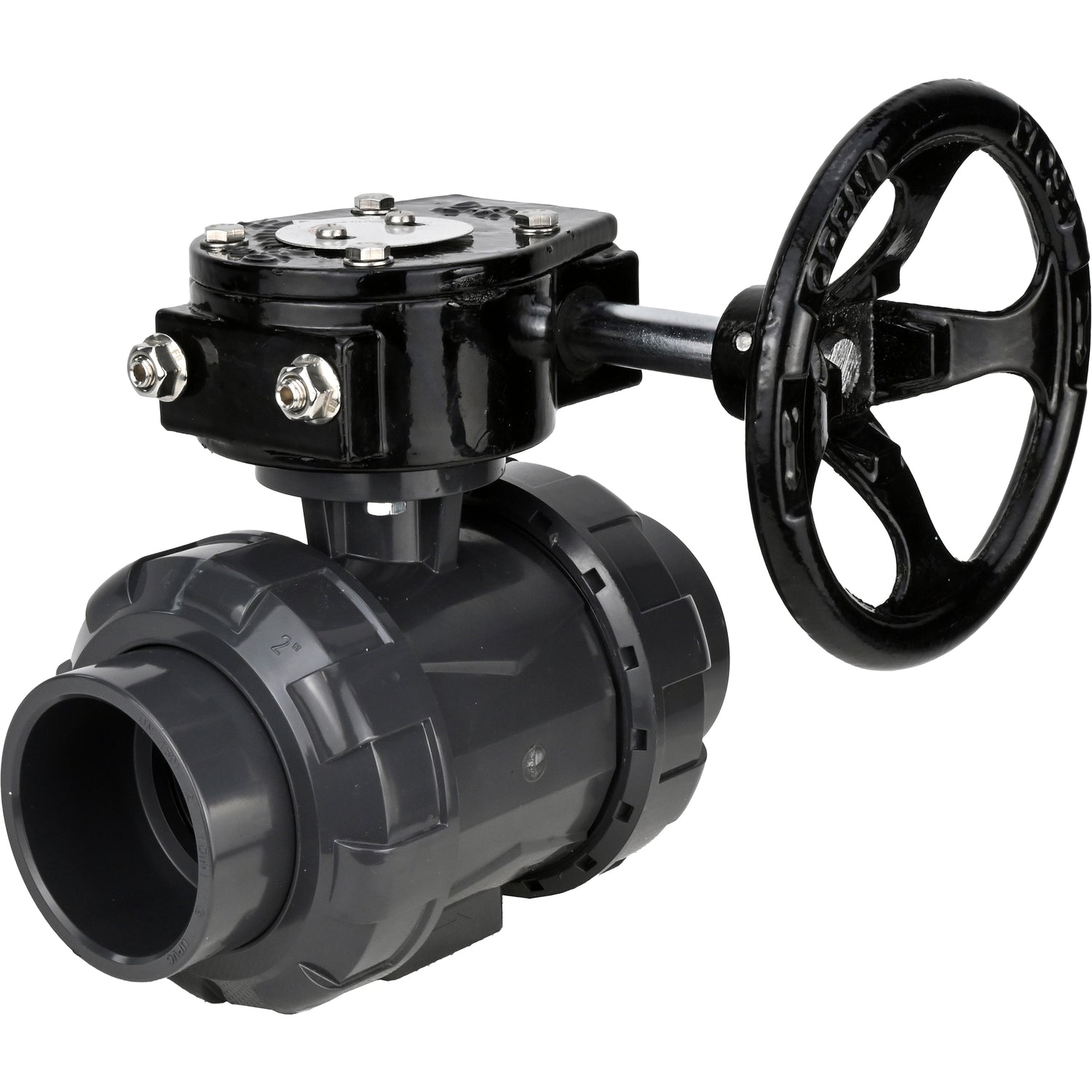

Ball valves Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with gearbox RDN RQN-Z

€0,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A ball valve is used as a shut-off valve to shut off the flow of the working medium in pipelines.

The Elephant RDN reducer allows you to manually set the required positioning of the shut-off element by a quarter of a turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn drives.



Technical parameters of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Characteristic Meaning
Type of flow section full bore
Diameter 15-100 mm
Nominal pressure 10 bar
Working medium temperature from 0 to +45°C
Application Water Supply
Operating environment Liquids, Air and Gases
Connection type adhesive, with a detachable
coupling connection
Control type under the drive
Sealing class A
Manufacturer's country China
Warranty 12 months

Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem



Dimensions of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Model DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100
D, mm 56 65 75.5 86.5 101 121.5 153 175 194
d, mm 15 20 25 32 40 50 63 75 90
d1, mm 20.3 25.3 32.3 40.4 50.4 63.4 75.5 90.5 110.5
d2, mm 20 25 32 40 50 63 75 90 110.1
L, mm 123.5 137 148 165 176 197 279 307 354
L1, mm 23 26 29 32.5 35.5 38.5 65 70 84
L2, mm 67 74 77 88 93 105 134 148 157.5
H1, mm 66 77.5 89.5 103 116.5 138 171 194 220
H2, mm 27.5 32 37.5 43 50 60 76 88 99.5
H3, mm 8 8 8 12 12 13 16 16 17.5
SxS, mm 9x9 9x9 9x9 11x11 11x11 11x11 14x14 14x14 14x14

Sketch Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem





Materials of parts Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

№ Part Name Material
1 Body UPVC
2 Ball UPVC
3/4/
5/6		 O-ring seals EPDM
7 Rod Stainless steel AISI 304

Sketch of parts and materials Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem



Technical parameters of Elephant RDN RQN gearboxes:

Characteristic Meaning
Working environment temperature from -40 to +120 °C
Working environment filtered compressed air or non-aggressive gases, oils
Degree of protection IP67
Application water supply, heating, ventilation, energy, air conditioning
Connection type ISO 5211

Gearboxes Elephant RDN RQN



Dimensions of Elephant RDN RQN gearboxes:

Model A,
mm		 B,
mm		 ØC,
mm		 D,
mm		 J,
mm		 G,
mm		 T,
mm		 ØF,
mm		 4M,
mm		 HxH,
mm
RDN-1 170 130 160 100 45 120 50 50 4-M8 9x9
RDN-2 170 130 160 100 45 120 50 50 4-M8 11x11
RDN-3 170 130 160 100 45 120 50 50 4-M8 14x14
RDN-4 240 160 260 130 55 150 70 100 4-M10 17x17
RDN-5 240 160 260 130 55 150 70 100 4-M12 22x22

Sketch Gearboxes Elephant RDN RQN

Specifications
  • Country of origin
    China
  • Body material
    UPVC
  • Material ball
    UPVC
  • Maximum allowable temperature
    45 °C
  • Connection type
    Threaded
  • Control type
    Gearbox
  • Operating environment
    Liquids, Air and Gases
  • Applications
    Water Supply
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Pneumatic actuator
    No
  • Limit switches
    No
