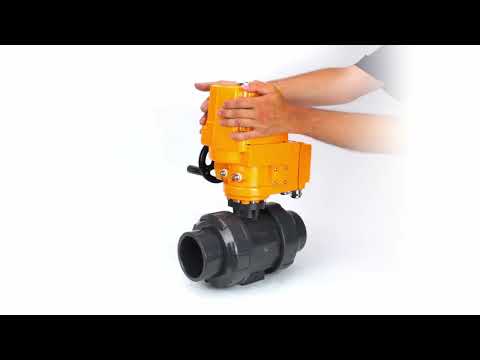

Ball valves Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with explosion-proof quarter-turn actuator QT-EX-EM-O2-380VAC-U1

€0,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A ball valve is used as a shut-off valve to shut off the flow of the working medium in pipelines.

Explosion-proof quarter-turn electric actuators are designed for remote and local control of 90° rotation of a shut-off element of such types as a ball valve, etc. They are widely used in various sectors of the national economy: in the gas, oil, metallurgy, food industries, in housing and communal services, etc. They are suitable for use in industrial explosion-hazardous areas.



Technical parameters of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Characteristic Meaning
Type of flow section full bore
Diameter 15-100 mm
Nominal pressure 10 bar
Working medium temperature from 0 to +45°C
Application Water Supply
Operating environment Liquids, Air and Gases
Connection type adhesive, with a detachable
coupling connection
Control type under the drive
Sealing class A
Manufacturer's country China
Warranty 12 months

Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem



Dimensions of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Model DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100
D, mm 56 65 75.5 86.5 101 121.5 153 175 194
d, mm 15 20 25 32 40 50 63 75 90
d1, mm 20.3 25.3 32.3 40.4 50.4 63.4 75.5 90.5 110.5
d2, mm 20 25 32 40 50 63 75 90 110.1
L, mm 123.5 137 148 165 176 197 279 307 354
L1, mm 23 26 29 32.5 35.5 38.5 65 70 84
L2, mm 67 74 77 88 93 105 134 148 157.5
H1, mm 66 77.5 89.5 103 116.5 138 171 194 220
H2, mm 27.5 32 37.5 43 50 60 76 88 99.5
H3, mm 8 8 8 12 12 13 16 16 17.5
SxS, mm 9x9 9x9 9x9 11x11 11x11 11x11 14x14 14x14 14x14

Sketch Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem





Materials of parts Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

№ Part Name Material
1 Body UPVC
2 Ball UPVC
3/4/
5/6		 O-ring seals EPDM
7 Rod Stainless steel AISI 304

Sketch of parts and materials Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem



Technical parameters of Elephant electric drives QT-EX-EM-O2-380VAC-U1:

Characteristic Meaning
Supply voltage 380V
Engine type asynchronous with squirrel cage rotor
Limit switches 1xOpen/Closed, SPDT, 250VAC 10A
Mechanical limiter two external adjustable limiters
Internal thermal protection switch-off at 115±5°C, switch-on at 97±5°C
Angle of rotation 90±10°
Ambient temperature from -20 to +70 °C
Degree of protection IP67
Cable entry M20х1.5 and M36x2
Explosion protection standard ExdIICT4
Body material aluminum alloy with epoxy powder anti-corrosion coating

Electric drives Elephant QT-EX-EM-O2-380VAC-U1



Dimensions of Elephant electric drives QT-EX-EM-O2-380VAC-U1:

Model W,
mm		 K,
mm		 K1,
mm		 L,
mm		 L1,
mm		 H,
mm
QT-EX-010EM-O2 160 70 230 240 68 270
QT-EX-015EM-O2 160 70 230 240 68 270
QT-EX-020EM-O2 160 80 250 260 75 280
QT-EX-030EM-O2 160 72 298 290 82 320
QT-EX-050EM-O2 160 72 298 290 82 320
QT-EX-080EM-O2 160 104 296 333 82 320
QT-EX-100EM-O2 160 104 296 333 93 350
QT-EX-160EM-O2 160 104 296 333 93 350
QT-EX-200EM-O2 160 104 296 333 93 350

Sketch Electric drives Elephant QT-EX-EM-O2-380VAC-U1

Specifications
  • Country of origin
    China
  • Body material
    UPVC
  • Material ball
    UPVC
  • Maximum allowable temperature
    45 °C
  • Connection type
    Threaded
  • Control type
    Electric actuator
  • Operating environment
    Liquids, Air and Gases
  • Applications
    Water Supply
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Voltage
    380V
  • Explosion-proof
    Yes
  • Pneumatic actuator
    No
  • Manual override
    Steering wheel
  • Limit switches
    Yes
  • Type of electric actuator
    Quarter-turn
  • Feedback sensor
    No
  • Angle of rotation
    90°

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-63489DN10010 bar €0,00 Sold out
