Ball valves Elephant BV4242E-FP-GRM-H, body material - UPVC, ball mate – Valve Elephant
Elephant  |  SKU: D160-62183

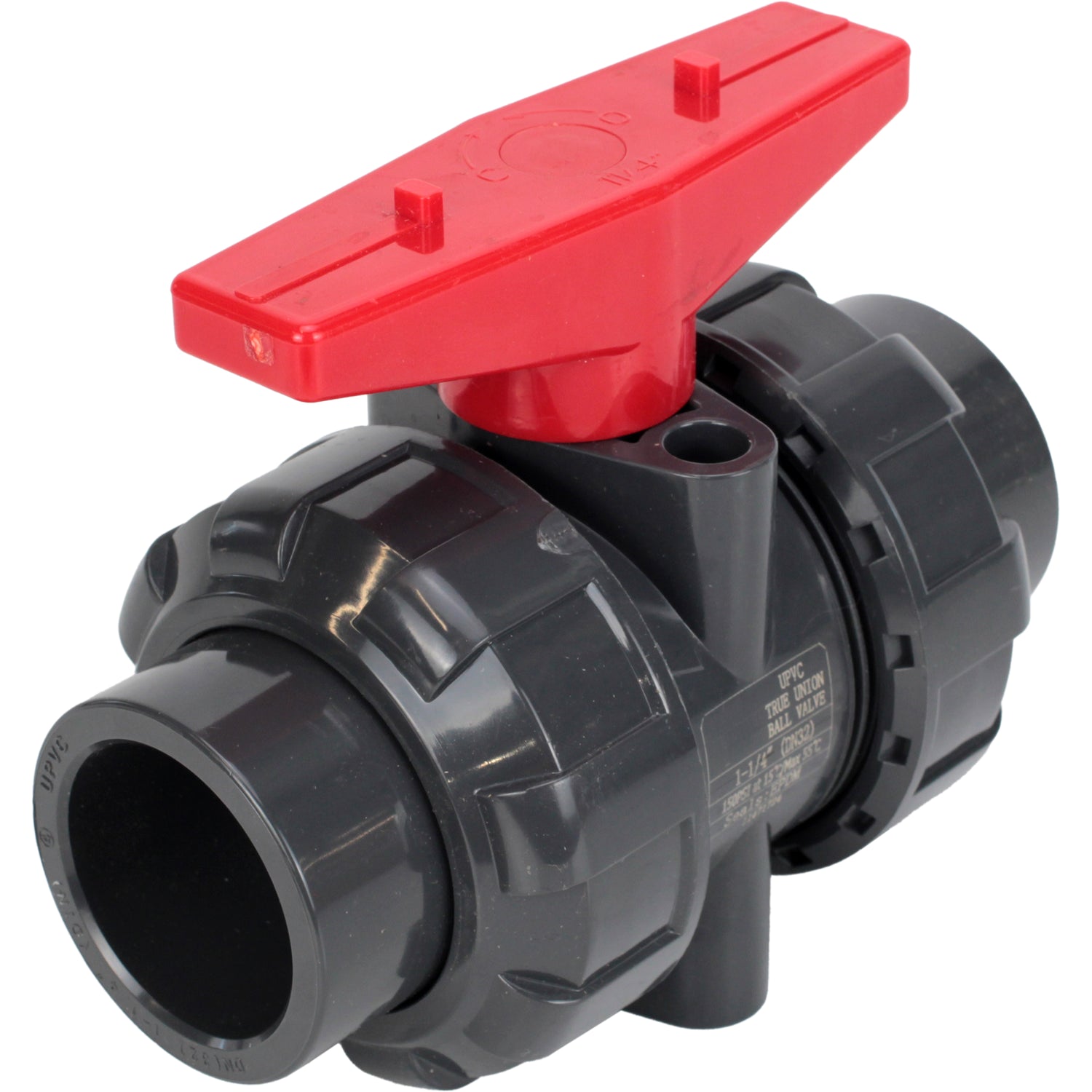

Ball valves Elephant BV4242E-FP-GRM-H, body material - UPVC, ball material - UPVC, seal - EPDM, with handle

€0,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A ball valve is used as a shut-off valve to shut off the flow of the working medium in pipelines.



Technical parameters of Elephant BV4242E-FP-GRM-H, body material - UPVC, ball material - UPVC, seal - EPDM, with handle:

Characteristic Meaning
Type of flow section full bore
Diameter 15-100 mm
Nominal pressure 10 bar
Working medium temperature from 0 to +45°C
Application Water Supply
Operating environment Liquids, Air and Gases
Connection type adhesive, with a detachable
coupling connection
Control type Manual (handle, gearbox)
Sealing class A
Manufacturer's country China
Warranty 12 months

Ball valves BV4242E-FP-GRM-H, body material - UPVC, ball material - UPVC, seal - EPDM, with handle



Dimensions of Elephant BV4242E-FP-GRM-H, body material - UPVC, ball material - UPVC, seal - EPDM, with handle:

Model DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100
D, mm 54 63 73.5 84.5 98 118 150 172 190
d, mm 15 20 25 32 40 50 63 75 90
d1, mm 20.3 25.3 32.3 40.4 50.4 63.4 75.5 90.5 110.5
d2, mm 20 25 32 40 50 63 75 90 110.1
L, mm 110 117 132 148 162.5 177.5 274 305 356
L1, mm 23 26 29 32.5 35.5 38.5 65 70 84
L2, mm 62 63 72 79.5 90 98 147 163 185
H1, mm 52.5 61.5 68.5 79.5 91 106 143 156 165
H2, mm 27.5 31.5 37 43 50 60 76 86 98
W, mm 85 90 107 117 129 141 210 230 277

Sketch Ball valves BV4242E-FP-GRM-H, body material - UPVC, ball material - UPVC, seal - EPDM, with handle





Materials of parts Elephant BV4242E-FP-GRM-H, body material - UPVC, ball material - UPVC, seal - EPDM, with handle:

№ Part Name Material
1 Body UPVC
2 Ball UPVC
3/4/
5/6		 O-ring seals EPDM
7 Handle ABS plastic
8 Rod Stainless steel AISI 304

Sketch of parts and materials Ball valves BV4242E-FP-GRM-H, body material - UPVC, ball material - UPVC, seal - EPDM, with handle

Specifications
  • Country of origin
    China
  • Body material
    UPVC
  • Material ball
    UPVC
  • Maximum allowable temperature
    45 °C
  • Connection type
    Threaded
  • Control type
    Manual (handle, gearbox)
  • Operating environment
    Liquids, Air and Gases
  • Applications
    Water Supply
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Limit switches
    No

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-62183DN1510 bar €0,00 Sold out
    D160-62184DN2010 bar €0,00 Sold out
    D160-62185DN2510 bar €0,00 Sold out
    D160-62186DN3210 bar €0,00 Sold out
    D160-62187DN4010 bar €0,00 Sold out
    D160-62188DN5010 bar €0,00 Sold out
    D160-62189DN6510 bar €0,00 Sold out
    D160-62190DN8010 bar €0,00 Sold out
    D160-62191DN10010 bar €0,00 Sold out
