Ball valves Elephant BV3232P(4pc)-SP-3L-T-ISO-H 3-way L-type standard – Valve Elephant
Elephant  |  SKU: D160-53071

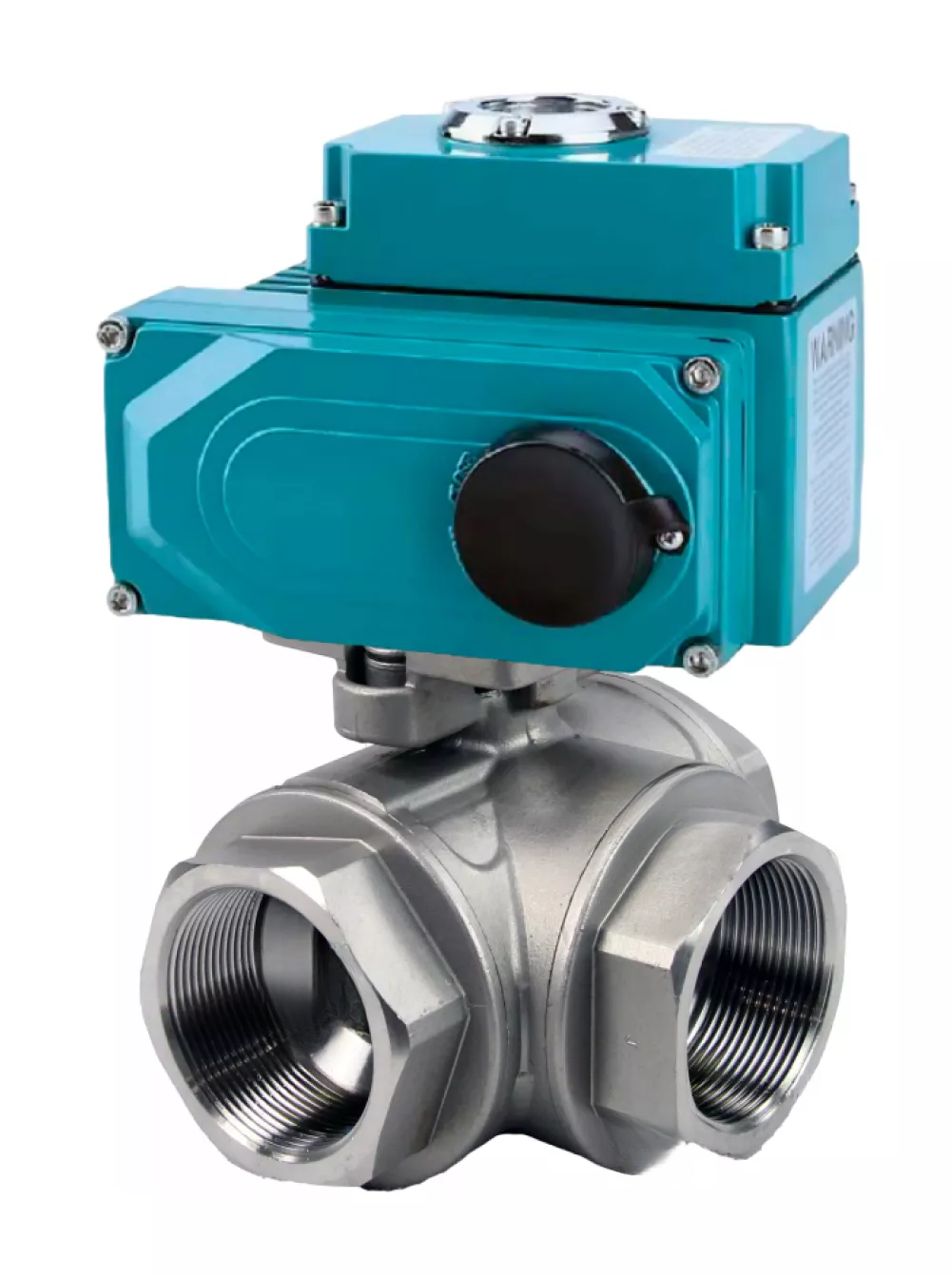

Ball valves Elephant BV3232P(4pc)-SP-3L-T-ISO-H 3-way L-type standard bore, threaded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM- O1-220VAC-U1 220V HARK

€641,15
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(4pc)-SP-3L-T-ISO-H 3-way L-type standard bore, threaded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM- O1-220VAC-U1 220V HARK - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

The shut-off of the working flow occurs by means of a locking element, which is a ball with a through cylindrical hole. The handle installed on the body rotates the ball around the axis. To completely shut off the flow, it is enough to turn it by an angle of 90 degrees.

Quarter-turn electric actuators are designed for remote and local control of shut-off pipeline valves with a quarter-turn shut-off element. They are used in various sectors of the national economy: in the gas, oil, metallurgy, food industries, in housing and communal services, etc.





Technical characteristics of ball valves Elephant BV3232P(4pc)-SP-3L-T-ISO-H 3-way L-type standard bore, threaded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM- O1-220VAC-U1 220V HARK

Nominal diameter DN, mm 10-100
Nominal pressure PN, bar 63
Temperature of working environment t, ⁰C from -20 to +200
Working environment water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap
Connection to the pipeline threaded
Type of flow section standard pass
Addition installation of electric or
pneumatic drive is possible (ISO 5211-2001)





Sketch of dimensions and sizes of ball valves Elephant BV3232P(4pc)-SP-3L-T-ISO-H 3-way L-type standard bore, threaded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM- O1-220VAC-U1 220V HARK



Dimensions and sizes of ball valves Elephant BV3232P(4pc)-SP-3L-T-ISO-H 3-way L-type standard bore, threaded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM- O1-220VAC-U1 220V HARK

D.N.
Electric drive model 		Dimensions, mm
D L Y
10 QT-N-020EMT 10 71 123
15 15 71 123
20 20 82 123
25 25 98 123
32 32 118 123
40 40 122 123
50 50 150 123
65 65 178 241.8
80 80 202 241.8
100 100 231 241.8







Materials of parts of ball valves Elephant BV3232P(4pc)-SP-3L-T-ISO-H 3-way L-type standard bore, threaded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM- O1-220VAC-U1 220V HARK

Item No. Part name Material Quantity
1 Lid SS316 3
2 Saddle rings PPL 4
3 Laying the connection PTFE/RPTFE 3
4 Thrust washer PTFE/RPTFE 1
5 Sealing PTFE/RPTFE 1
6 Stock SS304/SS316 1
7 Seal SS304 1
8 screw SS304 2
9 Ball valve SS304/SS316 1
10 Frame SS316 1





Image of electric drives Elephant QT-N-xEMT-O1-x-UHL1 with thermal protection and heater



Technical electric drives Elephant QT2-N-xEM-O1-x-U1m

Electric drive type quarter turn
Engine type asynchronous
Rotation angle, ° 90±5
Body material aluminum alloy, epoxy powder coated
Shaft material alloy steel
Supply voltage 380V/AC, 50Hz
Cable entry gland 2xM18
Connection type ISO 5211
Self-locking device self-locking worm and worm gear
Automatic shut-off in the open, closed and jammed positions 2 limit switches
+ 2 additional switches (dry contact);
Thermal protection switch on at 120°C ±5°C;
switch off at 97°C ±5°C
Mechanical limitation of output shaft rotation 2 external adjustable stoppers
Housing protection class IP67
Noise level, dB ≤ 50
Heater power, W 5
Ambient temperature, °C from -20 to +70
Ambient humidity ≤95% (25°C)
Explosion protection of the housing No





Sketch of overall dimensions of electric drives Elephant QT2-N-xEM-O1-x-U1



Dimensions and sizes of electric drives Elephant QT2-N-xEM-O1-x-U1

Dimensions, mm ISO 5211
L H A B C D Rod size, square
241.8 157.5 119 118 112.3 26 22x22 F07/F10





Electric drive device diagram Elephant QT2-N-xEM-O1-x-U1



The device diagram of electric drives Elephant QT-N-xEM-O1-x-U1 HARK:

Item No. Name
1 Position indicator
2 Top cover
3 Control board
4 Capacitor
5 Push cams
6 Output shaft with worm wheel
7 Frame
8 Output shaft travel limiters
9 Worm shaft
10 Electric motor
11 Reducer
12 Gearbox cover

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    #ИМЯ?
  • Connection type
    Threaded
  • Control type
    Electrically driven
  • Operating environment
    Water, Steam, Petroleum Products, Neutral Media
  • Applications
    Water Supply
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    no
  • Torque
    2 Nm
  • Limit switches
    Yes
  • Actuator model
    QT-N-020EM-O1-220VAC-U1 HARK

Reviews (0)

Documentation
nullBall valve ELEPHANT BV32xP 4pc -SP-3x-T-ISO-H
nullElectric quarter-turn actuator ELEPHANT QT-N-xEM-O1-x-U1 HARK

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-53071DN1063 bar €641,15 0 In stock
    D160-53072DN1563 bar €640,19 Sold out
    D160-53073DN2063 bar €653,38 Sold out
    D160-53074DN2563 bar €672,41 Sold out
    D160-53075DN3263 bar €723,35 Sold out
    D160-53076DN4063 bar €713,14 Sold out
    D160-53077DN5063 bar €763,42 Sold out
    D160-53078DN6540 bar €1.215,26 Sold out
    D160-53079DN8040 bar €1.528,84 Sold out
    D160-53080DN10040 bar €1.956,32 Sold out
