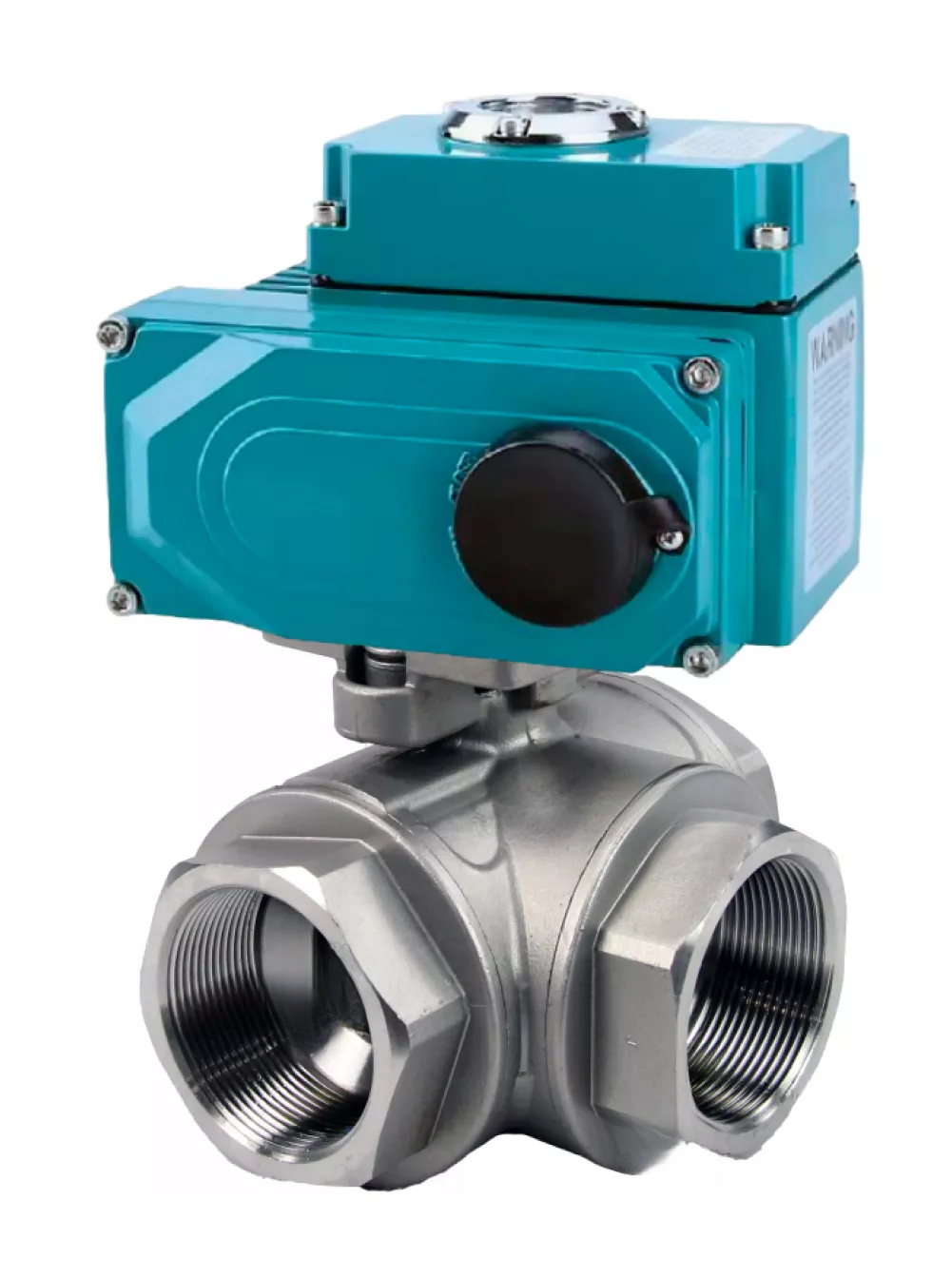

Ball valves Elephant BV3232P(4pc)-SP-3L-T-ISO-H 3-way L-type standard – Valve Elephant
Elephant  |  SKU: D160-53061

Ball valves Elephant BV3232P(4pc)-SP-3L-T-ISO-H 3-way L-type standard bore, threaded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-003EM- O1-24VDC-U1 24V HARK

€344,51
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(4pc)-SP-3L-T-ISO-H 3-way L-type standard bore, threaded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-003EM- O1-24VDC-U1 24V HARK - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), not aggressive to the materials of the valve.
Working flow is shut off by means of a locking element, which is a ball with a through cylindrical hole. With the help of a handle mounted on the body, the ball is rotated around the axis. It is sufficient to turn it by 90 degrees to completely shut off the flow.
Electric quarter-turn actuators are designed for remote and local control of shut-off pipeline valves having a quarter-turn shut-off valve. They are used in various branches of national economy: in gas, oil, metallurgical, food industry, housing and communal services, etc.






Technical characteristics of ball valves Elephant BV3232P(4pc)-SP-3L-T-ISO-H 3-way L-type standard bore, threaded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-003EM- O1-24VDC-U1 24V HARK:

Parameter

Value

Nominal diameter DN, mm

10–100

Nominal pressure PN, bar

63

Working medium temperature t, °C

From -20 to +200

Working medium

Water, steam, oil products, and other liquid or gaseous media neutral to the valve materials

Connection to pipeline

Threaded

Type of flow cross-section

Standard bore

Tightness class of ball valve

A

Additional option

Electric or pneumatic actuator installation possible (ISO 5211-2001)

Dimensions and sizes of ball valves Elephant BV3232P(4pc)-SP-3L-T-ISO-H 3-way L-type standard bore, threaded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-003EM- O1-24VDC-U1 24V HARK:

DN

Model
electronic actuator

Size, mm

D

L

Y

10

QT-N-003EMT

10

71

123

15

15

71

123

20

20

82

123

25

25

98

123

32

32

118

123

40

40

122

123

50

50

150

123




Materials of details of ball valves Elephant BV3232P(4pc)-SP-3L-T-ISO-H 3-way L-type standard bore, threaded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-003EM- O1-24VDC-U1 24V HARK:

№

Part name

Material

Quantity

1

Cover

SS316

3

2

Seat rings

PPL

4

3

Joint gasket

PTFE/RPTFE

3

4

Thrust washer

PTFE/RPTFE

1

5

Seal

PTFE/RPTFE

1

6

Stem

SS304/SS316

1

7

Gland

SS304

1

8

Nut

SS304

2

9

Ball

SS304/SS316

1

10

Body

SS316

1



Technical characteristics of electric actuators Elephant:

Parameter

Value

Type of electric actuator

Quarter-turn

Type of motor

Asynchronous

Angle of rotation, °

90±5

Body material

Aluminum alloy with epoxy powder coating

Shaft material

Alloy steel

Supply voltage

24V/DC

Cable entry

Sealed gland 2xM18

Type of connection

ISO 5211

Self-locking mechanism

Worm and worm gear self-locking

Automatic shut-off

2 limit switches (open/closed positions and in case of jamming)
+ 2 additional switches (dry contact)

Thermal protection

Activation at 120°C ±5°C
Deactivation at 97°C ±5°C

Insulation class

F

Mechanical output shaft rotation limit

2 external adjustable stops

Protection rating

IP67

Noise level, dB

≤ 50

Heater power, W

5

Ambient temperature, °C

From -20 to +70

Ambient humidity

≤ 95% (at 25°C)

Explosion-proof protection

No





Dimensions and sizes of electric actuators Elephant:

Model 003EMT
L, mm 123
H, mm 115
A, mm 101
B, mm 98
C, mm 74
D, mm 49
E, mm 34.5
F, mm 35
G, mm 5
Stem size, square, mm 14x14
ISO 5211 F05/F07




Device diagram of actuators Elephant QT-N-003EM- O1-24VDC-U1 24V HARK:

№

Name

1

Position indicator

2

Upper cover

3

Control board

4

Capacitor

5

Actuating cam followers

6

Output shaft with worm gear

7

Body

8

Output shaft travel limiters

9

Worm shaft

10

Electric motor

11

Gearbox

12

Gearbox cover





Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    #ИМЯ?
  • Connection type
    Threaded
  • Control type
    Electrically driven
  • Operating environment
    Water, Steam, Petroleum Products, Neutral Media
  • Applications
    Water Supply
  • Type of seal
    PTFE
  • Voltage
    24 V
  • Explosion-proof
    no
  • Torque
    2 Nm
  • Limit switches
    Yes
  • Actuator model
    QT-N-003EM-O1-24VDC-U1 HARK

Reviews (0)

Documentation
nullBall valve ELEPHANT BV32xP 4pc -SP-3x-T-ISO-H
nullElectric quarter-turn actuator ELEPHANT QT-N-xEM-O1-x-U1 HARK

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-53061DN1063 bar €344,51 0 In stock
    D160-53062DN1563 bar €343,55 Sold out
    D160-53063DN2063 bar €356,75 Sold out
    D160-53064DN2563 bar €325,08 Sold out
    D160-53065DN3263 bar €376,02 Sold out
    D160-53066DN4063 bar €416,50 Sold out
    D160-53067DN5063 bar €466,79 Sold out
    D160-53068DN6540 bar €1.202,82 Sold out
    D160-53069DN8040 bar €1.516,39 Sold out
    D160-53070DN10040 bar €1.943,88 Sold out
