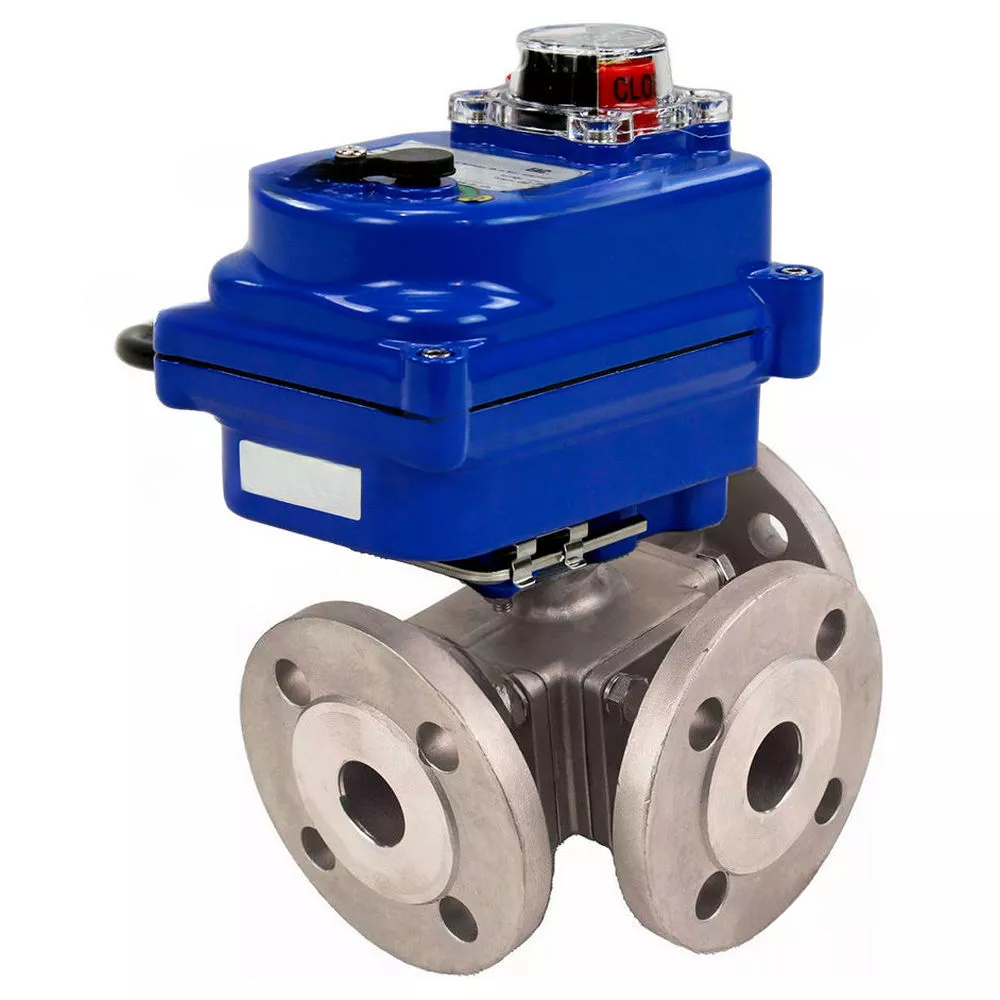

Ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore three-way, stainless steel SS316, flanged, seal - PTFE, with quarter-turn electric drive Elephant QT-N-EM-O1-220VAC-U1 blue
Ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore three-way, stainless steel SS316, flanged, seal - PTFE, with quarter-turn electric drive Elephant QT-N-EM-O1-220VAC-U1 blue - DN15 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The ball valve is used as a shut-off valve, as well as for mixing and separation of medium flows in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.
Electric quarter-turn actuators are designed for remote and local control of shut-off pipeline valves having a quarter-turn shut-off valve. They are used in various branches of national economy: in gas, oil, metallurgy, food industry, housing and utilities, etc.
Dimensions and dimensions of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore three-way, stainless steel SS316
| model | L, mm | D, mm | k, mm | d, mm | d1, mm | X, mm | H, mm |
| DN15 | 150 | 95 | 65 | 15 | 45 | 121 | 110.2 |
| DN20 | 160 | 105 | 75 | 18 | 58 | 121 | 110.2 |
| DN25 | 180 | 115 | 85 | 25 | 64 | 121 | 110.2 |
Sketch of dimensions and dimensions of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore three-way, stainless steel SS316
Table of parts and materials for ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore three-way, stainless steel SS316
| № | Name | Material |
| 1 | Case | SS316 stainless steel |
| 2 | Char | SS316 stainless steel |
| 3 | Sealing | PTFE |
| 4 | Enclosure cover | SS316 stainless steel |
| 5 | Bolt | SS316 stainless steel |
| 6 | Gasket | PTFE |
| 7 | Nut | SS304 stainless steel |
| 8 | Gasket | PTFE |
| 9 | Stem seal | PTFE |
| 10 | Bolt | SS304 stainless steel |
| 11 | gland | SS304 stainless steel |
| 13 | Stem | SS316 stainless steel |
Parts and materials sketch for ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore three-way, stainless steel SS316
Technical parameters of actuators Elephant QT-N-EM-O1-220VDC-U1 blue
| Name | Significance |
| Drive model | QT-N-EM-O1-220VDC-u1 blue |
| Power supply voltage | 220V |
| Limit switches | have |
Dimensions and dimensions of actuators Elephant QT-N-EM-O1-220VDC-U1 blue
| Model | QT-N-003EM-O1-220VDC-U1 blue |
| L, mm | 121 |
| A, mm | 79.93 |
| B, mm | 20.16 |
| C, mm | 25 |
| D, mm | 35 |
| E, mm | 25 |
| F, mm | 35 |
| H, mm | 110.2 |
| MxM, mm | 11x11 |
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environment
-
Applications
-
Type of seal
-
Voltage
-
Torque
-
Limit switches
-
Actuator model
