Elephant  |  SKU: D160-41975

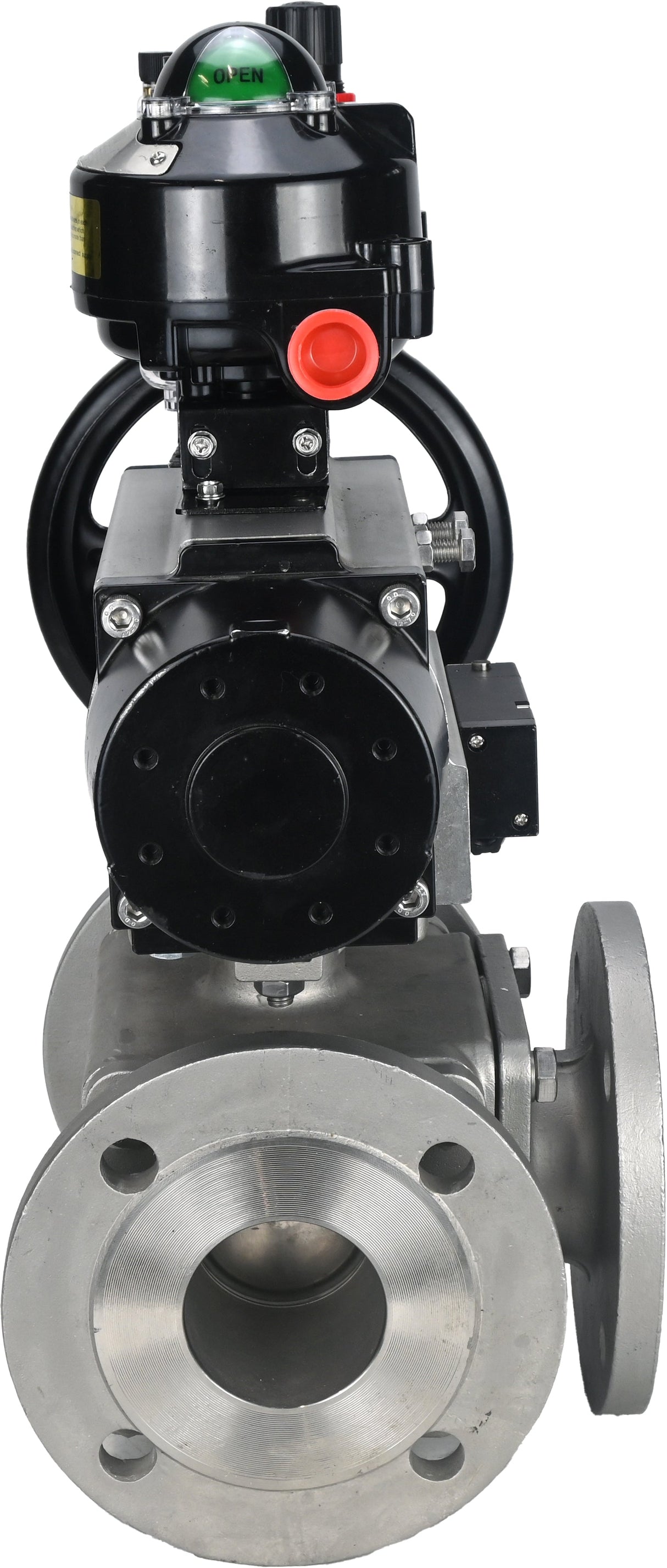

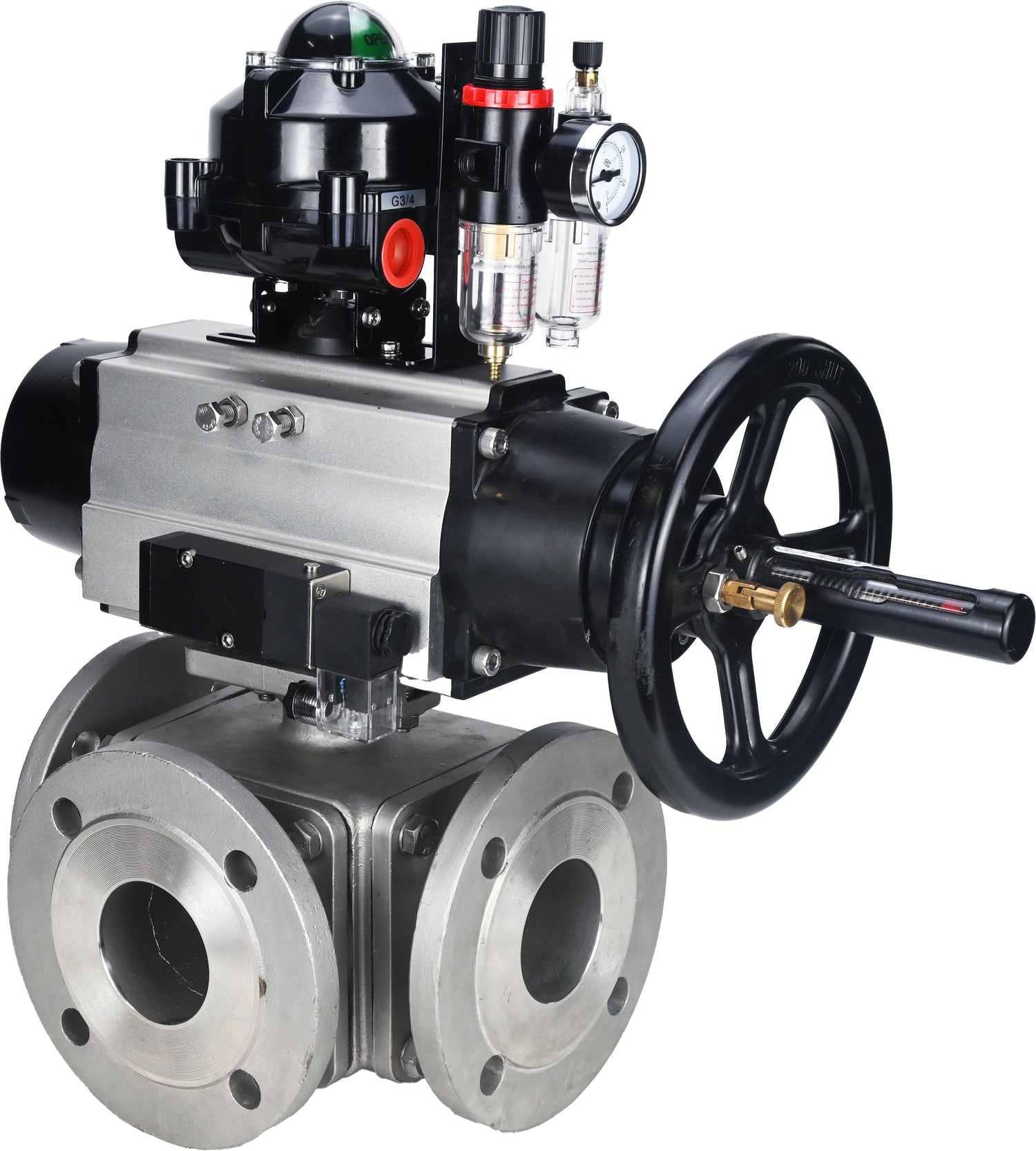

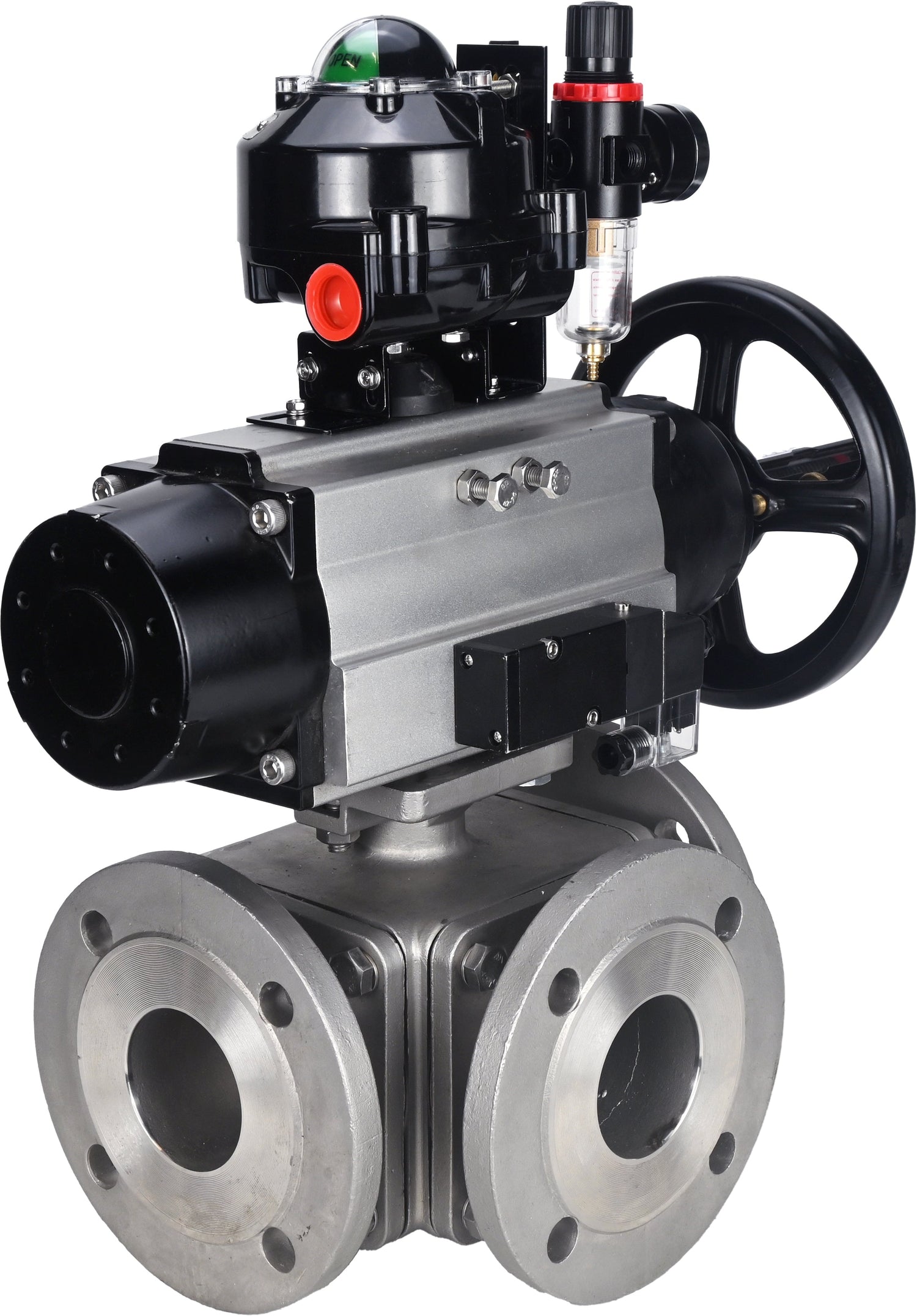

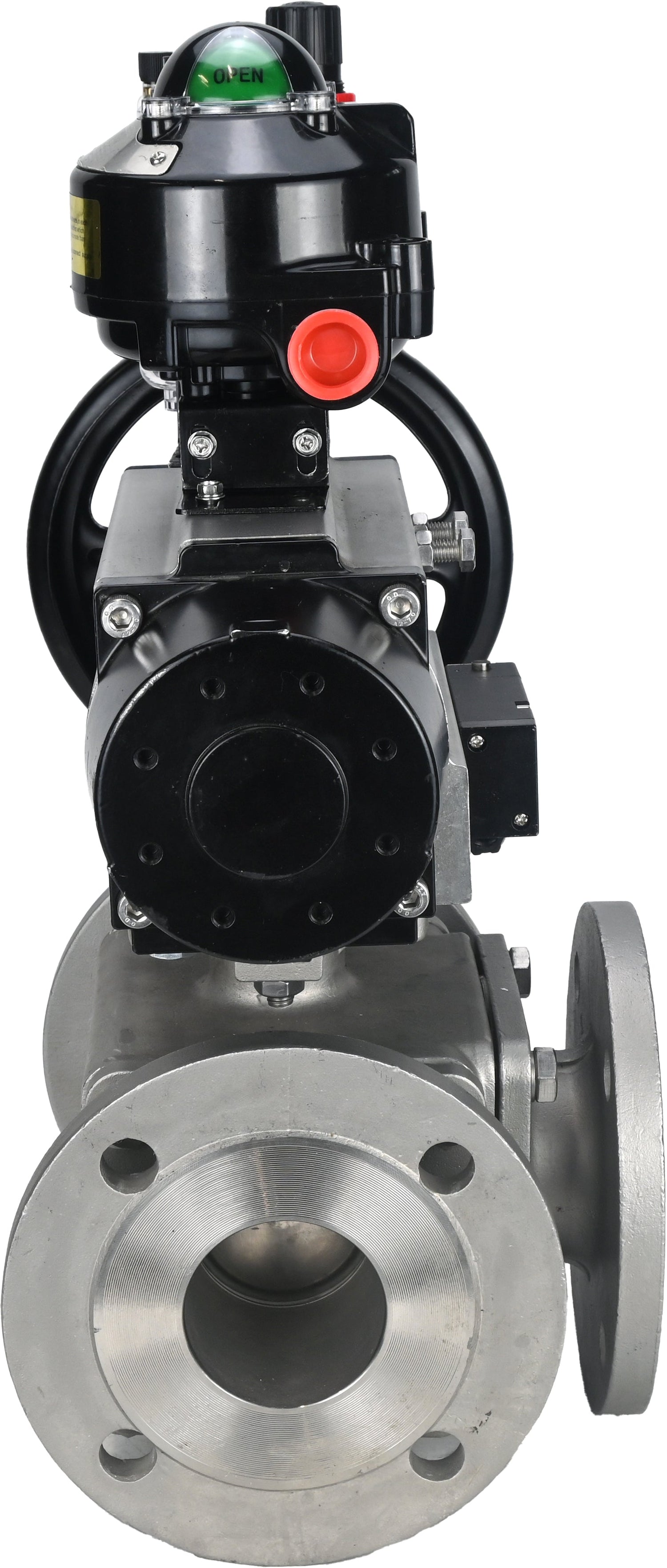

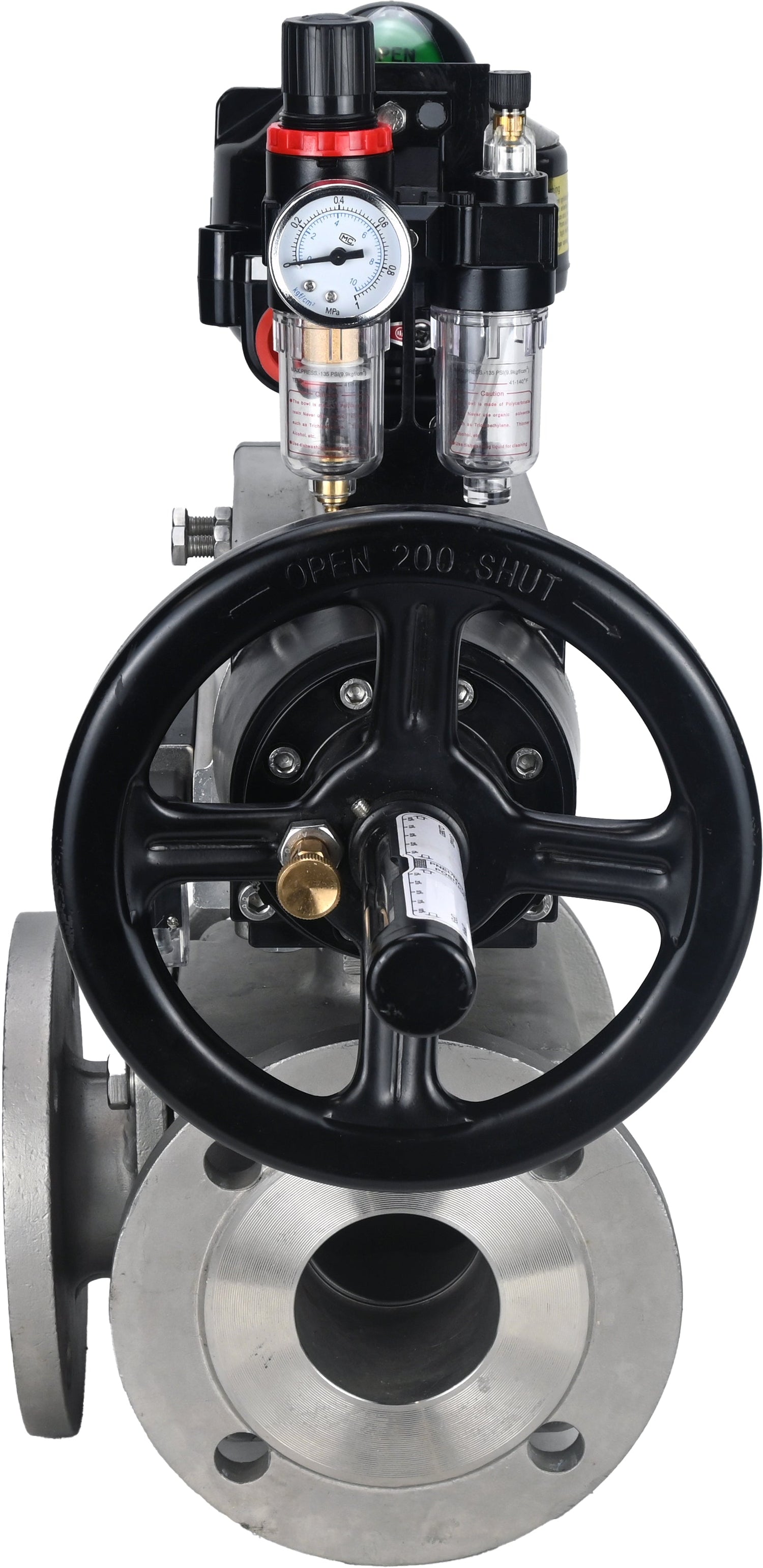

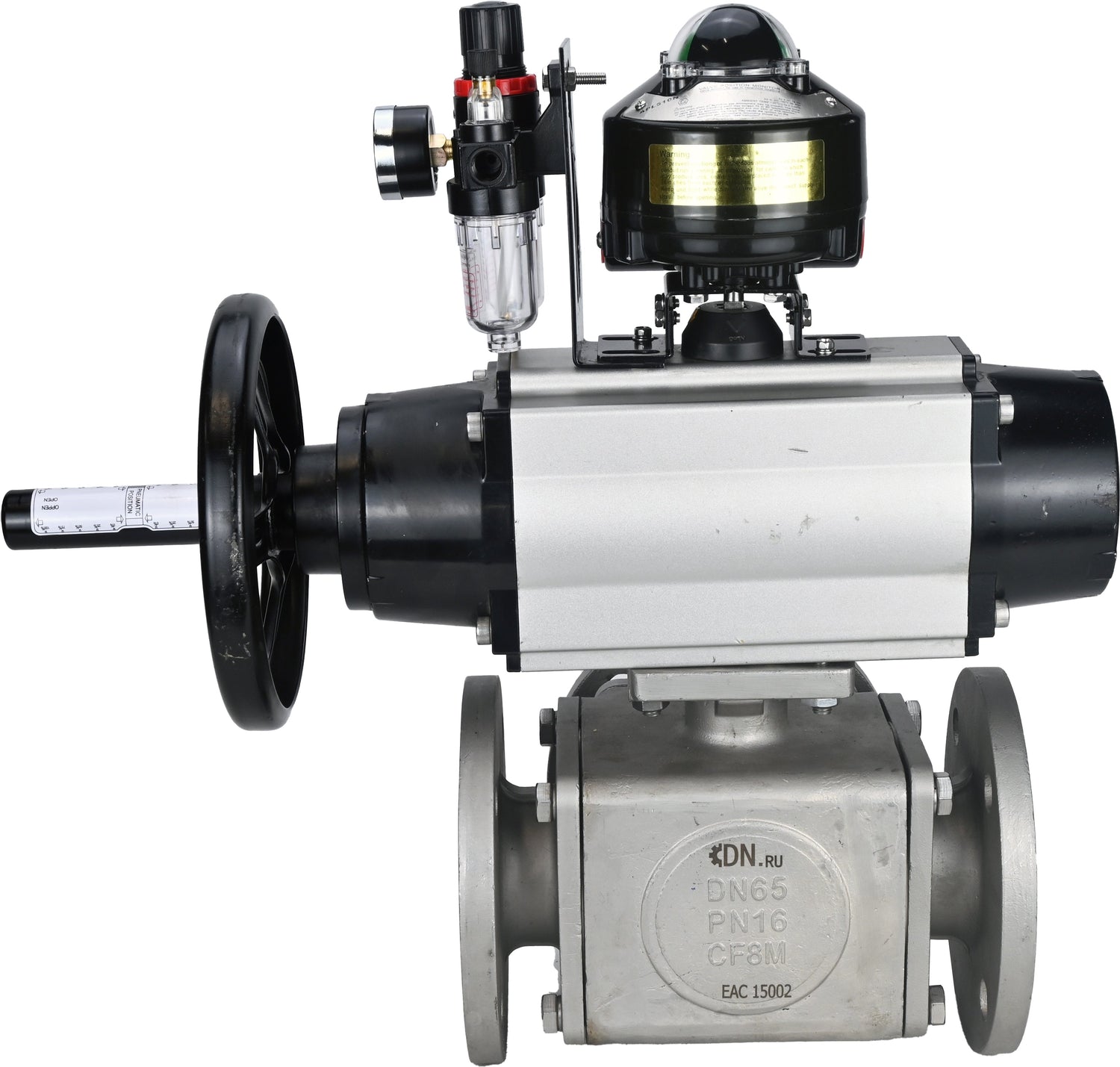

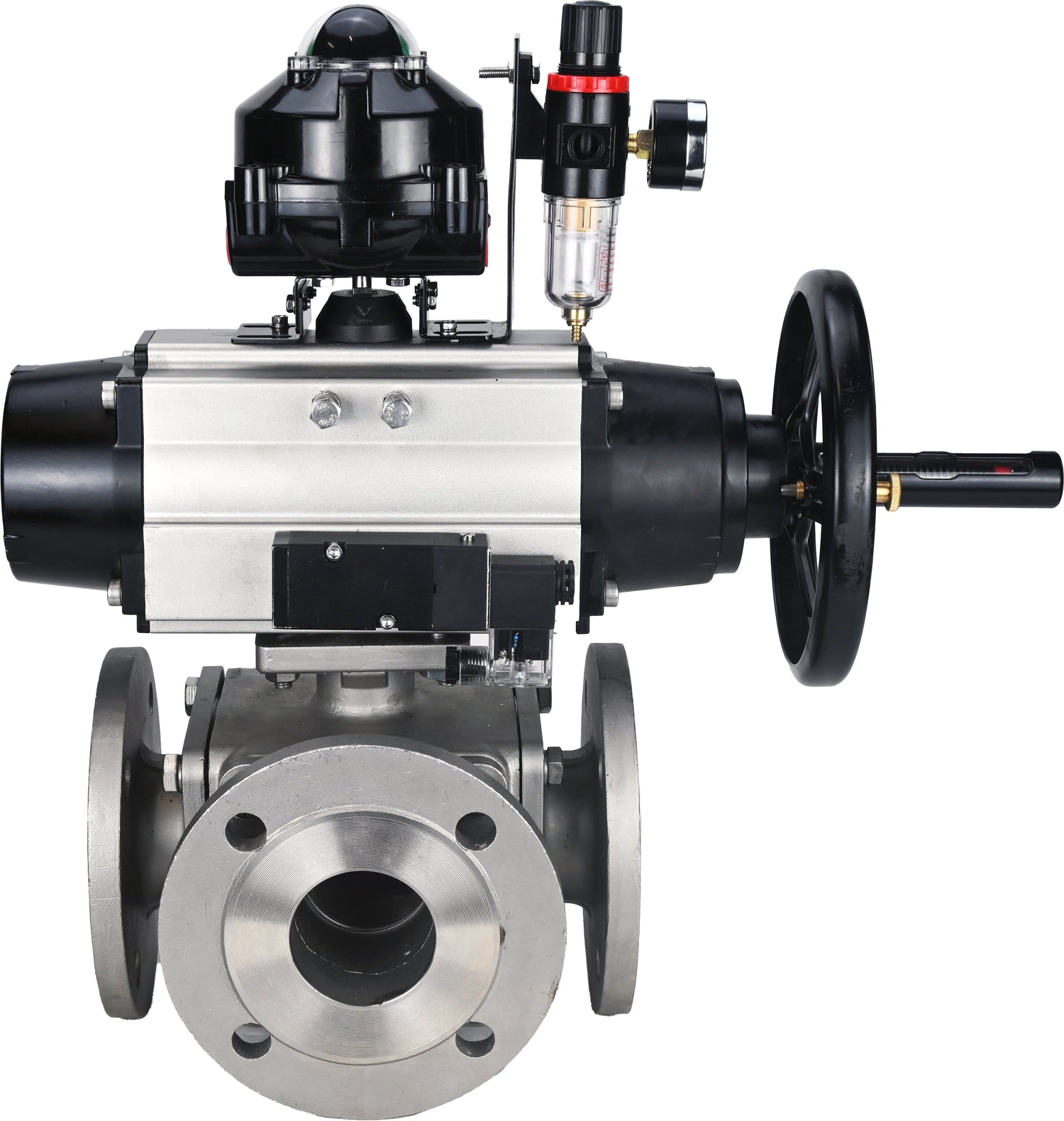

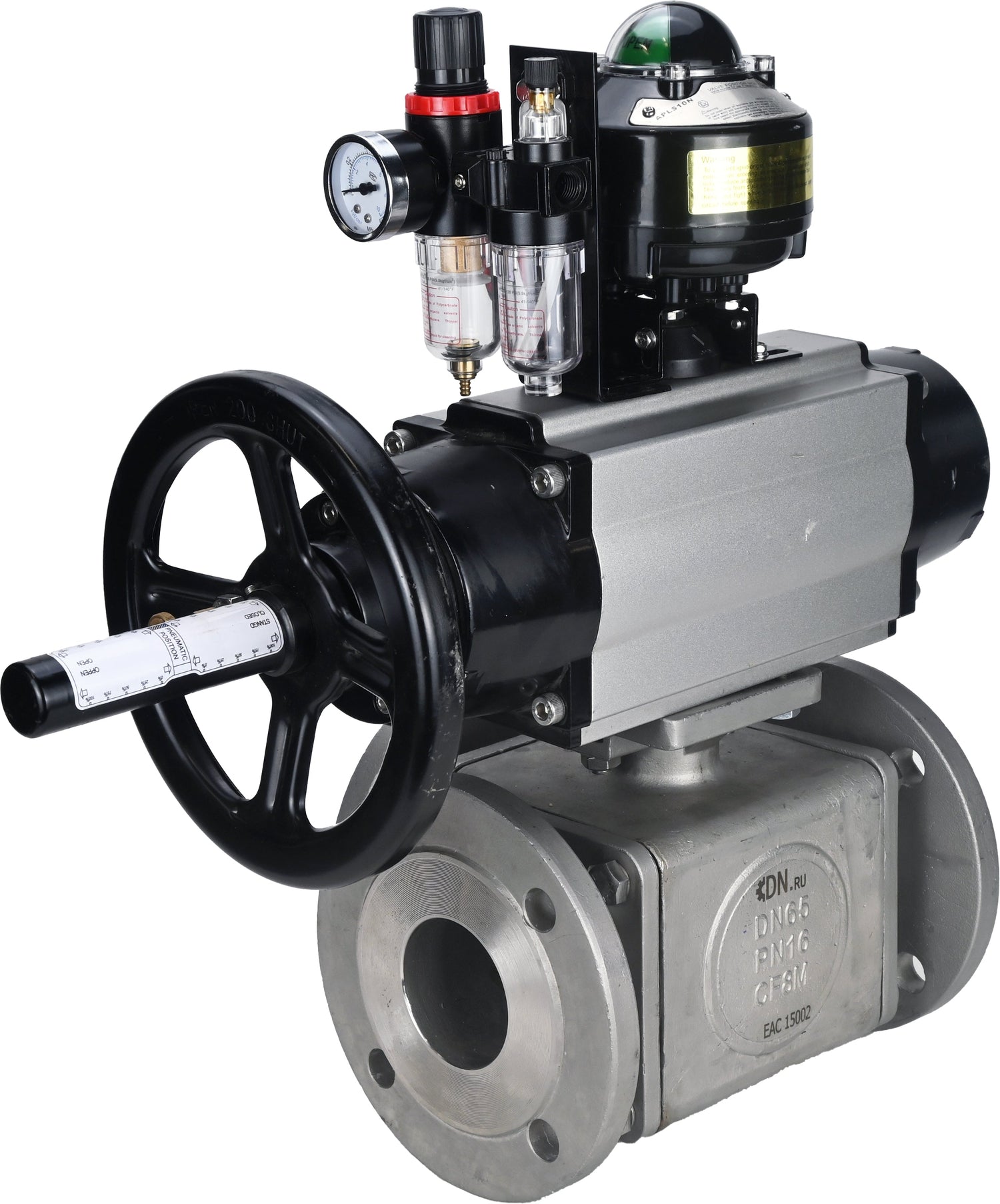

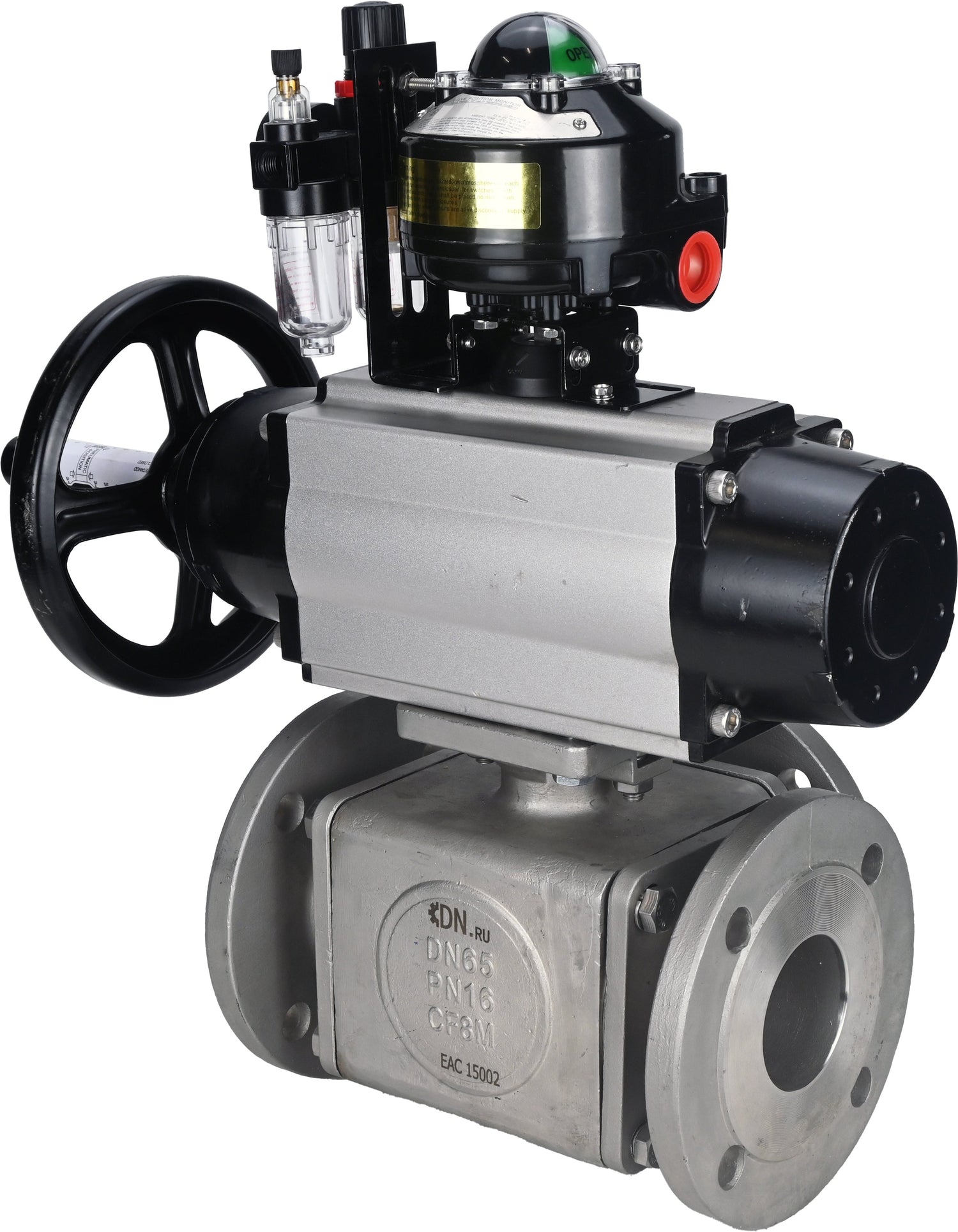

Ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H DN100 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F10/F12, square 19x19, with pneumatic actuator PA-DA-105-1, pneumatic distributor 4M310-08 220V, LSU APL-510N EX and ATU AFC2000

€2.768,14
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H DN100 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F10/F12, square 19x19, with pneumatic actuator PA-DA-105-1, pneumatic distributor 4M310-08 220V, LSU APL-510N EX and ATU AFC2000 - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve, as well as for mixing and separation of medium flows in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

The rotary pneumatic actuator is designed to automate the process of controlling industrial valves, as well as to determine the position of the valve shut-off body.





Technical parameters of ball valves Elephant Elephant BV3232P(4pc)-FP-3WL-F-ISO-H DN100 16 bar full bore, flanged, body - stainless steel SS316

Parameter Value
Nominal Pressure PN, bar 16
Operating Temperature, °C -25 to 180
Valve Type Three-way
Three-way Valve Type L
Application Water supply, heating supply
Operating Medium Water, steam, petroleum products, neutral and gaseous media
Pipeline Connection Flanged
Water-drawing No
Flow Section Type Full bore
Tightness Class A
Control Type Pneumatic actuator
Connection Type Flanged
Actuation Pneumatic actuator with return springs
Limit Switches Yes
Pneumatic Distributor Yes
Electropneumatic Positioner No
Average Service Life, years 10
Warranty, years 1
Country of Manufacture China





Dimensions and dimensions of ball valves Elephant Elephant BV3232P(4pc)-FP-3WL-F-ISO-H DN100 16 bar full bore, flanged, body - stainless steel SS316

Size L ØD ØD1 ØD2 A E I B C
100 325 220 180 158 495 200 162 88 139
Sketch dimensions and dimensions of ball valves Elephant Elephant BV3232P(4pc)-FP-3WL-F-ISO-H DN100 16 bar full bore, flanged, body - stainless steel SS316



Table of parts and materials for ball valves Elephant Elephant BV3232P(4pc)-FP-3WL-F-ISO-H DN100 16 bar full bore, flanged, body - stainless steel SS316

№ Part Name Material
1 Body Stainless Steel SS316
2 Ball Stainless Steel SS316
3 Seal PTFE
4 Body Cover Stainless Steel SS316
5 Bolt Stainless Steel SS304
6 Gasket PTFE
7 Nut Stainless Steel SS304
8 Gasket PTFE
9 Stem Seal PTFE
10 Bolt Stainless Steel SS304
11 Packing Gland Stainless Steel SS304

Parts and materials sketch for ball valves Elephant Elephant BV3232P(4pc)-FP-3WL-F-ISO-H DN100 16 bar full bore, flanged, body - stainless steel SS316





Technical parameters of pneumatic actuator PA-DA-105-1:

Type of pneumatic actuator double-acting
Control pressure, bar 2 ÷ 8
Operating temperature, °C -20 to +80
Visual position indicator open / closed

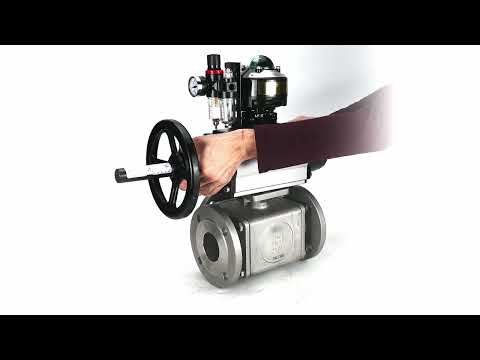

Manual control handwheel
Swivel angle, ° 90 ± 5
Top connection standard NAMUR
Air connection standard NAMUR
Air supply connection thread G 1/4ʺ
ISO flange type F07/F10
Stem square, mm 22x22
Weight, kg 9
Average life, cycles closed/open 300 000

Pneumatic actuator PA-DA-105-1





Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:

A, mm 495
A1, mm 461.5
B, mm 133
C, mm 109.5
D, mm 153
E, mm 57.5
F, mm 64
G, mm 26
H, mm 80
I, mm 30
N, mm 22
W, mm 200
J, mm 102
K, mm 70
L, mm M10x16
M, mm M8x13
O, mm 4
P, mm 4
S, mm M6
T, mm 24
U, mm 32

Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1





PA-DA-105-1 air actuator parts and materials table:

№ Part name Material
1 Indicator screw ABS (plastic)
2 Position indicator ABS (plastic)
3 Spring clip Stainless steel 304
4 Washer Stainless steel 304
5 External washer Engineering plastic
6 Adjustment screw Stainless steel 304
7 Nut Stainless steel 304
8 Washer Stainless steel 304
9 Body Extruded aluminum alloy
10 Piston Die cast aluminum alloy
11 Piston O-ring NBR
12 Bearing group Engineering plastic
13 End cap O-ring NBR
14 End cap Die cast aluminum alloy coated with polyester paint
15 Fixing screw Stainless steel 304
16 Internal washer Engineering plastic
17 Sealing ring NBR
18 Bearing Engineering plastic
19 Retainer Alloy steel
20 Gear Alloy steel
21 Bearing Engineering plastic
22 Sealing ring NBR

Parts and material sketch of the PA-DA-105-1 pneumatic actuator





Technical parameters of pneumatic valve Elephant 4M310-08 220V

Name Value
Pneumatic distributor model 4M310-08 220V
Operating pressure, bar 1.5 ÷ 1.8
Supply voltage, V 220V
Actuation frequency, cycles/sec 5





Dimensions and dimensions of Elephant 4M310-08 220V pneumatic directional control valve

Model 4M310-08
D, mm 32
E, mm 69
F, mm 40
I, mm 45
K, mm 40
L, mm 134.5
M, mm 40
N, mm 24
S, mm 27
U, mm 2.4
H, mm 17.5
Sketch of dimensions and dimensions of pneumatic valve Elephant




Technical parameters of limit switch unit Elephant APL-510N EX

Name Value
Limit switch box model APL-510N EX
Service life, years 10





Dimensions and dimensions of limit switch unit Elephant APL-510N EX

Model APL-510N EX
A, mm 118
B, mm 118
C, mm 138,4
D, mm 17
E, mm 19
F, mm 7
G, mm 3
H, mm 4
I, mm 59
J, mm 59
K, mm 59
L, mm 59
M, mm 121,4
Ød1, mm 50
Ød2, mm 5
Sketch of dimensions and dimensions of limit switch unit Elephant APL-510N EX



Technical parameters of Elephant AFC2000 air treatment unit

Name Value
Operating pressure, bar 8
Adjustable pressure range, bar 0.5 ÷ 9
Filtered particle size, µm 40 µm
Weight, kg 0.395




Dimensions and dimensions of Elephant AFC2000 air treatment unit

Model AFC2000
A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5
Sketch of dimensions and dimensions of Elephant AFC2000 air treatment unit

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Petroleum Products, Neutral Media, Gaseous Media
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    have
  • Torque
    157 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    double action
