Elephant  |  SKU: D160-44025

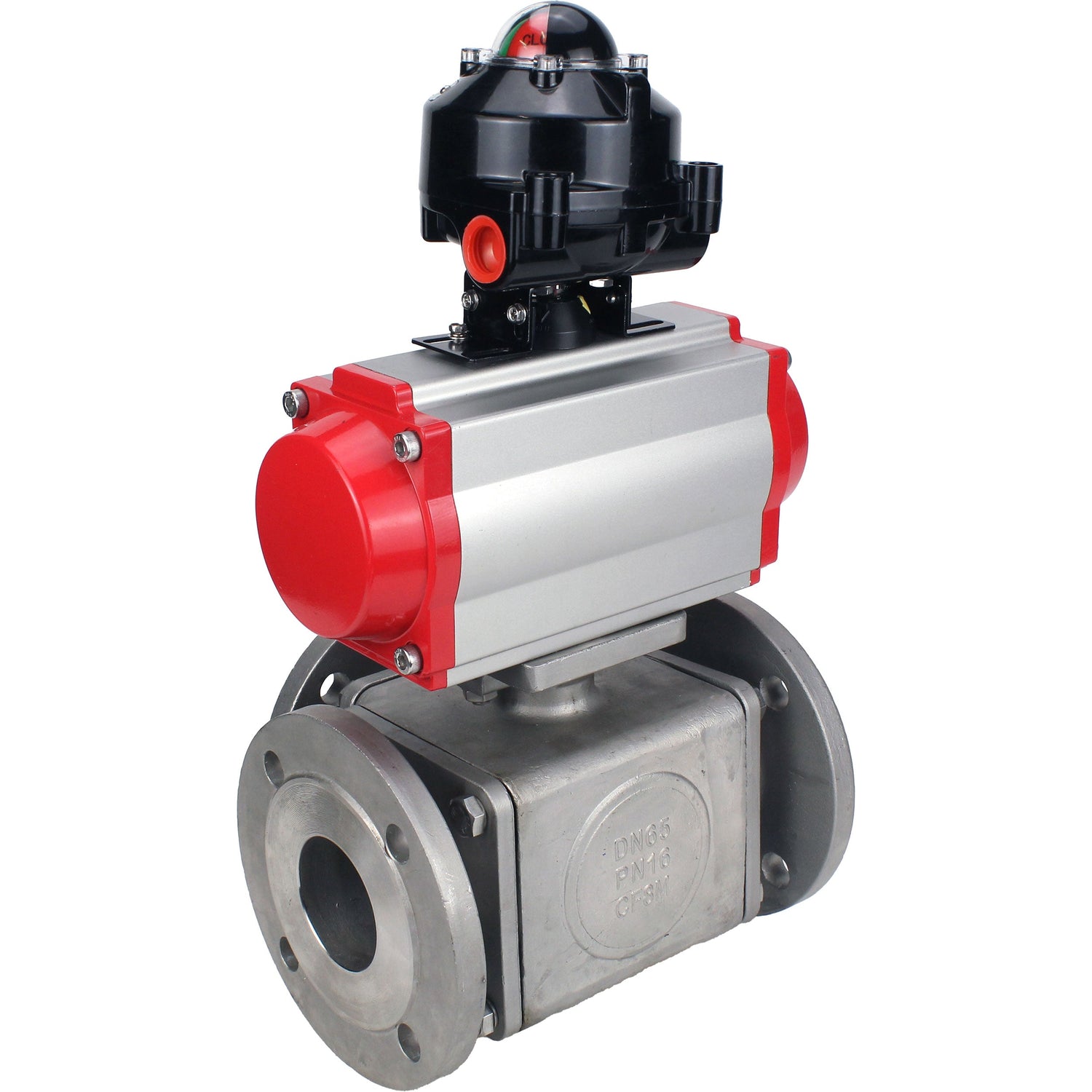

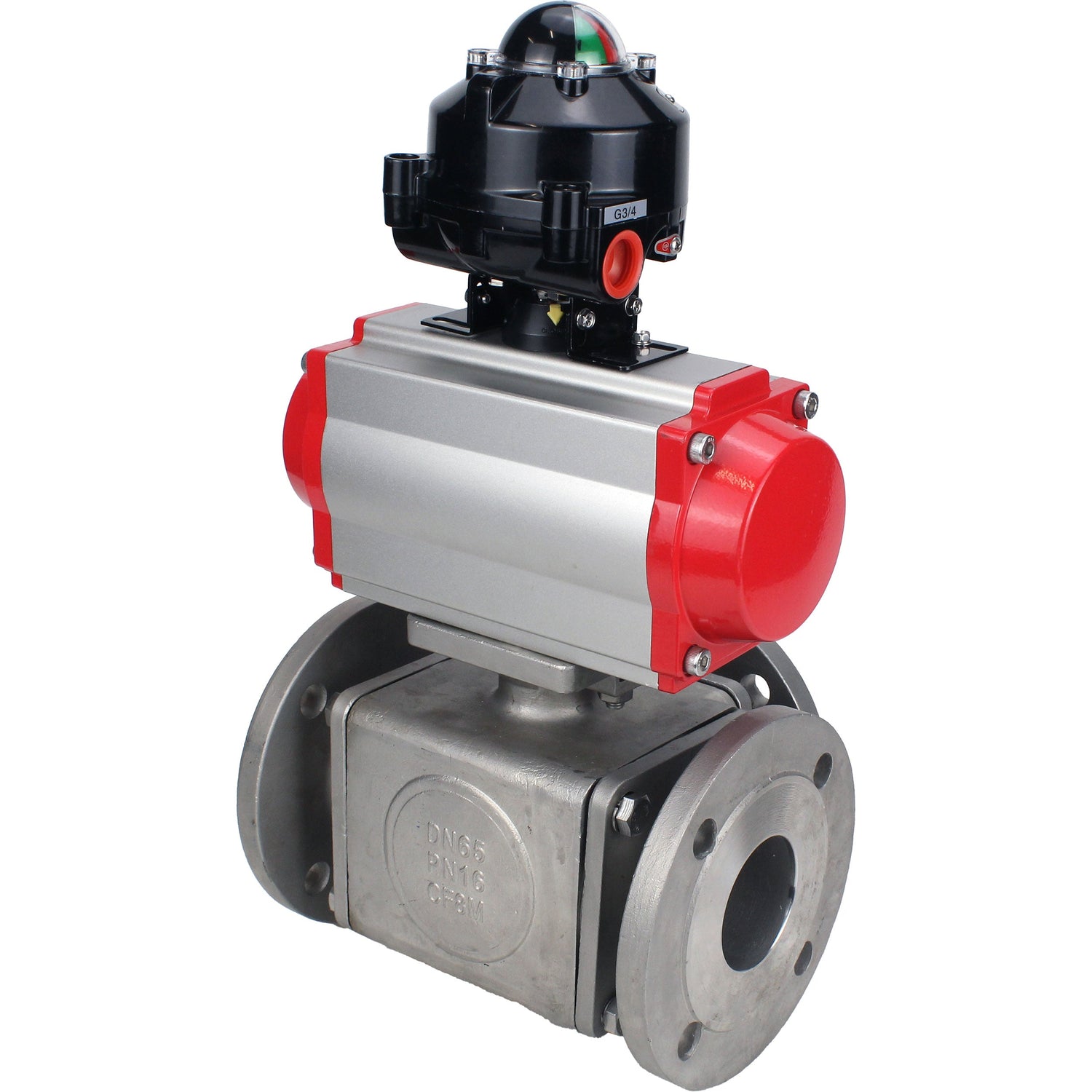

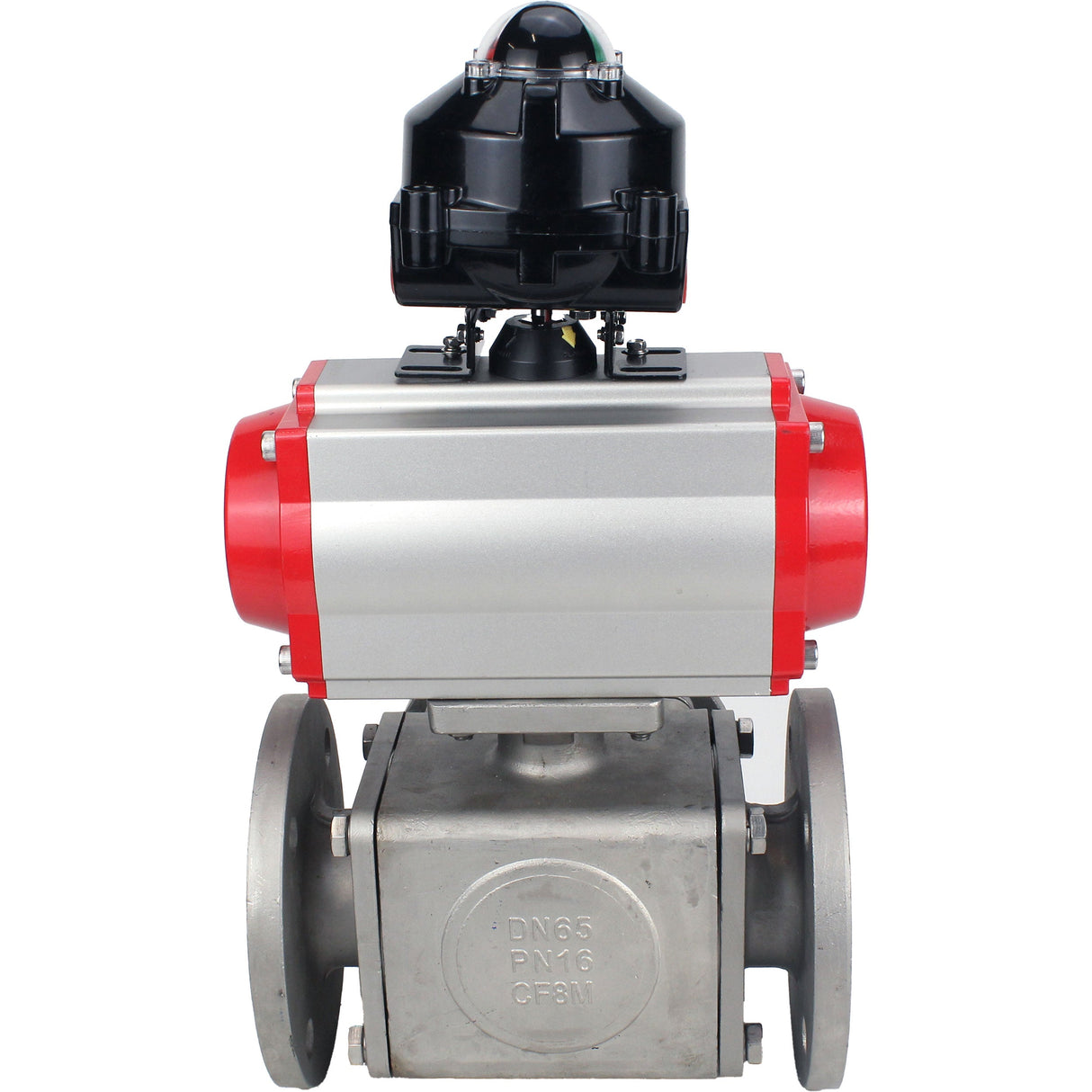

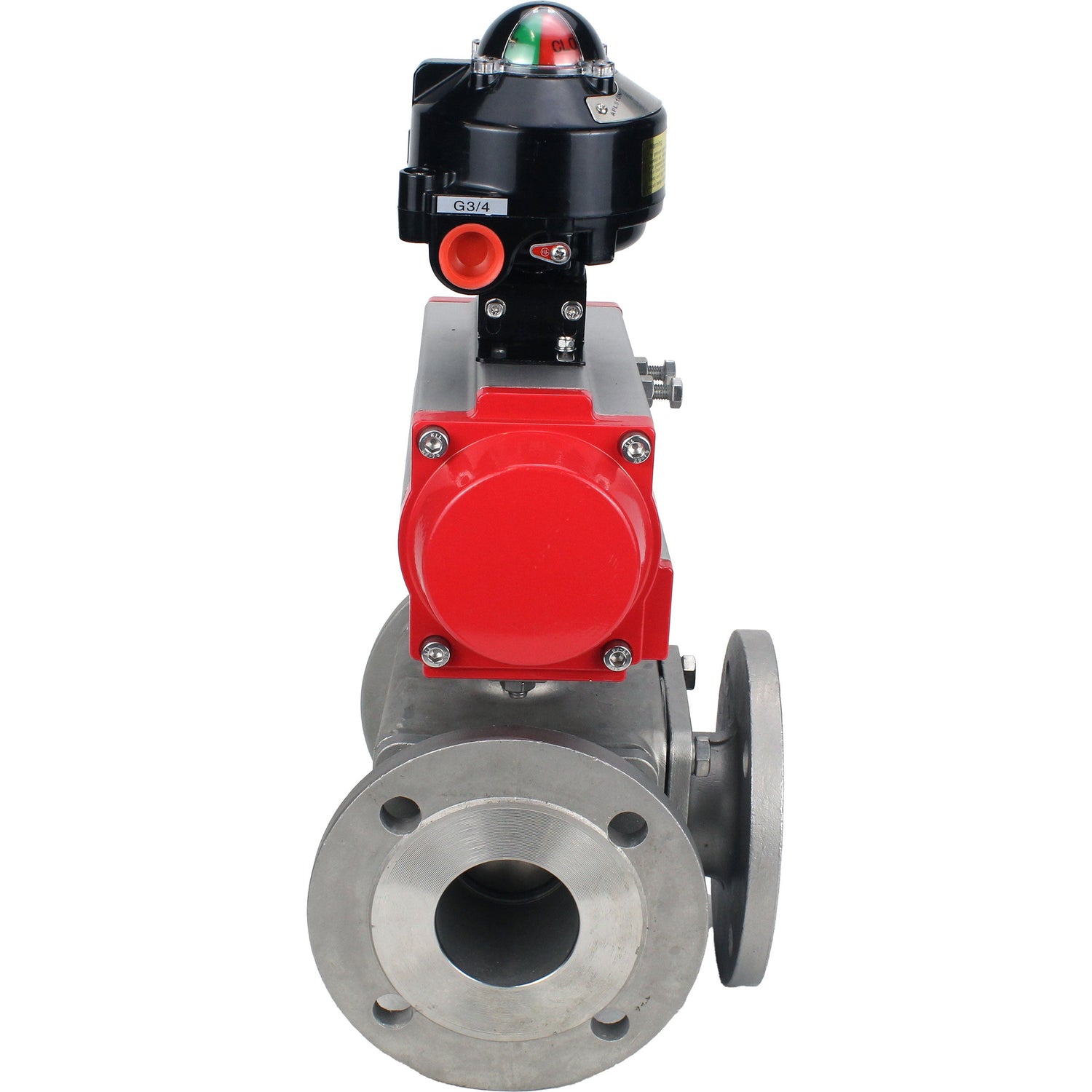

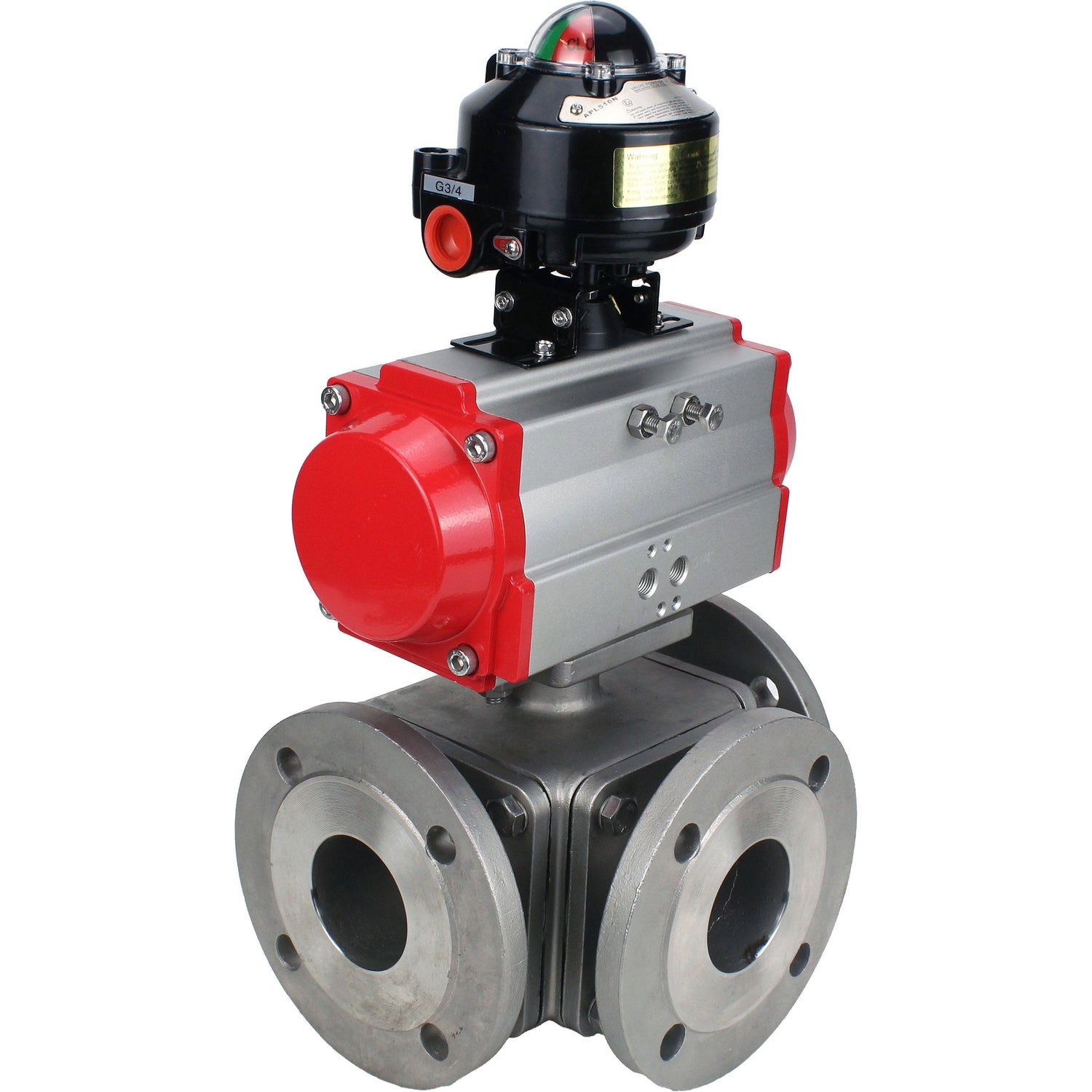

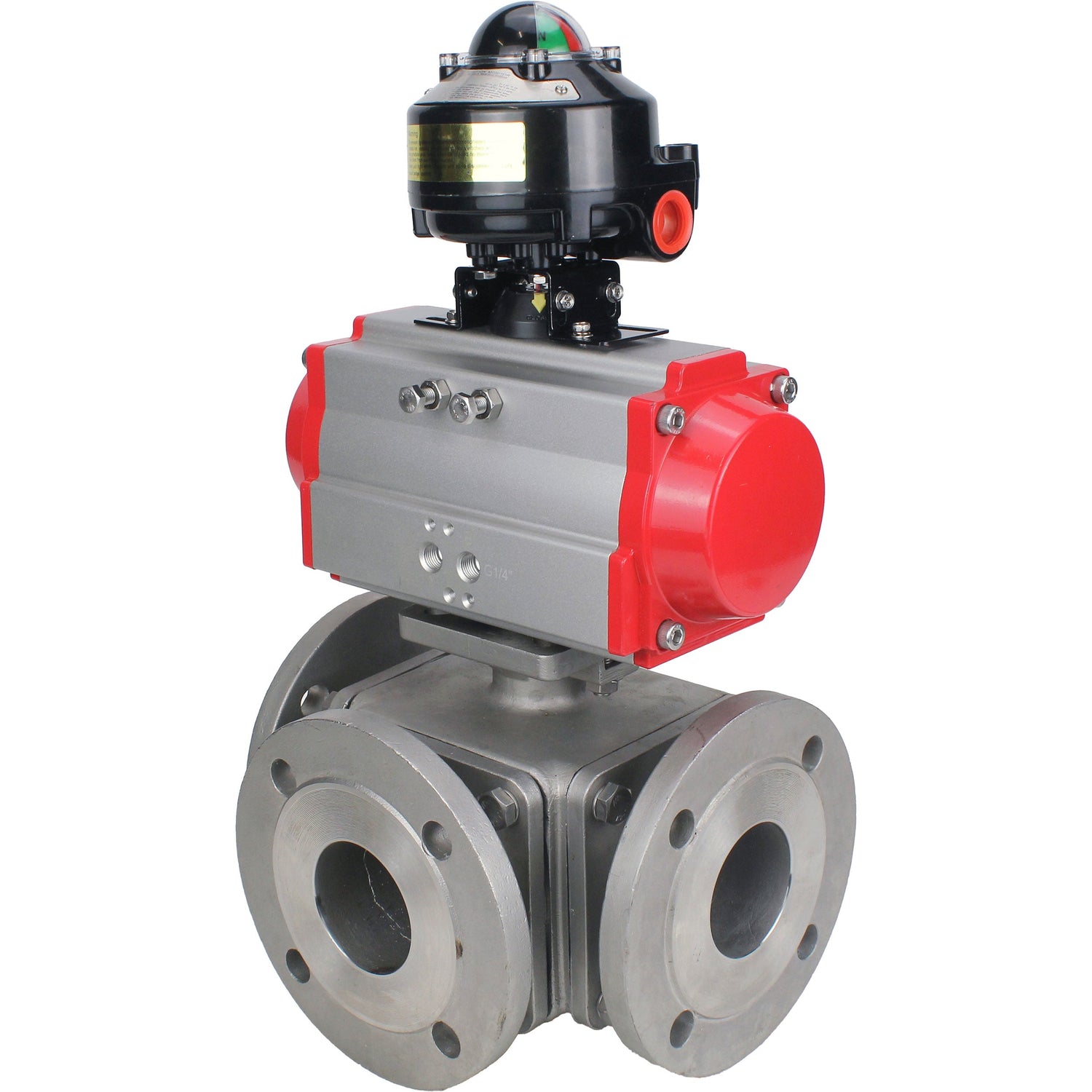

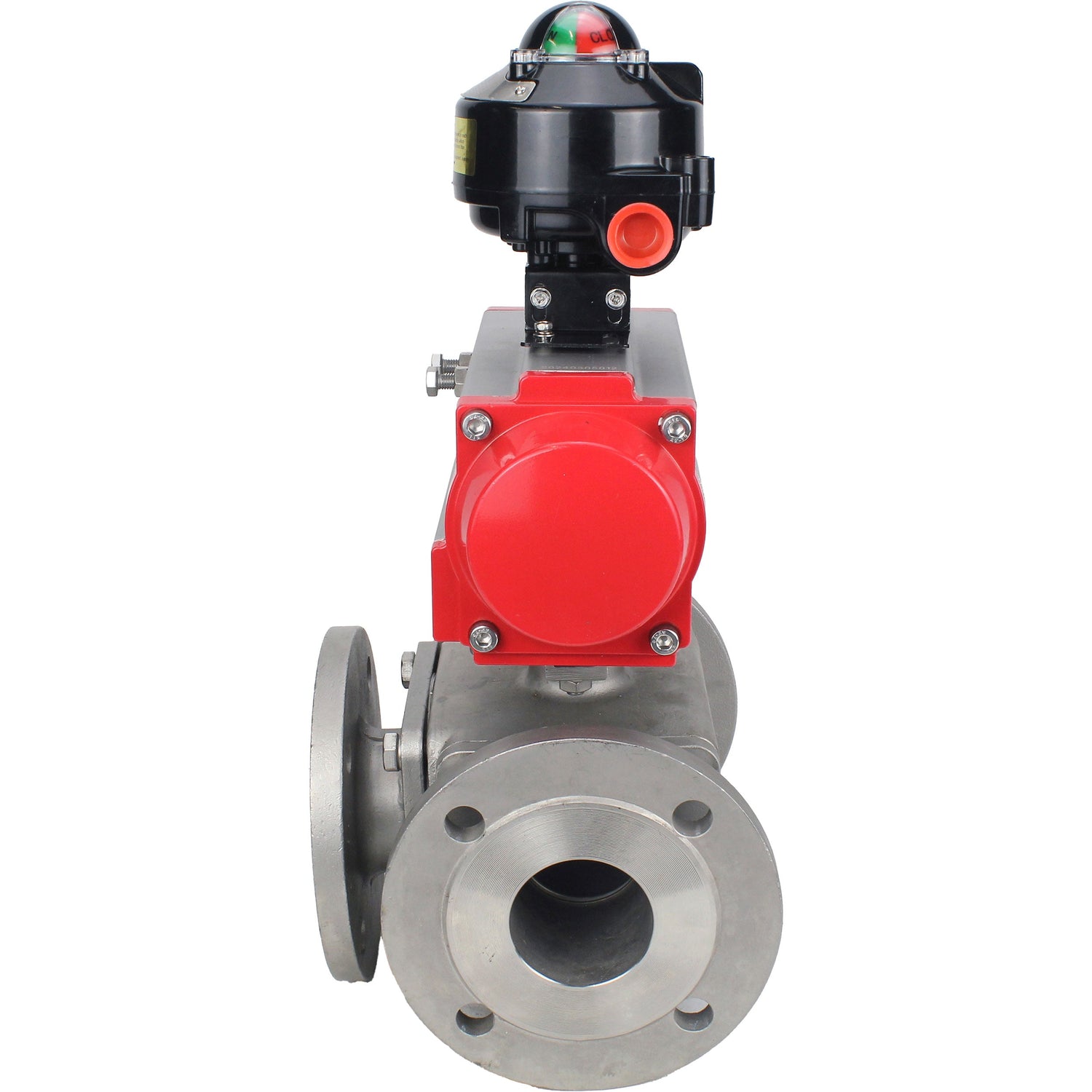

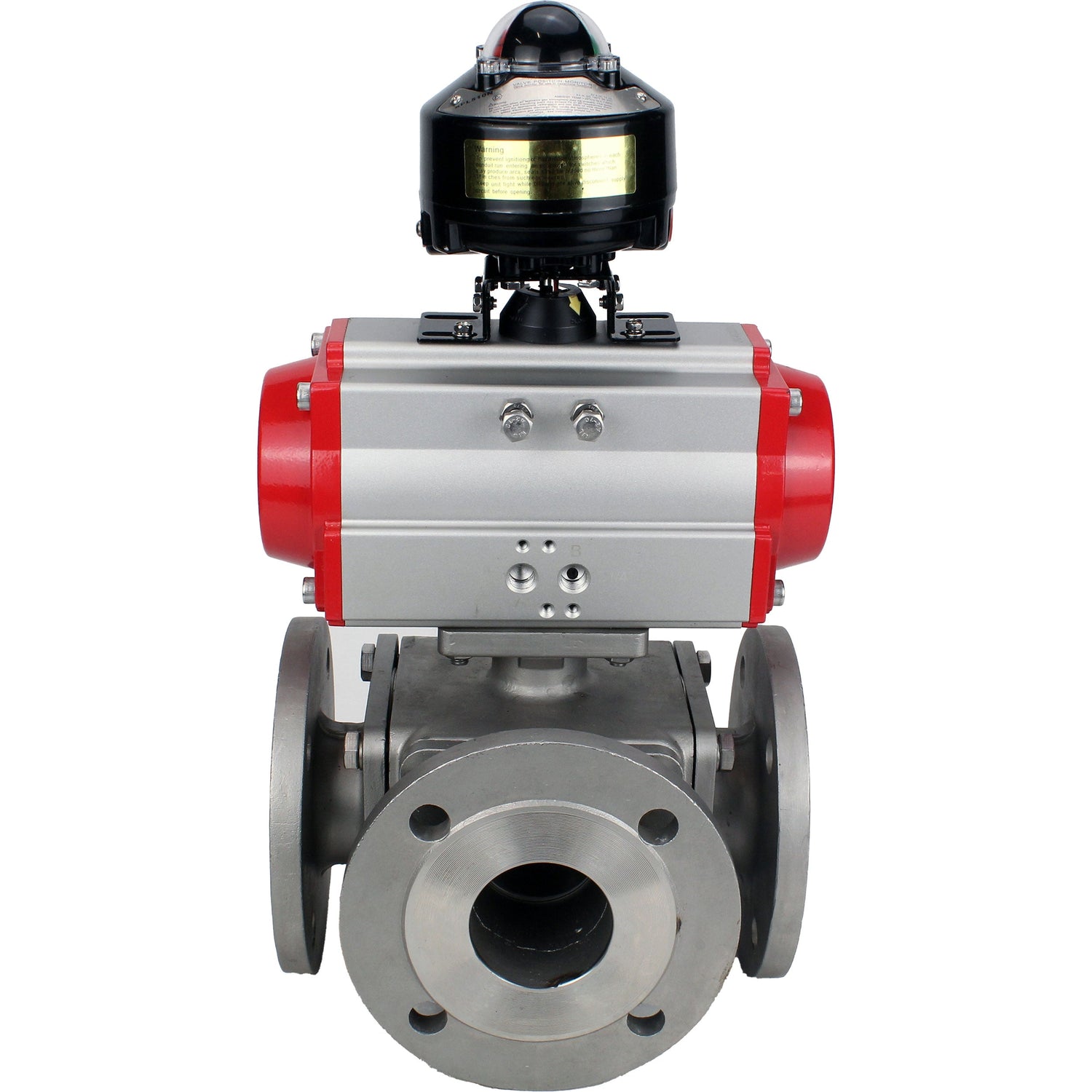

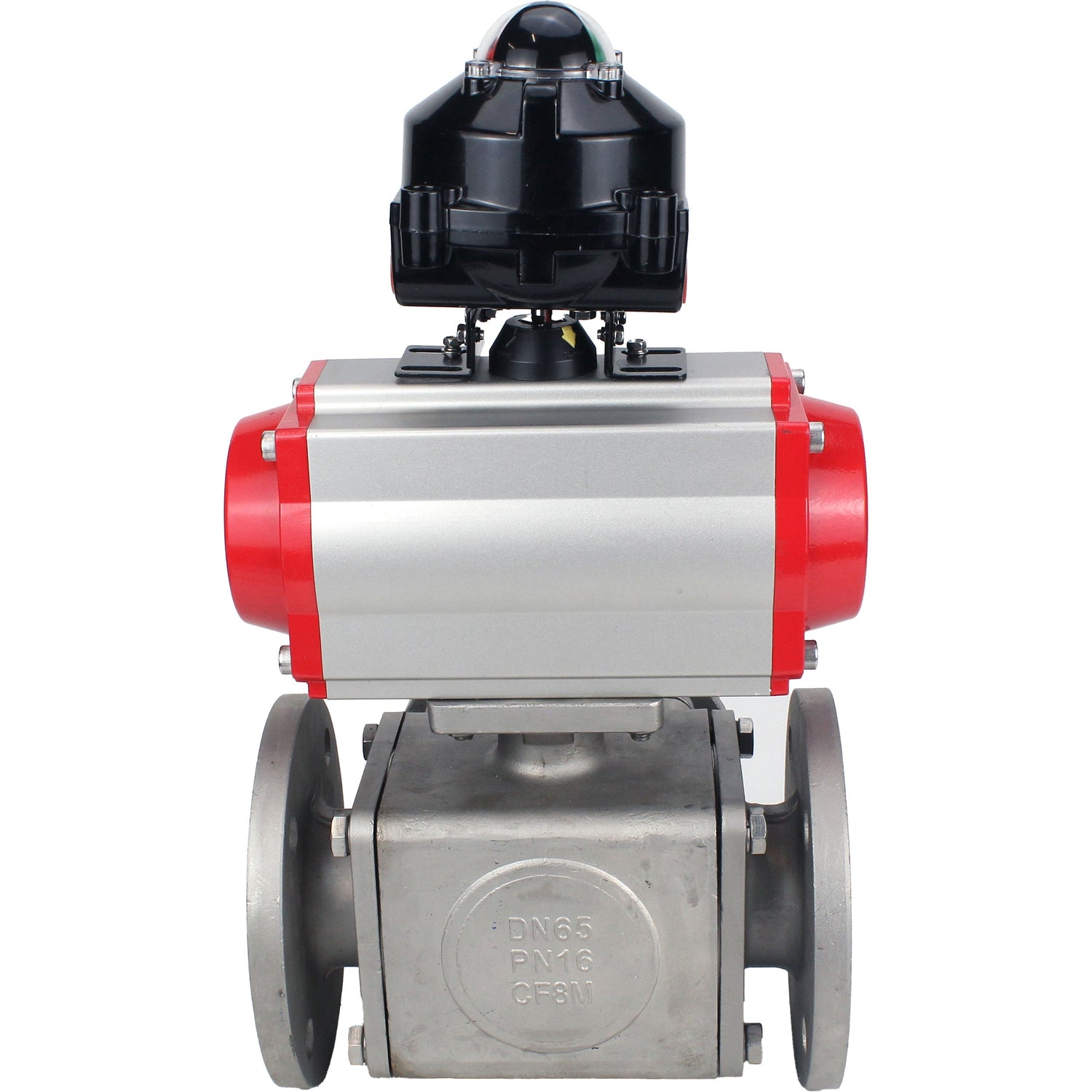

Ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic drive Elephant PA-SA with return springs and LSU APL-510N EX

€3.244,20
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve, as well as for mixing and separating the working medium flows in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the valve materials.

Pneumatic actuators Elephant double-acting rotary PA-SA are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.

The limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off element of the pipeline valve. As a rule, a sealed box contains two mechanical switches rated for voltage up to 250 V, which monitor the position of the actuator rod and signal in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color hemisphere of the visual indicator. If the connected pipeline valve is closed, then only the red part of the hemisphere with the inscription CLOSED is visible; if open, only the yellow part with the inscription OPEN. This visual indicator is clearly visible from afar, which simplifies the inspection of the equipment, and the color difference between the open and closed positions reduces the likelihood of erroneous perception of information. Thanks to the use of the limit switch unit, it becomes possible to transmit information about the position of the pipeline valve (open / closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics when faults are detected.





Technical parameters of ball valves Elephant BV3232P(4pc)-FP-3WL-F DN15-100 PN16 full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic actuator Elephant PA-SA with return springs and LSU APL-510N EX:

Name Meaning
Nominal pressure PN, bar 16
Working environment temperature, °C from -25 to 180
Type of crane device three-way
Three-way valve type L
Application water supply, heat supply
Working environment water, steam, petroleum products, neutral media, gaseous media
Connection to the pipeline flanged
Water intake No
Type of flow section full bore
Control type With pneumatic drive
Joining flanged
Control pneumatic actuator with return springs
Availability of limit switches No
Availability of pneumatic distributor No
Availability of electropneumatic positioner There is
Average service life, years 10





Sketch of overall dimensions and sizes of ball valves Elephant BV3232P(4pc)-FP-3WL-F DN15-100 PN16 full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic actuator Elephant PA-SA with return springs and LSU APL-510N EX



Dimensions and sizes of ball valves Elephant BV3232P(4pc)-FP-3WL-F DN15-100 PN16 full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic actuator Elephant PA-SA with return springs and LSU APL-510N EX:

DN d, mm d1, mm k, mm D, mm L, mm H, mm W, mm T, mm
15 15 45 65 95 150 72 150 14
20 18 58 75 105 160 77 190 14
25 25 64 85 115 180 82 190 14
32 32 78 100 140 200 100 215 16
40 38 88 110 150 220 108 215 16
50 49 99 125 165 240 125 250 18
65 65 122 145 185 260 144 250 18
80 80 138 160 200 280 160 300 20
100 100 158 180 220 325 187 300 20



DN D1, mm D2, mm D3, mm D4, mm SxS, mm N – Z, mm ISO 5211 Weight, kg
15 5,5 6 36 42 9х9 4 –14 F03/F04 3,5
20 6,0 7 42 50 11х11 4 –14 F04/F05 4,5
25 6,0 7 42 50 11х11 4 –14 F04/F05 5,6
32 7,0 9 50 70 14х14 4 –18 F05/F07 9,3
40 7,0 9 50 70 14х14 4 –18 F05/F07 11,65
50 9,0 11 70 102 17х17 4 –18 F07/F10 17,95
65 9,0 11 70 102 17х17 4 –18 F07/F10 26,5
80 9,0 11 70 102 19х19 8 –18 F07/F10 39,1
100 11,0 13 102 125 19х19 8 –18 F10/F12 58,5





Sketch of parts and materials of ball valves Elephant BV3232P(4pc)-FP-3WL-F DN15-100 PN16 full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic actuator Elephant PA-SA with return springs and LSU APL-510N EX



Table of parts and materials of ball valves Elephant BV3232P(4pc)-FP-3WL-F DN15-100 PN16 full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic actuator Elephant PA-SA with return springs and LSU APL-510N EX:

Item No. Part name Material
1 Frame Stainless steel SS316
2 Ball Stainless steel SS316
3 Sealing PTFE
4 Case cover Stainless steel SS316
5 Bolt Stainless steel SS304
6 Pad PTFE
7 screw Stainless steel SS304
8 Pad PTFE
9 Rod seal PTFE
10 Bolt Stainless steel SS304
11 Seal Stainless steel SS304





Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs





Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs



Limit Switch Blocks Elephant APL-510N EX



Technical parameters of limit switch units Elephant APL-510N EX

Name Meaning
Limit switch block model APL-510N EX
Enclosure protection rating, IP 67
Ambient temperature, °C from -20 to 66
Service life, years 10





Sketch of dimensions and sizes of limit switch blocks Elephant APL-510N EX





Dimensions and sizes of limit switch blocks Elephant APL-510N EX:

LSU model APL-510N EX
A, mm 118
B, mm 118
C, mm 138.4
D, mm 17
E, mm 19
F, mm 7
G, mm 3
H, mm 4
I, mm 59
J, mm 59
K, mm 59
L, mm 59
M, mm 121.4
Ød1, mm 50
Ød2, mm 5



Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Petroleum Products, Neutral Media, Gaseous Media
  • Type of seal
    PTFE
  • Explosion-proof
    have
  • Torque
    157 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    spring loaded
