Elephant | SKU: D160-52072

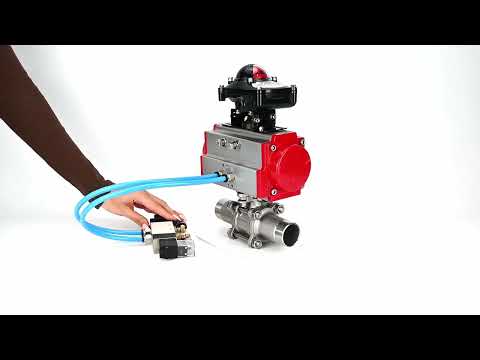

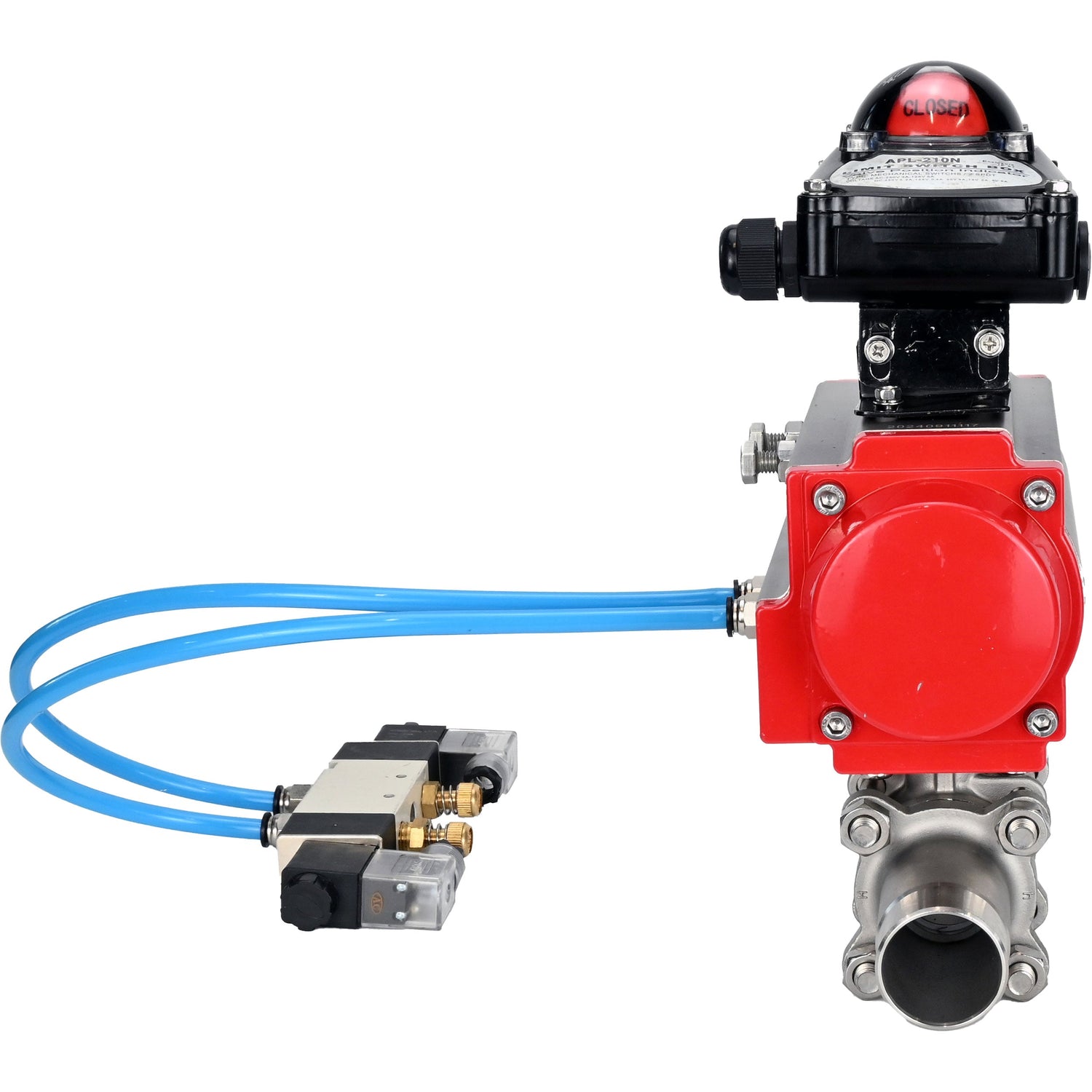

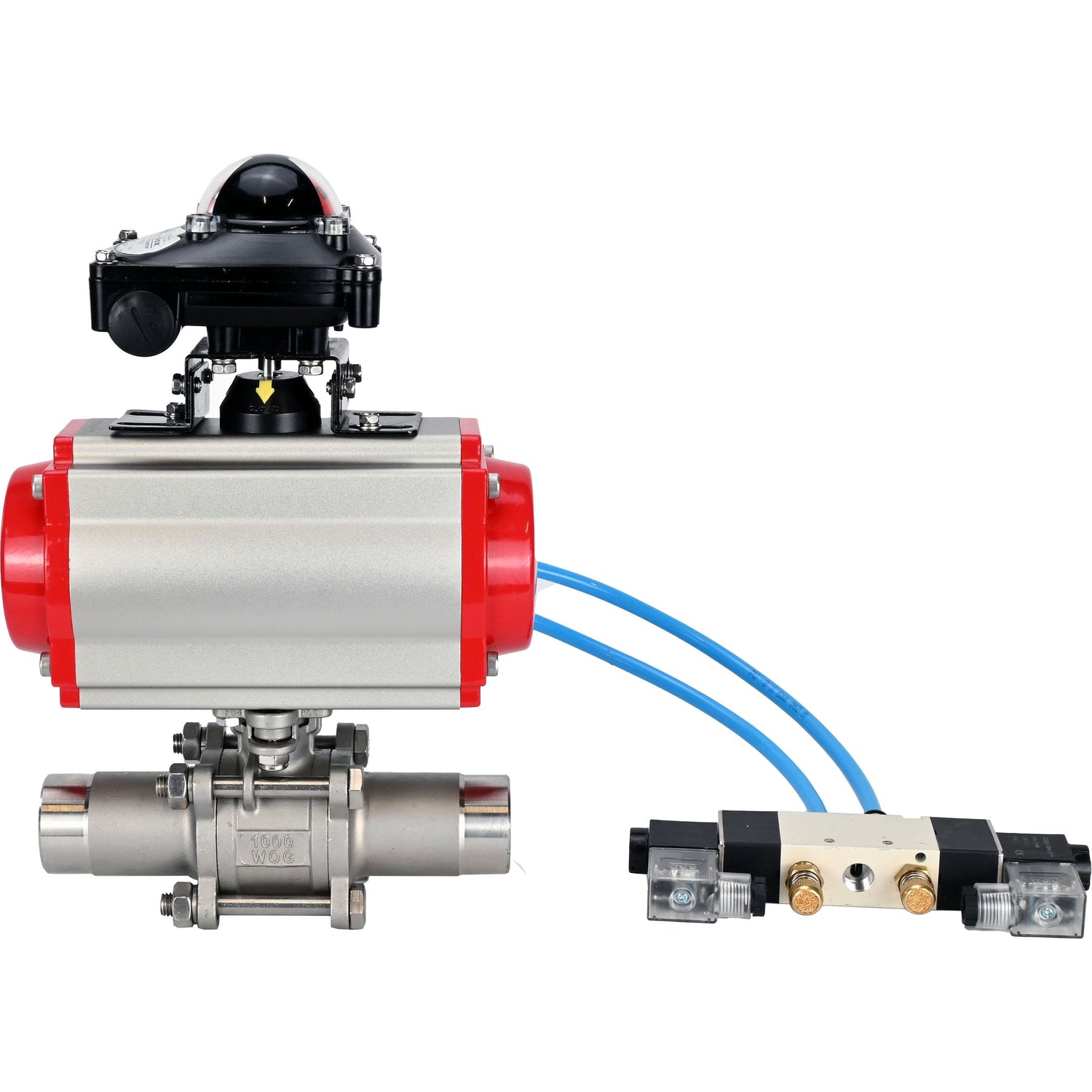

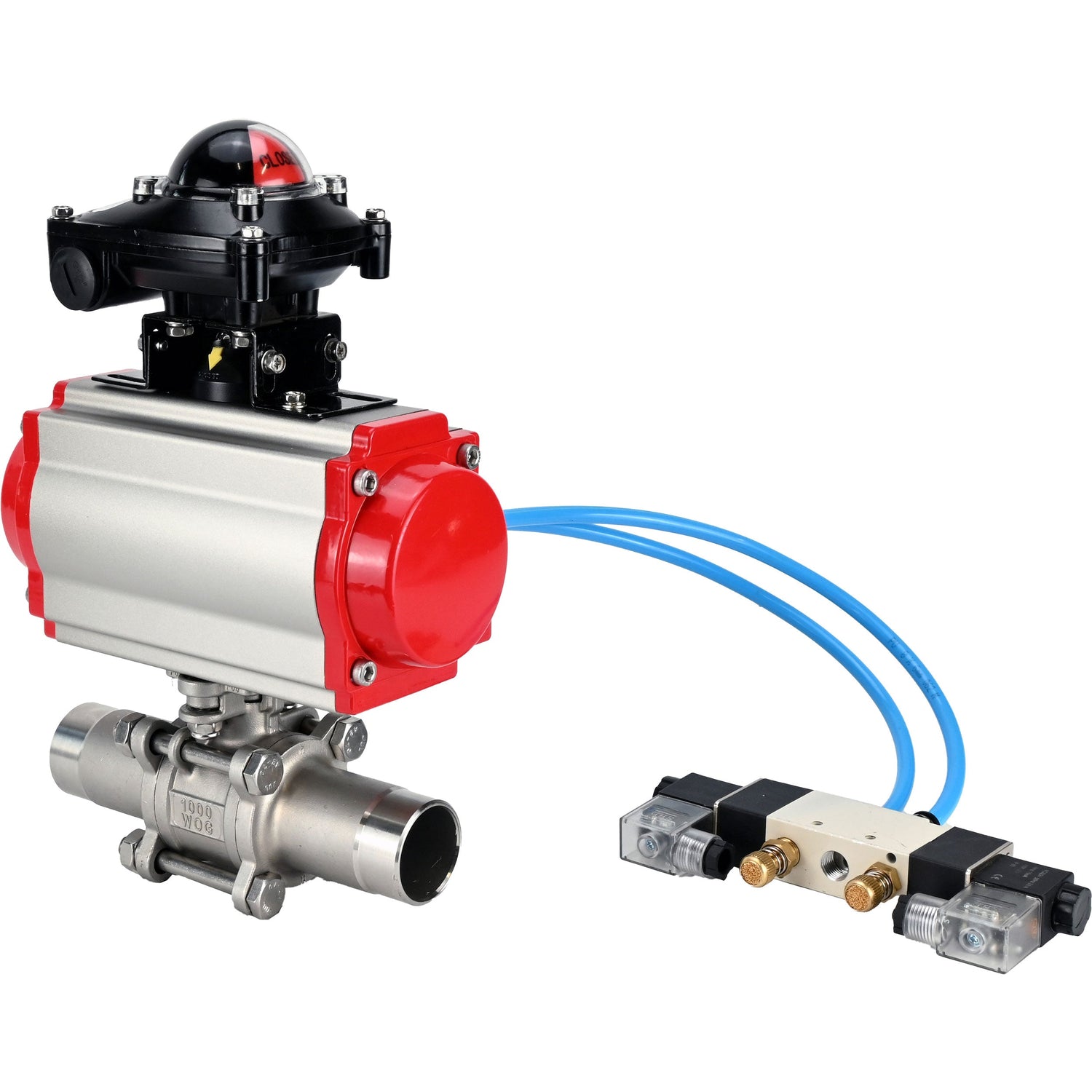

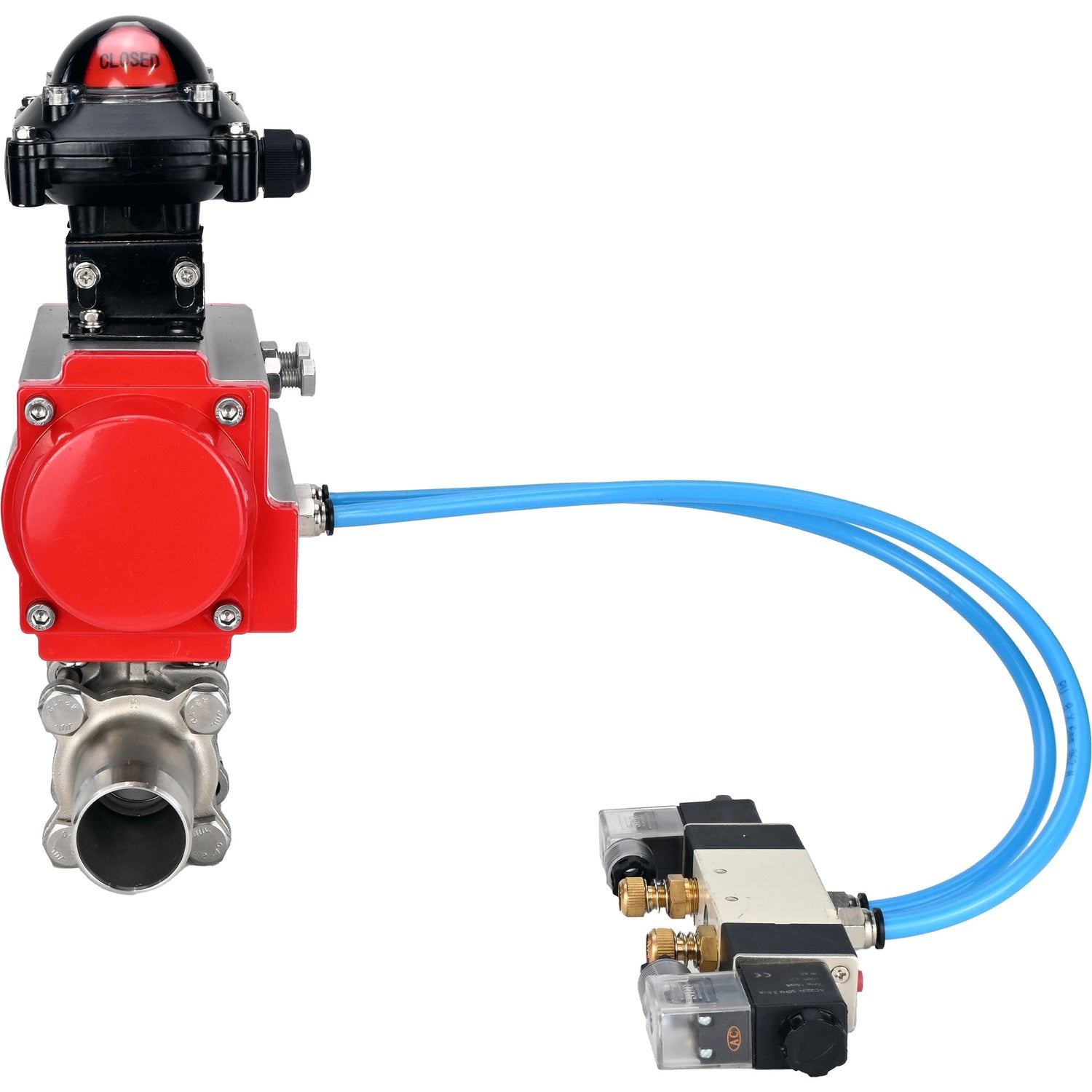

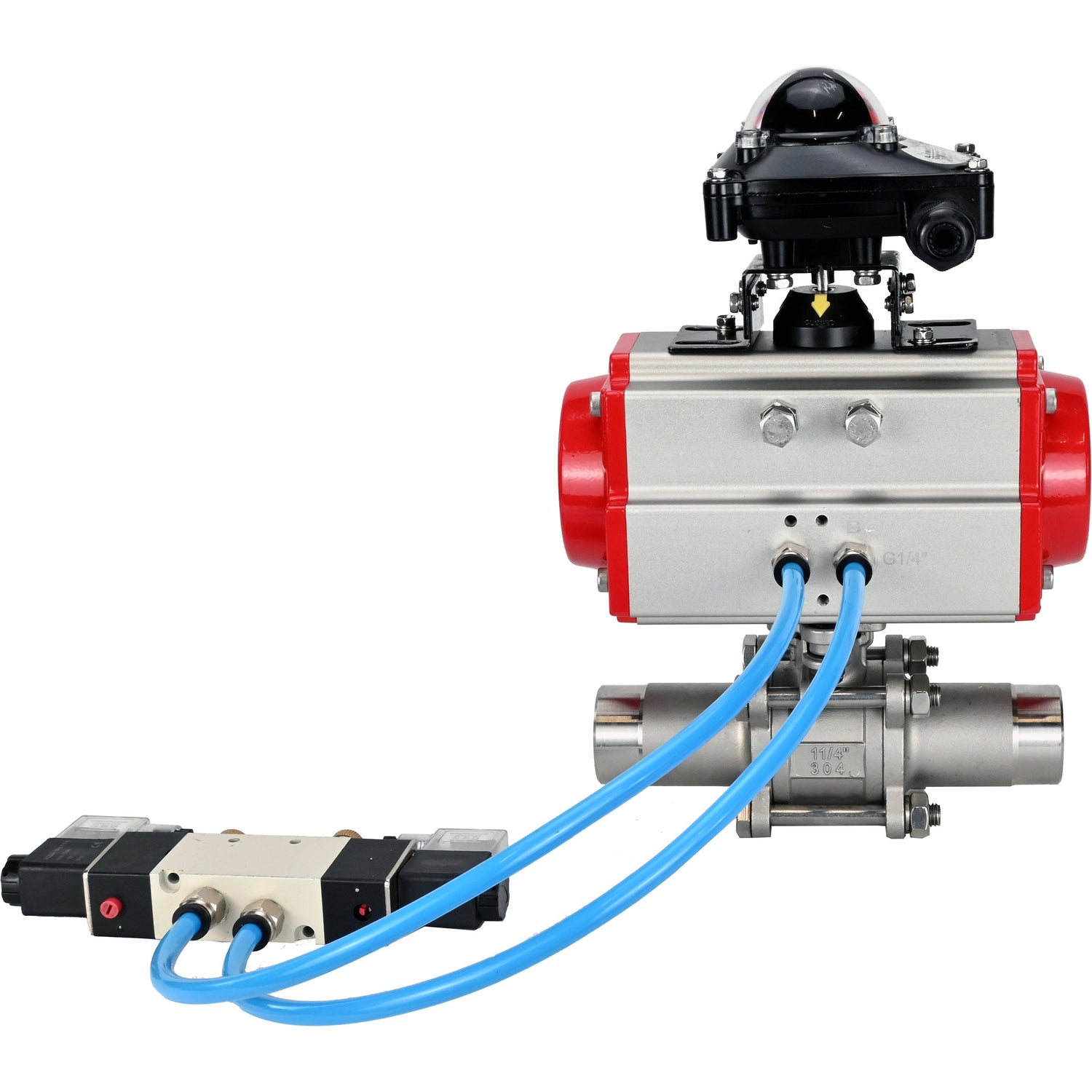

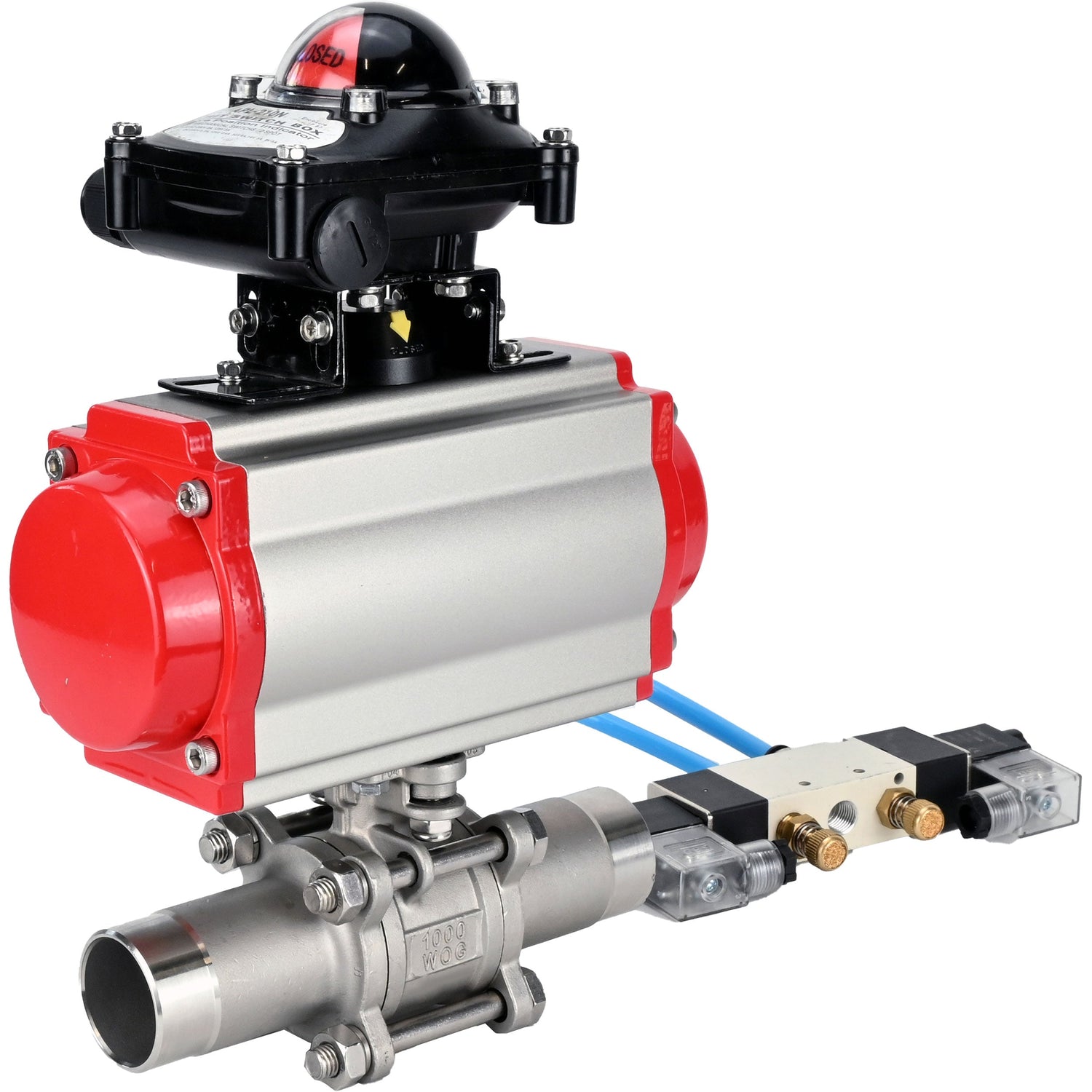

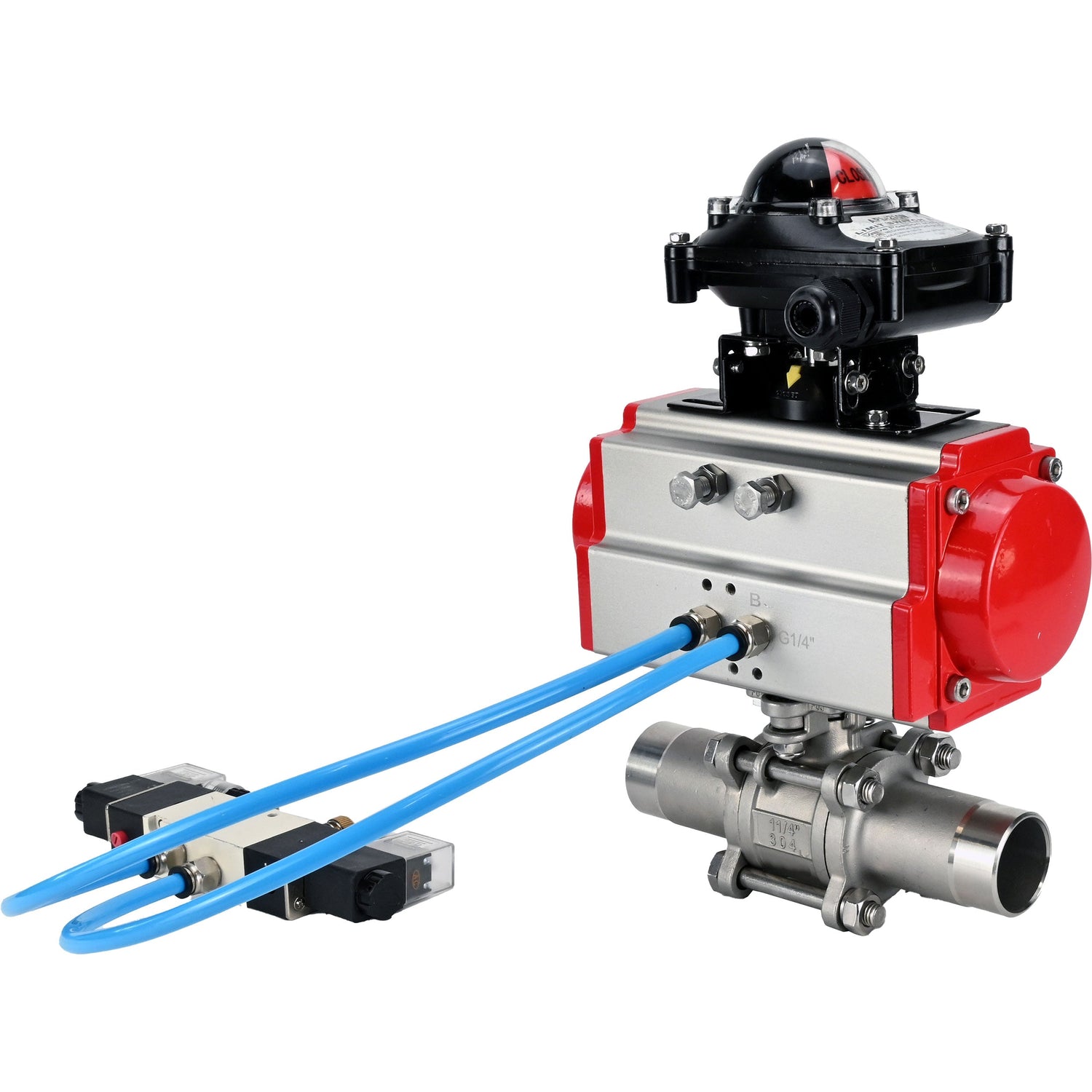

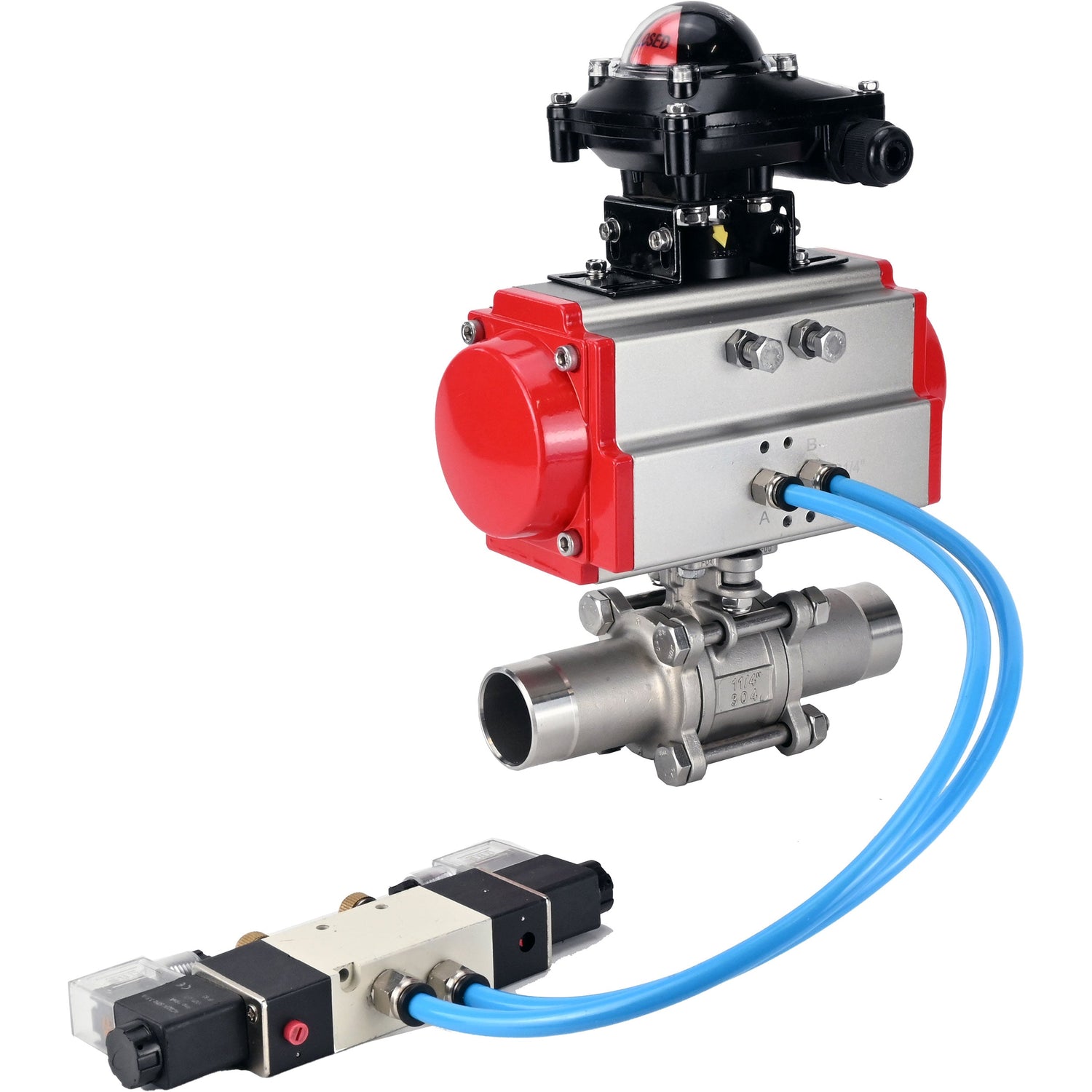

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 316, welded, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V and limit switch block APL -210N

€201,76

Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 316, welded, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V and limit switch block APL -210N - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

Pneumatic actuators Elephant double-acting rotary PA-DA-XXX are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.

The pneumatic distributor is used to change the direction, start, and stop the flow of compressed air in a pneumatic system depending on the external control action.

The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off element of the valve: valve, tap or butterfly valve. It is installed on top of the surface of the pneumatic drive and connected to the DIN standard drive shaft. In a sealed box, as a rule, there are two sensors that monitor the position of the drive shaft and signal in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors. Visual indication of the position can be seen on the body of the unit there is a 3D visual indicator RED - CLOSED and GREEN - OPEN.

Technical parameters of Elephant BV3232P(3pc)-FP-W-ISO-H LONG ball valves DN10-150 PN16-63 full bore, body - stainless steel 316, for welding, with PA-DA pneumatic actuator, 4V320-08 220V pneumatic distributor and APL-210N limit switch unit:

Name	Meaning
Working environment temperature, °C	from -20 to 180
Type of crane device	two-way
Application	water supply, heat supply, industry
Working environment	water, steam, petroleum products, neutral media, gaseous media
Connection to the pipeline	for welding
Water intake	No
Type of flow section	full bore
Control type	With pneumatic drive
Joining	for welding
Control	double acting pneumatic actuator
Availability of limit switches	There is
Availability of pneumatic distributor	There is
Availability of electropneumatic positioner	No
Average service life, years	5
Warranty, g.	1

Sketch of the dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 РN16-63 full bore, body - stainless steel 316, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V and limit switch block APL-210N

Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 316, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V and limit switch unit APL-210N:

Model	L, mm	A, mm	E, mm
DN10	130	153	72
DN15	150	153	72
DN20	155	174	89
DN25	186	216	109
DN32	195	153	72
DN40	231	174	89
DN50	243	216	109
DN65	290	216	109
DN80	302	216	109
DN100	326	279	134
DN125	360	308	157
DN150	390	405	174

Sketch of parts and materials of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 РN16-63 full bore, body - stainless steel 316, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V and limit switch block APL-210N

Table of parts and materials of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 316, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V and limit switch block APL-210N:

Item No.	Part name	Material
1	Frame	stainless steel 316
2	Side element (2 pcs)	stainless steel 316
3	Ball	stainless steel 316
4	Ball seal	PTFE
5	Rod seal	PTFE
6	Sleeve	stainless steel 304
7	Stock	stainless steel 316
8	Washer	stainless steel
9	screw	steel A2-70
10	Bolt	steel A2-70

Pneumatic drive Elephant

Technical parameters of the pneumatic drive Elephant

Name	Meaning
Design	double acting
Control pressure, bar	2 ÷ 8

Sketch of the dimensions and sizes of the pneumatic drive Elephant

Dimensions and sizes of the pneumatic drive Elephant:

Model	PA-DA-52	PA-DA-65	PA-DA-83	PA-DA-105	PA-DA-130	PA-DA-140
A1, mm	108	125	152	189	210	268
B1, mm	153	174	216	279	308	405
C, mm	30	36	46	55	67.5	76
D, mm	41	46	55	64	70	77
E, mm	72	89	109	134	157	174
F, mm	26	26	26	26	36	36
G, mm	15	15	15	25	25	30
H, mm	F03	F05	F05	F07	F07	F10
I, mm	F05	F07	F07	F10	F10	F12
J, mm	4-M5x8	4-M6x10	4-M6x10	4-M8x12	4-M8x12	4-M10x16
K, mm	4-M6x10	4-M8x12	4-M8x12	4-M10x16	4-M10x16	4-M12x20
L, mm	11x11	14x14	17x17	22x22	22x22	27x27
Mmm	80	80	80	80	80	130
N, mm	30	30	30	30	30	30
F0, mm	34	34	34	41	62	62
R, mm	20	20	20	20	30	30

Table of parts and materials of pneumatic drive Elephant:

No.	Name	Quantity	Material	Coating
1	Frame	1	extruded aluminum	hard anodized
2	Side plugs	2	cast aluminum
3	Gear	1	stainless steel	nickel plated
4	Piston	2	steel/aluminum	oxidation/galvanic zinc plating
5	Plugs	8	stainless steel
6	Piston ring	2	NBR
7	Springs	0-12	spring steel	epoxy coating
8	Piston bearing	2	engineering plastic
9	Piston ring	2	NBR
10	Plug	2	NBR
11	Thrust ring	2	engineering plastic
12	Ring	1	engineering plastic
13	Washer	1	stainless steel
14	Spring clamp	2	stainless steel
15	Indicator	1	plastic
16	Indicator housing	1	plastic
17	Bearing	1	engineering plastic
18	Cam	1	steel	oxidation/galvanic zinc plating
19	Bearing	1	NBR
20	Bearing	1	engineering plastic
21	Bearing	1	engineering plastic
22	Sealing ring	2	NBR
23	Sealing ring	2	NBR
24	Bearing	2	stainless steel
25	Adjusting nut	2	stainless steel
26	Adjustment screw	2	stainless steel
27	Sleeve	2	aluminum

Pneumatic distributor Elephant 4V320-08 220V

Technical parameters of pneumatic distributors Elephant 4V320-08 220V

Name	Meaning
Type of pneumatic distributor	spool valve
Model of pneumatic distributor	4V320-08 220V
Working pressure, bar	1.5 ÷ 1.8
Supply voltage, V	220V
Response frequency, cycles/sec	5

Sketch of dimensions and sizes of pneumatic distributors Elephant 4V320-08 220V

Dimensions and sizes of pneumatic distributors Elephant 4V320-08 220V

Model of pneumatic distributor	4V320-08
A, mm	71.9
B, mm	45
C, mm	94.4
D, mm	27
E, mm	69
F, mm	40
I, mm	24
K, mm	40
L, mm	188.8
M, mm	69.4
N, mm	50
O, mm	82.4
P, mm	24
S, mm	20
T, mm	6.5
U, mm	2.4
V, mm	4
H, mm	82.4

Limit Switch Block Elephant APL-210N

Technical parameters of the limit switch unit Elephant APL-210N

Name	Meaning
Limit switch block model	APL-210N
Ambient temperature, °C	from -40 to 80
Service life, years	10

Sketch of the dimensions and sizes of the limit switch block Elephant APL-210N

Dimensions and sizes of the limit switch unit Elephant APL-210N:

Model	APL-210N
H, mm	77
L, mm	112
B, mm	88
D, mm	10
D1, mm	5
M, mm	20x1.5

Table of parts and materials of the limit switch block Elephant APL-210N:

Detail	Material
Frame	cast aluminum
Indicator cap	polyester plastic
3D indicator	ABC plastic
Cam	polyester plastic
Spring	stainless steel
Screws	stainless steel
Sealing rings	NBR
Sleeve	bronze
Ground terminal	stainless steel
Shaft	stainless steel

Specifications

Country of origin

China
Port opening

full bore
Body material

Stainless steel AISI 316
Maximum allowable temperature

180 °C
Connection type

For welding
Control type

Pneumatically actuated
Operating environment

water, steam, petroleum products, neutral media, gaseous media
Type of seal

PTFE
Voltage

220V
Explosion-proof

no
Torque

3 Nm
Limit switches

have
Type of pneumatic actuator

double action

Reviews (0)

Documentation

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Variants

SKU	Connection size	Pressure	Price	Availability	Quantity
D160-52072	DN10	63 bar	€201,76	0 in stock	Qty
D160-52073	DN100	25 bar	€1.104,97	0 in stock	Qty
D160-52074	DN125	16 bar	€2.082,55	0 in stock	Qty
D160-52075	DN15	63 bar	€201,76	0 in stock	Qty
D160-52076	DN150	16 bar	€3.011,46	0 in stock	Qty
D160-52077	DN20	63 bar	€261,00	0 in stock	Qty
D160-52078	DN25	63 bar	€266,84	0 in stock	Qty
D160-52079	DN32	63 bar	€269,41	0 in stock	Qty
D160-52080	DN40	40 bar	€323,87	0 in stock	Qty
D160-52081	DN50	40 bar	€401,37	0 in stock	Qty
D160-52082	DN65	25 bar	€584,95	0 in stock	Qty
D160-52083	DN80	25 bar	€740,49	0 in stock	Qty
