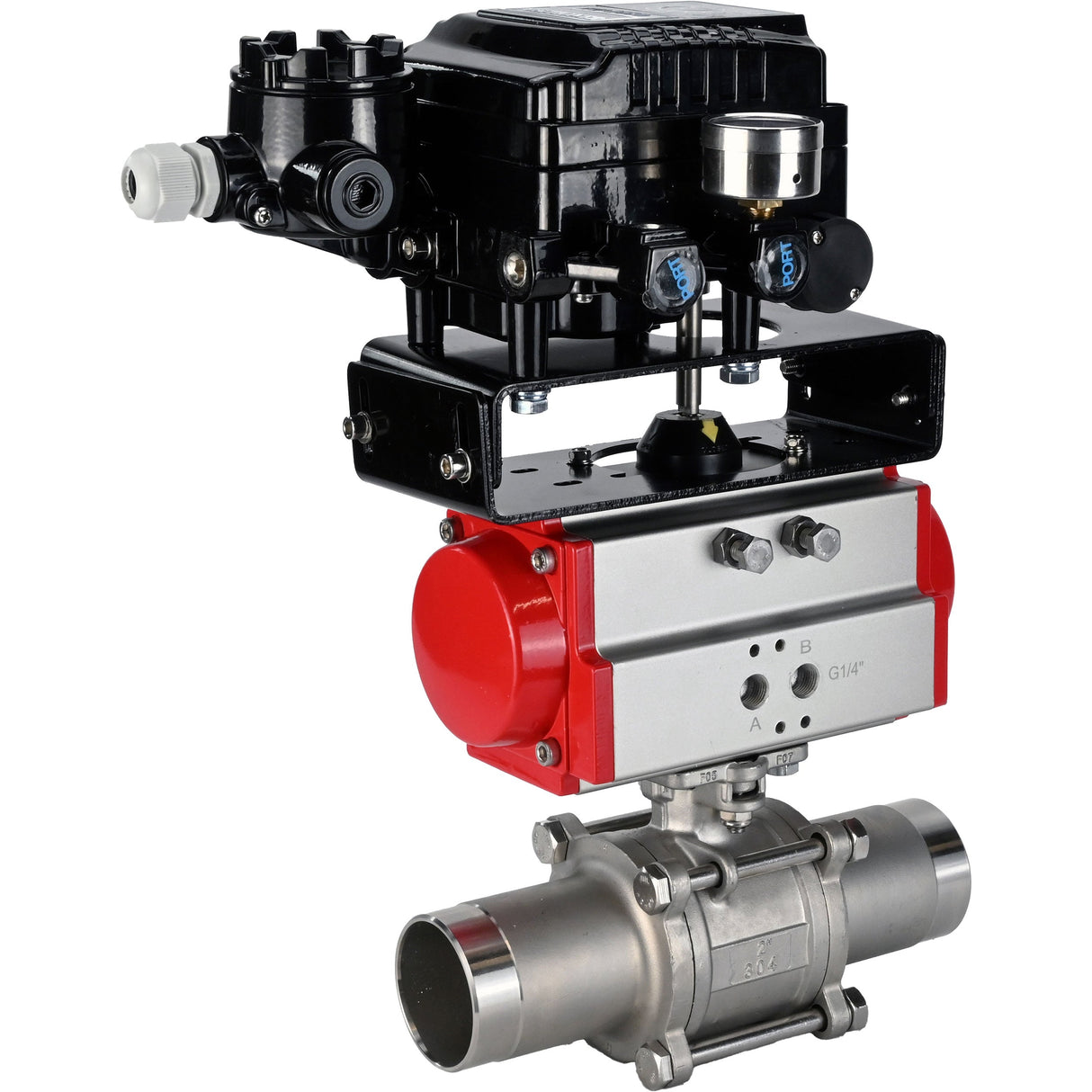

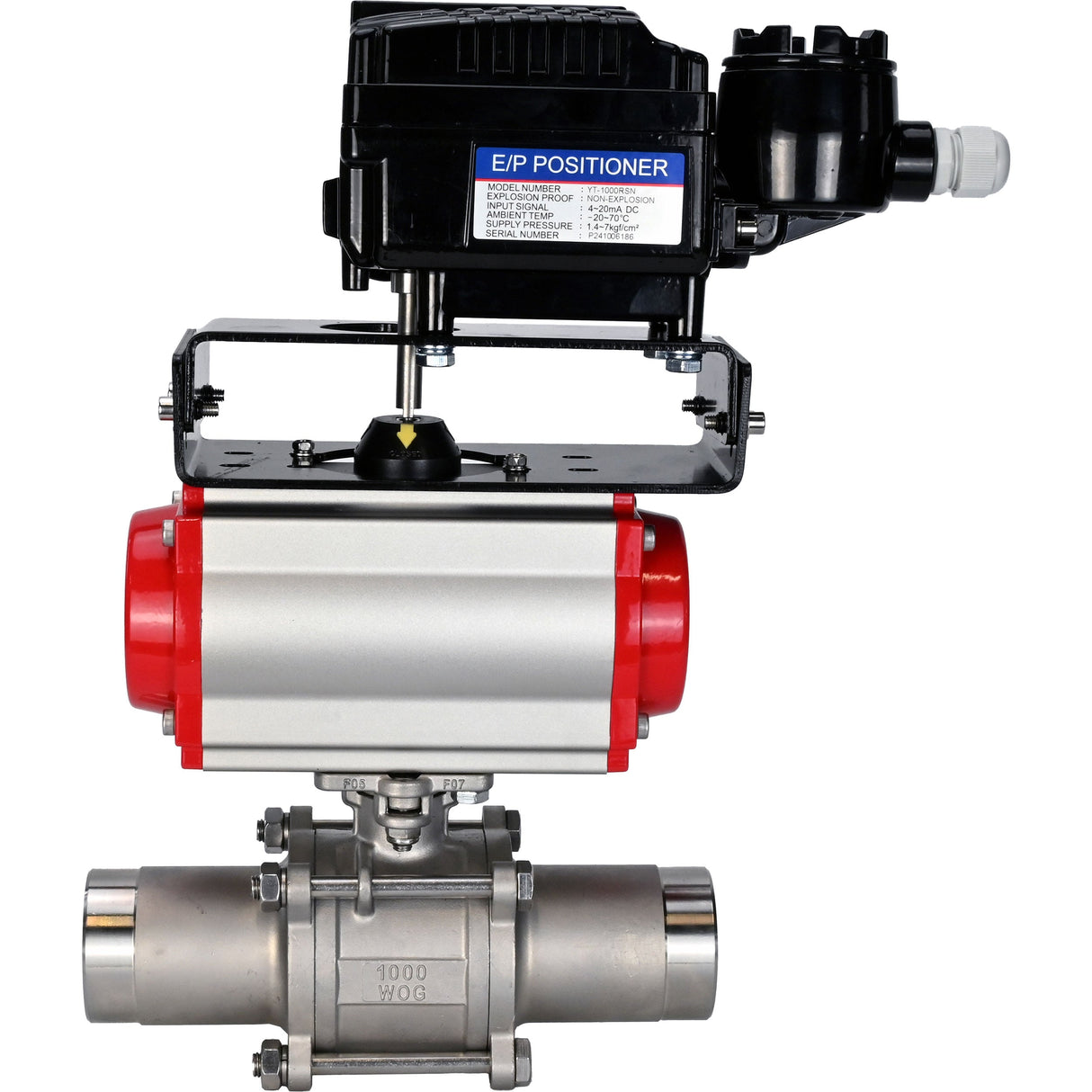

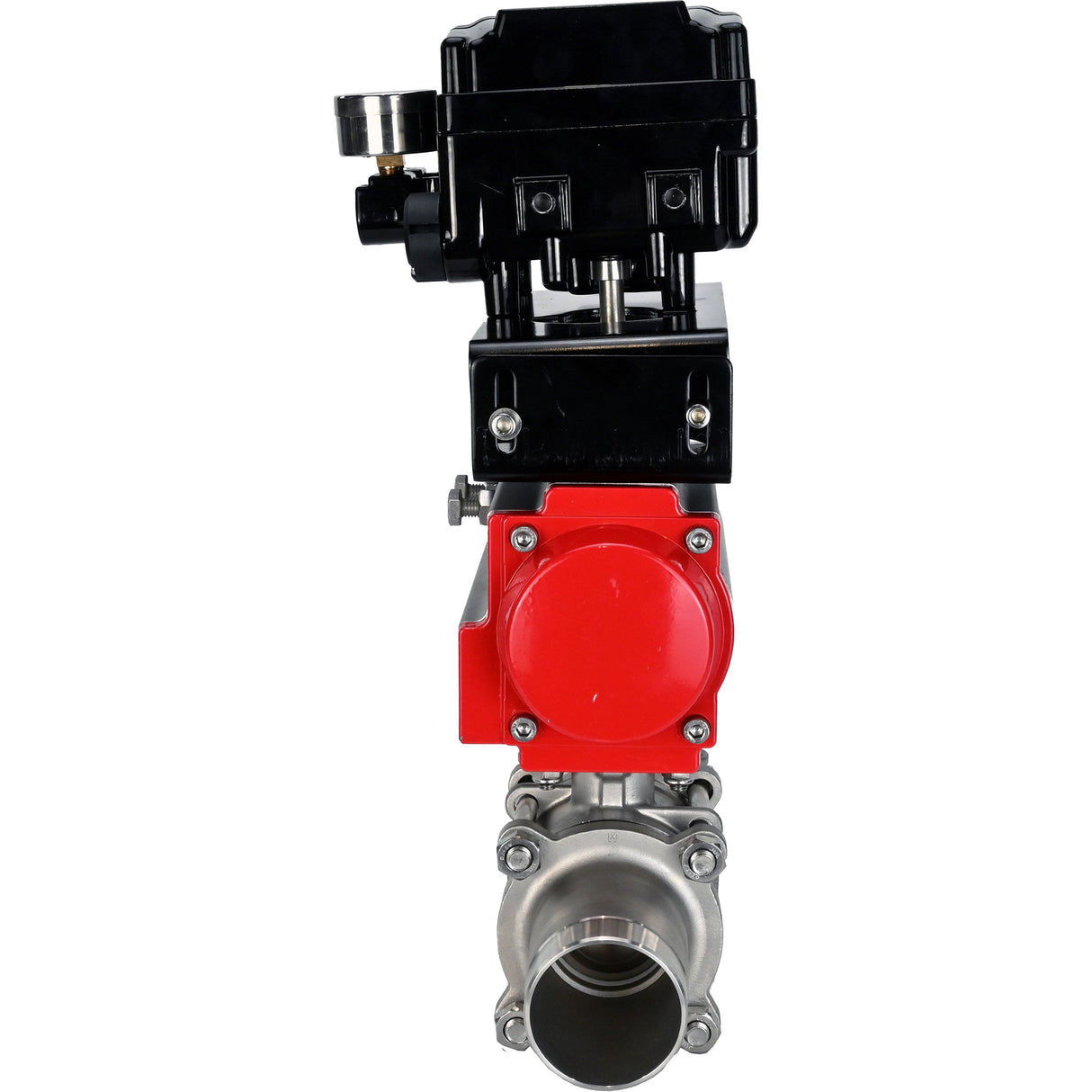

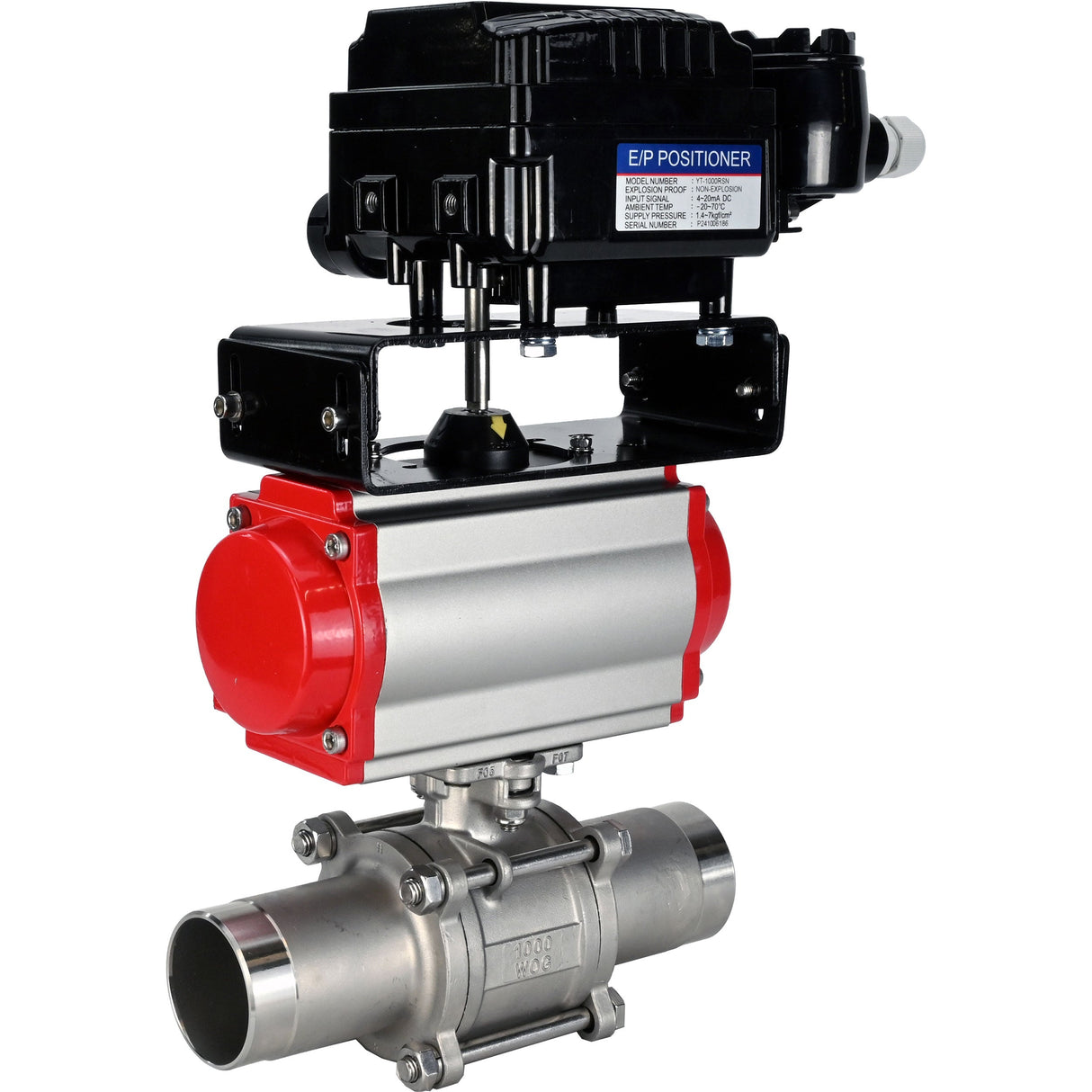

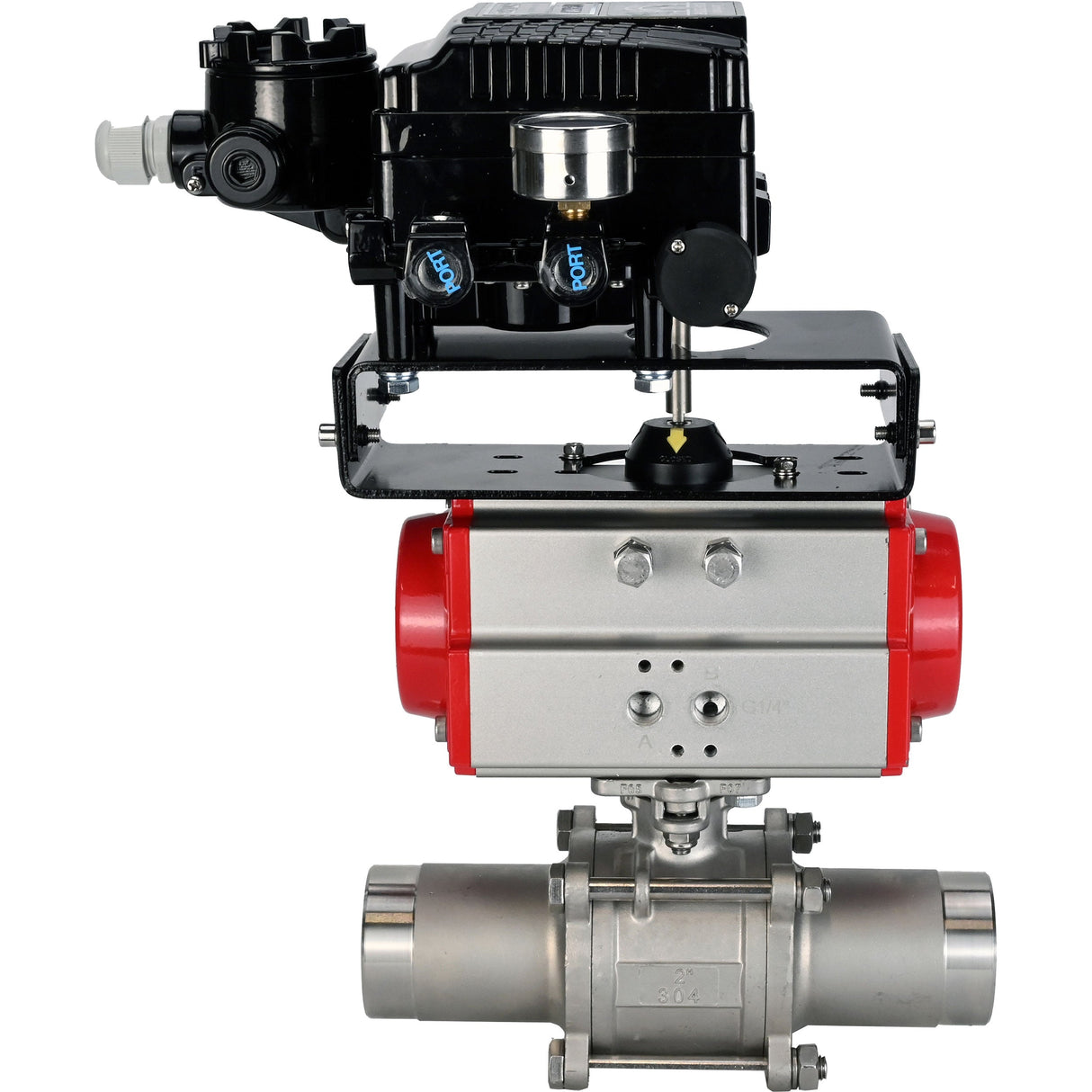

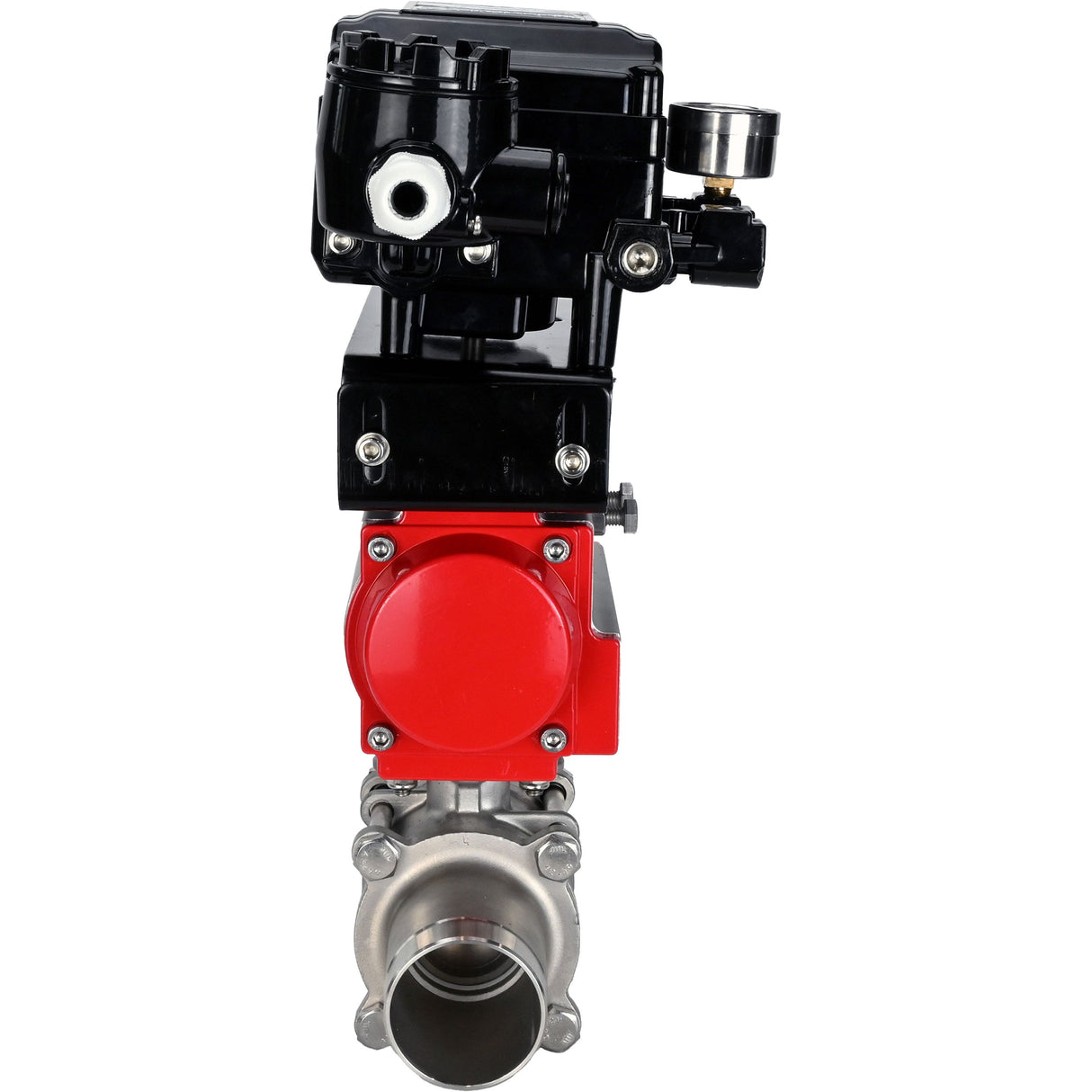

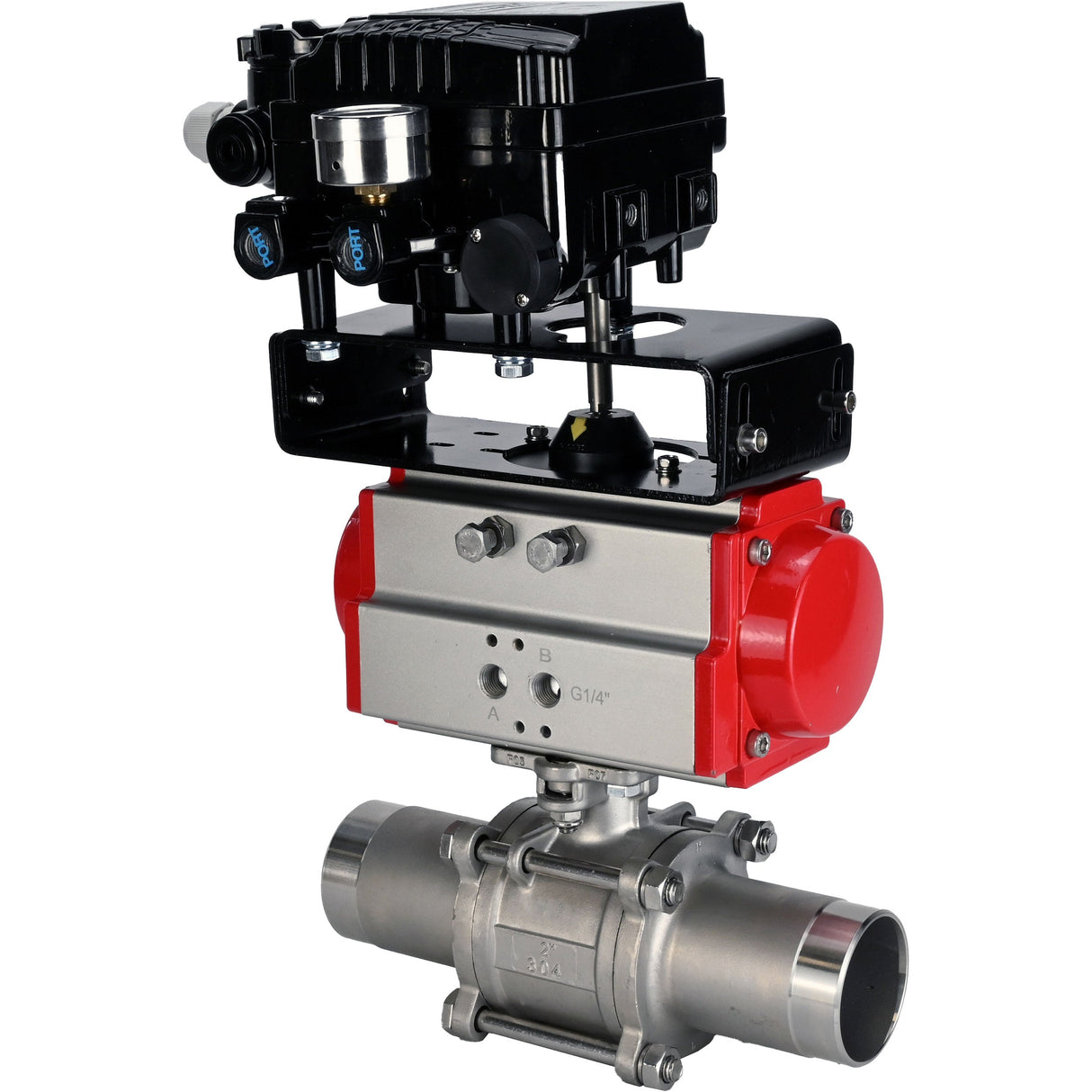

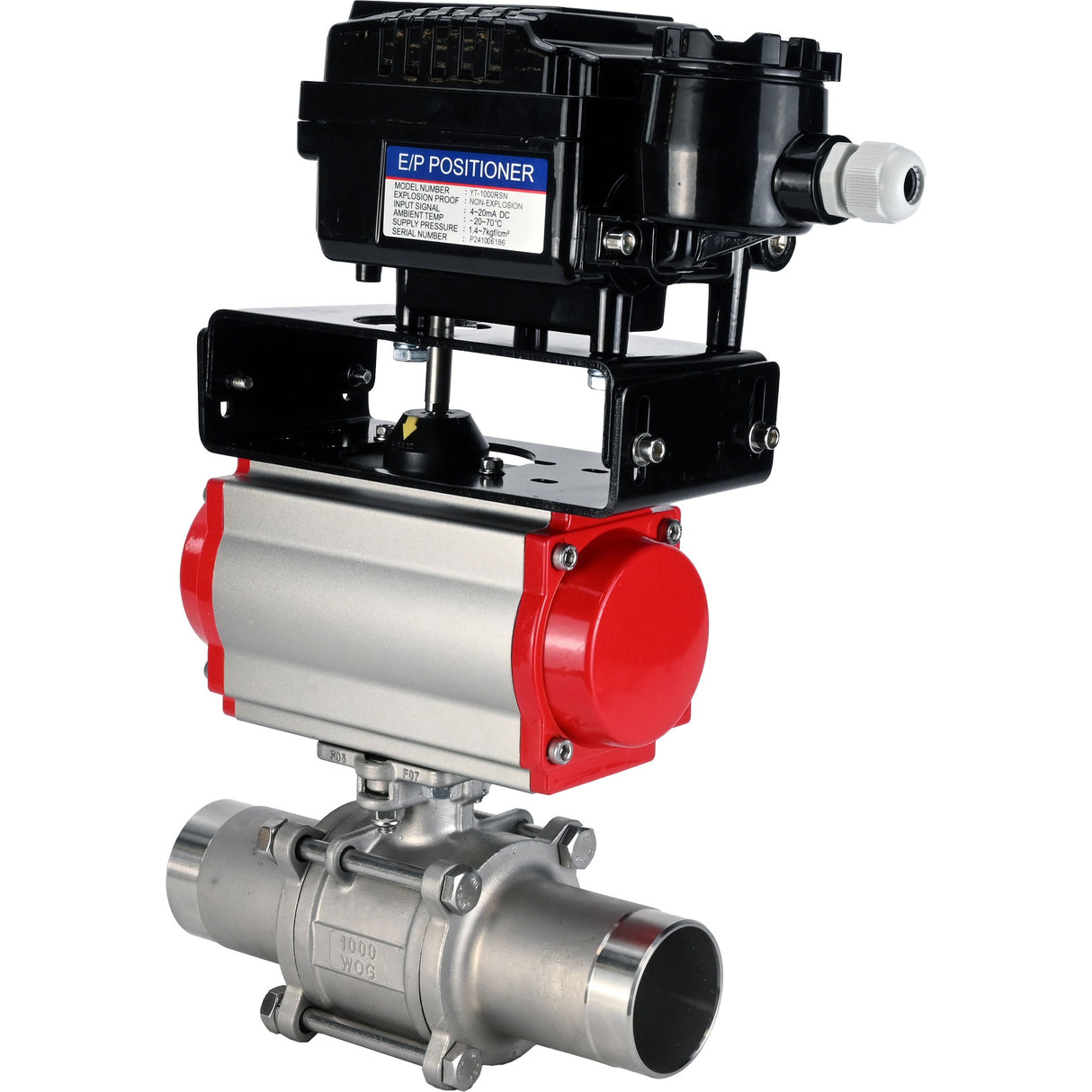

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 316, welded, with pneumatic actuator Elephant PA-DA and pneumatic positioner YT-1000RSN

€455,96

Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 316, welded, with pneumatic actuator Elephant PA-DA and pneumatic positioner YT-1000RSN - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

Pneumatic actuators Elephant double-acting rotary PA-DA-XXX are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.

Electro-pneumatic rotary positioner is used to control rotary type pneumatic actuators by means of electric controller or control system with analog DC output signal in the range of 4 to 20 mA.

Technical parameters of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 316, for welding, with pneumatic actuator Elephant PA-DA and pneumatic positioner YT-1000RSN:

Name	Meaning
Working environment temperature, °C	from -20 to 180
Type of crane device	two-way
Application	water supply, heat supply, industry
Working environment	water, steam, petroleum products, neutral media, gaseous media
Connection to the pipeline	for welding
Water intake	No
Type of flow section	full bore
Control type	With pneumatic drive
Joining	for welding
Control	double acting pneumatic actuator
Availability of limit switches	No
Availability of pneumatic distributor	No
Availability of electropneumatic positioner	There is
Average service life, years	5
Warranty, g.	1

Sketch of the dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 316, for welding, with pneumatic actuator Elephant PA-DA and pneumatic positioner YT-1000RSN

Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 316, for welding, with pneumatic actuator Elephant PA-DA and pneumatic positioner YT-1000RSN:

Model	L, mm	A, mm	E, mm	S, mm	C, mm
Du10	130	153	72	62.5	117.5
Du15	150	153	72	62.5	117.5
Du20	155	174	89	62.5	117.5
Du25	186	216	109	62.5	117.5
Du32	195	153	72	62.5	117.5
Du40	231	174	89	62.5	117.5
Du50	243	216	109	62.5	117.5
Du65	290	216	109	62.5	117.5
Du80	302	216	109	62.5	117.5
Du100	326	279	134	62.5	117.5
Du125	360	308	157	62.5	117.5
Du150	390	405	174	62.5	117.5

Sketch of parts and materials of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 РN16-63 full bore, body - stainless steel 316, for welding, with pneumatic actuator Elephant PA-DA and pneumatic positioner YT-1000RSN

Table of parts and materials of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 РN16-63 full bore, body - stainless steel 316, for welding, with pneumatic actuator Elephant PA-DA and pneumatic positioner YT-1000RSN:

Item No.	Part name	Material
1	Frame	stainless steel 316
2	Side element (2 pcs)	stainless steel 316
3	Ball	stainless steel 316
4	Ball seal	PTFE
5	Rod seal	PTFE
6	Sleeve	stainless steel 304
7	Stock	stainless steel 316
8	Washer	stainless steel
9	screw	steel A2-70
10	Bolt	steel A2-70

Pneumatic drive Elephant

Technical parameters of the pneumatic drive Elephant

Name	Meaning
Design	with return springs
Working pressure, bar	6
Working environment	filtered compressed air or non-aggressive gases, oils
Availability of manual backup	No

Sketch of the dimensions and sizes of the pneumatic drive Elephant

Dimensions and sizes of the pneumatic drive Elephant:

Model	PA-DA-52	PA-DA-65	PA-DA-83	PA-DA-105	PA-DA-130	PA-DA-140
A1, mm	108	125	152	189	210	268
B1, mm	153	174	216	279	308	405
C, mm	30	36	46	55	67.5	76
D, mm	41	46	55	64	70	77
E, mm	72	89	109	134	157	174
F, mm	26	26	26	26	36	36
G, mm	15	15	15	25	25	30
H, mm	F03	F05	F05	F07	F07	F10
I, mm	F05	F07	F07	F10	F10	F12
J, mm	4-M5x8	4-M6x10	4-M6x10	4-M8x12	4-M8x12	4-M10x16
K, mm	4-M6x10	4-M8x12	4-M8x12	4-M10x16	4-M10x16	4-M12x20
L, mm	11x11	14x14	17x17	22x22	22x22	27x27
Mmm	80	80	80	80	80	130
N, mm	30	30	30	30	30	30
F0, mm	34	34	34	41	62	62
R, mm	20	20	20	20	30	30

Table of parts and materials of pneumatic drive Elephant:

No.	Name	Quantity	Material	Coating
1	Frame	1	extruded aluminum	hard anodized
2	Side plugs	2	cast aluminum
3	Gear	1	stainless steel	nickel plated
4	Piston	2	steel/aluminum	oxidation/galvanic zinc plating
5	Plugs	8	stainless steel
6	Piston ring	2	NBR
7	Springs	0-12	spring steel	epoxy coating
8	Piston bearing	2	engineering plastic
9	Piston ring	2	NBR
10	Plug	2	NBR
11	Thrust ring	2	engineering plastic
12	Ring	1	engineering plastic
13	Washer	1	stainless steel
14	Spring clamp	2	stainless steel
15	Indicator	1	plastic
16	Indicator housing	1	plastic
17	Bearing	1	engineering plastic
18	Cam	1	steel	oxidation/galvanic zinc plating
19	Bearing	1	NBR
20	Bearing	1	engineering plastic
21	Bearing	1	engineering plastic
22	Sealing ring	2	NBR
23	Sealing ring	2	NBR
24	Bearing	2	stainless steel
25	Adjusting nut	2	stainless steel
26	Adjustment screw	2	stainless steel
27	Sleeve	2	aluminum

Electropneumatic rotary positioners ElephantYT-1000RSN

Technical parameters of electropneumatic rotary positioners Elephant YT-1000RSN

Name	Meaning
Model of electropneumatic positioner	YT-1000RSN
Input control signal, mA	4~20
Internal resistance, Ohm	250(±15)
Input pressure, bar	1.4~7
Lever stroke angle	0~90°
Compressed air connection thread	1/4″
Pressure gauge connection thread	1/8″
Cable entry	G1/2″
Type of protection	IP66
Compressed air consumption, l/min	3
Air flow at outlet, l/min	80
Body material	aluminum casting

Sketch of dimensions and sizes of electropneumatic rotary positioners Elephant YT-1000RSN

Dimensions and sizes of electropneumatic rotary positioners Elephant YT-1000RSN:

Positioner model	YT-1000RSI
A, mm	224.3
B, mm	166.5
C, mm	117.5
D, mm	132.3
E, mm	6
F, mm	122
G, mm	45
H, mm	45
I, mm	23
J, mm	27
K, mm	32.5
L, mm	35.5
M, mm	91.8
N, mm	37.2
O, mm	43.5
P, mm	26.5
Q, mm	33
R, mm	80.25
S, mm	62.5
T, mm	8
U1, mm	70
U2, mm	93
V1, mm	40
V2, mm	63
W, mm	26
X, mm	32
Y, mm	9
Z, mm	24

Passports and certificates

Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs

Specifications

Country of origin

China
Port opening

full bore
Body material

Stainless steel AISI 316
Maximum allowable temperature

180 °C
Connection type

For welding
Control type

Pneumatically actuated
Operating environment

water, steam, petroleum products, neutral media, gaseous media
Type of seal

PTFE
Torque

3 Nm
Limit switches

no
Type of pneumatic actuator

double action
