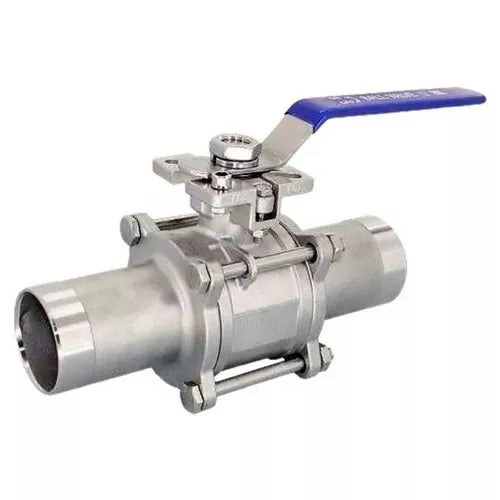

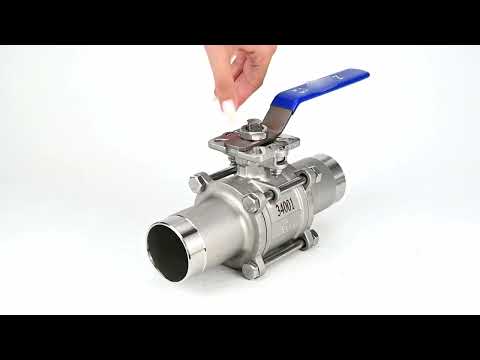

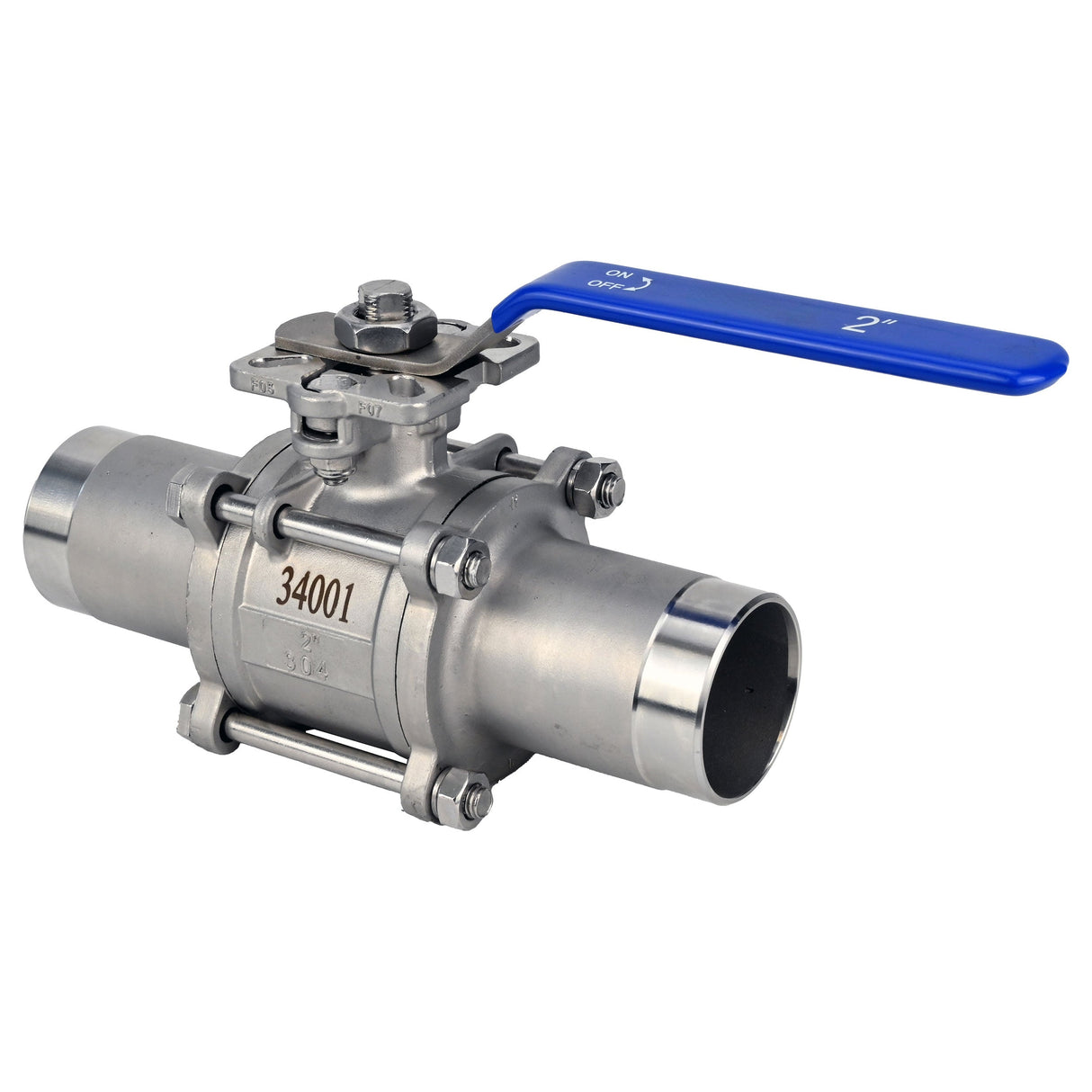

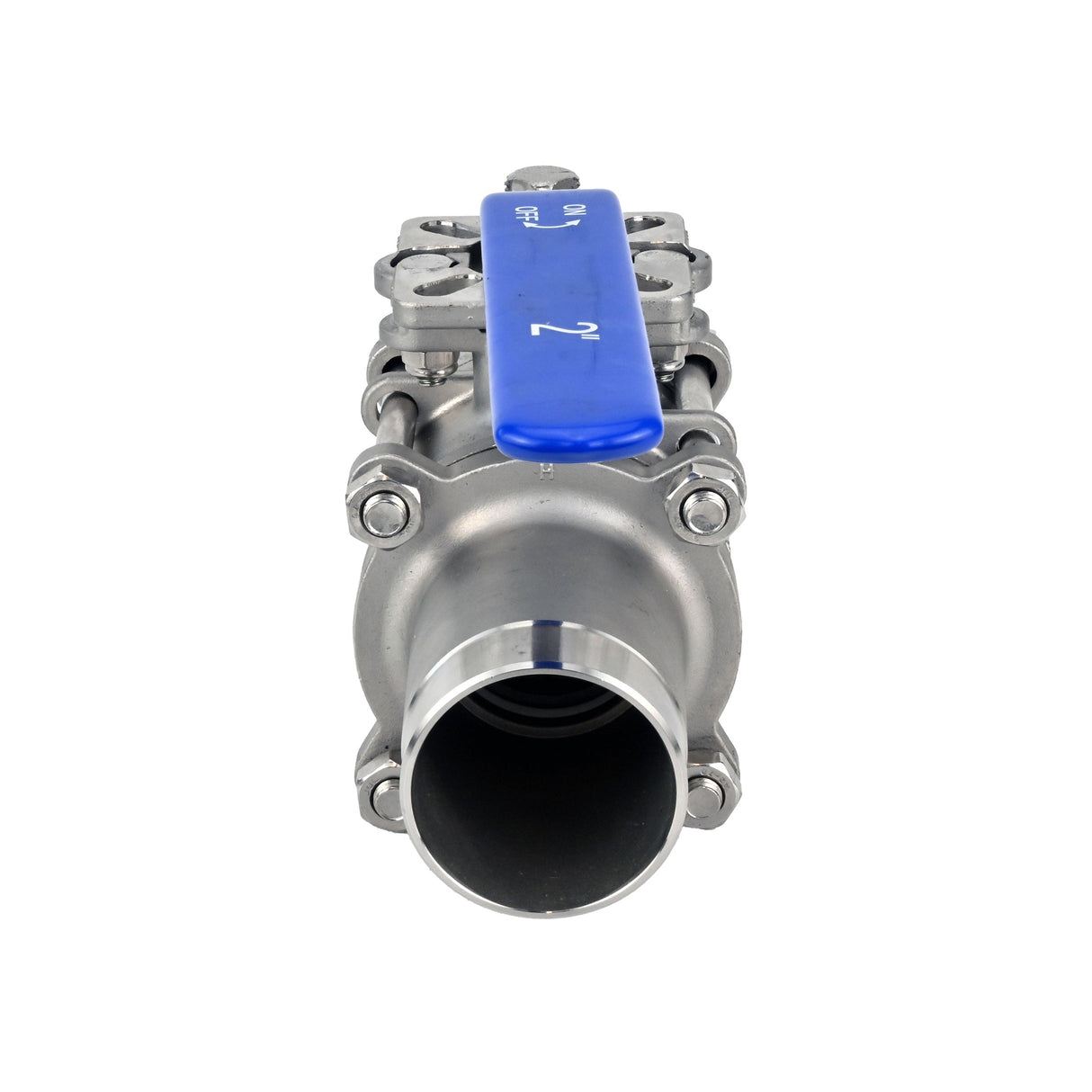

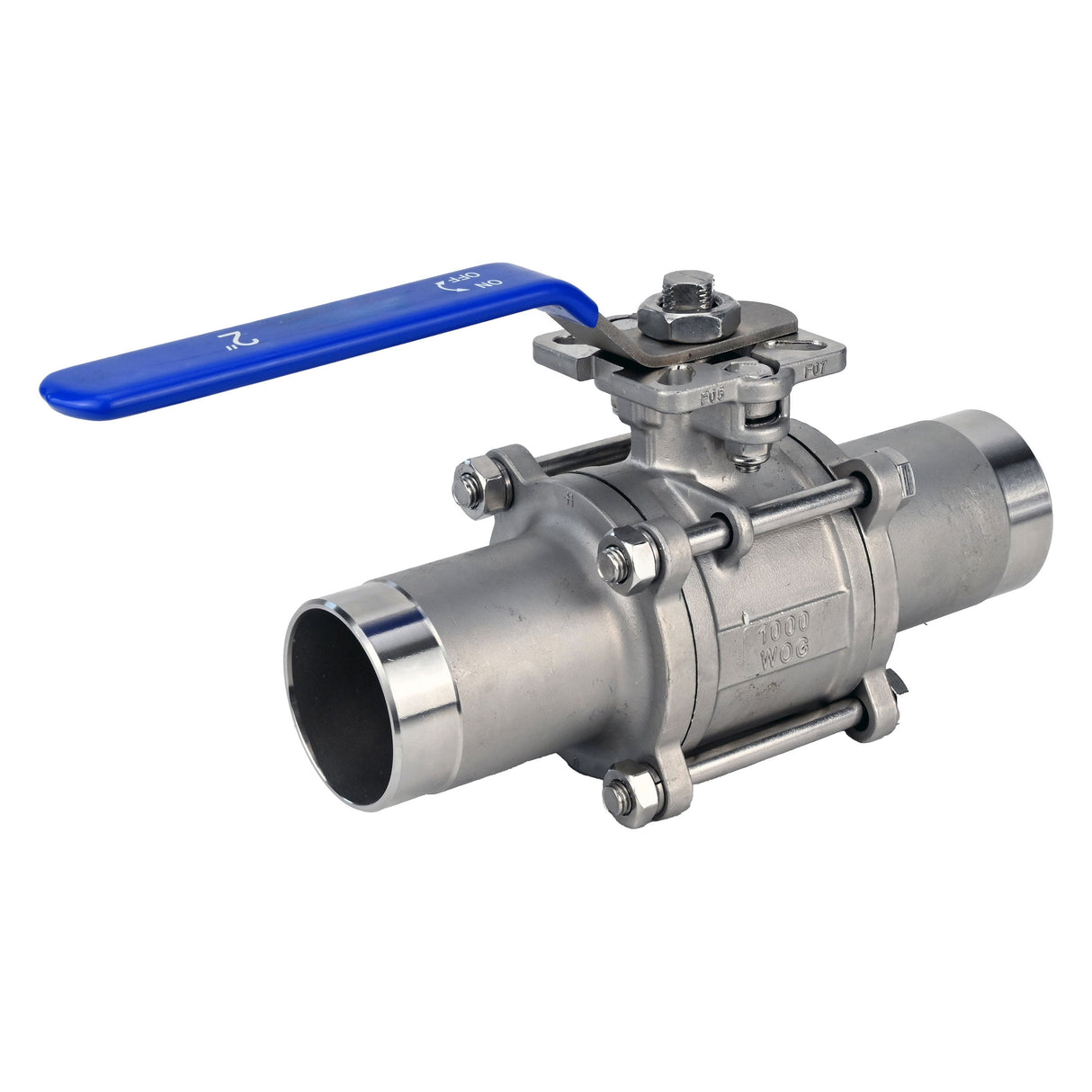

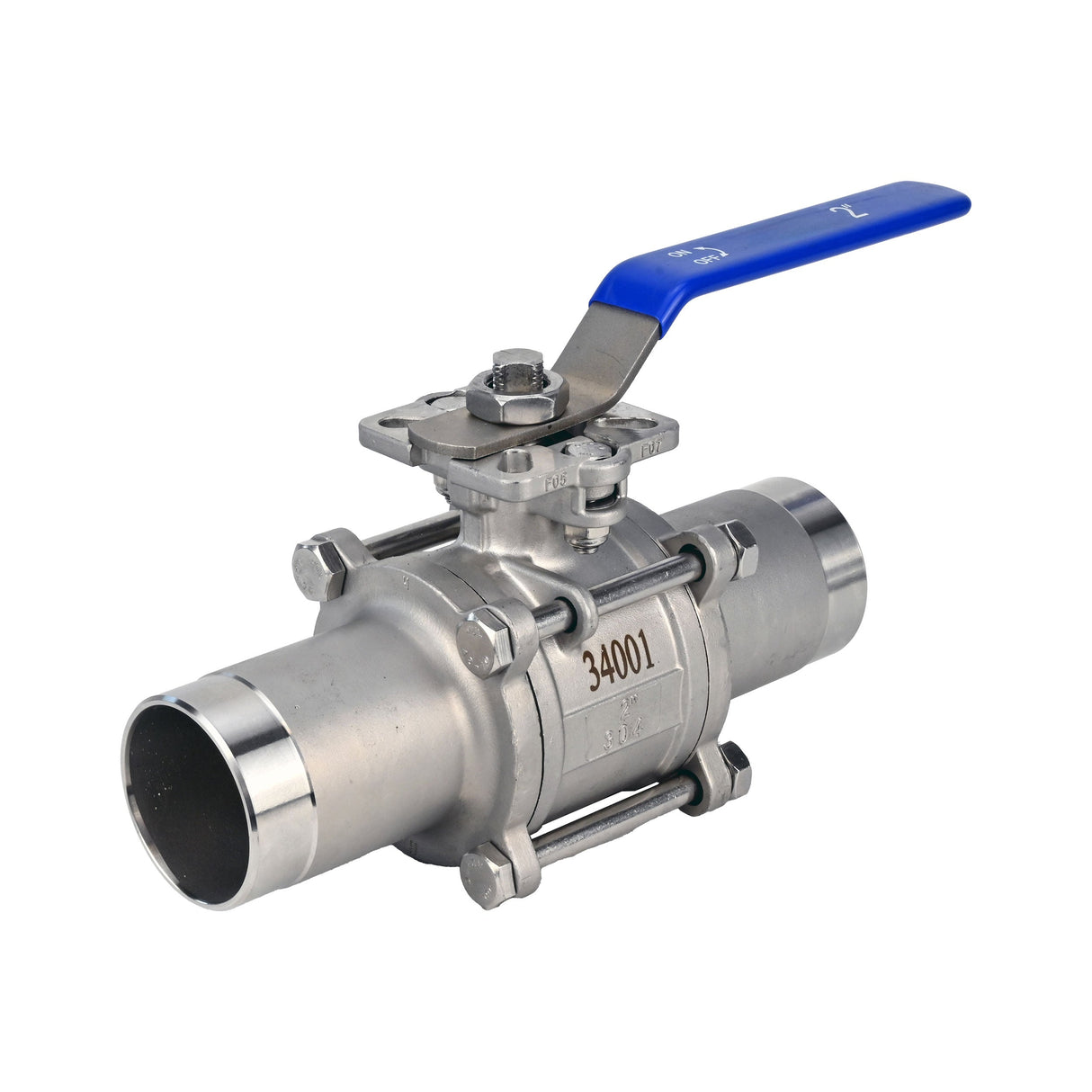

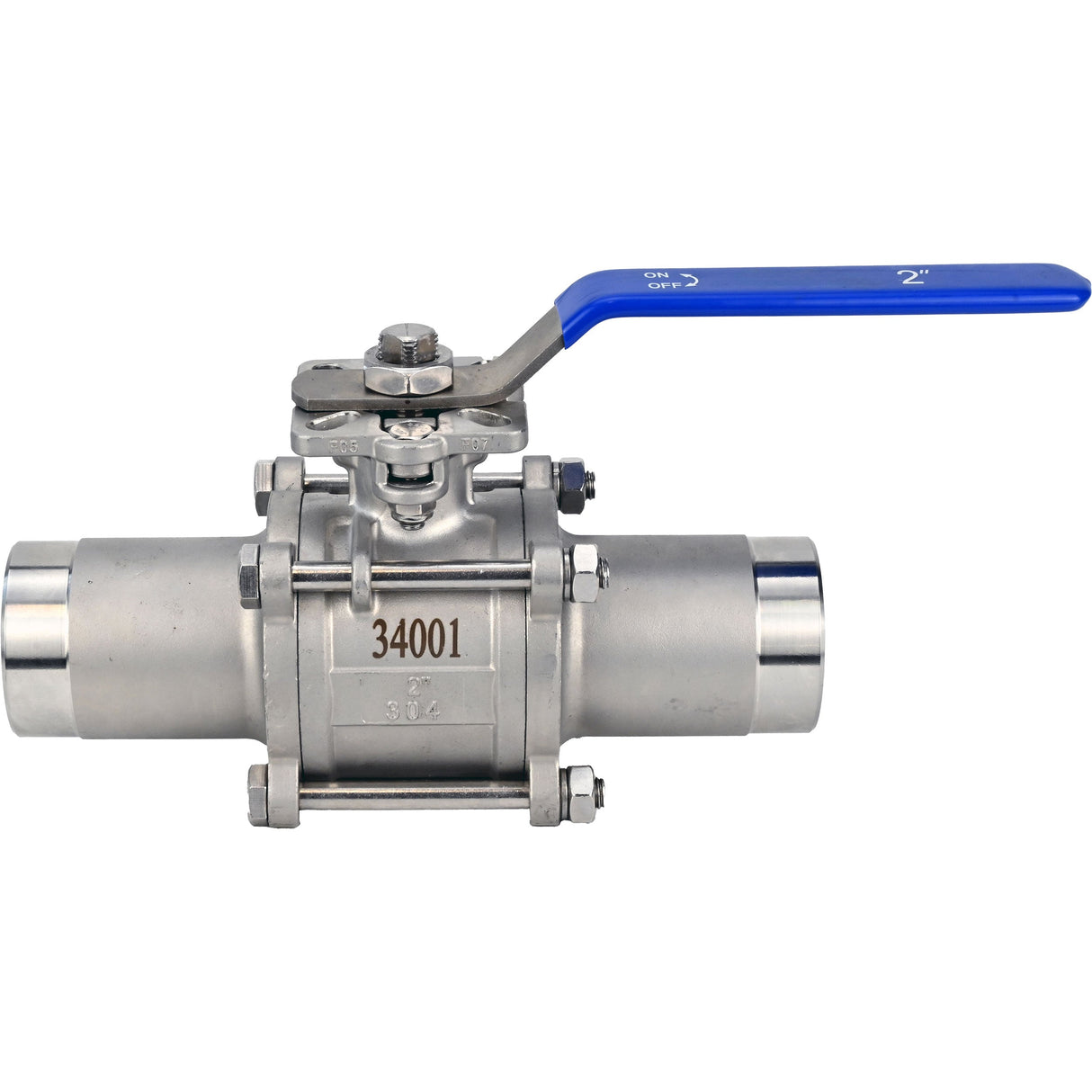

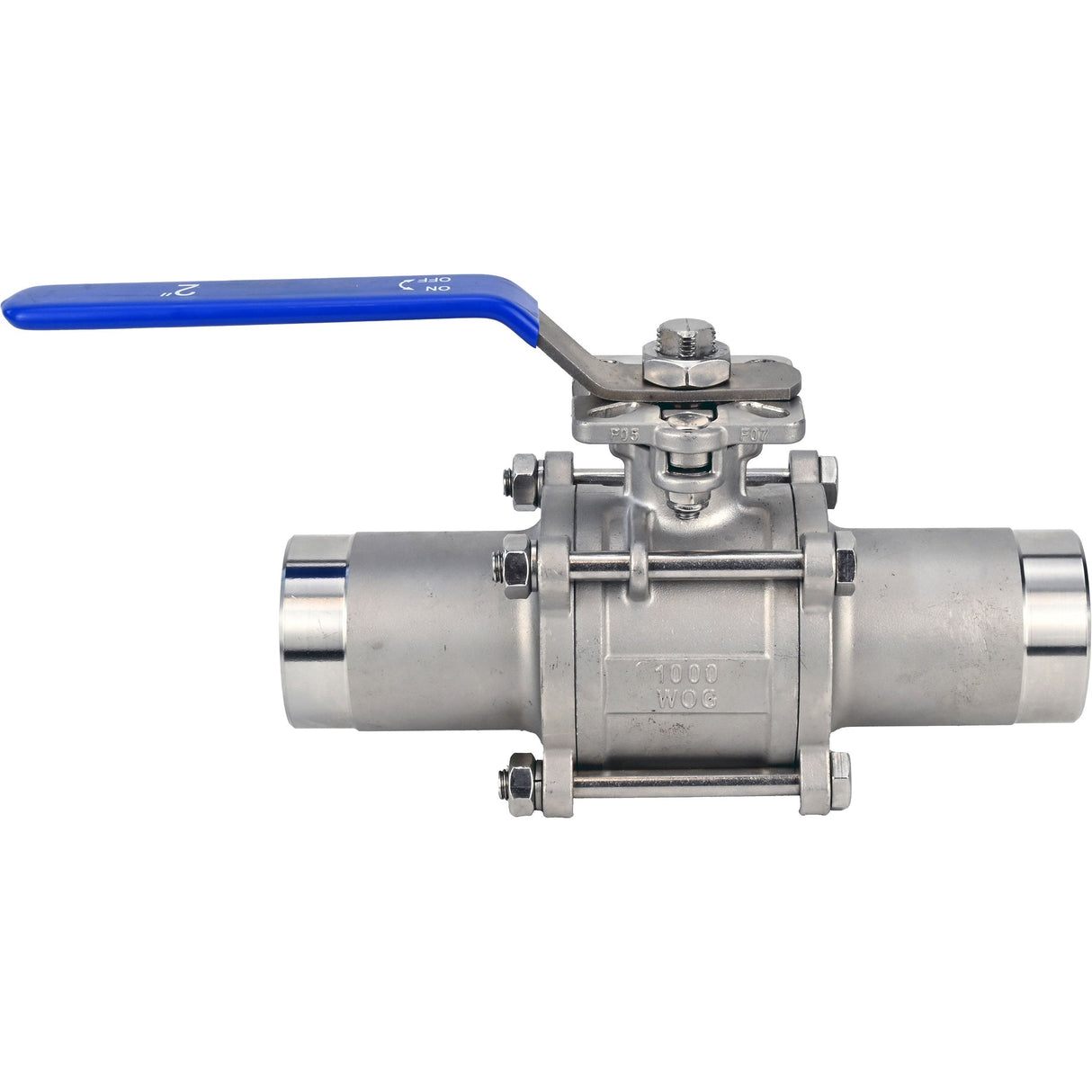

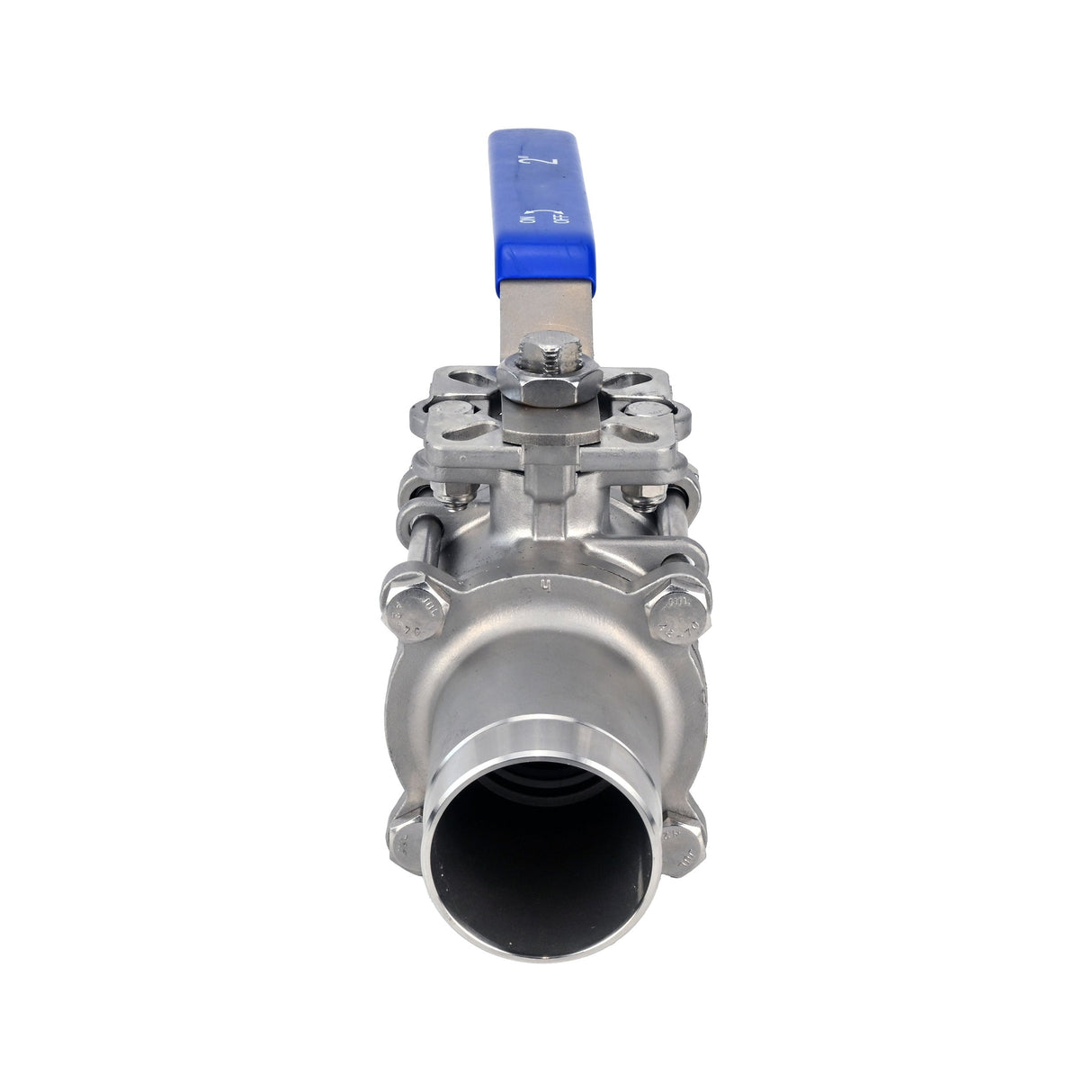

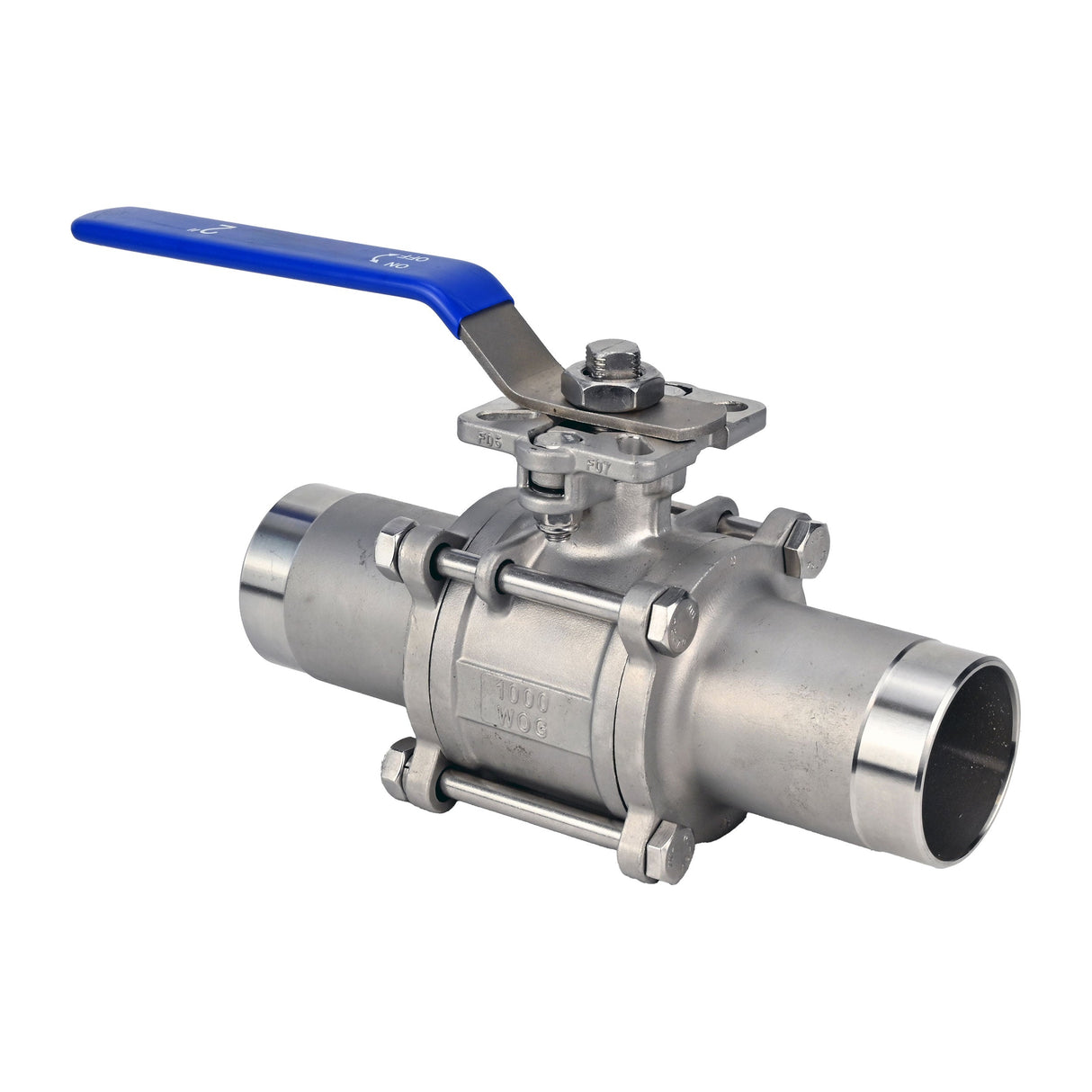

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H full bore, body 316 stainless steel, welded, with handle
Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H full bore, body 316 stainless steel, welded, with handle - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The ball valve is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.
Dimensions and dimensions of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H full bore, body - stainless steel 316, welded, with handle
| Model | d | D | B | H | L | E |
| DN10 | 12 | 17.2 | 2.1 | 50 | 130 | 120 |
| DN15 | 15 | 21.3 | 2.1 | 55 | 150 | 120 |
| DN20 | 20 | 26.9 | 2.1 | 66 | 155 | 135 |
| DN25 | 25 | 33.7 | 2.8 | 71 | 186 | 160 |
| DN32 | 32 | 42.4 | 2.8 | 81 | 195 | 170 |
| DN40 | 38 | 48.3 | 2.8 | 87 | 231 | 190 |
| DN50 | 50 | 60.3 | 2.8 | 91 | 243 | 220 |
| DN65 | 64 | 76.1 | 3 | 119 | 290 | 280 |
| DN80 | 76 | 88.9 | 3 | 125 | 302 | 280 |
| DN100 | 100 | 114.3 | 3 | 159 | 326 | 330 |
| DN125 | 125 | 141.3 | 3.4 | 186 | 360 | 330 |
| DN150 | 150 | 168.3 | 3.4 | 207 | 390 | 330 |
Sketch of dimensions and dimensions of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H full bore, body - stainless steel 316, welded, with handle
Table of parts and materials for ball valves Elephant BV3232P(3pc)-FP-W-ISO-H full bore, 316 stainless steel body, welded, with handle
| № | Part name | Material |
| 1 | Case | stainless steel 316 |
| 2 | Side element (2 pcs) | stainless steel 316 |
| 3 | Char | stainless steel 316 |
| 4 | Ball seal | PTFE |
| 5 | Stem seal | PTFE |
| 6 | bushing | stainless steel 304 |
| 7 | Stem | stainless steel 316 |
| 8 | Washer | stainless steel |
| 9 | Nut | steel А2-70 |
| 10 | Bolt | steel А2-70 |
| 11 | Handle | stainless steel |
| 12 | Handle coating | PVC |
| 13 | Nut | steel А2-70 |
Sketch of parts and materials of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H full bore, body - stainless steel 316, welded, with handle
Reviews (0)
Reviews (0)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Available Variants
| SKU | Size | Pressure | Price | Availability | Max Temperature | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|
| D160-36314 | DN10 | 63 bar | €45,00 | Out of stock | - | ||
| D160-36315 | DN15 | 63 bar | €45,00 | Out of stock | - | ||
| D160-36316 | DN20 | 63 bar | €52,00 | Out of stock | - | ||
| D160-36317 | DN25 | 63 bar | €76,00 | Out of stock | - | ||
| D160-36318 | DN32 | 63 bar | €114,00 | Out of stock | - | ||
| D160-36319 | DN40 | 40 bar | €147,00 | Out of stock | - | ||
| D160-36320 | DN50 | 40 bar | €204,00 | Out of stock | - | ||
| D160-36321 | DN65 | 25 bar | €384,00 | Out of stock | - | ||
| D160-36322 | DN80 | 25 bar | €533,00 | Out of stock | - | ||
| D160-36323 | DN100 | 25 bar | €863,00 | Out of stock | - | ||
| D160-36324 | DN125 | 16 bar | €1.734,00 | Out of stock | - | ||
| D160-36325 | DN150 | 16 bar | €2.601,00 | Out of stock | - |
