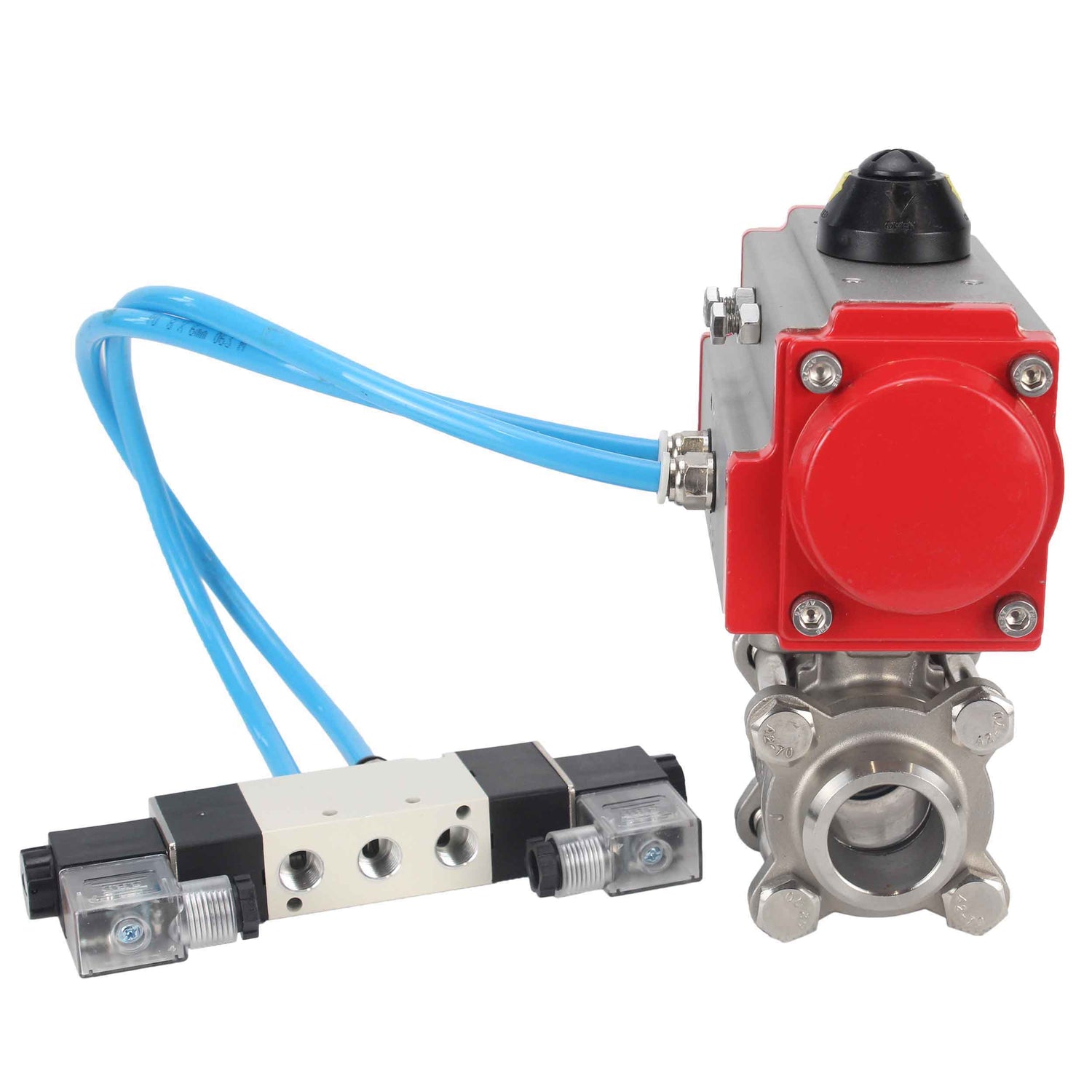

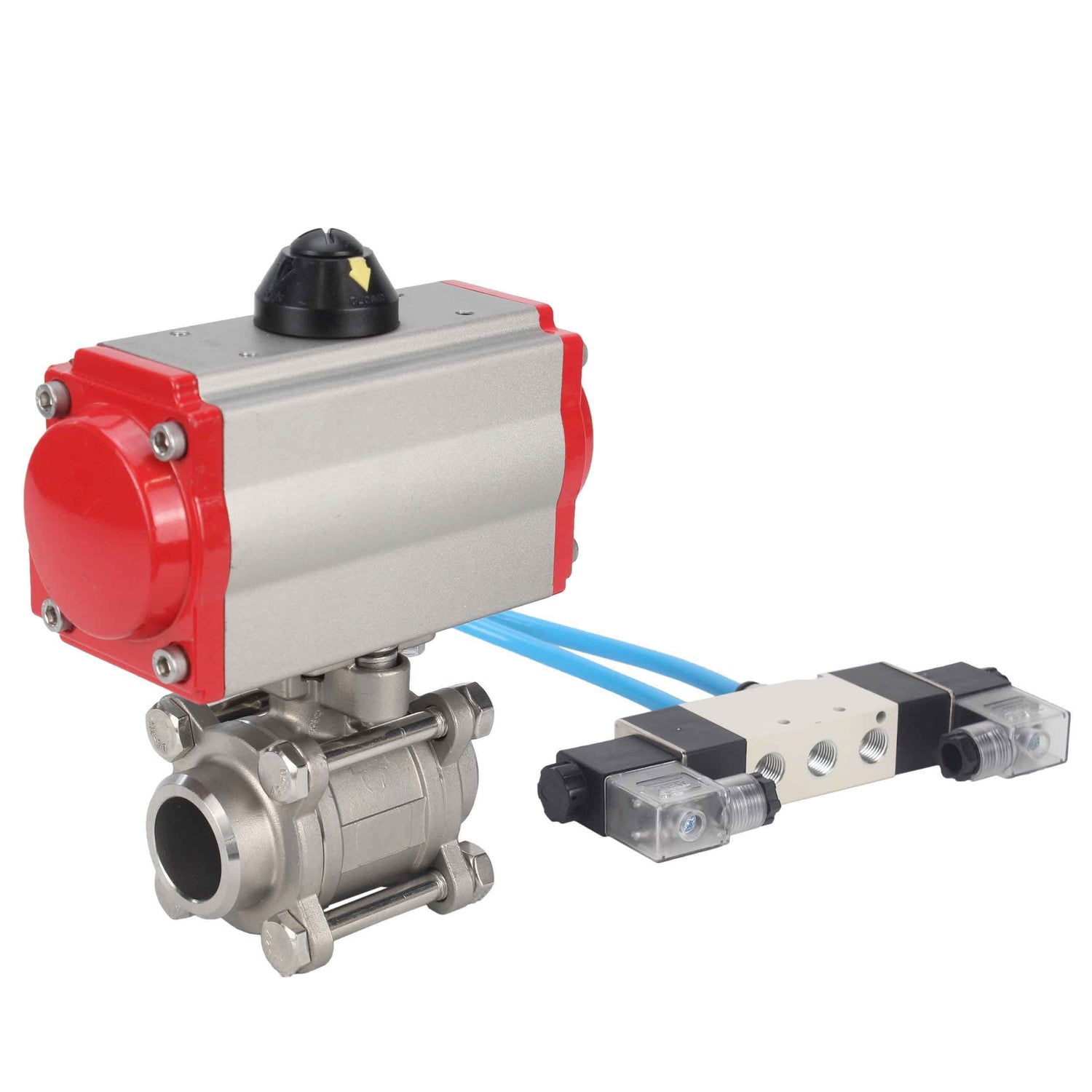

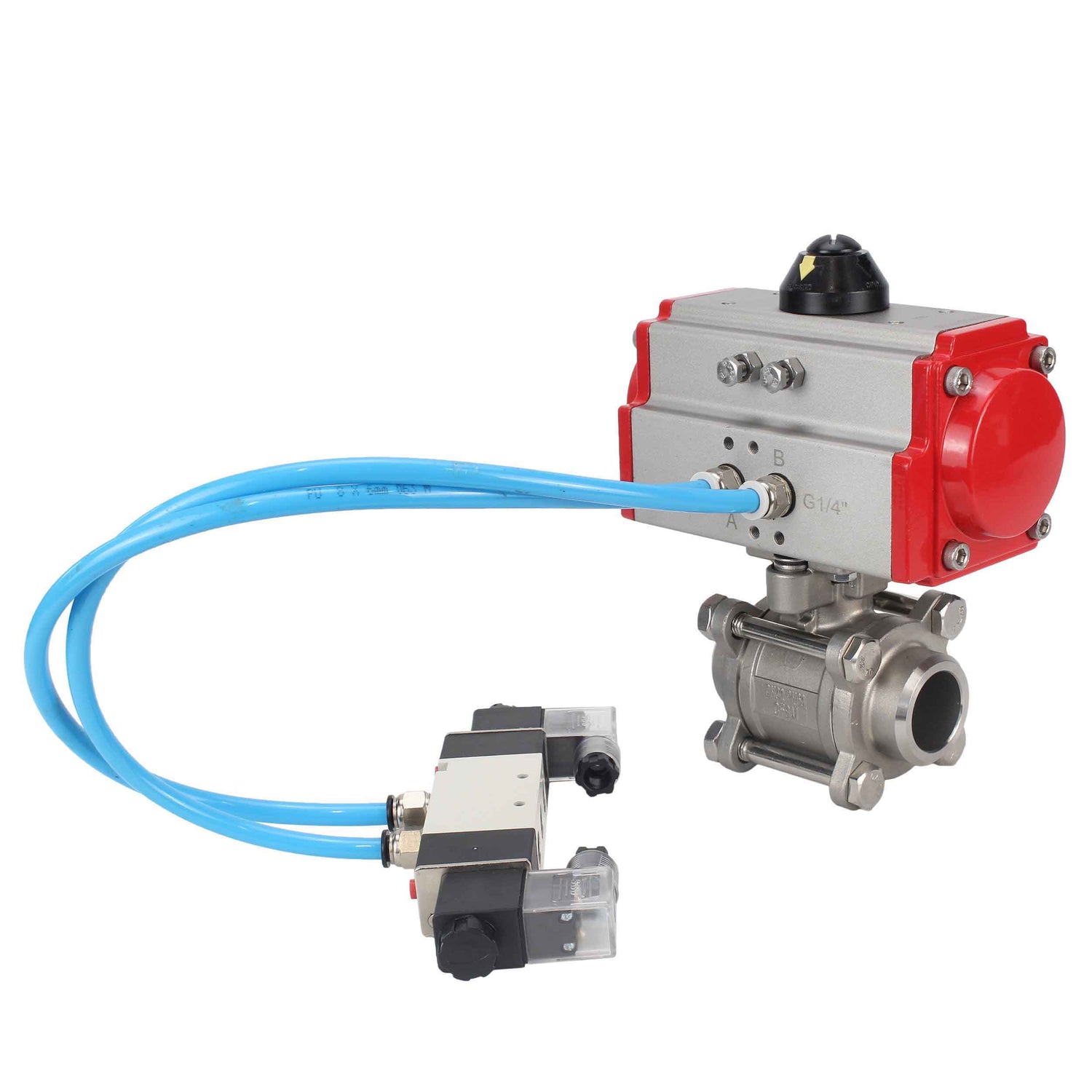

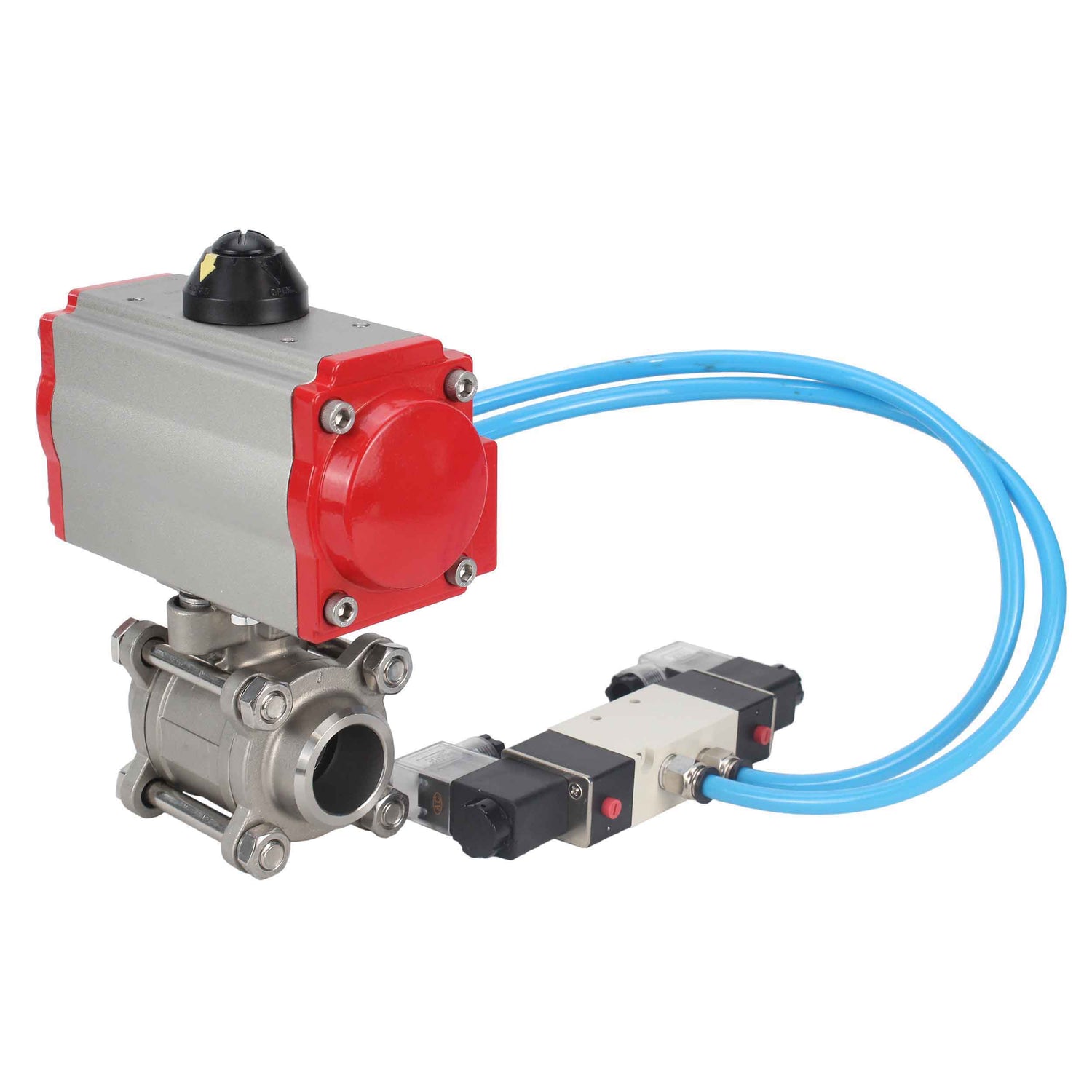

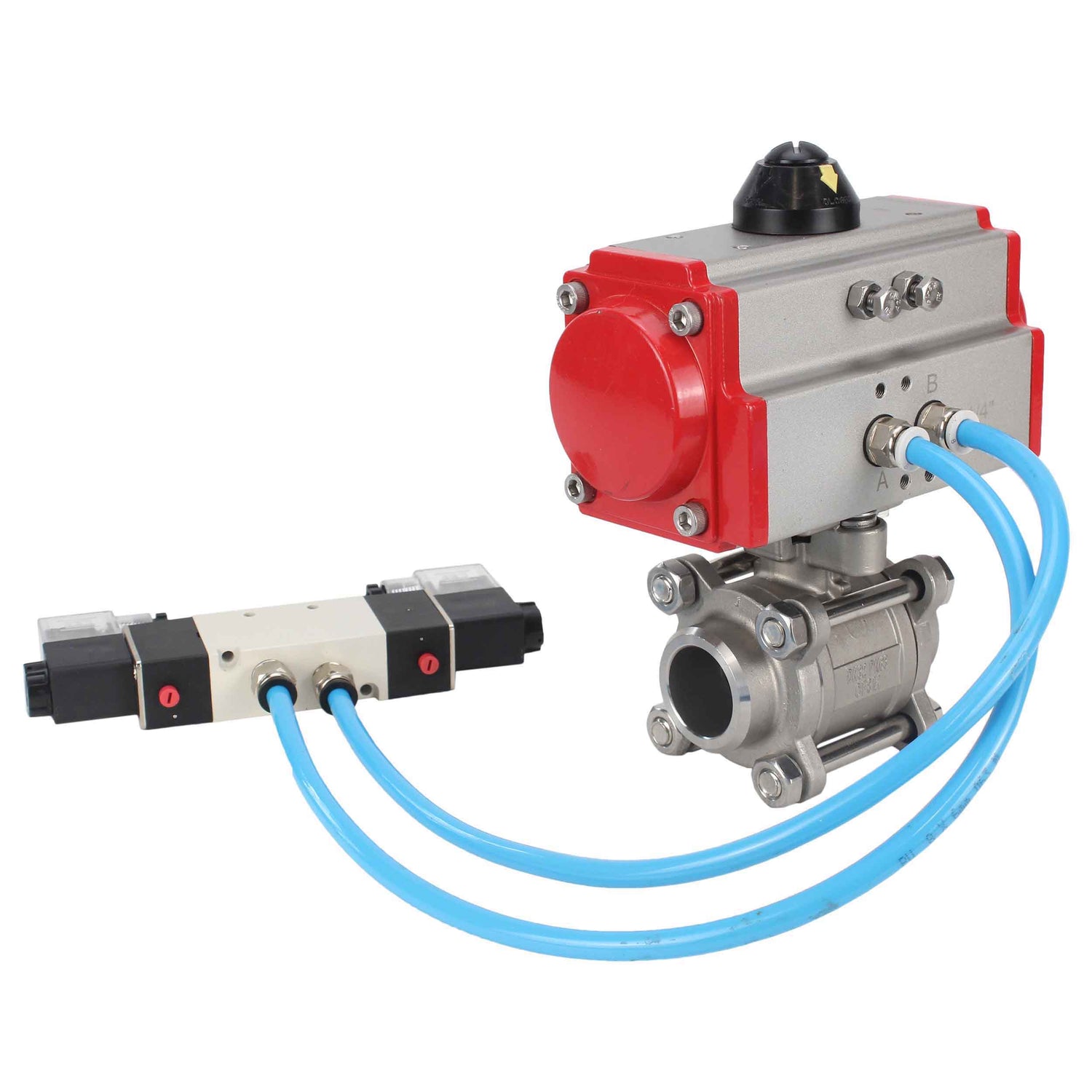

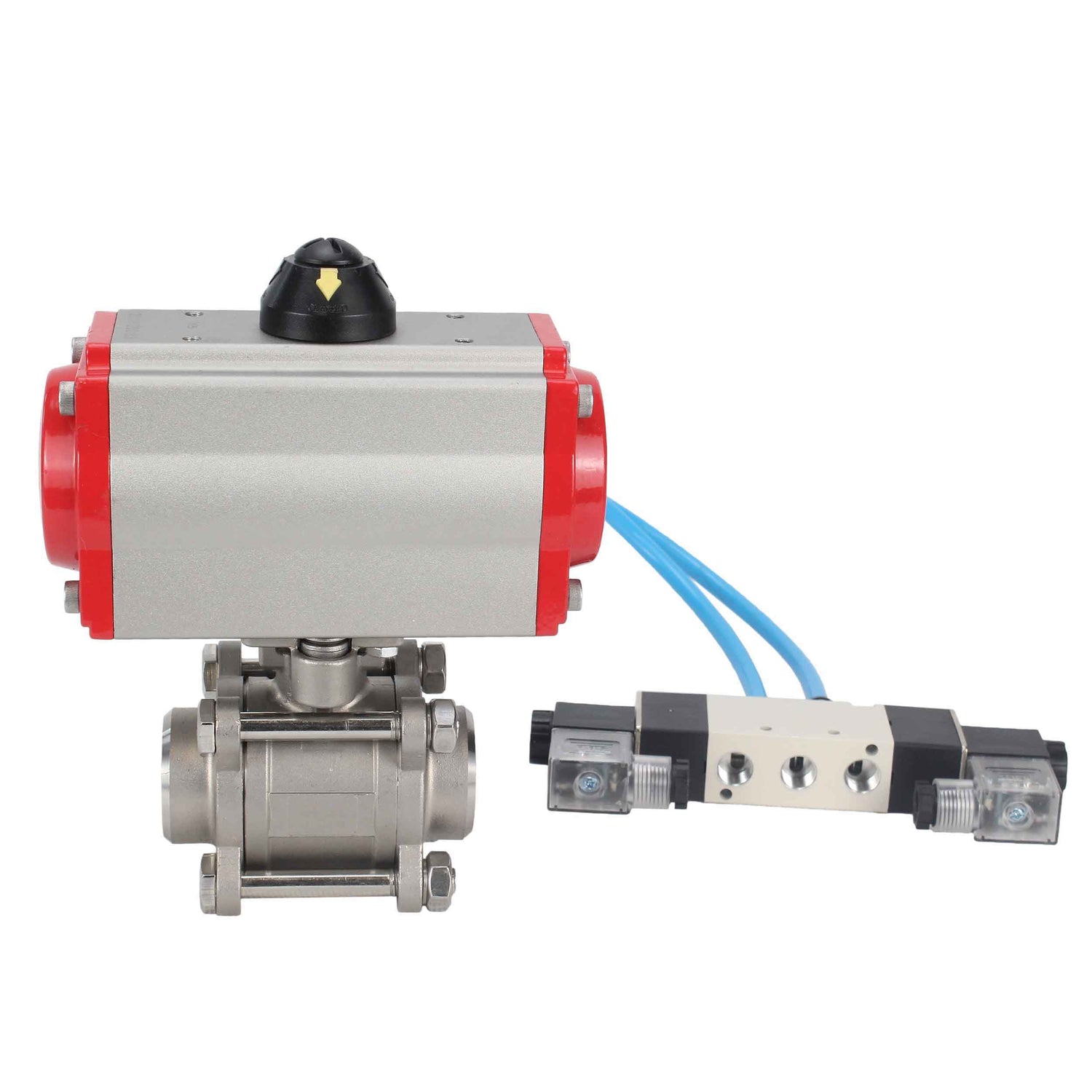

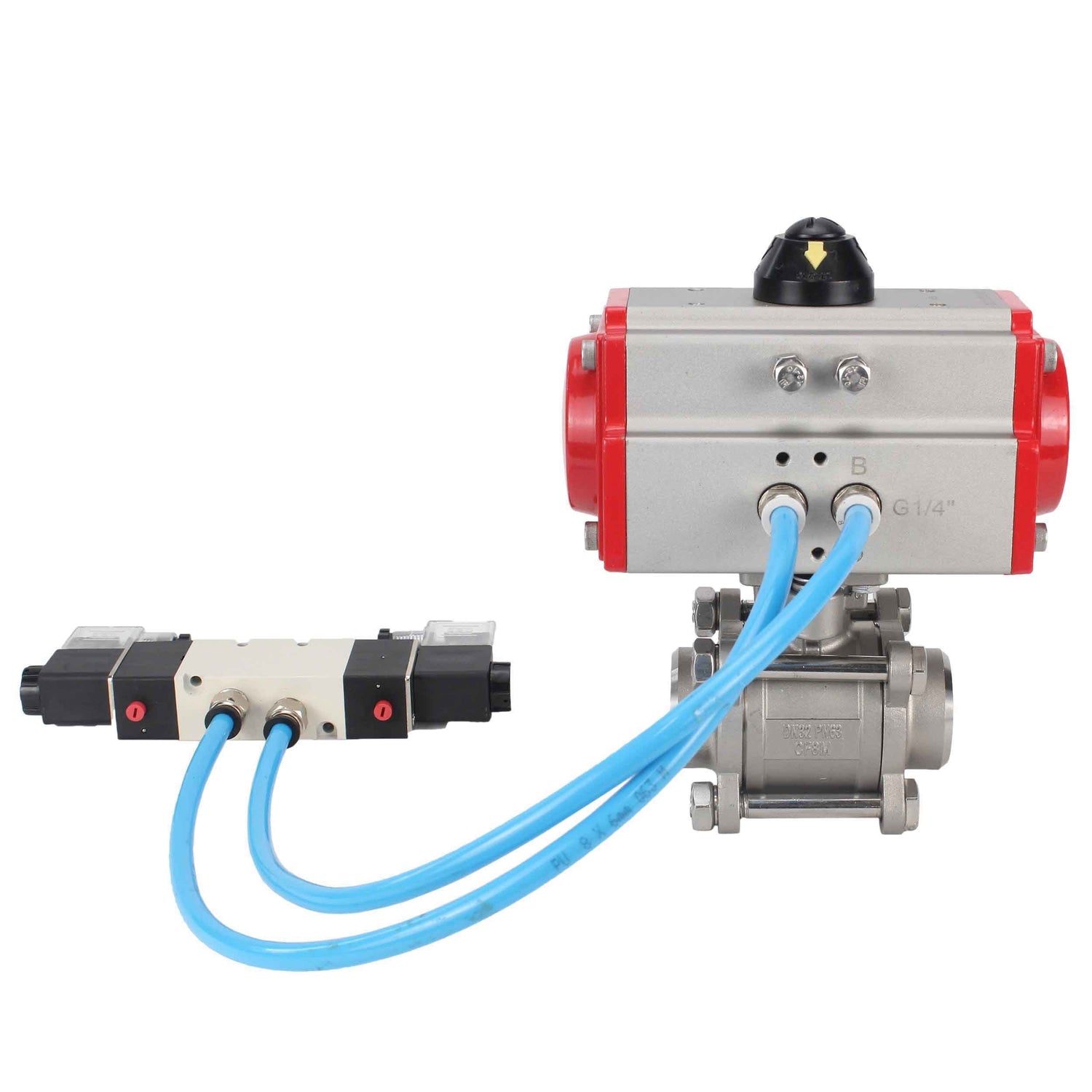

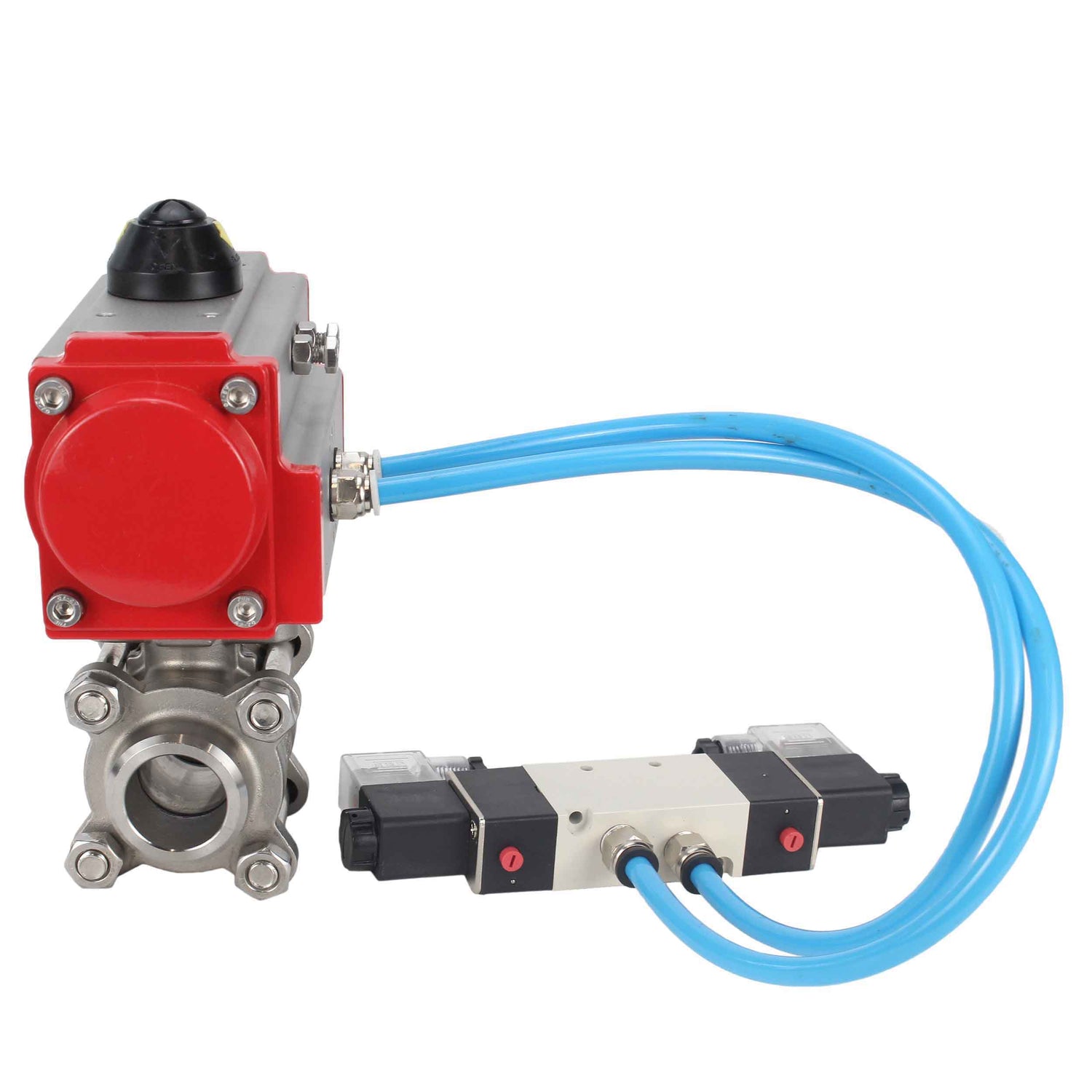

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H 16 bar/25, full bore for welding, stainless steel SS316, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V
Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H 16 bar/25, full bore for welding, stainless steel SS316, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The Elephant ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.
Pneumatic actuators Elephant double-acting rotary PA-DAXXX and pneumatic rotary actuators with return spring PA-SA-XXX are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.
The pneumatic distributor is used to change the direction, start, and stop the flow of compressed air in a pneumatic system depending on the external control action.
Technical parameters of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 PN63/25, full bore for welding, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic distributor 4V320-08 220V:
| Name | Meaning |
| Working environment temperature, °C | from -20 to 200 |
| Application | water supply, heat supply, steam supply |
| Working environment | water, steam, petroleum products, neutral media |
| Connection to the pipeline | for welding |
| Water intake | No |
| Type of flow section | full bore |
| Control type | With pneumatic drive |
| Joining | for welding |
| Control | double acting pneumatic actuator |
| Availability of limit switches | No |
| Availability of pneumatic distributor | There is |
| Warranty, g. | 1 |
Sketch of dimensions and sizes Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 PN63/25, full bore for welding, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA double acting, with pneumatic distributor 4V320-08 220V
Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 PN63/25, full bore for welding, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic distributor 4V320-08 220V:
| Size | D, mm | L, mm | B1, mm | E, mm | B, mm | H2, mm |
| DN10 | 10 | 63 | 153 | 72 | 17.2 | 38.9 |
| DN15 | 15 | 65 | 153 | 72 | 21.3 | 40 |
| DN20 | 20 | 75 | 153 | 72 | 26.7 | 43.9 |
| DN25 | 25 | 83 | 153 | 72 | 33.5 | 53 |
| DN32 | 32 | 98 | 153 | 72 | 42.2 | 56 |
| DN40 | 40 | 112 | 174 | 89 | 48.3 | 60 |
| DN50 | 50 | 135 | 174 | 89 | 60.5 | 75 |
| DN65 | 65 | 175 | 216 | 109 | 73.2 | 97 |
| DN80 | 80 | 198 | 216 | 109 | 88.9 | 112 |
| DN100 | 100 | 246 | 216 | 109 | 114.3 | 122 |
Sketch of parts and materials Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 PN63/25, full bore for welding, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA double acting, with pneumatic distributor 4V320-08 220V
Table of parts and materials Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 PN63/25, full bore for welding, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic distributor 4V320-08 220V:
| Item No. | Details | Material |
| 1 | Frame | Steel SS316 |
| 2 | Ball valve | Steel S304/S316 |
| 3 | Bolt | Steel S201/S304 |
| 4 | screw | Steel S201/S304 |
| 5 | Sealing | Polytetrafluoroethylene PTFE |
| 6 | Stock | Steel SS304/SS316 |
| 7 | Seal | Steel S201/S304 |
| 8 | Sealing ring | VITON |
| 9 | Lid | Steel WCB/CF8/CF8M |
| 10 | Saddle rings | Polymerized resin PPL |
| 11 | Thrust washer | Polytetrafluoroethylene PTFE |
Pneumatic drive Elephant
Technical parameters of the pneumatic drive Elephant
| Name | Meaning |
| Design | with return springs |
| Working pressure, bar | 6 |
| Working environment | filtered compressed air or non-aggressive gases, oils |
| Availability of manual backup | No |
Sketch of the dimensions and sizes of the pneumatic drive Elephant
Dimensions and sizes of the pneumatic drive Elephant:
| Drive model | DA-052 | DA-065 | DA-083 |
| G, mm | 15 | 15 | 15 |
| Mmm | 80 | 80 | 80 |
| N, mm | 30 | 30 | 30 |
| F0, mm | 34 | 34 | 34 |
| R, mm | 20 | 20 | 20 |
| B1, mm | 153 | 174 | 216 |
| C, mm | 30 | 36 | 46 |
| E, mm | 72 | 89 | 109 |
| J | 4-M5x8 | 4-M6x10 | 4-M6x10 |
| TO | 4-M6x10 | 4-M8x12 | 4-M8x12 |
| F, mm | 26 | 26 | 26 |
| A1, mm | 108 | 125 | 152 |
| D, mm | 41 | 46 | 55 |
| L | 11x11 | 14x14 | 17x17 |
| H | F03 | F05 | F05 |
| I | F05 | F07 | F07 |
Sketch of parts and materials of pneumatic drive Elephant
Table of parts and materials of pneumatic drive Elephant:
| No. | Name | Quantity | Material | Coating |
| 1 | Frame | 1 | extruded aluminum | hard anodized |
| 2 | Side plugs | 2 | cast aluminum | |
| 3 | Gear | 1 | stainless steel | nickel plated |
| 4 | Piston | 2 | steel/aluminum | oxidation/galvanic zinc plating |
| 5 | Plugs | 8 | stainless steel | |
| 6 | Piston ring | 2 | NBR | |
| 7 | Springs | 0-12 | spring steel | epoxy coating |
| 8 | Piston bearing | 2 | engineering plastic | |
| 9 | Piston ring | 2 | NBR | |
| 10 | Plug | 2 | NBR | |
| 11 | Thrust ring | 2 | engineering plastic | |
| 12 | Ring | 1 | engineering plastic | |
| 13 | Washer | 1 | stainless steel | |
| 14 | Spring clamp | 2 | stainless steel | |
| 15 | Indicator | 1 | plastic | |
| 16 | Indicator housing | 1 | plastic | |
| 17 | Bearing | 1 | engineering plastic | |
| 18 | Cam | 1 | steel | oxidation/galvanic zinc plating |
| 19 | Bearing | 1 | NBR | |
| 20 | Bearing | 1 | engineering plastic | |
| 21 | Bearing | 1 | engineering plastic | |
| 22 | Sealing ring | 2 | NBR | |
| 23 | Sealing ring | 2 | NBR | |
| 24 | Bearing | 2 | stainless steel | |
| 25 | Adjusting nut | 2 | stainless steel | |
| 26 | Adjustment screw | 2 | stainless steel | |
| 27 | Sleeve | 2 | aluminum |
Pneumatic distributor Elephant
Technical parameters of the pneumatic distributor Elephant
| Name | Meaning |
| Type of pneumatic distributor | spool valve |
| Working pressure, bar | 1.5 ÷ 1.8 |
| Supply voltage, V | 220V |
| Full power, Va | 4.5 |
| Control | two-way electromagnetic |
| Response frequency, cycles/sec | 5 |
Sketch of the dimensions and sizes of the pneumatic distributor Elephant
Dimensions and sizes of the pneumatic distributor Elephant:
| Model of pneumatic distributor | 4V320-08 |
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 82.4 |
| P, mm | 24 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| V, mm | 4 |
| H, mm | 82.4 |
Passports and certificates
Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs
Specifications
Specifications
-
Country of origin
-
Port opening
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environment
-
Type of seal
-
Voltage
-
Explosion-proof
-
Torque
-
Limit switches
-
Type of pneumatic actuator
