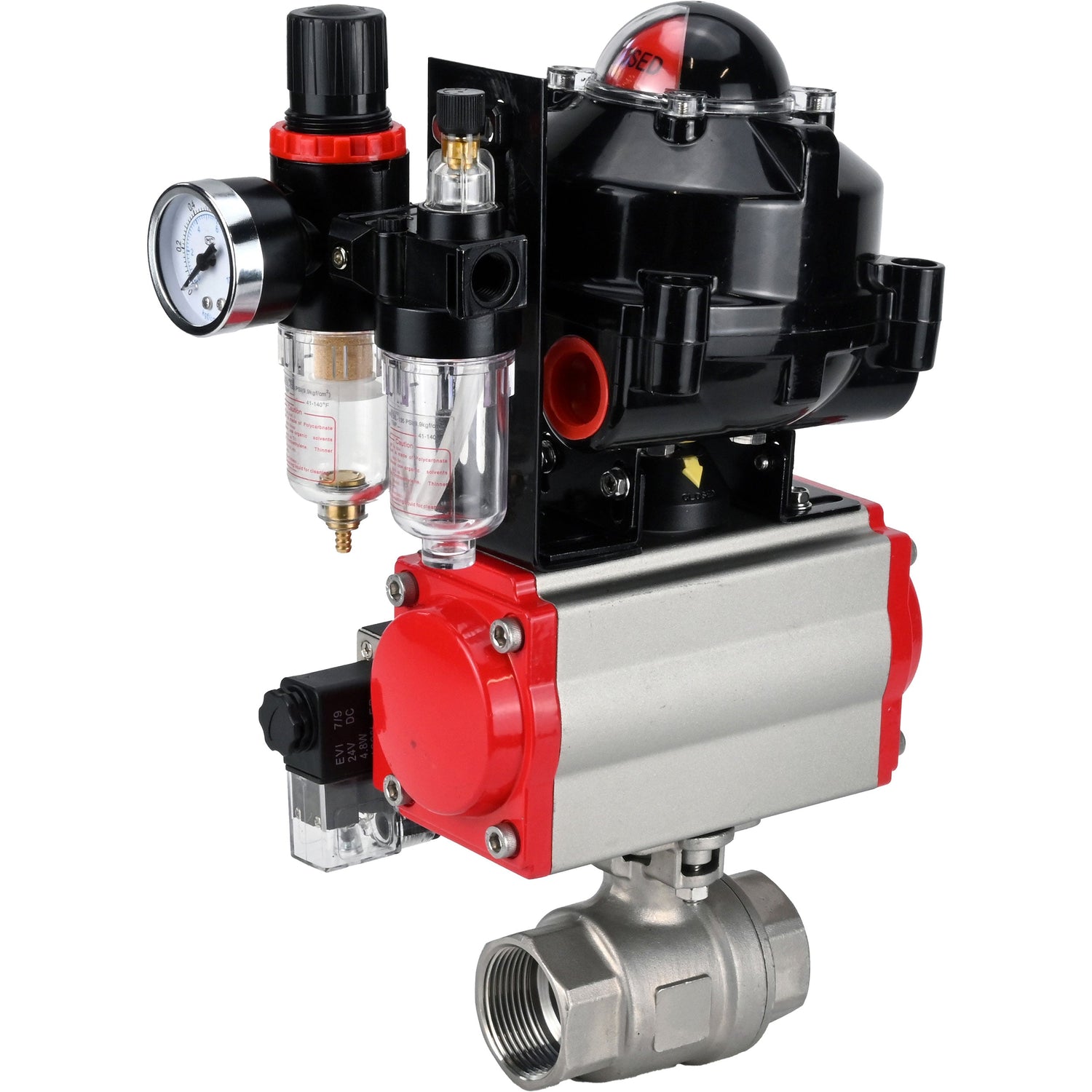

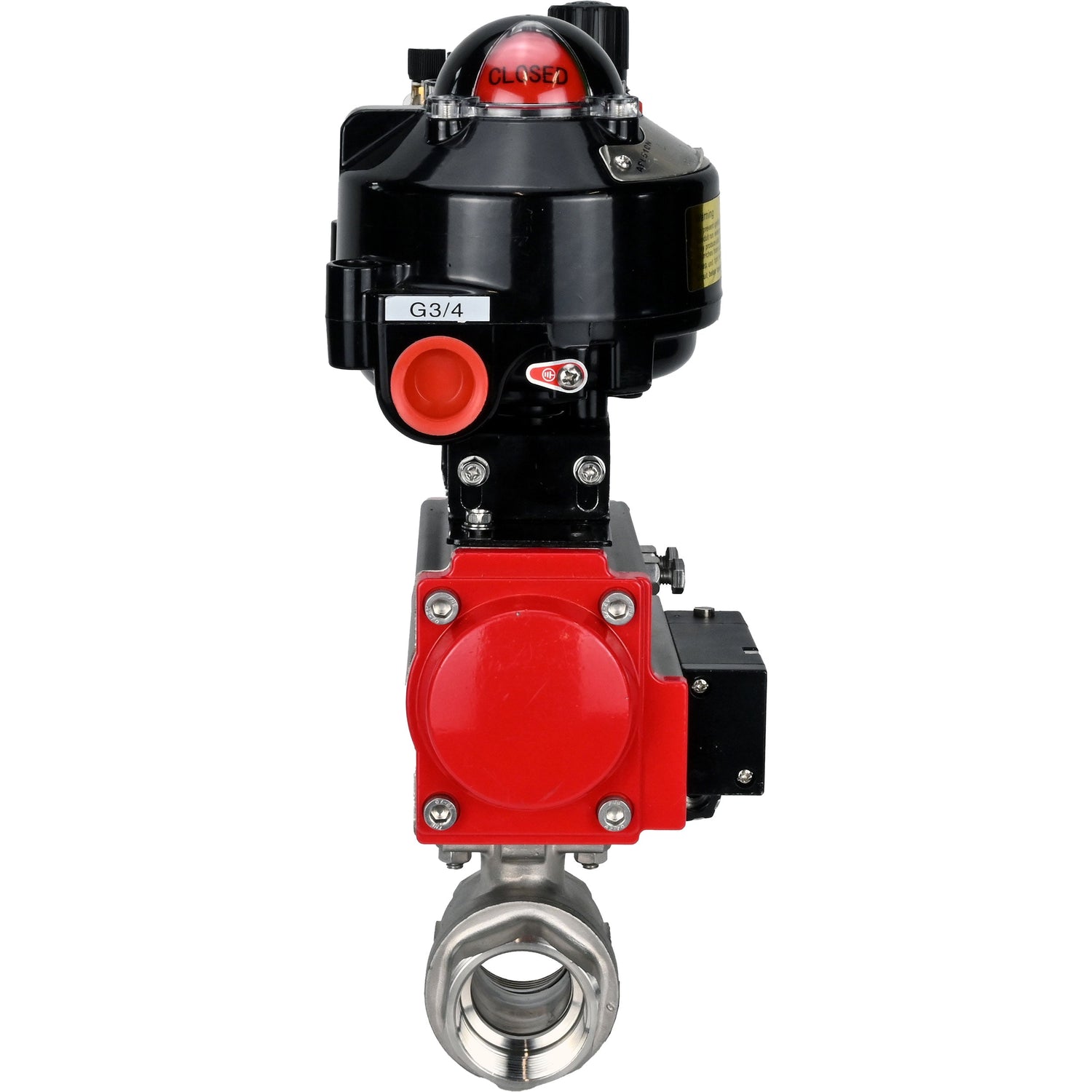

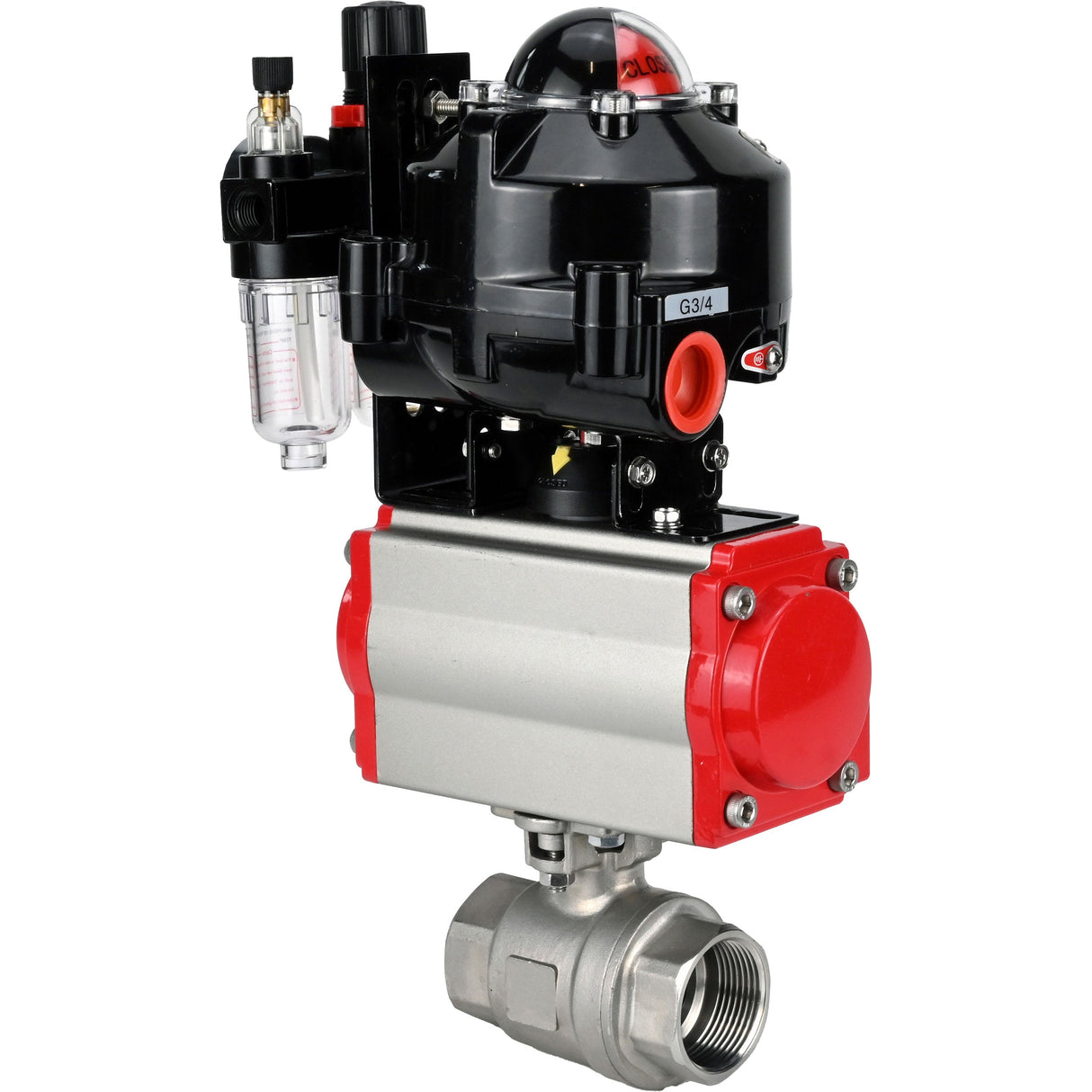

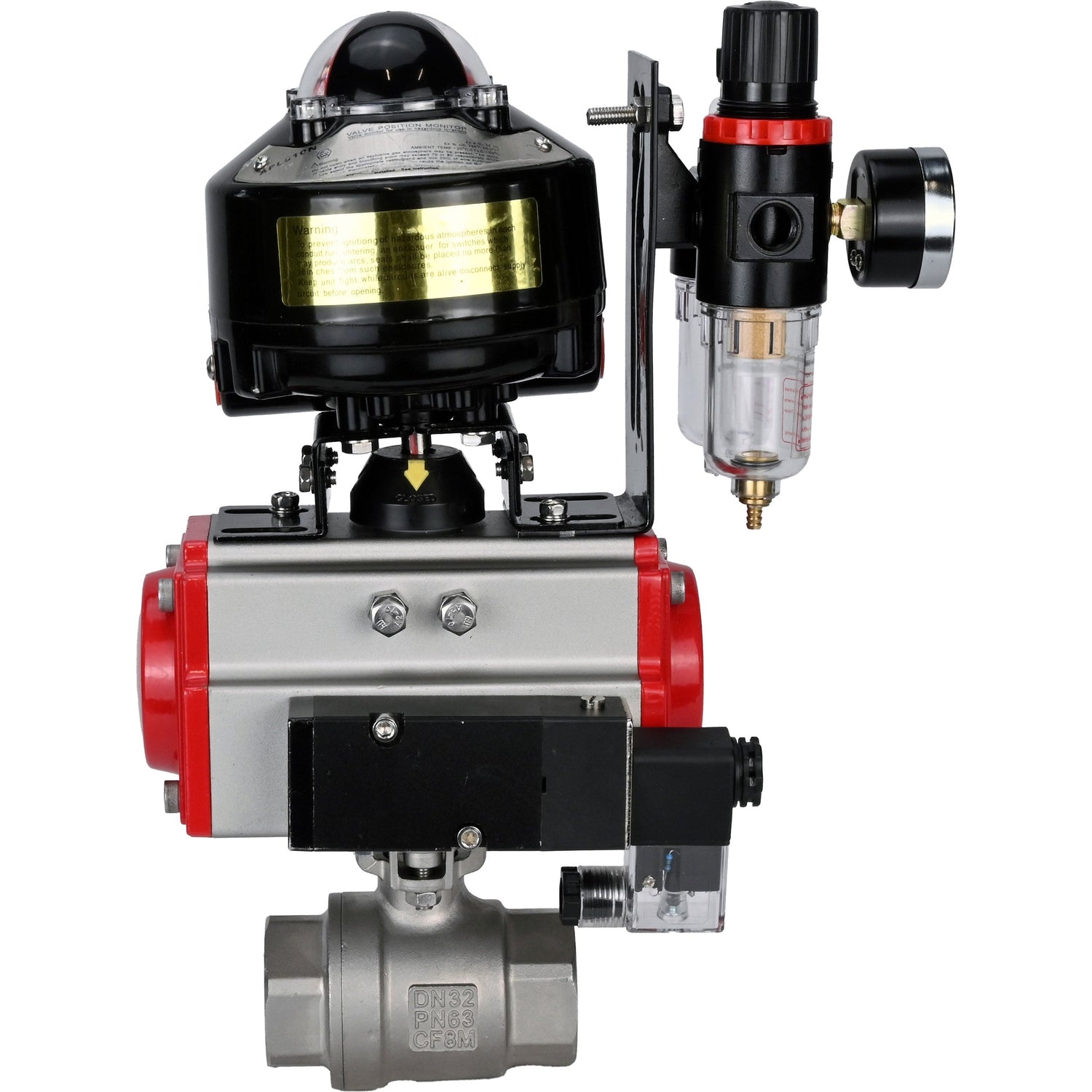

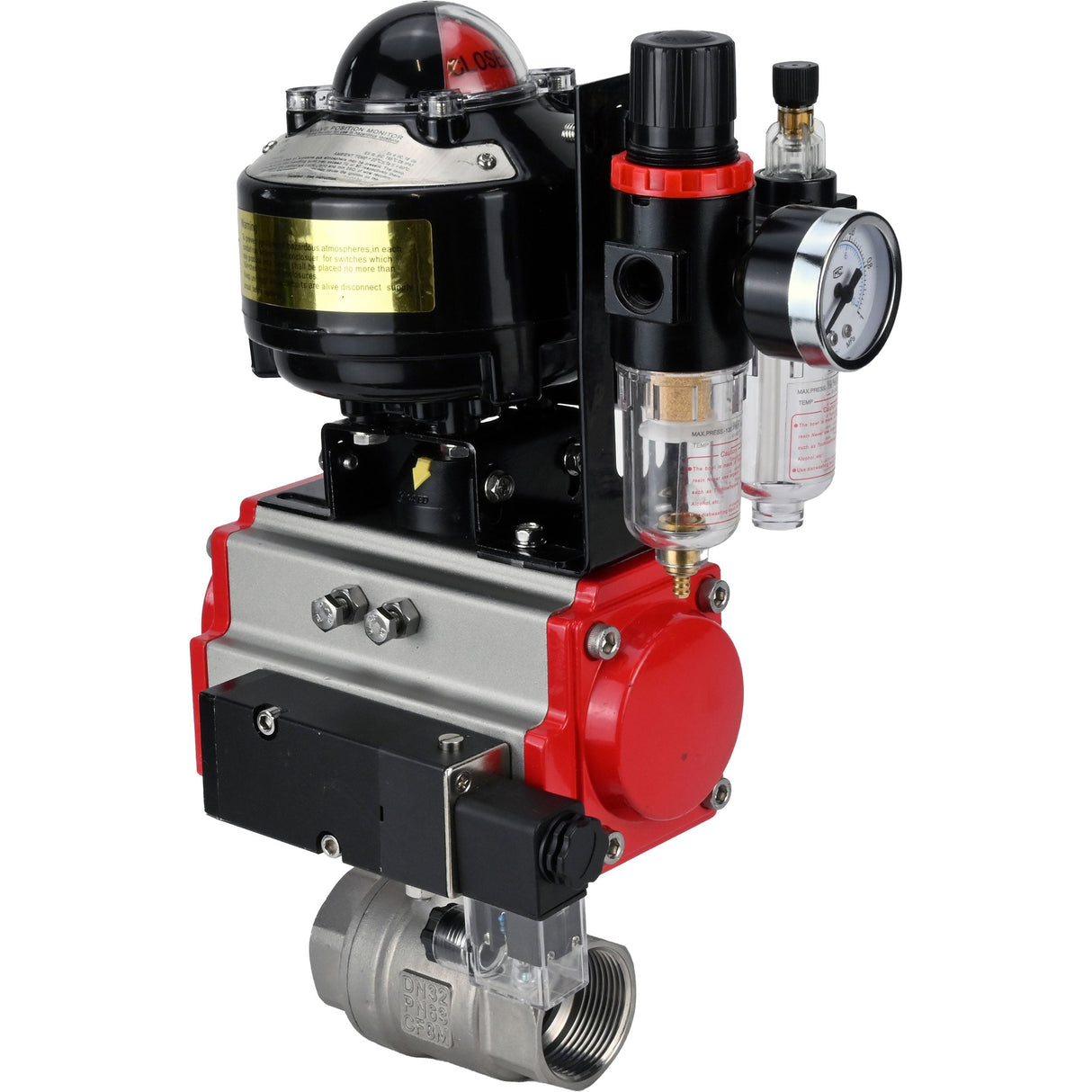

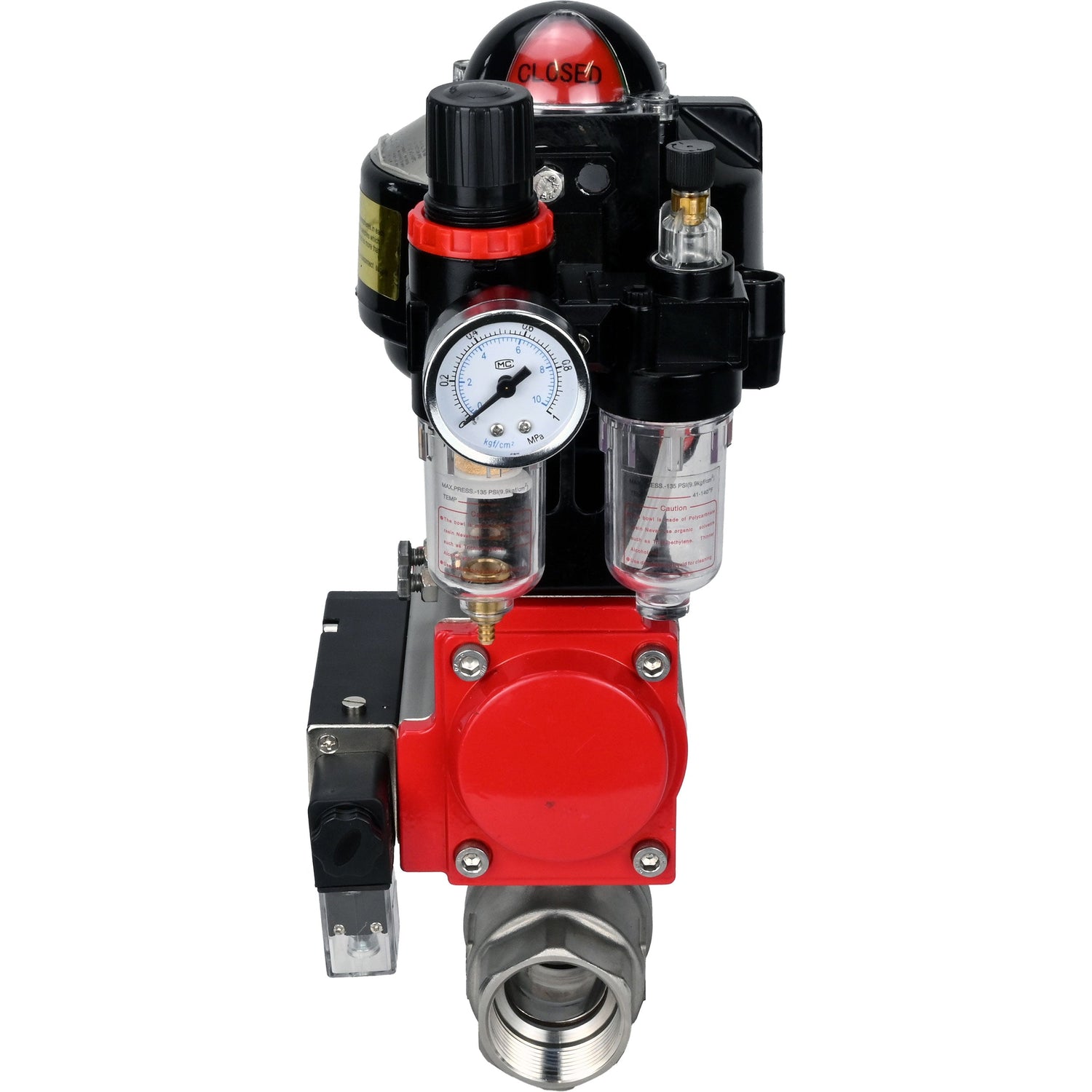

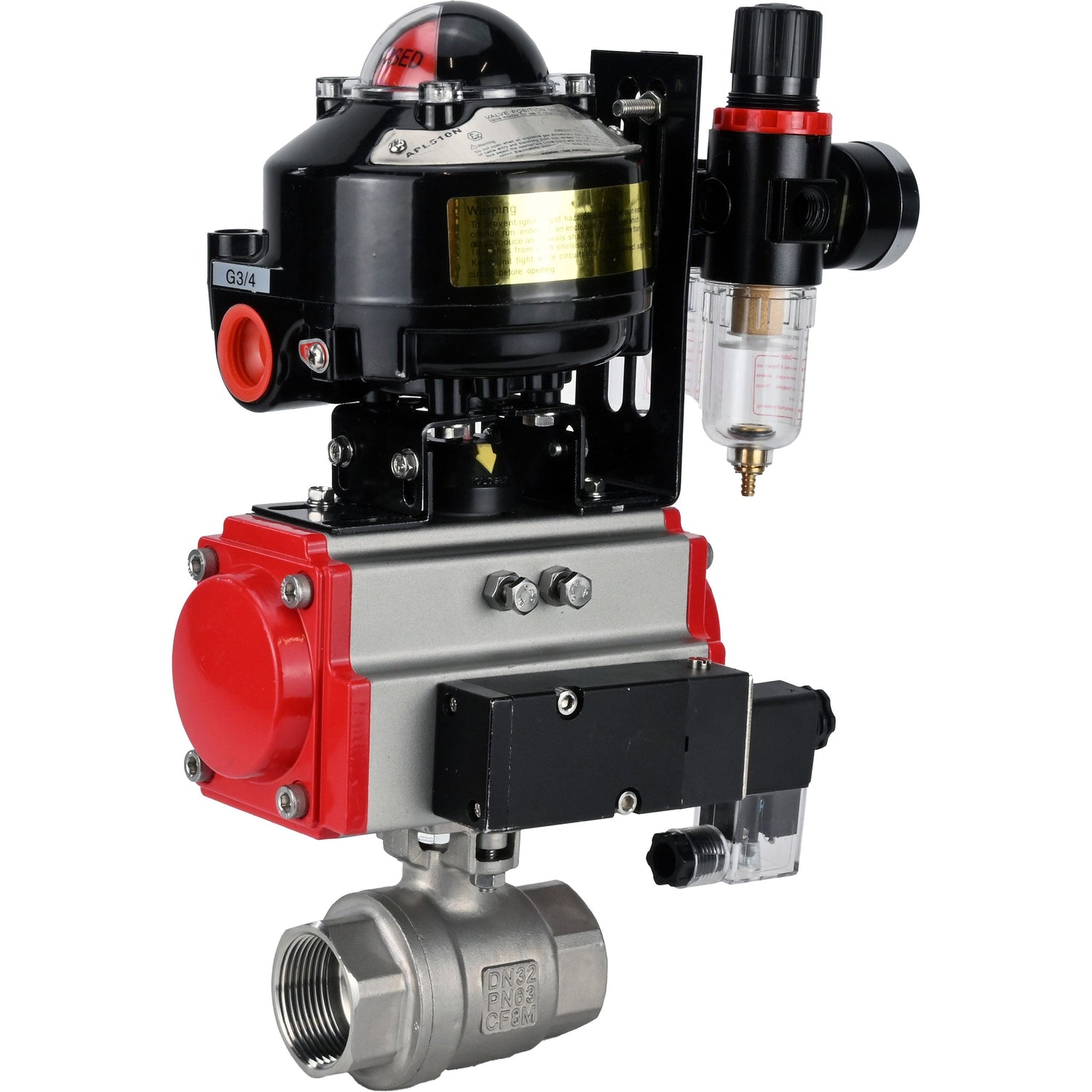

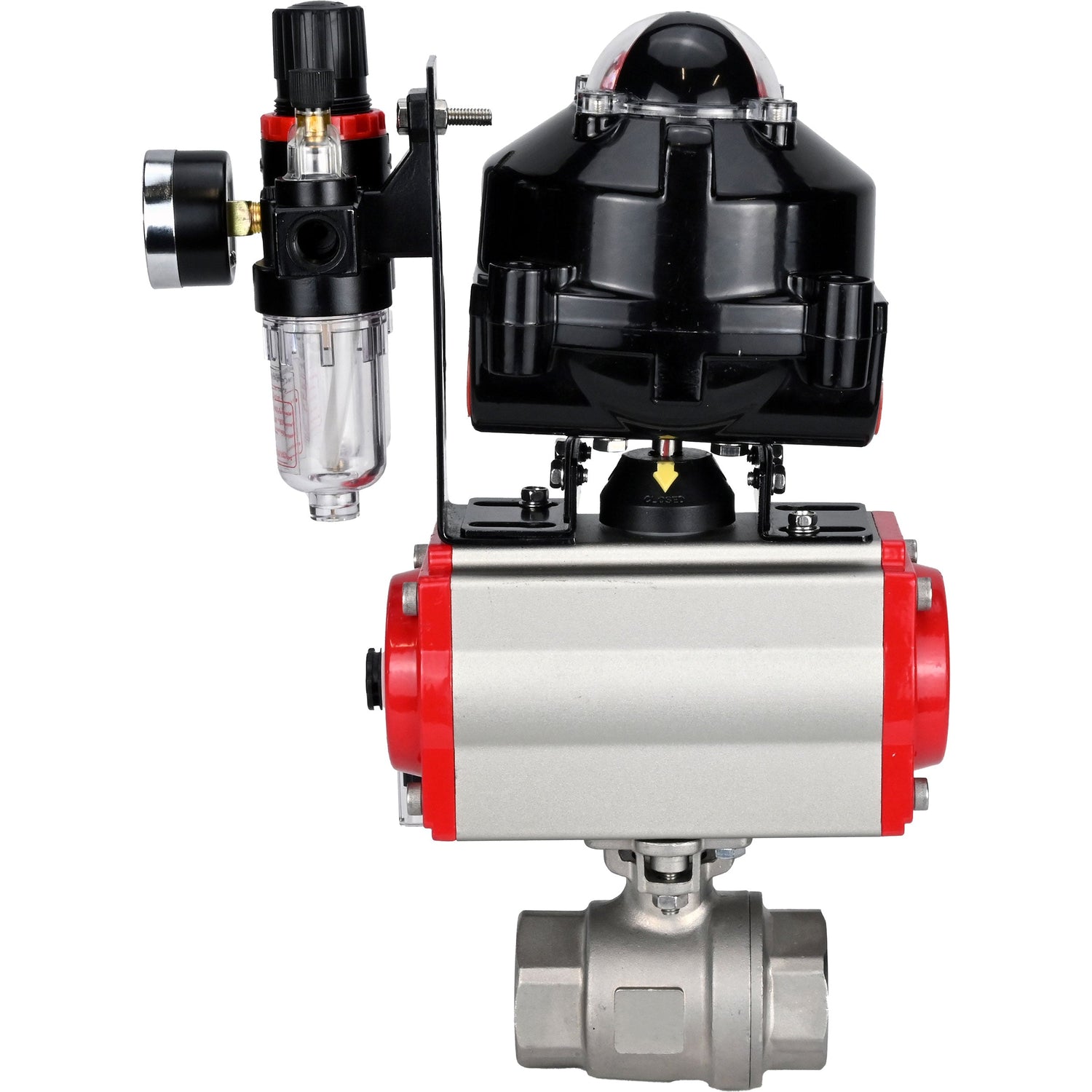

Ball valves Elephant BV3232P(2pc)-FP-T-ISO-H threaded, full bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-DA 052-105 pneumatic distributor 4M310-08 24V ATU AFC2000 LSU APL-510N-EX

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.
Pneumatic actuators PA-DA are designed to automate the process of controlling industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Pneumatic actuators 4M310-08 24V are used for control in pneumatic systems having NAMUR docking surface for installation of actuators through through holes in the housing.
Air treatment unit AFC2000 is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system with a wide range of throughput from 500 liters/minute to 10 000 liters/minute. The lubricator (oil atomizer) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.
The Elephant APL-510N-EX limit switch unit is an electrotechnical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Thanks to the use of limit switch units, it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

Technical characteristics of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H threaded, full bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-DA 052-105 pneumatic distributor 4M310-08 24V ATU AFC2000 limit switch unit APL-510N-EX:

Materials of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H threaded, full bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-DA 052-105 pneumatic distributor 4M310-08 24V ATU AFC2000 limit switch unit APL-510N-EX:

Dimensions and installation sizes of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H threaded, full bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-DA 052-105 pneumatic distributor 4M310-08 24V ATU AFC2000 limit switch unit APL-510N-EX

Technical data of pneumatic actuators PA-DA

Materials of pneumatic actuator parts PA-DA

Technical characteristics of pneumatic valve 4M310-08 24V:

Main parameters of air treatment unit AFC2000:

Characteristics of limit switch unit APL-510N-EX:

Passports and certificates

Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs
