Ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80 16 bar, full bore co – Valve Elephant
Elephant  |  SKU: D160-47642

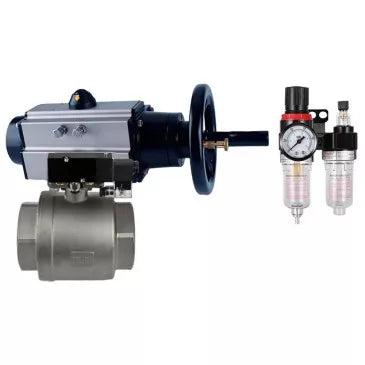

Ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-10 220V, with ATU AFC2000

€510,00
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-10 220V, with ATU AFC2000 - DN80 / 40 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Pneumatic actuator Elephant pneumatic double-acting rotary actuator PA-DA-105 with hand wheel is designed for automation of industrial valves control process, as well as for determining the valve shut-off position.
Pneumatic valve is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.
Air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure at a preset level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system.







Technical parameters of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-10 220V, with ATU AFC2000:

Parameter

Value

Nominal pressure PN, bar

40

Working medium temperature, °C

From -20 to 230

Type of valve device

Two-way

Application

Heating supply

Working medium

Water, air, steam, mildly aggressive media, oils, service water, water-glycol solutions, petroleum products

Connection to pipeline

Coupling (threaded)

Type of passage section

Full bore

Control type

With pneumatic actuator

Connection

Female thread

Control

Double-acting pneumatic actuator

Presence of limit switches

No

Presence of pneumatic distributor

Yes

Presence of electro-pneumatic positioner

No

Warranty, years

1


Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-10 220V, with ATU AFC2000:

Model L, mm A, mm E, mm H, mm I, mm B, mm C, mm
DN80 169 495 200 103.5 162 88 139




Table of parts and materials of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-10 220V, with ATU AFC2000:

№

Part name

Material

1, 6

Body

Steel 316

2, 4

Ball seal

Polytetrafluoroethylene PTFE

3

Ball

Steel 316

5

Sealing ring

Polytetrafluoroethylene PTFE

7

Stem

Steel 316

8

Stem seal

VITON

9

Stem nut

Steel 316




Technical parameters of pneumatic actuator PA-DA-105-1:

Type of pneumatic actuator double-acting
Control pressure, bar 2 ÷ 8
Operating temperature, °C -20 to +80
Visual position indicator open / closed
Manual control handwheel
Swivel angle, ° 90 ± 5
Top connection standard NAMUR
Air connection standard NAMUR
Air supply connection thread G 1/4ʺ
ISO flange type F07/F10
Stem square, mm 22x22
Weight, kg 9
Average life, cycles closed/open 300 000

Pneumatic actuator PA-DA-105-1



Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:

A, mm 495
A1, mm 461.5
B, mm 133
C, mm 109.5
D, mm 153
E, mm 57.5
F, mm 64
G, mm 26
H, mm 80
I, mm 30
N, mm 22
W, mm 200
J, mm 102
K, mm 70
L, mm M10x16
M, mm M8x13
O, mm 4
P, mm 4
S, mm M6
T, mm 24
U, mm 32

Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1



PA-DA-105-1 air actuator parts and materials table:

№ Part name Material
1 Indicator screw ABS (plastic)
2 Position indicator ABS (plastic)
3 Spring clip Stainless steel 304
4 Washer Stainless steel 304
5 External washer Engineering plastic
6 Adjustment screw Stainless steel 304
7 Nut Stainless steel 304
8 Washer Stainless steel 304
9 Body Extruded aluminum alloy
10 Piston Die cast aluminum alloy
11 Piston O-ring NBR
12 Bearing group Engineering plastic
13 End cap O-ring NBR
14 End cap Die cast aluminum alloy coated with polyester paint
15 Fixing screw Stainless steel 304
16 Internal washer Engineering plastic
17 Sealing ring NBR
18 Bearing Engineering plastic
19 Retainer Alloy steel
20 Gear Alloy steel
21 Bearing Engineering plastic
22 Sealing ring NBR

Parts and material sketch of the PA-DA-105-1 pneumatic actuator



Technical parameters of pneumatic valve Elephan 4V320-10

Name

Value

Type of pneumatic valve

Pool valve

Pneumatic valve model

4V320-10

Working pressure, bar

1.5 ÷ 1.8

Supply voltage, V

220 V

Response frequency, cycle/sec

5




Dimensions and sizes of the pneumatic valve Elephant 4V320-10

Model of pneumatic valve 4V320-10
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 83.4
P, mm 22
S, mm 20
T, mm 6.5
U, mm 2.4
H, mm 82.4




Technical parameters of air preparation unit Elephant AFC2000

Name Value
Working pressure, bar 8
Adjustable pressure range, bar 0.5 ÷ 9
Filterable particle size, µm 40 µm
Weight, kg 0.395




Dimensions and sizes of air treatment unit Elephant AFC2000:

Model AFC2000
A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5



Passports and certificates

Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    230 °C
  • Connection type
    Threaded
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Air, Steam, Mildly Aggressive Media, Oils, Industrial Water, Water-Glycol Solutions, Petroleum Products
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    no
  • Torque
    86 Nm
  • Limit switches
    no
  • Type of pneumatic actuator
    double action
