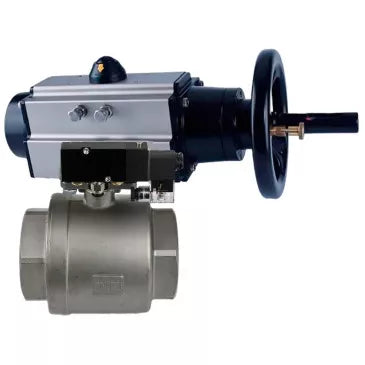

Ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80-100 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V
Ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80-100 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V - DN100 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.
Pneumatic control valves are used for control in pneumatic systems with NAMUR docking surface, to install the valves through holes in the housing. Electromagnetic control, is realized by means of voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, the valves have one-way or two-way control. Solenoid operated pneumatic valves have a wide range of models and include common switching types for three (3/2) and five (5/2 and 5/3) line pneumatic valves. They are designed for use with quarter-turn pneumatic actuators.
Technical parameters of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80-100 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V:
|
Parameter |
Value |
|
Nominal pressure PN, bar |
40 |
|
Working medium temperature, °C |
From -20 to 230 |
|
Type of valve device |
Two-way |
|
Application |
Heating supply |
|
Working medium |
Water, air, steam, mildly aggressive media, oils, service water, water-glycol solutions, petroleum products |
|
Connection to pipeline |
Coupling (threaded) |
|
Type of passage section |
Full bore |
|
Control type |
With pneumatic actuator |
|
Connection |
Female thread |
|
Control |
Double-acting pneumatic actuator |
|
Presence of limit switches |
No |
|
Presence of pneumatic distributor |
Yes |
|
Presence of electro-pneumatic positioner |
No |
|
Warranty, years |
1 |
Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80-100 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V:
| Model | L, mm | H, mm | A, mm | Е, mm |
| DN80 | 169 | 103.5 | 495 | 200 |
| DN100 | 204 | 122 | 495 | 200 |
Table of parts and materials of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80-100 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V:
|
№ |
Part name |
Material |
|
1, 6 |
Body |
Steel 316 |
|
2, 4 |
Ball seal |
Polytetrafluoroethylene PTFE |
|
3 |
Ball |
Steel 316 |
|
5 |
Sealing ring |
Polytetrafluoroethylene PTFE |
|
7 |
Stem |
Steel 316 |
|
8 |
Stem seal |
VITON |
|
9 |
Stem nut |
Steel 316 |
Technical parameters of pneumatic actuators Elephant PA-DA-105-1
| Name | Value |
| Model | PA-DA-105-1 |
| Construction | Double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Availability of manual doubler | No |
Dimensions and sizes of pneumatic actuators Elephant PA-DA-105-1
| Pneumatic actuator model | PA-DA-105-1 |
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E1, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| E, mm | 200 |
| J, mm | 102 |
| K mm | 70 |
| L, mm | М10х16 |
| M, mm | М8х13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Table of parts and materials for pneumatic actuators Elephant PA-DA-105-1
|
№ |
Part name |
Material |
|
1 |
Indicator screw |
ABS (plastic) |
|
2 |
Position indicator |
ABS (plastic) |
|
3 |
Spring clamp |
Stainless steel 304 |
|
4 |
Washer |
Stainless steel 304 |
|
5 |
Outer washer |
Engineering plastic |
|
6 |
Adjustment screw |
Stainless steel 304 |
|
7 |
Nut |
Stainless steel 304 |
|
8 |
Washer |
Stainless steel 304 |
|
9 |
Body |
Extruded aluminum alloy |
|
10 |
Piston |
Pressure-cast aluminum alloy |
|
11 |
Piston sealing ring |
NBR |
|
12 |
Bearing group |
Engineering plastic |
|
13 |
End cover sealing ring |
NBR |
|
14 |
End cover |
Cast aluminum alloy, coated with polyester paint |
|
15 |
Fastening screw |
Stainless steel 304 |
|
16 |
Inner washer |
Engineering plastic |
|
17 |
Sealing ring |
NBR |
|
18 |
Bearing |
Engineering plastic |
|
19 |
Retainer |
Alloy steel |
|
20 |
Gear |
Alloy steel |
|
21 |
Bearing |
Engineering plastic |
|
22 |
Sealing ring |
NBR |
Technical parameters of pneumatic valve Elephant 4M310-08
|
Name |
Value |
|
Type of pneumatic valve |
Spool valve |
|
Pneumatic valve model |
4M310-08 |
|
Working pressure, bar |
1.5 ÷ 1.8 |
|
Supply voltage, V |
220 V |
|
Response frequency, cycle/sec |
5 |
Dimensions and sizes of the pneumatic valve Elephant 4M310-08
| Pneumatic valve model | 4M310-08 |
| D, mm | 32 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 45 |
| K, mm | 40 |
| L, mm | 134.5 |
| M, mm | 40 |
| N, mm | 24 |
| S, mm | 27 |
| U, mm | 2.4 |
| H, mm | 17.5 |
Passports and certificates
Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs
Specifications
Specifications
-
Country of origin
-
Port opening
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environment
-
Type of seal
-
Voltage
-
Explosion-proof
-
Torque
-
Limit switches
-
Type of pneumatic actuator
