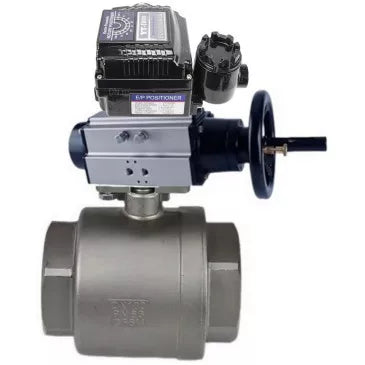

Ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80-100 16 bar, full bor – Valve Elephant
Elephant  |  SKU: D160-48046

Ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80-100 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT- 1000RSN without feedback

€995,00
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80-100 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT- 1000RSN without feedback - DN100 / 40 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.
Electropneumatic rotary positioner is used to control pneumatic rotary actuators by means of an electric controller or control system with an analog DC output signal with a range of 4 to 20 mA.







Technical parameters of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80-100 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT- 1000RSN without feedback:

Parameter

Value

Nominal pressure PN, bar

40

Working medium temperature, °C

From -20 to 230

Type of valve device

Two-way

Application

Heating supply

Working medium

Water, air, steam, mildly aggressive media, oils, service water, water-glycol solutions, petroleum products

Connection to pipeline

Coupling (threaded)

Type of passage section

Full bore

Control type

With pneumatic actuator

Connection

Female thread

Control

Double-acting pneumatic actuator

Presence of limit switches

No

Presence of pneumatic distributor

No

Presence of electro-pneumatic positioner

Yes

Warranty, years

1


Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80-100 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT- 1000RSN without feedback:

Model L, mm S, mm C, mm H, mm A, mm E, mm
DN80 169 62.5 117.5 103.5 495 200
DN100 204 62.5 117.5 122 495 200




Table of parts and materials of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H DN80-100 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT- 1000RSN without feedback:

№

Part name

Material

1, 6

Body

Steel 316

2, 4

Ball seal

Polytetrafluoroethylene PTFE

3

Ball

Steel 316

5

Sealing ring

Polytetrafluoroethylene PTFE

7

Stem

Steel 316

8

Stem seal

VITON

9

Stem nut

Steel 316




Technical parameters of pneumatic actuator PA-DA-105-1:

Type of pneumatic actuator double-acting
Control pressure, bar 2 ÷ 8
Operating temperature, °C -20 to +80
Visual position indicator open / closed
Manual control handwheel
Swivel angle, ° 90 ± 5
Top connection standard NAMUR
Air connection standard NAMUR
Air supply connection thread G 1/4ʺ
ISO flange type F07/F10
Stem square, mm 22x22
Weight, kg 9
Average life, cycles closed/open 300 000

Pneumatic actuator PA-DA-105-1



Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:

A, mm 495
A1, mm 461.5
B, mm 133
C, mm 109.5
D, mm 153
E, mm 57.5
F, mm 64
G, mm 26
H, mm 80
I, mm 30
N, mm 22
W, mm 200
J, mm 102
K, mm 70
L, mm M10x16
M, mm M8x13
O, mm 4
P, mm 4
S, mm M6
T, mm 24
U, mm 32

Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1



PA-DA-105-1 air actuator parts and materials table:

№ Part name Material
1 Indicator screw ABS (plastic)
2 Position indicator ABS (plastic)
3 Spring clip Stainless steel 304
4 Washer Stainless steel 304
5 External washer Engineering plastic
6 Adjustment screw Stainless steel 304
7 Nut Stainless steel 304
8 Washer Stainless steel 304
9 Body Extruded aluminum alloy
10 Piston Die cast aluminum alloy
11 Piston O-ring NBR
12 Bearing group Engineering plastic
13 End cap O-ring NBR
14 End cap Die cast aluminum alloy coated with polyester paint
15 Fixing screw Stainless steel 304
16 Internal washer Engineering plastic
17 Sealing ring NBR
18 Bearing Engineering plastic
19 Retainer Alloy steel
20 Gear Alloy steel
21 Bearing Engineering plastic
22 Sealing ring NBR

Parts and material sketch of the PA-DA-105-1 pneumatic actuator



Technical parameters of electropneumatic rotary positioners Elephant YT-1000RSN

Name Value
Model of electropneumatic positioner YT-1000RSN
Control input signal, mA 4 ~ 20
Internal resistance, Ohm 250(±15)
Inlet pressure, bar 1,4~7
Lever travel angle 0~90°
Compressed air connection thread 1/4″
Pressure gauge connection thread 1/8″
Cable gland G1/2″
Protection type IP66
Compressed air flow rate, l/min 3
Outlet air flow rate, l/min 80
Body material aluminum casting



Dimensions and sizes of electropneumatic rotary positioners Elephant YT-1000RSN:

Positioner model YT-1000RSI
A, mm 224.3
B, mm 166.5
C, mm 117.5
D, mm 132.3
E, mm 6
F, mm 122
G, mm 45
H, mm 45
I, mm 23
J, mm 27
K, mm 32.5
L, mm 35.5
M, mm 91.8
N, mm 37.2
O, mm 43.5
P, mm 26.5
Q, mm 33
R, mm 80.25
S, mm 62.5
T, mm 8
U1, mm 70
U2, mm 93
V1, mm 40
V2, mm 63
W, mm 26
X, mm 32
Y, mm 9
Z, mm 24



Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    230 °C
  • Connection type
    Threaded
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Air, Steam, Mildly Aggressive Media, Oils, Industrial Water, Water-Glycol Solutions, Petroleum Products
  • Type of seal
    PTFE
  • Explosion-proof
    no
  • Torque
    121 Nm
  • Limit switches
    no
  • Type of pneumatic actuator
    double action

Reviews (0)

Documentation
nullElectropneumatic rotary positioner ELEPHANT YT-1000RSN with without feedback for pneumatic rotary actuators control signal 4-20 mA without explosion protection
nullElectropneumatic rotary positioner ELEPHANT YT-1000RSN with or without feedback
