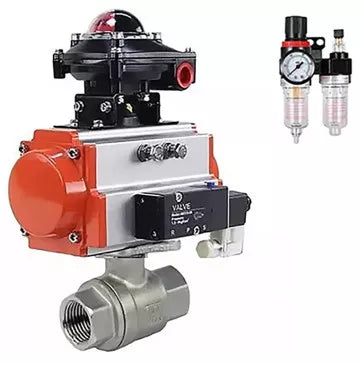

Ball valves Elephant BV3232P(2pc)-FP-T-ISO-H 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4M310-08 220V, with LSU APL-410N EX, with ATU AFC2000
Ball valves Elephant BV3232P(2pc)-FP-T-ISO-H 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4M310-08 220V, with LSU APL-410N EX, with ATU AFC2000 - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Ball valve Elephant is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. The valves of this series can be installed in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to the valve materials.
Pneumatic rotary actuators are designed for automation of control process of industrial shut-off valves - gates, ball valves. Pneumatic actuators Elephant are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Limit switch unit APL-410N EX is designed for visual and electrical signaling of valve end positions. It is mounted on top of the pneumatic actuator surface and connected to the actuator shaft - DIN standard. The sealed box usually contains two sensors which monitor the position of the actuator shaft and signalize the end positions. Visual indication of the position can be observed on the body of the unit there is a 3D visual indicator RED-CLOSED and YELLOW-OPEN.
Air treatment unit AFC2000 is designed to clean compressed air from moisture and solid particles, remove condensate, automatically maintain the pressure at a preset level, supply lubricant from a reservoir in the compressed air flow to the elements of the pneumatic system with a large capacity range from 500 liters/minute to 10 000 liters/minute. The lubricator adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.
Technical characteristics of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4M310-08 220V, with LSU APL-410N EX, with ATU AFC2000:
|
Nominal diameter DN, mm |
15 – 100 |
|
Nominal pressure PN, bar |
63/40 |
|
Maximum medium temperature t, ⁰C |
Up to +230 |
|
Working medium |
Water, steam, oil products and other liquid or gaseous media neutral to the materials used |
|
Pipeline connection |
Threaded |
|
Control type |
Manual (lever handle) |
|
Ball passage |
Full bore |
|
Female thread |
BSP |
Materials of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4M310-08 220V, with LSU APL-410N EX, with ATU AFC2000:
|
№ |
Part name |
Material |
|
1, 6 |
Body |
Stainless steel SS316 |
|
2, 4 |
Ball seal |
PTFE |
|
3 |
Ball |
Stainless steel SS316 |
|
5 |
Sealing ring |
PTFE |
|
7 |
Stem |
Stainless steel SS316 |
|
8 |
Stem seal |
VITON |
Technical data of pneumatic actuators:
| Design | With return springs | |
| Nominal pressure PN, bar | 12 | |
| Operating pressure, bar | 2…8 | |
| Operating medium | Filtered compressed air or non-aggressive gases, oils | |
| Maximum particle diameter | less than 30 µm2 | |
| Operating temperature t, ⁰C | • from -20 to +80 • from -40 to +80 (low-temperature version) • from -20 to +160 (in dry air) |
|
| Adjustment range | ± 5° for rotation at 0° and 90° | |
| Manual duplication | yes | |
| Position indicator | open/closed | |
| Operating environment | indoors and outdoors. (All internal and external parts have an anti-corrosion coating) | |
Pneumatic actuator component materials:
| № | Name | Material |
| 1 | Body | extruded aluminum |
| 2 | Side caps | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clip | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator body | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjustment nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Bushing | aluminum |
Technical characteristics of the air supply unit AFC2000:
| Working pressure, bar | 8 |
| Maximum pressure, bar | 10 |
| Adjustable pressure range, bar | 0,5 ÷ 9 |
| Fracture pressure, bar | 15 |
| Air connection | 1/4" |
| Operating temperature, ⁰C | from -5 to +60 |
| Size of filtered particles, µm | 40 |
| Oil viscosity | ISO VG 32 |
| Weight, kg | 0,395 |
Technical characteristics of limit switch unit APL-410N EX:
| Body | all-weather IP65 explosion-proof Exd IIB T6 |
| Cable glands | 2 x NPT1/2” |
| Terminal strips | 8 points (0.05 - 2.5) mm2 |
| Position indicator | 0 - 90° (90° free rotation) CLOSED - red; OPEN - yellow |
| Switches/sensors | two mechanical switches two proximity sensors |
| Nominal voltage, V | 250 |
| Permissible ambient temperature, °C | from -25 to +80 |
| Service life, years | 10 |
Materials of limit switch unit APL-410N EX:
| Name | Materials |
| Enclosure cover and body | die-cast aluminum |
| Shaft | stainless steel |
| Indicator cover | polycarbonate |
| Cam | polycarbonate |
| Spring | stainless steel |
| Enclosure cover bolts | stainless steel |
| O-ring | NBR |
| Bushing | bronze |
| Sealing ring (shaft) | stainless steel |
| Ground terminal | stainless steel |
| Indicator | ABS plastic / polycarbonate |
| Bracket | stainless steel |
Specifications
Specifications
-
Country of origin
-
Port opening
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentWater, Steam, Slightly Aggressive Media, Petroleum Products
-
Type of seal
-
Voltage
-
Explosion-proof
-
Torque
-
Limit switches
-
Type of pneumatic actuator
