Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - – Valve Elephant
Elephant  |  SKU: D160-41875

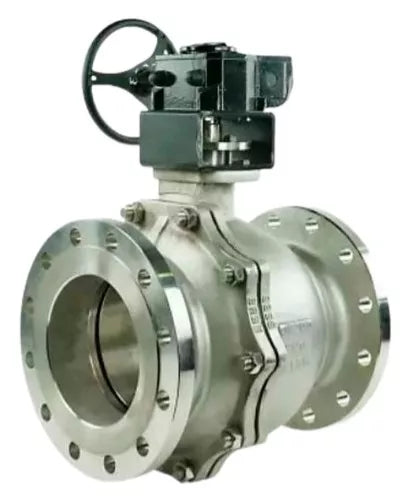

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316, gearbox control

€1.636,56
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316, gearbox control - DN200 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.





Dimensions and dimensions of ball valves Elephant BV3232P-FP-F-R-ISO full bore flanged, body - stainless steel 316, control gearbox

Model DN200 DN250 DN300
DN 200 250 300
L 400 450 610
D 340 405 460
D1 295 355 410
D2 268 320 378
f 2 2 2
b 24 26 28
H 180 296 305
n–Ød 12–Ø22 12–Ø26 12–Ø26



Sketch of dimensions and dimensions of ball valves Elephant BV3232P-FP-F-R-ISO full bore flanged, body - stainless steel 316, gearbox control





Parts and materials table for Elephant BV3232P-FP-F-R-ISO full bore flanged ball valves, 316 stainless steel body, gearbox control

№  Details Material
1 Case stainless steel 316
2 Gasket stainless steel 316+graphite
3 Cover stainless steel 316
4 Nut stainless steel ASTM A193 Gr.B8M Cl2
5 Bolt stainless steel ASTM A193 Gr.B8M Cl2
6 Ball seal PTFE
7 Char stainless steel 316
8 Stem stainless steel 316
9 Thrust pad PTFE
10 Stem seal PTFE
11 Gland seal stainless steel 316
12 Bolt stainless steel ASTM A193 Gr.B8M Cl2
13 Support frame stainless steel 304
14 Gasket stainless steel 304
15 Hairpin stainless steel ASTM A193 Gr.B8M Cl2
16 Nut stainless steel ASTM A193 Gr.B8M Cl2
17 Cushioning pad stainless steel
18 Hairpin stainless steel ASTM A193 Gr.B8M Cl2
19 Nut stainless steel ASTM A193 Gr.B8M Cl2
20 Gear transmission steel 45
21 Gearbox -
22 Screw stainless steel ASTM A193 Gr.B8M Cl2



Detail and material sketch of Elephant BV3232P-FP-F-R-ISO full bore flanged ball valves, body - 316 stainless steel, gearbox control

Reviews (0)

Documentation
nullBall valve ELEPHANT BV3232P 2pc -FP-T-H 140 bar
nullBall valve ELEPHANT BV3232P 2pc -FP-T-H 40 63 bar
nullBall valve ELEPHANT BV3232P 2pc -FP-T-ISO-H

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-41875DN20016 bar €1.636,56 0 in stock
    D160-41874DN25016 bar €3.205,74 0 in stock
    D160-36857DN30016 bar €5.094,94 0 in stock
