Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 16 bar full bor – Valve Elephant
Elephant  |  SKU: D160-49336

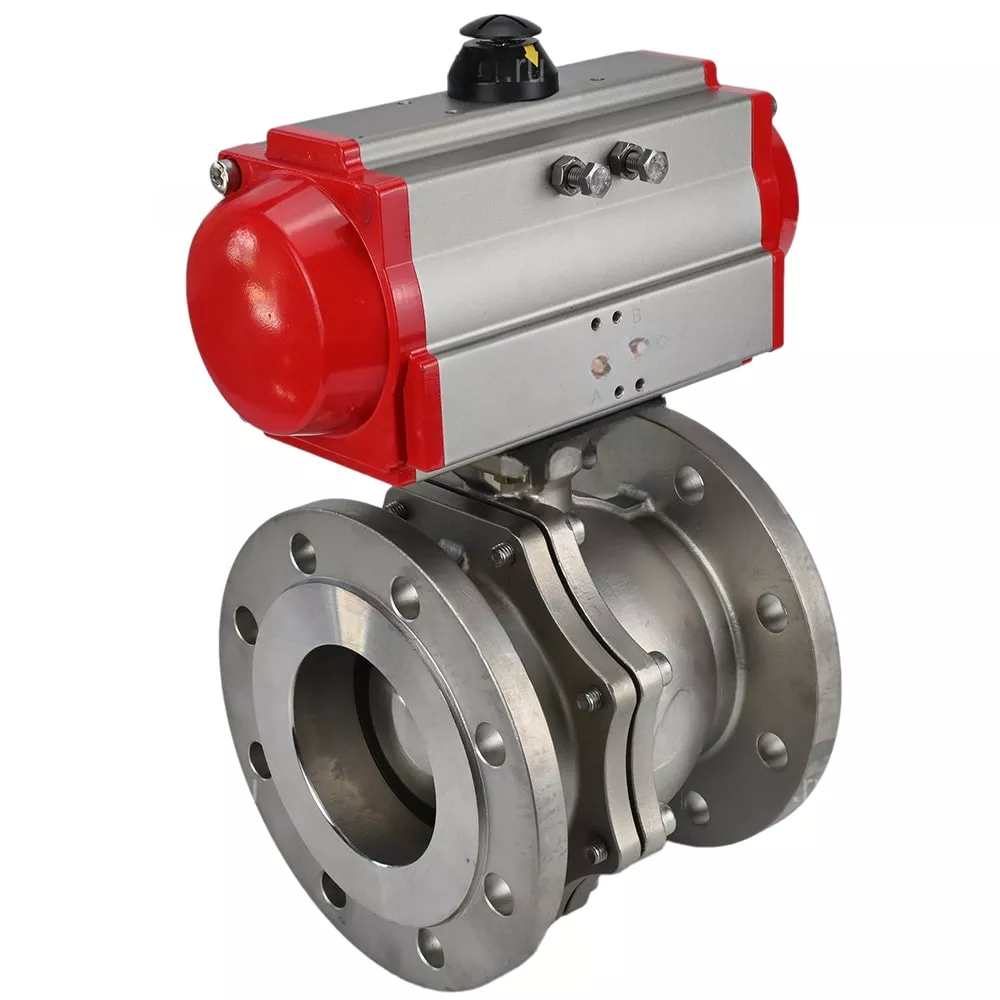

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 16 bar full bore flanged, body - stainless steel 316, with double acting PA-DA pneumatic actuator

€2.726,11
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 16 bar full bore flanged, body - stainless steel 316, with double acting PA-DA pneumatic actuator - DN200 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the valve materials. The use of ball valves as control valves is not allowed.

Pneumatic actuators Elephant double-acting rotary PADA are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.





Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 PN16 full bore flanged, body - stainless steel 316, with pneumatic actuator PA-DA double acting:

Name Meaning
Nominal pressure PN, bar 16
Working environment temperature, °C from -29 to 150
Type of crane device two-way
Application water supply, heat supply, industry
Working environment water, air, neutral environments
Connection to the pipeline flanged
Water intake No
Type of flow section full bore
Control type With pneumatic drive
Joining flanged
Control double acting pneumatic actuator
Availability of limit switches No
Availability of pneumatic distributor No
Availability of electropneumatic positioner No
Average service life, years 10
Warranty, y. 1





Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 PN16 full bore flanged, body - stainless steel 316, with pneumatic actuator PA-DA double acting:

DN L D D1 D2 f b H n–Ød Rod square ISO 5211 Weight, kg
mm
200 400 340 295 268 2 24 180 12–Ø22 27х27 F12/F14 118
250 450 405 355 320 2 26 296 12–Ø26 27х27 F12/F14 206
300 610 460 410 378 2 28 305 12–Ø26 36х36 F14 266

Sketch of dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 PN16 full bore flanged, body - stainless steel 316, with pneumatic actuator PA-DA double acting





Sketch of parts and materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 PN16 full-bore flanged, body - stainless steel 316, with pneumatic actuator PA-DA double acting



Table of parts and materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 PN16 full bore flanged, body - stainless steel 316, with pneumatic actuator PA-DA double acting:

Item No. Details Material
1 Frame stainless steel 316
2 Pad stainless steel 316+graphite
3 Lid stainless steel 316
4 screw Stainless steel ASTM A193 Gr.B8M Cl2
5 Bolt Stainless steel ASTM A193 Gr.B8M Cl2
6 Ball seal PTFE
7 Ball stainless steel 316
8 Stock stainless steel 316
9 Thrust pad PTFE
10 Rod seal PTFE
11 Gland seal stainless steel 316
12 Bolt Stainless steel ASTM A193 Gr.B8M Cl2
13 Support frame stainless steel 304
14 Pad stainless steel 304
15 Hairpin Stainless steel ASTM A193 Gr.B8M Cl2
16 screw Stainless steel ASTM A193 Gr.B8M Cl2
17 Shock absorbing pad stainless steel
18 Hairpin Stainless steel ASTM A193 Gr.B8M Cl2
19 screw Stainless steel ASTM A193 Gr.B8M Cl2
20 Gear steel 45
22 Screw Stainless steel ASTM A193 Gr.B8M Cl2





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    150 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Air, Neutral Media
  • Type of seal
    PTFE
  • Explosion-proof
    no
  • Torque
    380 Nm
  • Limit switches
    no
  • Type of pneumatic actuator
    double action

Reviews (0)

Documentation
nullBall valve ELEPHANT BV3232P 2pc -FP-T-H 140 bar
nullBall valve ELEPHANT BV3232P 2pc -FP-T-H 40 63 bar
nullBall valve ELEPHANT BV3232P 2pc -FP-T-ISO-H
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
