Elephant | SKU: D160-49325

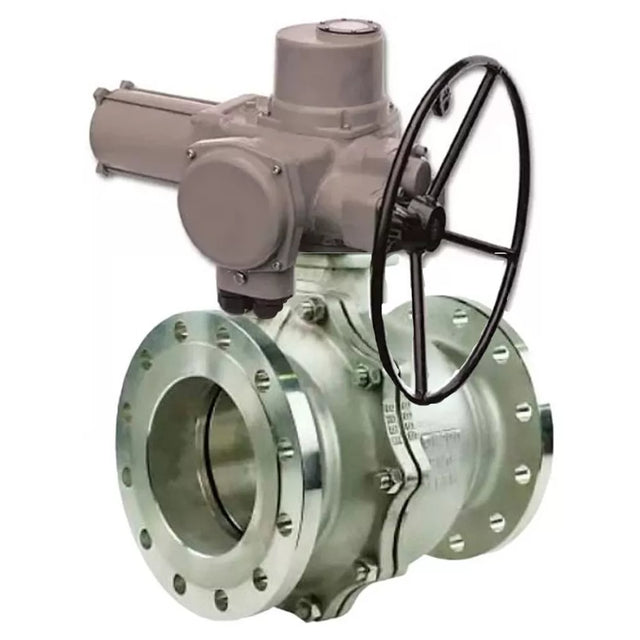

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 16 bar full bore flanged, body - stainless steel 316, with 1-turn electric drive GZ-OF 380V

€3.003,93

Tax included Shipping calculated at checkout.

Connection size

Pressure

Product variants

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 16 bar full bore flanged, body - stainless steel 316, with 1-turn electric drive GZ-OF 380V - DN200 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Single-turn actuators with double-sided torque limiting coupling of GZ-OF type are used for control of shut-off and shut-off-regulating industrial pipeline valves installed indoors, under a canopy and outdoors. GZ-OF type actuators belong to the class of repairable products.

Technical characteristics of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 16 bar full bore flanged, body - stainless steel 316, with 1-turn electric drive GZ-OF 380V:

Parameter	Value
Nominal pressure, bar	16
Type of connection	Flanged
Type of control	With electric actuator
Application	Water supply, heat supply, industry
Ball passage	Full-bore
Working medium temperature, °C	From -29 to 150
Connection	Flanged
Control	Electric actuator 380V
Tightness class	A
Valve device type	Two-way
Medium	Water, air, neutral media
Country of manufacture	China
Warranty, years	1
Service life, years	10

Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 16 bar full bore flanged, body - stainless steel 316, with 1-turn electric drive GZ-OF 380V:

Model	DN, mm	L, mm	H, mm	D, mm	D1, mm	D2, mm	S1, mm	S2, mm
DN200	200	400	180	340	295	268	554	287
DN250	250	450	296	405	355	320	554	287
DN300	300	610	305	460	410	378	554	287

Materials of parts of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 16 bar full bore flanged, body - stainless steel 316, with 1-turn electric drive GZ-OF 380V:

№	Part name	Material
1	Body	Stainless steel 316
2	Gasket	Stainless steel 316 + graphite
3	Cover	Stainless steel 316
4	Nut	Stainless steel ASTM A193
5	Bolt	Stainless steel ASTM A193
6	Ball seal	PTFE
7	Ball	Stainless steel 316
8	Stem	Stainless steel 316
9	Thrust washer	PTFE
10	Stem seal	PTFE
11	Gland packing	Stainless steel 316
12	Bolt	Stainless steel ASTM A193
13	Support frame	Stainless steel 304
14	Gasket	Stainless steel 304
15	Stud	Stainless steel ASTM A193
16	Nut	Stainless steel ASTM A193
17	Anti-vibration gasket	Stainless steel
18	Stud	Stainless steel ASTM A193
19	Nut	Stainless steel ASTM A193
20	Gear transmission	Steel 45
22	Screw	Stainless steel ASTM A193

Technical parameters of electric actuators Elephant:

Name	Value
Actuator model	GZ-OF 380V
Supply voltage	380V
Limit switches	No

Dimensions and sizes of electric actuators Elephant GZ-OF 380V:

Actuator model	GZ-OF 630	GZ-OF 1200
A, mm	287	287
B, mm	554	554
V, mm	110	110
G, mm	400	400
D, mm	330	330
E, mm	196	196
J, mm	254	254
Z, mm	156	156
I, mm	111	111
K, mm	86	86
L, mm	347	347
M, mm	28	28
H, mm	20	20
O, mm	15	15
P, mm	110	110
R, mm	49	49

Device of electric actuators Elephant GZ-OF 380V:

№	Part name
1	Electric motor
2	Spur spur gear
3	Cover
4	Torque-limiting clutch
6	Output shaft travel limiter
9	Opening mechanical stop
10	Closing mechanical stop
11	Worm gear reducer
12	Disc spring
13	Worm gear reducer for manual override handwheel
15	Output shaft
16	Worm gear reducer
18	Planetary gear
19	Worm gearbox of the handwheel of the manual doubler
20	Coupling clutch
22	Terminal blocks of the contact connections

Specifications

Country of origin

China
Port opening

full bore
Body material

Stainless steel AISI 316
Maximum allowable temperature

150 °C
Connection type

Flanged
Control type

Electrically driven
Operating environment

Water, Air, Neutral Media
Type of seal

PTFE
Voltage

380 V
Explosion-proof

no
Torque

380 Nm
Limit switches

have
