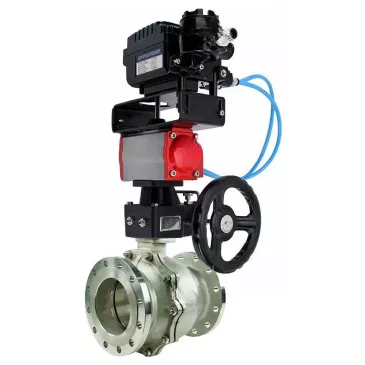

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bor – Valve Elephant
Elephant  |  SKU: D160-49522

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, YT-1000RSN pneumatic positioner and MON-ISO reducer

€2.423,69
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, YT-1000RSN pneumatic positioner and MON-ISO reducer - DN200 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
The electro-pneumatic rotary positioner is used to control pneumatic rotary actuators using an electric controller or a control system with an analog DC output signal with a range of 4 to 20 mA.
Pneumatic Elephant pneumatic double-acting rotary actuators PADA-XXX are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.
The manual doubler with worm gear and reduction reducer allows to manually set the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual doubler is designed to provide the most effective and efficient solution to the full range of manual override applications.






Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, YT-1000RSN pneumatic positioner and MON-ISO reducer:

Parameter

Value

Nominal pressure PN, bar

16

Working medium temperature, °C

From -29 to 150

Type of valve device

Two-way

Application

Water supply, heat supply, industry

Working medium

Water, air, neutral media

Connection to pipeline

Flanged

Type of flow cross-section

Full-bore

Tightness class

A

Type of control

With pneumatic actuator

Connection

Flanged

Control

Double-acting pneumatic actuator

Presence of limit switches

No

Presence of pneumatic distributor

No

Presence of electro-pneumatic positioner

No

Average service life, years

10

Warranty, years

1

Country of manufacture

China


Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, YT-1000RSN pneumatic positioner and MON-ISO reducer:

Model DN, mm L, mm H, mm ØD, mm ØD1, mm ØD2, mm A, mm E, mm H1, mm S, mm C, mm
DN200 200 400 180 340 295 268 405 174 195 62.5 117.5
DN250 250 450 296 405 355 320 465 199 195 62.5 117.5




Table of parts and materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, YT-1000RSN pneumatic positioner and MON-ISO reducer:

№

Part name

Material

1

Body

Stainless steel 316

2

Gasket

Stainless steel 316 + graphite

3

Cover

Stainless steel 316

4

Nut

Stainless steel ASTM A193 Gr.B8M Cl2

5

Bolt

Stainless steel ASTM A193 Gr.B8M Cl2

6

Ball seal

PTFE

7

Ball

Stainless steel 316

8

Stem

Stainless steel 316

9

Thrust washer

PTFE

10

Stem seal

PTFE

11

Gland packing

Stainless steel 316

12

Bolt

Stainless steel ASTM A193 Gr.B8M Cl2

13

Support frame

Stainless steel 304

14

Gasket

Stainless steel 304

15

Stud

Stainless steel ASTM A193 Gr.B8M Cl2

16

Nut

Stainless steel ASTM A193 Gr.B8M Cl2

17

Cushioning gasket

Stainless steel

18

Stud

Stainless steel ASTM A193 Gr.B8M Cl2

19

Nut

Stainless steel ASTM A193 Gr.B8M Cl2

20

Gear transmission

Steel 45

22

Screw

Stainless steel ASTM A193 Gr.B8M Cl2




Technical parameters of pneumatic actuator Elephant

Name

Value

Construction

Double-acting

Control pressure, bar

2 ÷ 8

Control pressure, bar

No




Dimensions and sizes of pneumatic actuator Elephant:

Actuator model DA-140 DA-160
G, mm 25 30
M, mm 80 130
N, mm 30 30
F0, mm 62 62
P, mm 30 30
B1, mm 308 465
C, mm 67.5 87.5
E, mm 157 199
J 4-M8x12 4-M10x16
K 4-M10x16 4-M12x20
F, mm 36 38
A1, mm 210 310
D, mm 70 87.5
H F10 F10
I F12 F12
L 22x22 27x27





Parts and materials table for the pneumatic actuator Elephant:

№

Name

Quantity

Material

Coating

1

Body

1

Extruded aluminum

Hard anodized

2

Side plugs

2

Cast aluminum

-

3

Gear

1

Stainless steel

Nickel-plated

4

Piston

2

Steel/Aluminum

Oxidation/galvanized

5

Plugs

8

Stainless steel

-

6

Piston ring

2

NBR

-

7

Springs

0–12

Spring steel

Epoxy coating

8

Piston bearing

2

Engineering plastic

-

9

Piston ring

2

NBR

-

10

Plug

2

NBR

-

11

Thrust ring

2

Engineering plastic

-

12

Ring

1

Engineering plastic

-

13

Washer

1

Stainless steel

-

14

Spring clip

2

Stainless steel

-

15

Indicator

1

Plastic

-

16

Indicator body

1

Plastic

-

17

Bearing

1

Engineering plastic

-

18

Cam

1

Steel

Oxidation/ galvanized steel

19

Bearing

1

NBR

-

20

Bearing

1

Engineering plastic

-

21

Bearing

1

Engineering plastic

-

22

Sealing ring

2

NBR

-

23

Sealing ring

2

NBR

-

24

Bearing

2

Stainless steel

-

25

Adjustment nut

2

Stainless steel

-

26

Adjustment screw

2

Stainless steel

-

27

Bushing

2

Aluminum

-





Technical parameters of electropneumatic rotary positioners Elephant YT-1000RSN

Name Value
Control input signal, mA 4 ~ 20
Internal resistance, Ohm 250(±15)
Inlet pressure, bar 1,4~7
Lever travel angle 0~90°
Compressed air connection thread 1/4″
Pressure gauge connection thread 1/8″
Cable gland G1/2″
Protection type IP66
Compressed air flow rate, l/min 3
Outlet air flow rate, l/min 80
Body material aluminum casting



Dimensions and sizes of electropneumatic rotary positioners Elephant YT-1000RSN:

Positioner model YT-1000RSI
A, mm 224.3
B, mm 166.5
C, mm 117.5
D, mm 132.3
E, mm 6
F, mm 122
G, mm 45
H, mm 45
I, mm 23
J, mm 27
K, mm 32.5
L, mm 35.5
M, mm 91.8
N, mm 37.2
O, mm 43.5
P, mm 26.5
Q, mm 33
R, mm 80.25
S, mm 62.5
T, mm 8
U1, mm 70
U2, mm 93
V1, mm 40
V2, mm 63
W, mm 26
X, mm 32
Y, mm 9
Z, mm 24





Technical parameters of manual doubler Elephant MON-ISO

Parameter

Value

Manual doubler model

MON-ISO

Mounting method

Horizontal/Vertical

Protection rating, IP

67

Type of connection

ISO 5211





Dimensions and sizes of manual doubler Elephant MON-ISO:

Model MON4-1200-T54-ISO
b1, mm 27
N, mm 32
b2, mm 27
M, mm 30
D1, mm Ø102
4-M1, mm 4-M10
D2, mm Ø125
4-M2, mm 4-M12
E, mm 129x129
D3, mm Ø125
4-Ø1, mm 4-Ø12.5
D4, mm Ø140
4-Ø2, mm 4-Ø16.5
A, mm 188.5
B, mm 93
ØC, mm Ø174
F, mm 202
T, mm 94
Y, mm 280
H, mm 195
S, mm 84
K, mm 15
Ø handwheel, mm 320


Parts and materials table for manual doubler Elephant MON:

№

Name

Material

1

Stem for pneumatic actuator mounting

Steel

2

Sealing ring

EPDM

3

Locking spring

Spring steel

4

Upper end cover

Aluminum alloy

5

Screw

Steel 304

6

Locking bracket (main link)

Steel 304

7

Body

Aluminum alloy

8

Sealing ring

EPDM

9

Gearbox

Cast iron BCh50

10

Transition coupling

Cast iron BCh40

11

Gearbox stem

Cast iron BCh40




Passports and certificates

Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    150 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Air, Neutral Media
  • Type of seal
    PTFE
  • Explosion-proof
    no
  • Torque
    380 Nm
  • Limit switches
    no
  • Type of pneumatic actuator
    double action

Reviews (0)

Documentation
nullElectropneumatic rotary positioner ELEPHANT YT-1000RSN with without feedback for pneumatic rotary actuators control signal 4-20 mA without explosion protection
nullElectropneumatic rotary positioner ELEPHANT YT-1000RSN with or without feedback
