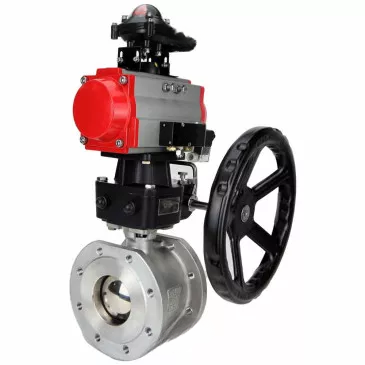

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, pneumatic distributor 4V320-10 220V, LSU APL-510N EX and gearbox MON-ISO
Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, pneumatic distributor 4V320-10 220V, LSU APL-510N EX and gearbox MON-ISO - DN200 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Elephant pneumatic double-acting rotary actuators PADA-XXX are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.
The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The worm gear manual doubleturn actuator with reduction gear allows the manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.
Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316
| Parameter | Value |
|---|---|
| Nominal Pressure PN, bar | 16 |
| Operating Temperature, °C | -29 to 150 |
| Valve Type | Two-way |
| Application | Water supply, heating, industry |
| Working Medium | Water, air, neutral media |
| Pipeline Connection | Flanged |
| Water-drawing | No |
| Bore Type | Full bore |
| Control Type | With pneumatic actuator |
| Connection Type | Flanged |
| Operation | Double-acting pneumatic actuator |
| Limit Switches | No |
| Pneumatic Distributor | Yes |
| Electro-pneumatic Positioner | No |
| Average Service Life, years | 10 |
| Warranty, years | 1 |
| Country of Manufacture | China |
Dimensions and dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316
| Model | DN | L | H | ØD | ØD1 | ØD2 | A | E | H1 |
| 200 | 200 | 400 | 180 | 340 | 295 | 268 | 405 | 174 | 195 |
| 250 | 250 | 450 | 296 | 405 | 355 | 320 | 465 | 199 | 195 |
Sketch dimensions and dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316
Table of parts and materials for ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316
| № | Part Name | Material |
|---|---|---|
| 1 | Body | Stainless steel 316 |
| 2 | Gasket | Stainless steel 316 + Graphite |
| 3 | Cover | Stainless steel 316 |
| 4 | Nut | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 5 | Bolt | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 6 | Ball Seal | PTFE |
| 7 | Ball | Stainless steel 316 |
| 8 | Stem | Stainless steel 316 |
| 9 | Support Pad | PTFE |
| 10 | Stem Seal | PTFE |
| 11 | Packing Seal | Stainless steel 316 |
| 12 | Bolt | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 13 | Support Frame | Stainless steel 304 |
| 14 | Gasket | Stainless steel 304 |
| 15 | Stud | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 16 | Nut | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 17 | Cushioning Gasket | Stainless steel |
| 18 | Stud | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 19 | Nut | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 20 | Gear Transmission | Steel 45 |
| 22 | Screw | Stainless steel ASTM A193 Gr.B8M Cl2 |
Parts and materials sketch for ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316
Technical parameters of pneumatic actuator Elephant
| Parameter | Value |
|---|---|
| Design | Double-acting |
| Control Pressure, bar | 2 ÷ 8 |
| Manual Override | No |
Dimensions and dimensions of pneumatic actuator Elephant
| Model | DA-140 | DA-160 |
| G, mm | 25 | 30 |
| M, mm | 80 | 130 |
| N, mm | 30 | 30 |
| f0, mm | 62 | 62 |
| P, mm | 30 | 30 |
| B1,mm | 308 | 465 |
| C, mm | 67.5 | 87.5 |
| E, mm | 157 | 199 |
| J | 4-M8x12 | 4-M10x16 |
| K | 4-M10x16 | 4-M12x20 |
| F, mm | 36 | 38 |
| A1, mm | 210 | 310 |
| D, mm | 70 | 87.5 |
| H | F10 | F10 |
| I | F12 | F12 |
| L | 22x22 | 27x27 |
Sketch of dimensions and dimensions of pneumatic actuator Elephant
Parts and materials table for pneumatic actuator Elephant
| № | Part Name | Qty | Material | Coating |
|---|---|---|---|---|
| 1 | Body | 1 | Extruded aluminum | Hard anodized |
| 2 | Side plugs | 2 | Cast aluminum | - |
| 3 | Gear | 1 | Stainless steel | Nickel-plated |
| 4 | Piston | 2 | Steel/Aluminum | Oxidation / Galvanized zinc |
| 5 | Plugs | 8 | Stainless steel | - |
| 6 | Piston ring | 2 | NBR | - |
| 7 | Springs | 0-12 | Spring steel | Epoxy coating |
| 8 | Piston bearing | 2 | Engineering plastic | - |
| 9 | Piston ring | 2 | NBR | - |
| 10 | Plug | 2 | NBR | - |
| 11 | Stop ring | 2 | Engineering plastic | - |
| 12 | Ring | 1 | Engineering plastic | - |
| 13 | Washer | 1 | Stainless steel | - |
| 14 | Spring clamp | 2 | Stainless steel | - |
| 15 | Indicator | 1 | Plastic | - |
| 16 | Indicator housing | 1 | Plastic | - |
| 17 | Bearing | 1 | Engineering plastic | - |
| 18 | Cam | 1 | Steel | Oxidation / Galvanized zinc |
| 19 | Bearing | 1 | NBR | - |
| 20 | Bearing | 1 | Engineering plastic | - |
| 21 | Bearing | 1 | Engineering plastic | - |
| 22 | O-ring | 2 | NBR | - |
| 23 | O-ring | 2 | NBR | - |
| 24 | Bearing | 2 | Stainless steel | - |
| 25 | Adjustment nut | 2 | Stainless steel | - |
| 26 | Adjustment screw | 2 | Stainless steel | - |
| 27 | Bushing | 2 | Aluminum | - |
Technical parameters of pneumatic valve Elephant 4V320-10 220V
| Parameter | Value |
|---|---|
| Type of Pneumatic Valve | Spool-type |
| Pneumatic Valve Model | 4V320-10 220V |
| Operating Pressure, bar | 1.5 ÷ 8 |
| Supply Voltage, V | 220V |
| Actuation Frequency, cycles/sec | 5 |
Dimensions and dimensions of Elephant 4V320-10 220V pneumatic directional control valve
| Parameter | Value (mm) |
|---|---|
| A | 71.9 |
| B | 45 |
| C | 94.4 |
| D | 27 |
| E | 69 |
| F | 40 |
| I | 24 |
| K | 40 |
| L | 188.8 |
| M | 69.4 |
| N | 50 |
| O | 83.4 |
| P | 22 |
| S | 20 |
| T | 6.5 |
| U | 2.4 |
| H | 82.4 |
Sketch of dimensions and dimensions of pneumatic valve Elephant 4V320-10 220V
Technical parameters of the handwheel Elephant MON-ISO
| Name | Value |
|---|---|
| Manual override model | MON-ISO |
| Climatic version | U, UHL, T, OM |
| Mounting method | Horizontal/Vertical |
| Protection rating, IP | 67 |
| Connection type | ISO 5211 |
Dimensions and dimensions of the handwheel Elephant MON-ISO
| Parameter | Value |
|---|---|
| Model | MON4-1200-T54-ISO |
| b1, mm | 27 |
| N, mm | 32 |
| b2, mm | 27 |
| M, mm | 30 |
| D1, mm | Ø102 |
| 4-M1, mm | 4-M10 |
| D2, mm | Ø125 |
| 4-M2, mm | 4-M12 |
| E, mm | 129×129 |
| D3, mm | Ø125 |
| 4-Ø1, mm | 4-Ø12.5 |
| D4, mm | Ø140 |
| 4-Ø2, mm | 4-Ø16.5 |
| A, mm | 188.5 |
| B, mm | 93 |
| ØC, mm | Ø174 |
| F, mm | 202 |
| T, mm | 94 |
| Y, mm | 280 |
| H, mm | 195 |
| S, mm | 84 |
| K, mm | 15 |
| Handwheel Ø, mm | 320 |
Sketch of dimensions and dimensions of handwheel Elephant MON-ISO
Parts and materials table for the handwheel Elephant MON-ISO
| № | Component | Material |
|---|---|---|
| 1 | Stem for pneumatic actuator mounting | Steel 45 |
| 2,8 | O-ring | EPDM |
| 3 | Retaining spring | Spring steel |
| 4 | Upper end cap | Aluminum alloy |
| 5 | Screw | Steel 304 |
| 6 | Retaining bracket (main linkage) | Steel 304 |
| 7 | Housing | Aluminum alloy |
| 9 | Gearbox | Cast iron BC50 |
| 10 | Adapter coupling | Cast iron BC40 |
| 11 | Gearbox stem | Cast iron BC40 |
Sketch of parts and materials of the handwheel Elephant MON-ISO
Technical parameters of Elephant AFC2000 air treatment unit
| Parameter | Value |
|---|---|
| Operating pressure, bar | 8 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Filtered particle size, µm | 40 µm |
| Weight, kg | 0.395 |
Technical parameters of limit switch units Elephant APL-510N EX
| Parameter | Value |
|---|---|
| Model of limit switch block | APL-510N EX |
| Ambient temperature, °C | from -20 to 66 |
| Service life, years | 10 |
Dimensions and dimensions of Elephant APL-510N EX limit switch units
| Parameter | Value |
|---|---|
| Model of limit switch block | APL-510N EX |
| A, mm | 118 |
| B, mm | 118 |
| C, mm | 138.4 |
| D, mm | 17 |
| E, mm | 19 |
| F, mm | 7 |
| G, mm | 3 |
| H, mm | 4 |
| I, mm | 59 |
| J, mm | 59 |
| K, mm | 59 |
| L, mm | 59 |
| M, mm | 121.4 |
| Ød1, mm | 50 |
| Ød2, mm | 5 |
Passports and certificates
