Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H full bore, flanged, body – Valve Elephant
Elephant  |  SKU: D160-53100

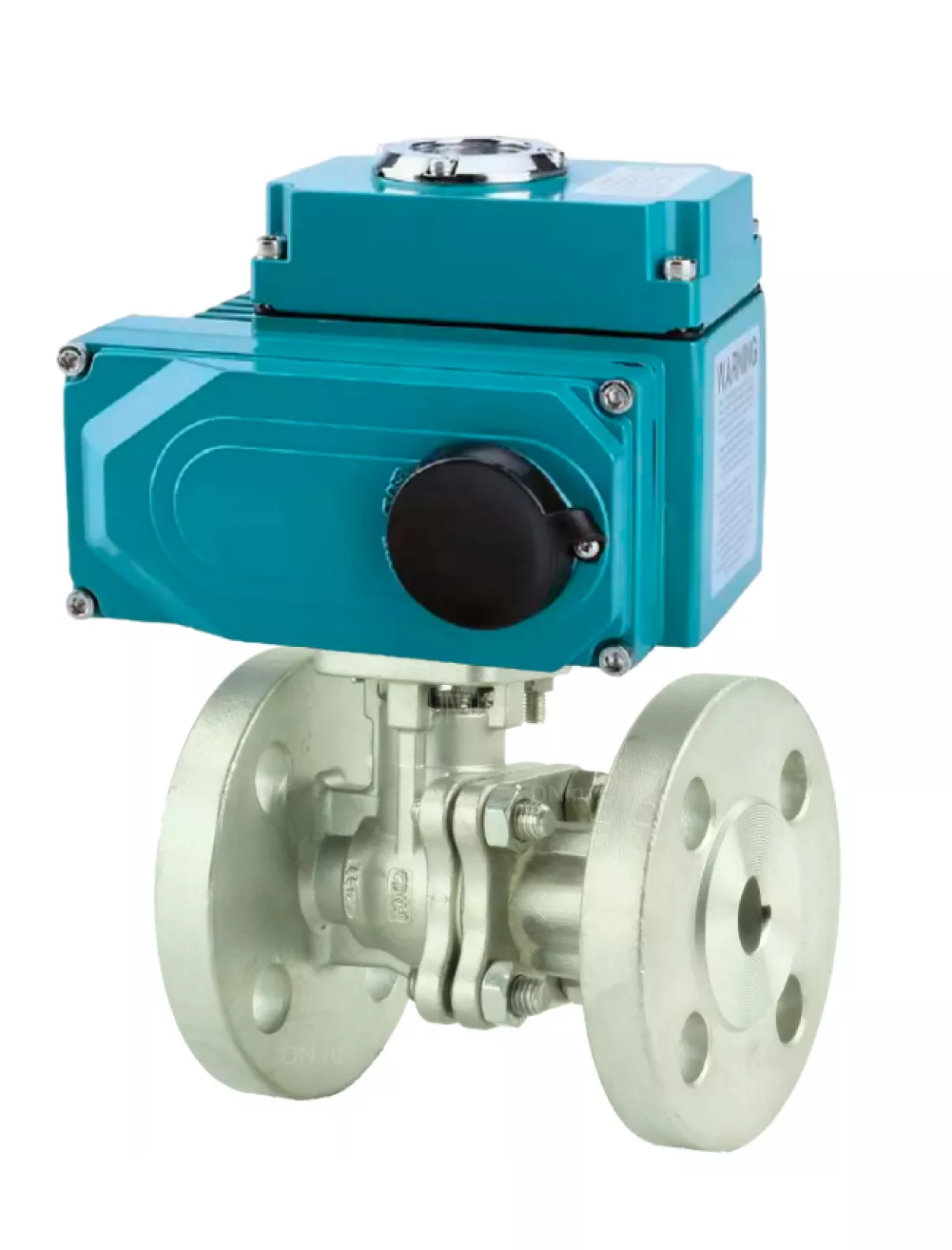

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H full bore, flanged, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM-O1-220VAC-U1 220V HARK

€569,02
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H full bore, flanged, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM-O1-220VAC-U1 220V HARK - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

The shut-off of the working flow occurs by means of a locking element, which is a ball with a through cylindrical hole. The handle installed on the body rotates the ball around the axis. To completely shut off the flow, it is enough to turn it by an angle of 90 degrees.

Quarter-turn electric actuators are designed for remote and local control of shut-off pipeline valves with a quarter-turn shut-off element. They are used in various sectors of the national economy: in the gas, oil, metallurgy, food industries, in housing and communal services, etc.





Technical characteristics of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H full bore, flanged, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM-O1-220VAC-U1 220V HARK

Nominal diameter DN, mm 15 – 100
Nominal pressure PN, bar 40 / 16
Temperature of working environment t, ⁰C from -20 to +210
Working environment water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials used
Connection to the pipeline flanged
Passage of the ball full bore without constriction
Body material ASTM CF8M (analogue of AISI 316 steel)
Estimated service life of the crane (number of opening/closing cycles) 40,000



Sketch of dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H full bore, flanged, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM-O1-220VAC-U1 220V HARK



Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H full bore, flanged, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM-O1-220VAC-U1 220V HARK

D.N.
Electric drive model 		Dimensions, mm
b d H L D D1 D2 Y
15 QT-N-020EMT 16 15 50 115 95 65 45 241.8
20 18 20 55 120 105 75 58 241.8
25 18 25 58 125 115 85 68 241.8
32 18 32 42 130 140 100 78 241.8
40 18 40 76 140 150 110 88 241.8
50 20 50 85 150 165 125 102 241.8
65 18 65 95 170 185 145 122 241.8
80 20 80 115 180 200 160 138 241.8
100 20 100 140 190 220 180 158 241.8







Materials of parts of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H full bore, flanged, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM-O1-220VAC-U1 220V HARK

Item No. Detail Material
1 Frame CF8M (analogue of AISI 316 steel)
2 Ball Stainless steel SS316
3 Bolt stainless steel
5 Stock Stainless steel SS316
6 Flange element (2 pcs) CF8M (analogue of AISI 316 steel)
7 Ball seal (2 pcs) PTFE
8 Thrust washer PTFE





Image of electric drives Elephant QT-N-xEMT-O1-x-UHL1 with thermal protection and heater



Technical electric drives Elephant QT2-N-xEM-O1-x-U1m

Electric drive type quarter turn
Engine type asynchronous
Rotation angle, ° 90±5
Body material aluminum alloy, epoxy powder coated
Shaft material alloy steel
Supply voltage 380V/AC, 50Hz
Cable entry gland 2xM18
Connection type ISO 5211
Self-locking device self-locking worm and worm gear
Automatic shut-off in the open, closed and jammed positions 2 limit switches
+ 2 additional switches (dry contact);
Thermal protection switch on at 120°C ±5°C;
switch off at 97°C ±5°C
Insulation class F according to GOST IEC 60034-2-1-2017
Mechanical limitation of output shaft rotation 2 external adjustable stoppers
Housing protection class IP67
Noise level, dB ≤ 50
Heater power, W 5
Ambient temperature, °C from -20 to +70
Ambient humidity ≤95% (25°C)
Explosion protection of the housing No





Sketch of overall dimensions of electric drives Elephant QT2-N-xEM-O1-x-U1



Dimensions and sizes of electric drives Elephant QT2-N-xEM-O1-x-U1

Model 003EMT
L, mm 123
H, mm 115
A, mm 101
B, mm 98
C, mm 74
D, mm 49
E, mm 34.5
F, mm 35
G, mm 5
Rod size, square, mm 14x14
ISO 5211 F05/F07





Electric drive device diagram Elephant QT2-N-xEM-O1-x-U1



The device diagram of electric drives Elephant QT-N-xEM-O1-x-U1 HARK:

Item No. Name
1 Position indicator
2 Top cover
3 Control board
4 Capacitor
5 Push cams
6 Output shaft with worm wheel
7 Frame
8 Output shaft travel limiters
9 Worm shaft
10 Electric motor
11 Reducer
12 Gearbox cover

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    #ИМЯ?
  • Connection type
    Flanged
  • Control type
    Electrically driven
  • Operating environment
    Water, Air, Steam, Industrial Water, Oil, Petroleum Products
  • Applications
    Water Supply
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    no
  • Torque
    18 Nm
  • Limit switches
    Yes
  • Actuator model
    QT-N-020EM-O1-220VAC-U1 HARK

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-53100DN1540 bar €569,02 0 in stock
    D160-53101DN2040 bar €585,52 Out of stock
    D160-53102DN2540 bar €608,61 Out of stock
    D160-53103DN3240 bar €641,87 Out of stock
    D160-53104DN4040 bar €638,78 Out of stock
    D160-53105DN5040 bar €680,86 Out of stock
    D160-53106DN6516 bar €766,57 Out of stock
    D160-53107DN8016 bar €850,02 Out of stock
    D160-53108DN10016 bar €969,68 Out of stock
