Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bor – Valve Elephant
Elephant  |  SKU: D160-49136

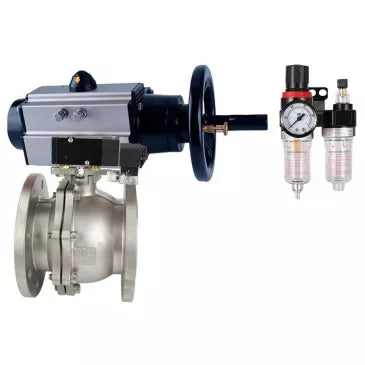

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-10 220V , with ATU AFC2000

€704,28
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-10 220V , with ATU AFC2000 - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.

Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.



Technical parameters Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE

Name Value
Nominal Pressure PN, bar 16
Operating Temperature, °C -50 to 200
Valve Type Two-way
Application Heat supply
Working Medium Water, air, steam, technical water, oil, petroleum products
Pipeline Connection Type Flanged
Water-dispensing No
Bore Type Full bore
Tightness Class A
Control Type Pneumatic actuator
Connection Type Flanged
Actuation Double-acting pneumatic actuator
Limit Switches Yes
Pneumatic Distributor Yes
Electro-pneumatic Positioner No
Warranty, years 1
Country of Origin China







Dimensions and dimensions Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE

Size ØD ØD1 ØD2 L H A E I B C
80 220 160 127 180 220 495 200 162 88 139
100 221 180 157 190 221 495 200 162 88 139

Sketch dimensions and dimensions Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE





Parts and materials table Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE

№ Part Material
1 Body Steel 316
2 Ball Seal RPTFE
3 Ball Steel 316
4,6,12 Bolt, Nut Steel 304
5,10 Seal PTFE
7 Pipe Steel 316
8 Stem Steel 316
9 Packing PTFE
11 Packing Steel 304

Parts and materials sketch Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE




Technical parameters of pneumatic actuator PA-DA-105-1:

Type of pneumatic actuator double-acting
Control pressure, bar 2 ÷ 8
Operating temperature, °C -20 to +80
Visual position indicator open / closed
Manual control handwheel
Swivel angle, ° 90 ± 5
Top connection standard NAMUR
Air connection standard NAMUR
Air supply connection thread G 1/4ʺ
ISO flange type F07/F10
Stem square, mm 22x22
Weight, kg 9
Average life, cycles closed/open 300 000

Pneumatic actuator PA-DA-105-1





Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:

A, mm 495
A1, mm 461.5
B, mm 133
C, mm 109.5
D, mm 153
E, mm 57.5
F, mm 64
G, mm 26
H, mm 80
I, mm 30
N, mm 22
W, mm 200
J, mm 102
K, mm 70
L, mm M10x16
M, mm M8x13
O, mm 4
P, mm 4
S, mm M6
T, mm 24
U, mm 32

Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1





PA-DA-105-1 air actuator parts and materials table:

№ Part name Material
1 Indicator screw ABS (plastic)
2 Position indicator ABS (plastic)
3 Spring clip Stainless steel 304
4 Washer Stainless steel 304
5 External washer Engineering plastic
6 Adjustment screw Stainless steel 304
7 Nut Stainless steel 304
8 Washer Stainless steel 304
9 Body Extruded aluminum alloy
10 Piston Die cast aluminum alloy
11 Piston O-ring NBR
12 Bearing group Engineering plastic
13 End cap O-ring NBR
14 End cap Die cast aluminum alloy coated with polyester paint
15 Fixing screw Stainless steel 304
16 Internal washer Engineering plastic
17 Sealing ring NBR
18 Bearing Engineering plastic
19 Retainer Alloy steel
20 Gear Alloy steel
21 Bearing Engineering plastic
22 Sealing ring NBR

Parts and material sketch of the PA-DA-105-1 pneumatic actuator





Technical parameters of pneumatic valve Elephant

Parameter Value
Type of Pneumatic Distributor Spool
Operating Pressure, bar 1.5 ÷ 8
Supply Voltage, V 220V
Actuation Frequency, cycles/sec 5





Dimensions and dimensions of Elephant 4V320-10 220V pneumatic directional control valve

Parameter Value (mm)
A 71.9
B 45
C 94.4
D 27
E 69
F 40
I 24
K 40
L 188.8
M 69.4
N 50
O 83.4
P 22
S 20
T 6.5
U 2.4
H 82.4

Sketch of dimensions and dimensions of pneumatic valve Elephant 4V320-10 220V



Technical parameters of Elephant AFC2000 air treatment unit

Parameter Value
Operating pressure, bar 8
Adjustable pressure range, bar 0.5 ÷ 9
Filtered particle size, µm 40 µm
Weight, kg 0.395



Dimensions and dimensions of Elephant AFC2000 air treatment unit

Parameter Value
Model AFC2000
A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5

Sketch of dimensions and dimensions of Elephant AFC2000 air treatment unit









Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    200 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Air, Steam, Industrial Water, Oil, Petroleum Products
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    no
  • Torque
    176 Nm
  • Limit switches
    no
  • Type of pneumatic actuator
    double action
