Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bor – Valve Elephant
Elephant  |  SKU: D160-49064

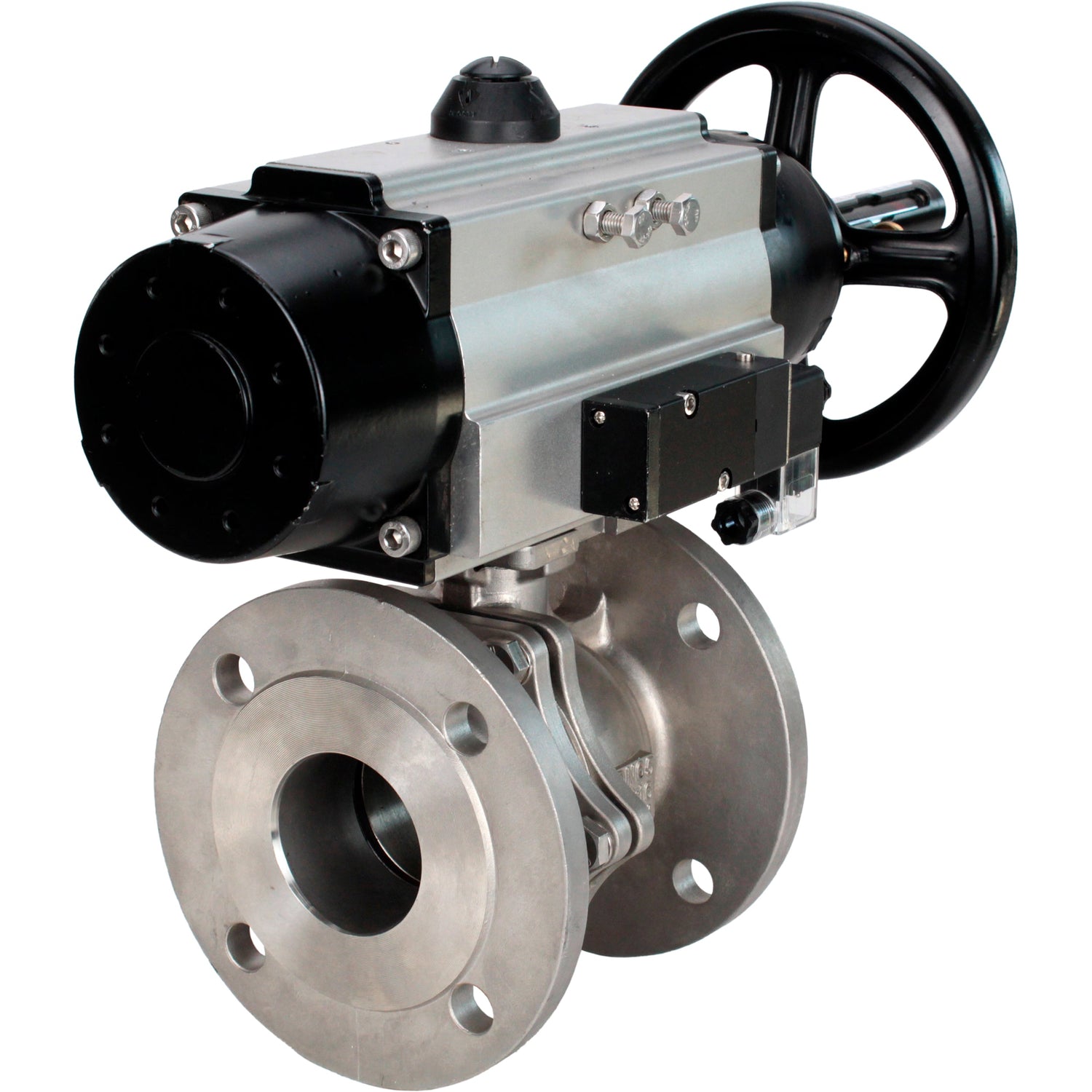

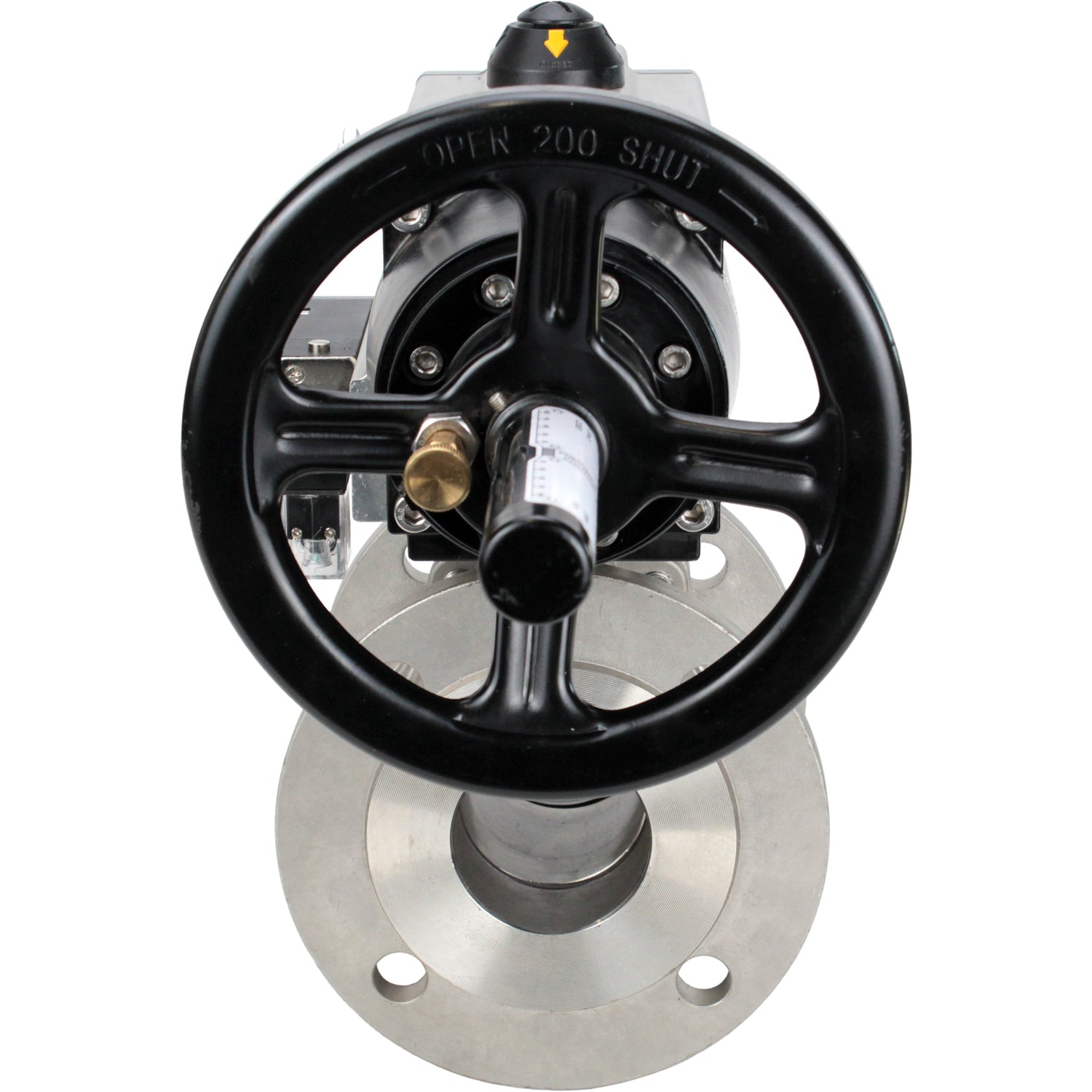

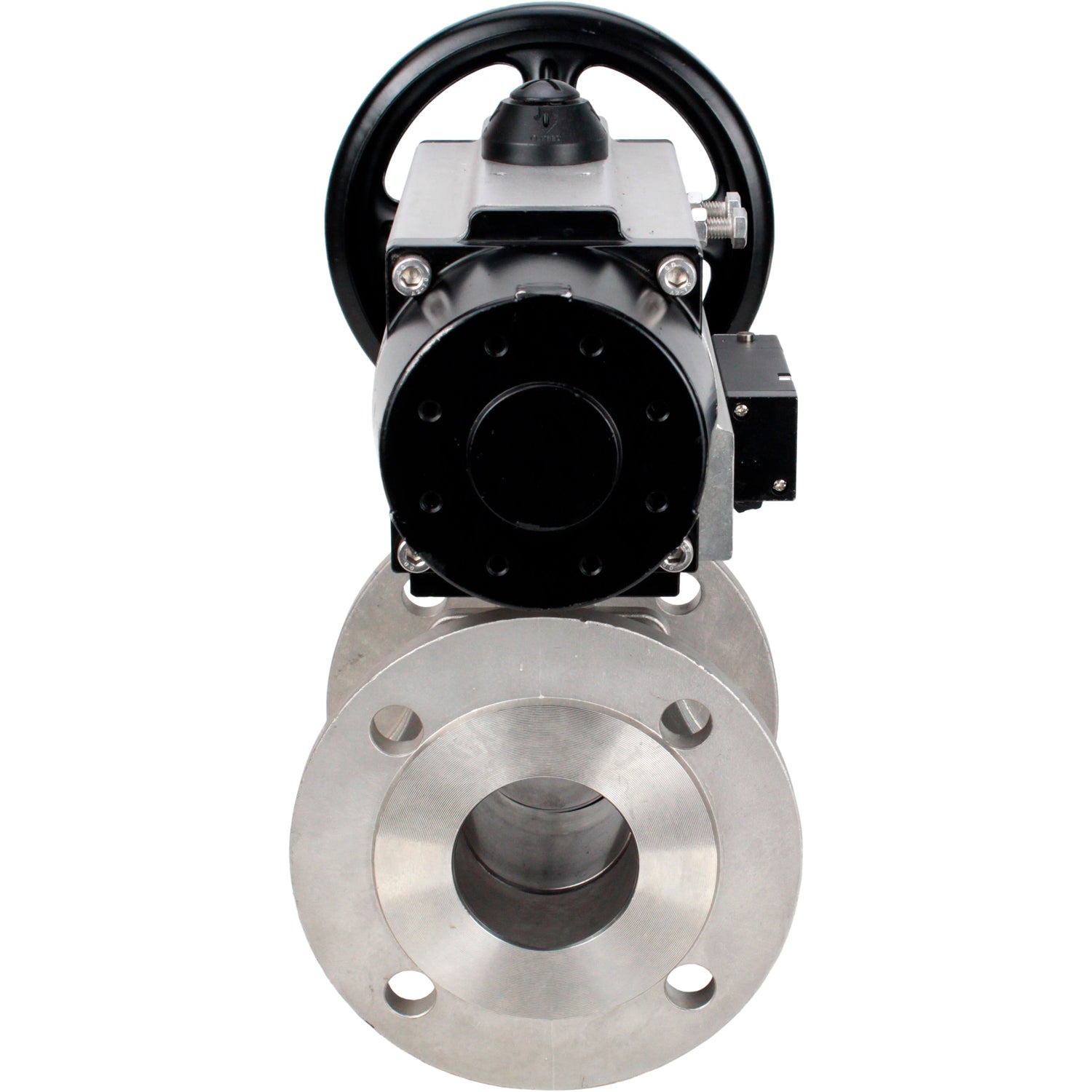

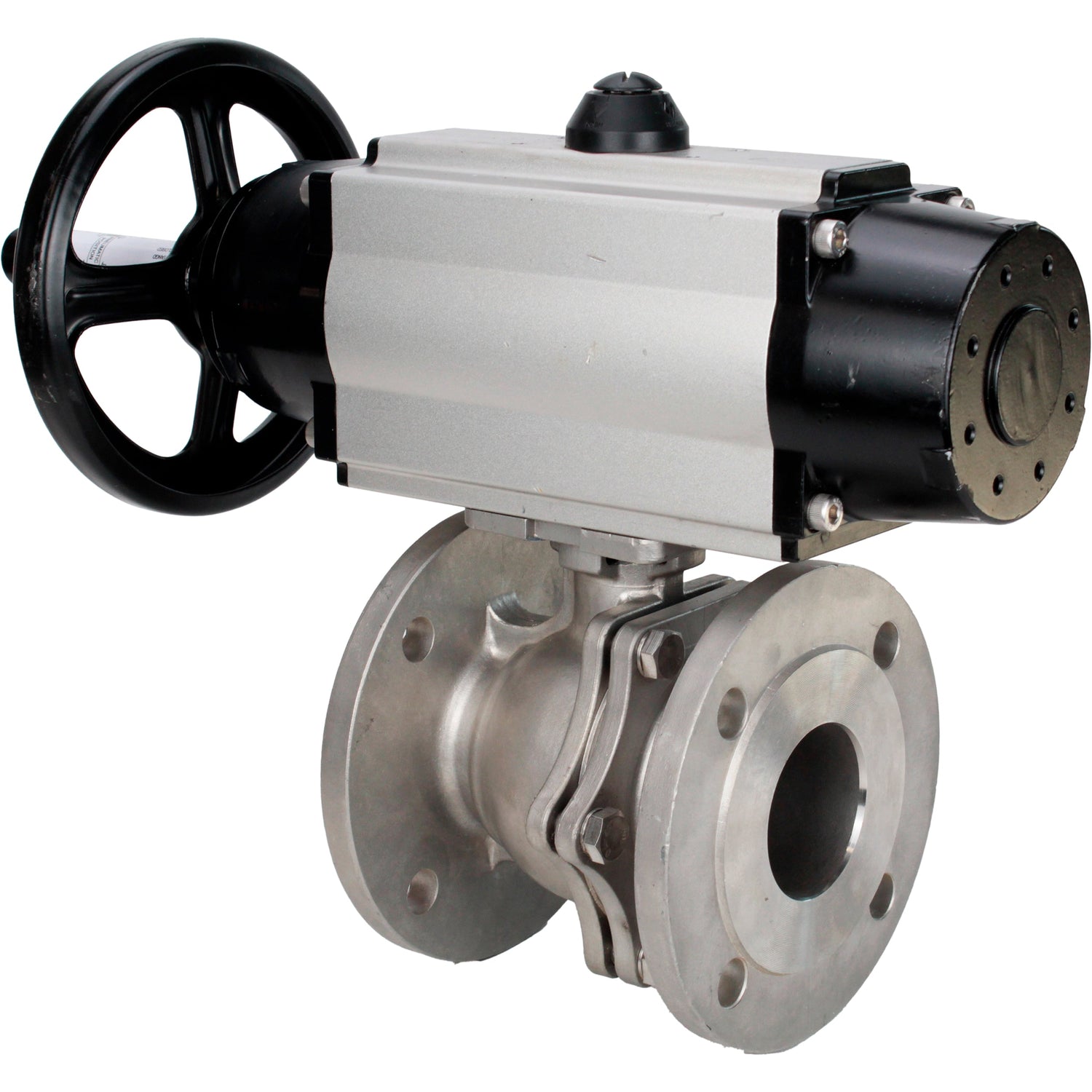

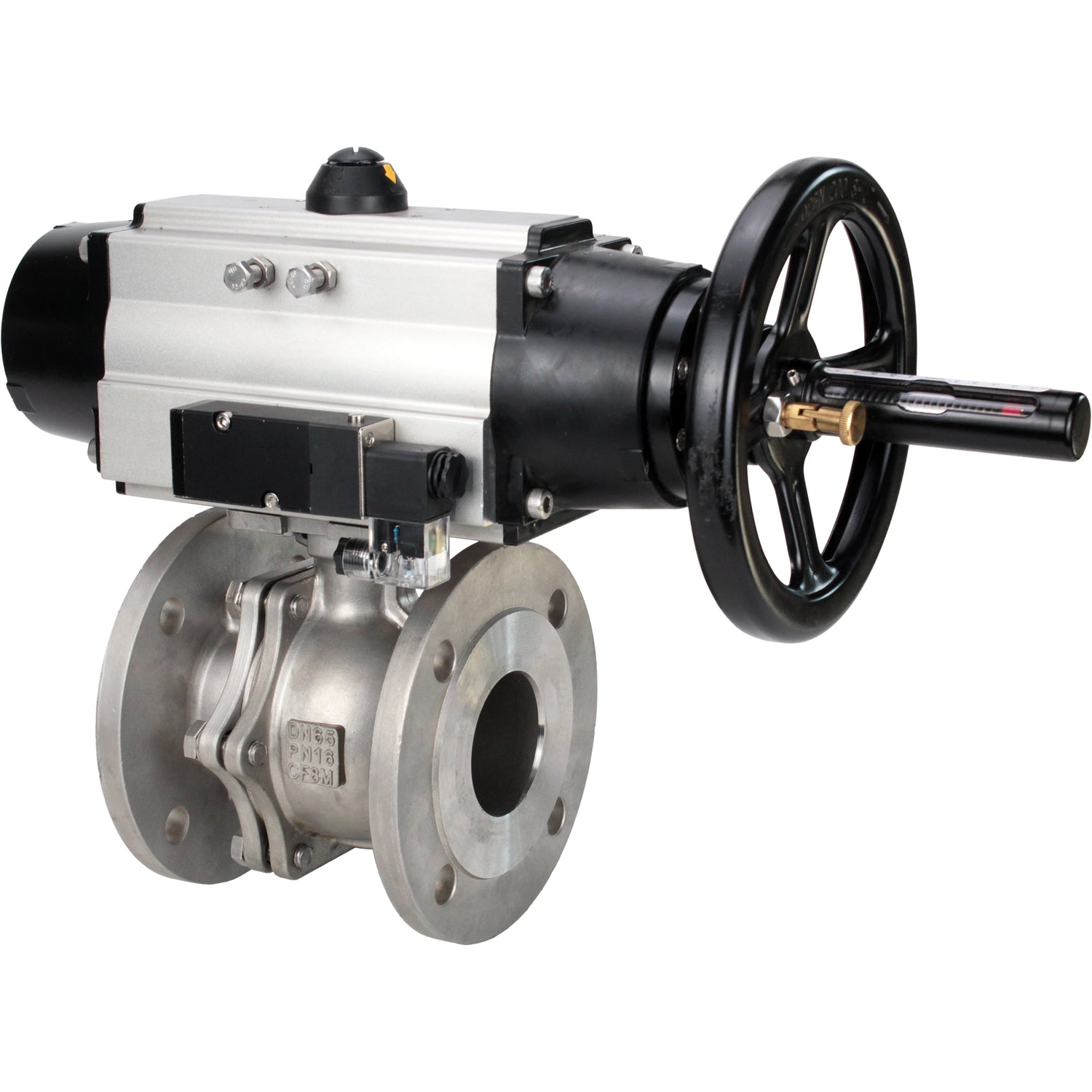

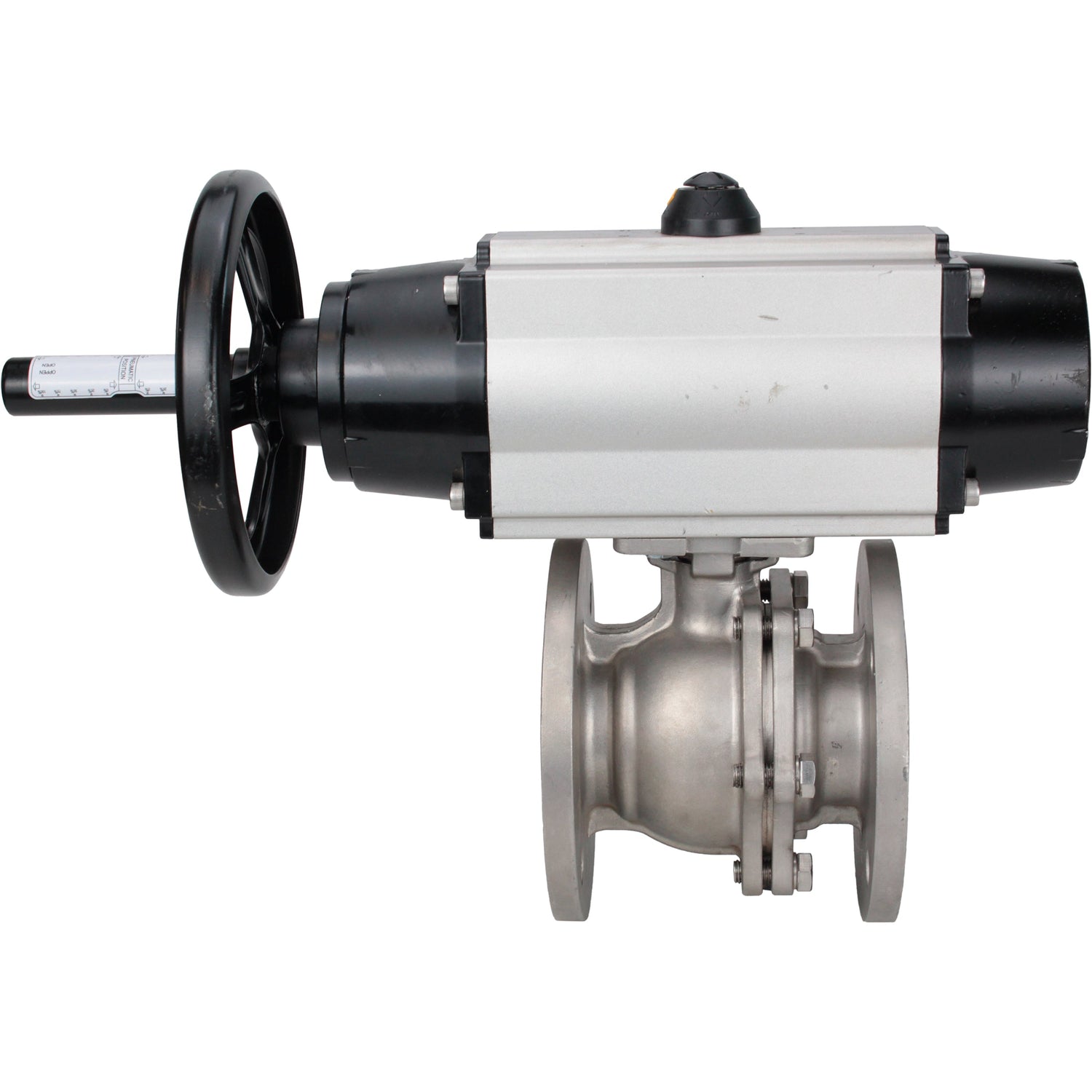

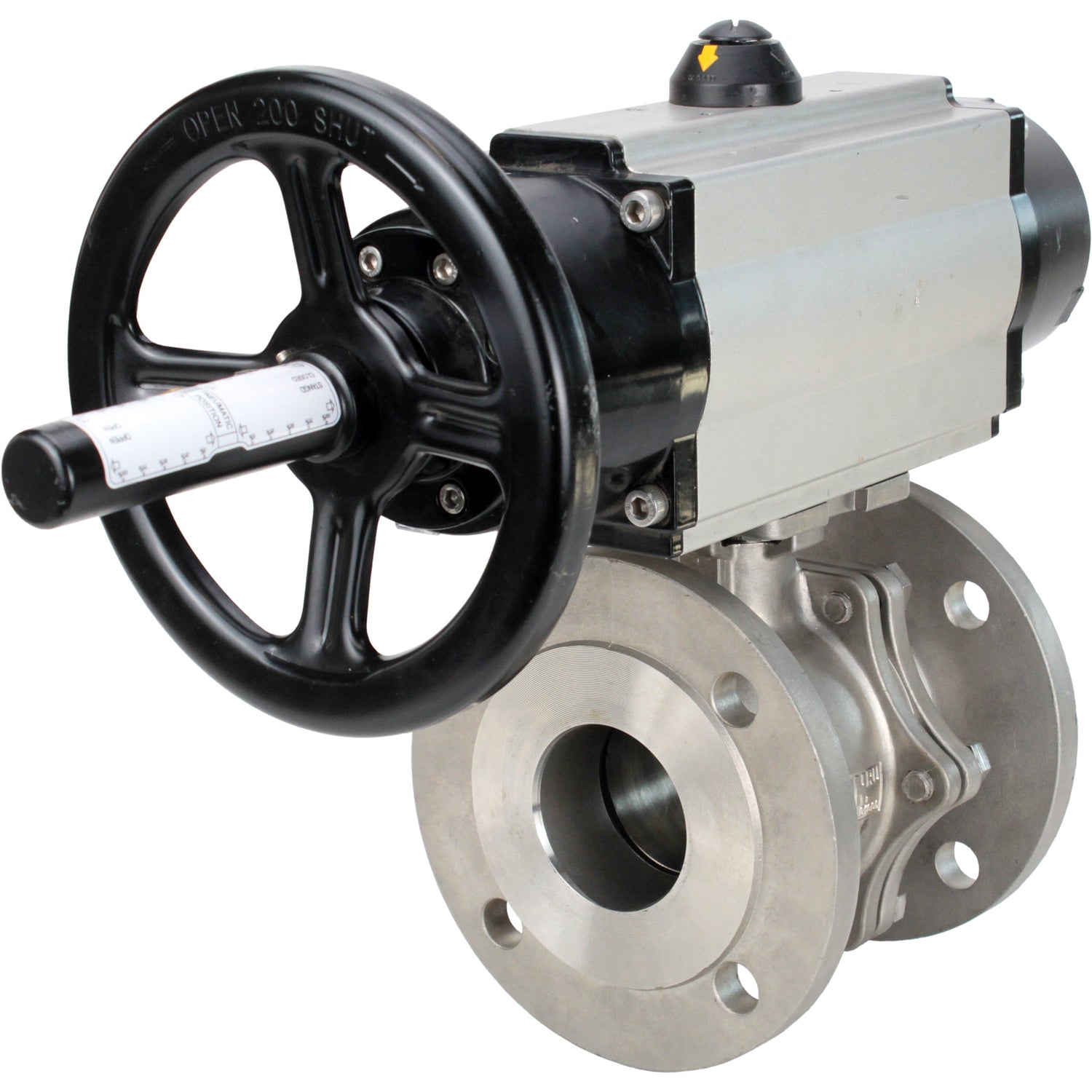

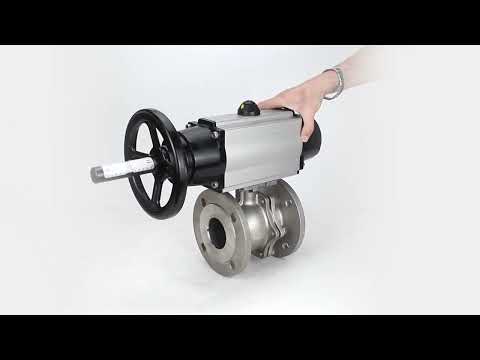

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V

€648,83
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. Use of ball valves as regulating valves is not allowed.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.
Pneumatic valves are used for control in pneumatic systems having NAMUR docking surface, for installation of valves through through holes in the body. Electromagnetic control, is realized by means of voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, the valves have one-way or two-way control. Solenoid operated pneumatic valves have a wide range of models and include common switching types for three (3/2) and five (5/2 and 5/3) line pneumatic valves. They are designed for use with quarter-turn pneumatic actuators.






Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V:

Parameter

Value

Nominal pressure PN, bar

16

Working medium temperature, °C

From -50 to 200

Type of valve device

Two-way

Application

Heat supply

Working medium

Water, air, steam, industrial water, oil, petroleum products

Connection to pipeline

Flanged

Type of passage section

Full bore

Control type

With pneumatic actuator

Connection

Flanged

Control

Double-acting pneumatic actuator

Presence of limit switches

No

Presence of pneumatic distributor

Yes

Presence of electro-pneumatic positioner

No

Warranty, years

1


Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V:

Model L, mm ØD, mm ØD1, mm ØD2, mm H, mm A, mm E, mm
DN80 180 220 160 127 220 495 200
DN100 190 221 180 157 221 495 200




Table of parts and materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V:

№

Part name

Material

1

Body

Steel 316

2

Ball seal

RPTFE

3

Ball

Steel 316

4, 6, 12

Bolt, nut

Steel 304

5, 10

Seal

PTFE

7

 Pipe

Steel 316

8

Stem

Steel 316

9

Gland

PTFE

11

Gland

Steel 304




Technical parameters of pneumatic actuator PA-DA-105-1:

Type of pneumatic actuator double-acting
Control pressure, bar 2 ÷ 8
Operating temperature, °C -20 to +80
Visual position indicator open / closed
Manual control handwheel
Swivel angle, ° 90 ± 5
Top connection standard NAMUR
Air connection standard NAMUR
Air supply connection thread G 1/4ʺ
ISO flange type F07/F10
Stem square, mm 22x22
Weight, kg 9
Average life, cycles closed/open 300 000

Pneumatic actuator PA-DA-105-1





Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:

A, mm 495
A1, mm 461.5
B, mm 133
C, mm 109.5
D, mm 153
E, mm 57.5
F, mm 64
G, mm 26
H, mm 80
I, mm 30
N, mm 22
W, mm 200
J, mm 102
K, mm 70
L, mm M10x16
M, mm M8x13
O, mm 4
P, mm 4
S, mm M6
T, mm 24
U, mm 32

Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1





PA-DA-105-1 air actuator parts and materials table:

№ Part name Material
1 Indicator screw ABS (plastic)
2 Position indicator ABS (plastic)
3 Spring clip Stainless steel 304
4 Washer Stainless steel 304
5 External washer Engineering plastic
6 Adjustment screw Stainless steel 304
7 Nut Stainless steel 304
8 Washer Stainless steel 304
9 Body Extruded aluminum alloy
10 Piston Die cast aluminum alloy
11 Piston O-ring NBR
12 Bearing group Engineering plastic
13 End cap O-ring NBR
14 End cap Die cast aluminum alloy coated with polyester paint
15 Fixing screw Stainless steel 304
16 Internal washer Engineering plastic
17 Sealing ring NBR
18 Bearing Engineering plastic
19 Retainer Alloy steel
20 Gear Alloy steel
21 Bearing Engineering plastic
22 Sealing ring NBR

Parts and material sketch of the PA-DA-105-1 pneumatic actuator





Technical parameters of pneumatic valve Elephant 4M310-08

Name

Value

Type of pneumatic valve

Spool valve

Pneumatic valve model

4M310-08

Working pressure, bar

1.5 ÷ 1.8

Supply voltage, V

220 V

Response frequency, cycle/sec

5





Dimensions and sizes of the pneumatic valve Elephant 4M310-08

Pneumatic valve model 4M310-08
D, mm 32
E, mm 69
F, mm 40
I, mm 45
K, mm 40
L, mm 134.5
M, mm 40
N, mm 24
S, mm 27
U, mm 2.4
H, mm 17.5






Passports and certificates

Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    200 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Air, Steam, Industrial Water, Oil, Petroleum Products
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    no
  • Torque
    176 Nm
  • Limit switches
    no
  • Type of pneumatic actuator
    double action

Reviews (0)

Documentation
nullPneumatic valve ELEPHANT 4M310-08 spool type
