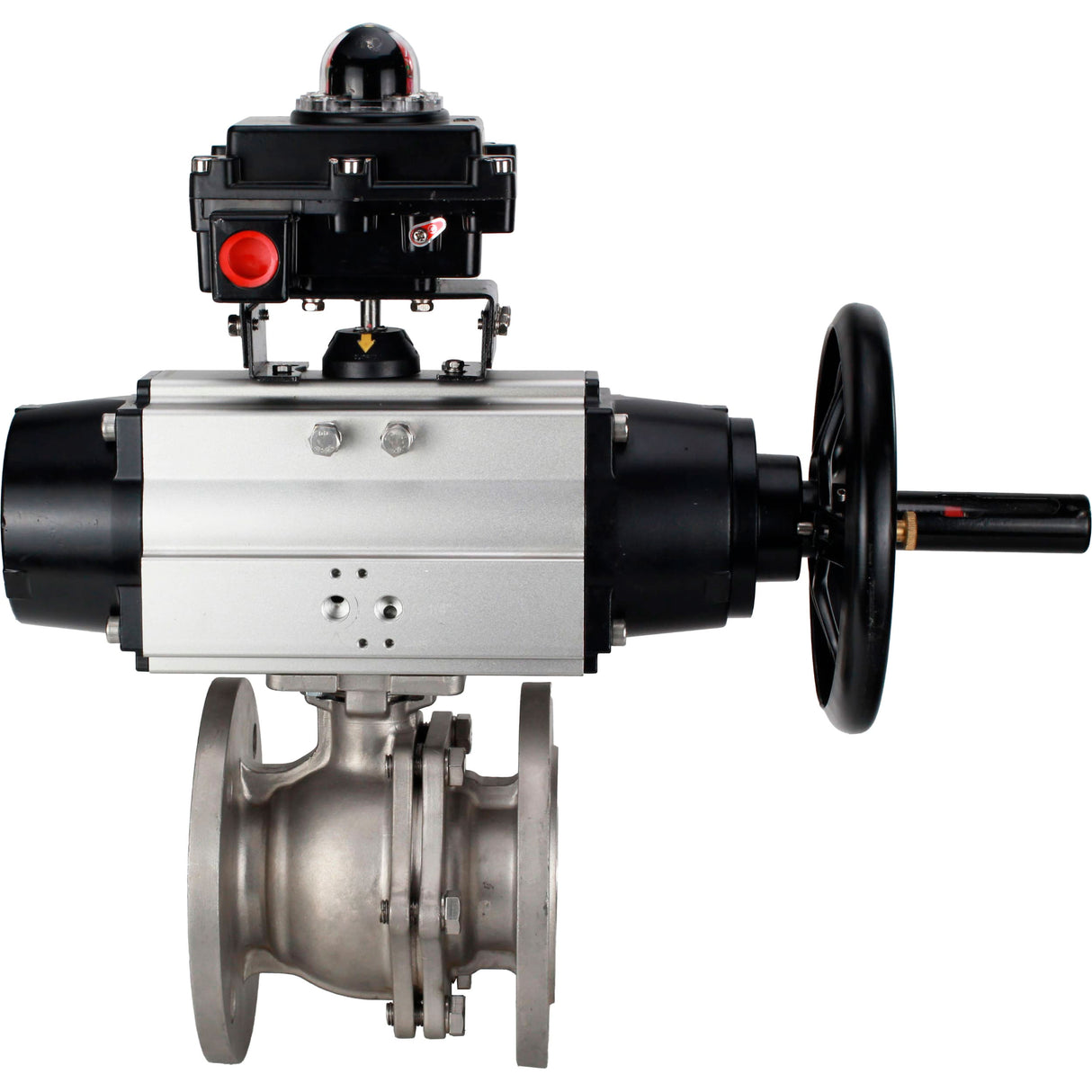

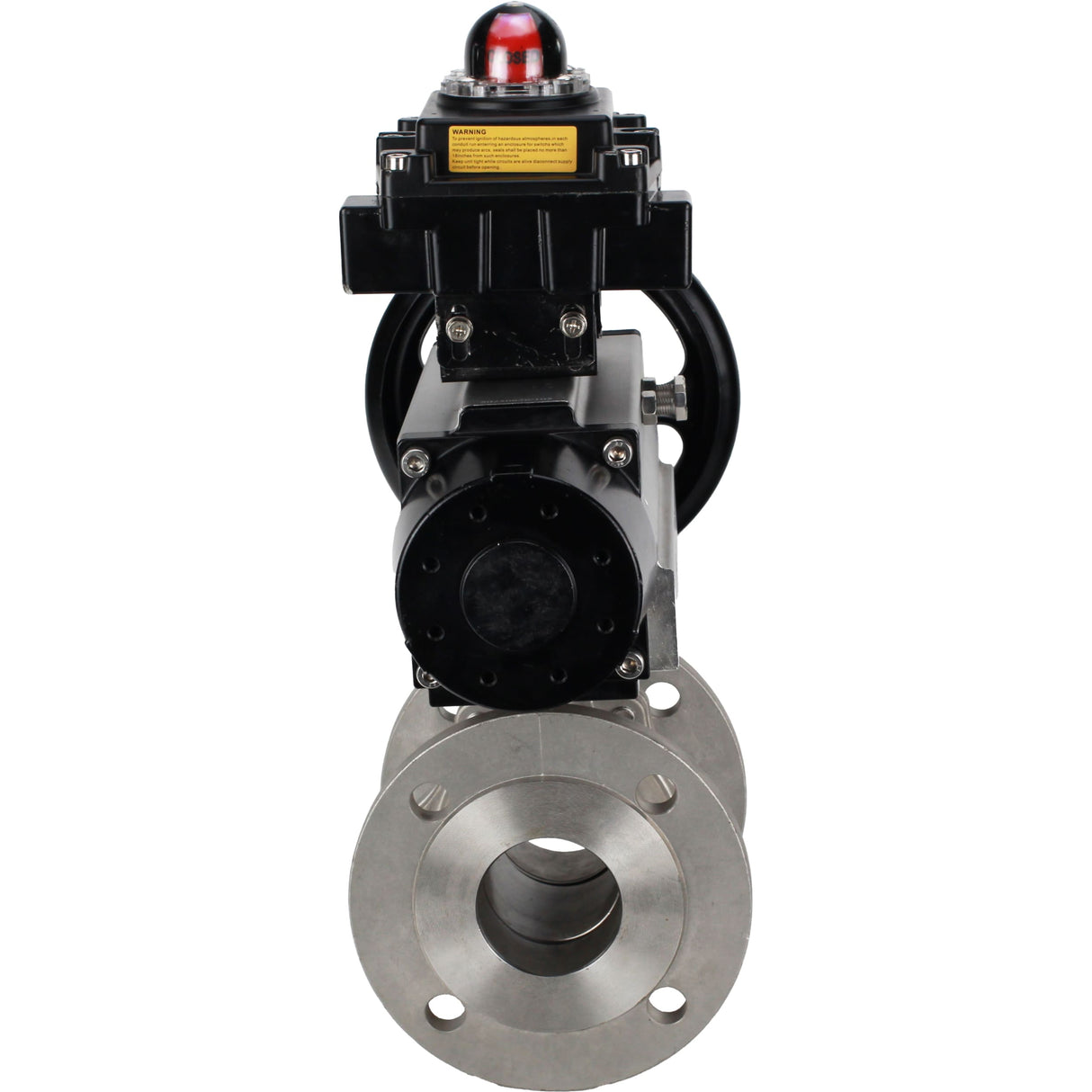

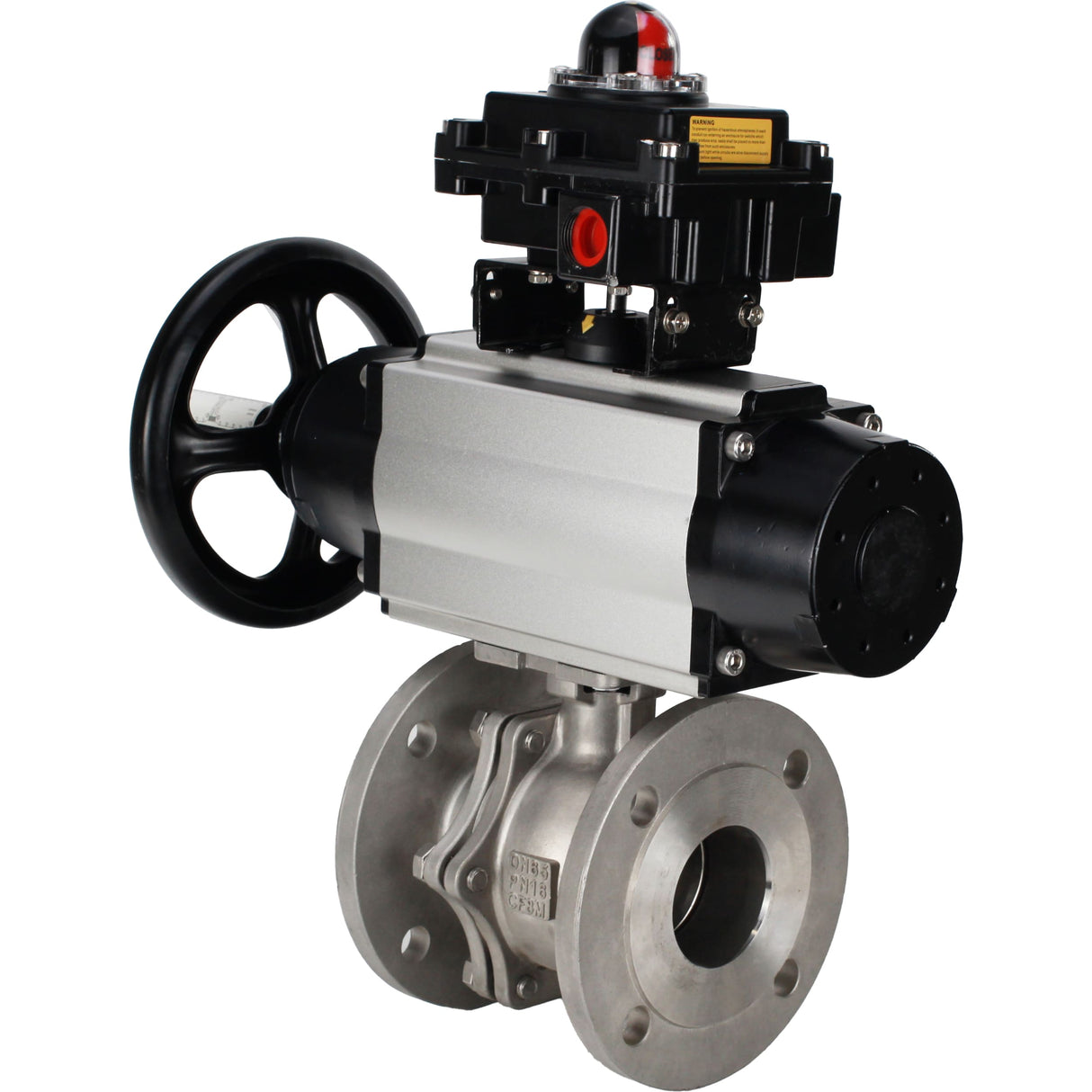

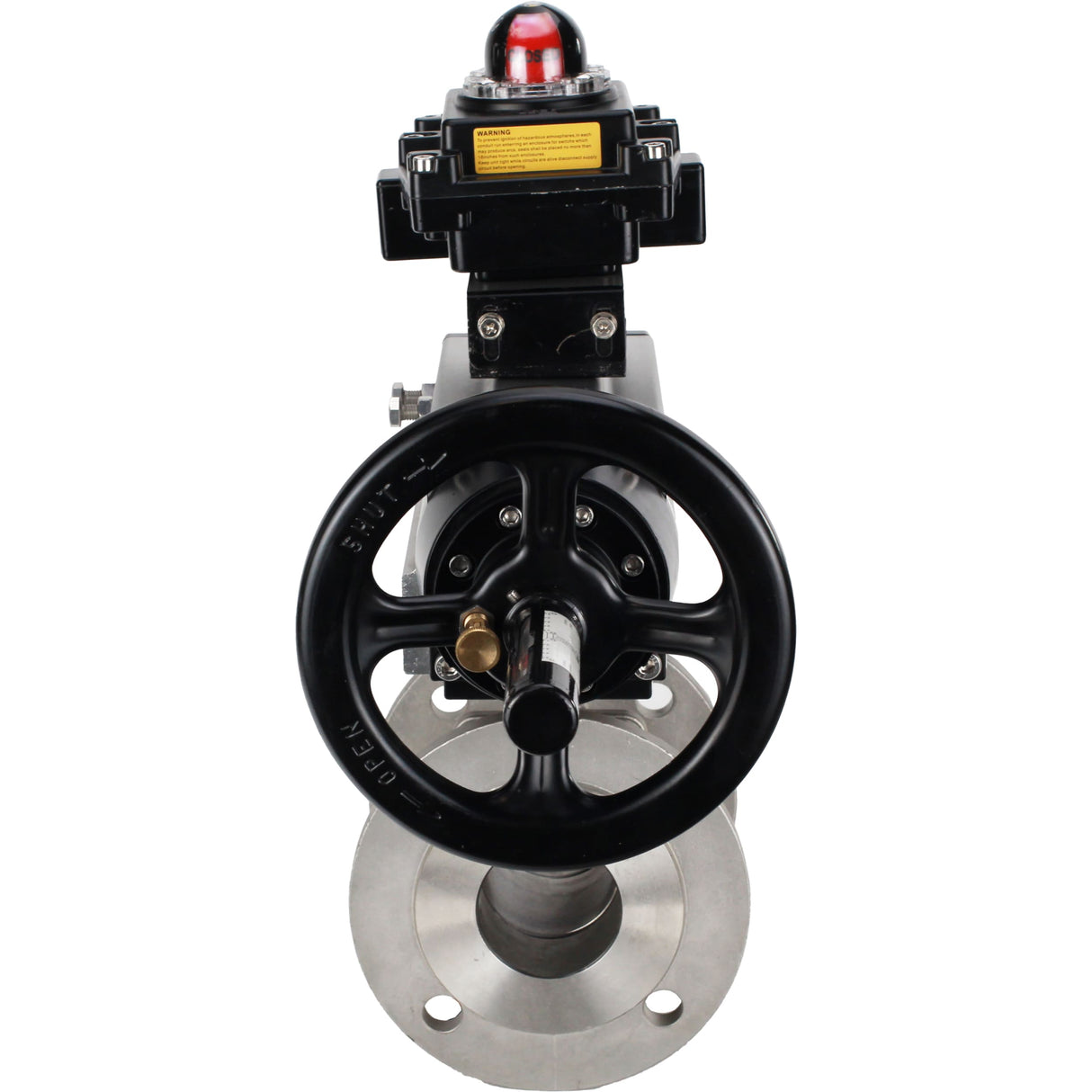

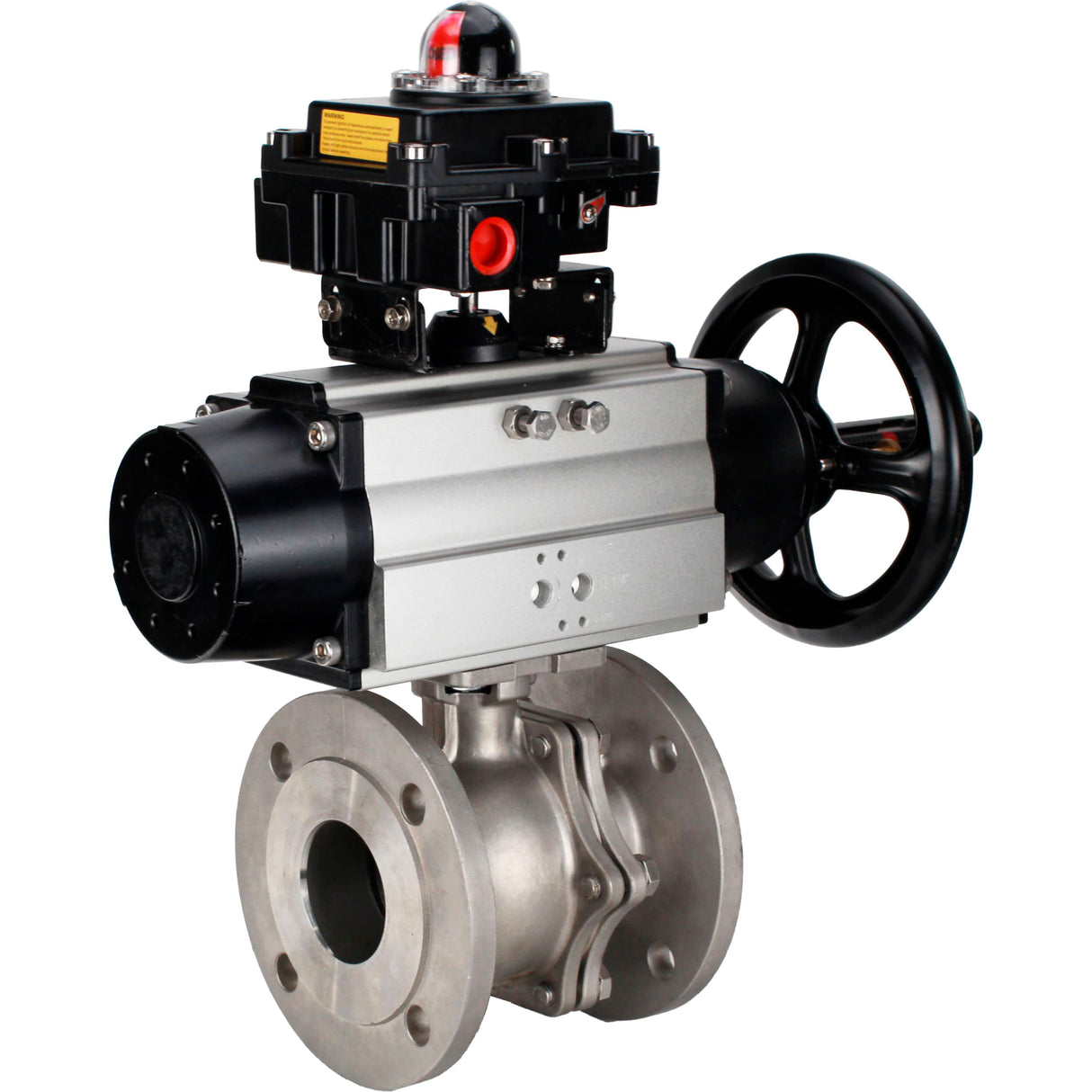

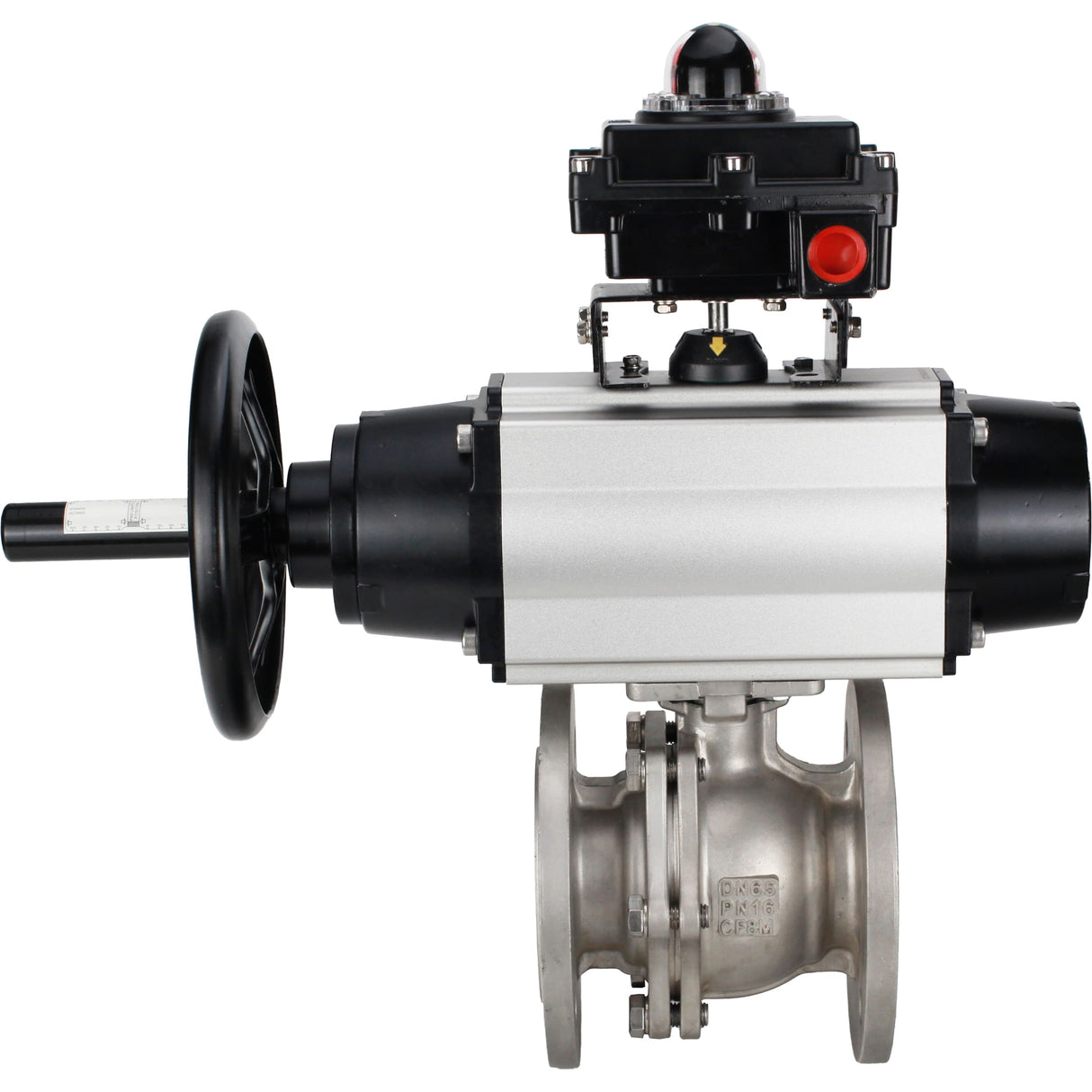

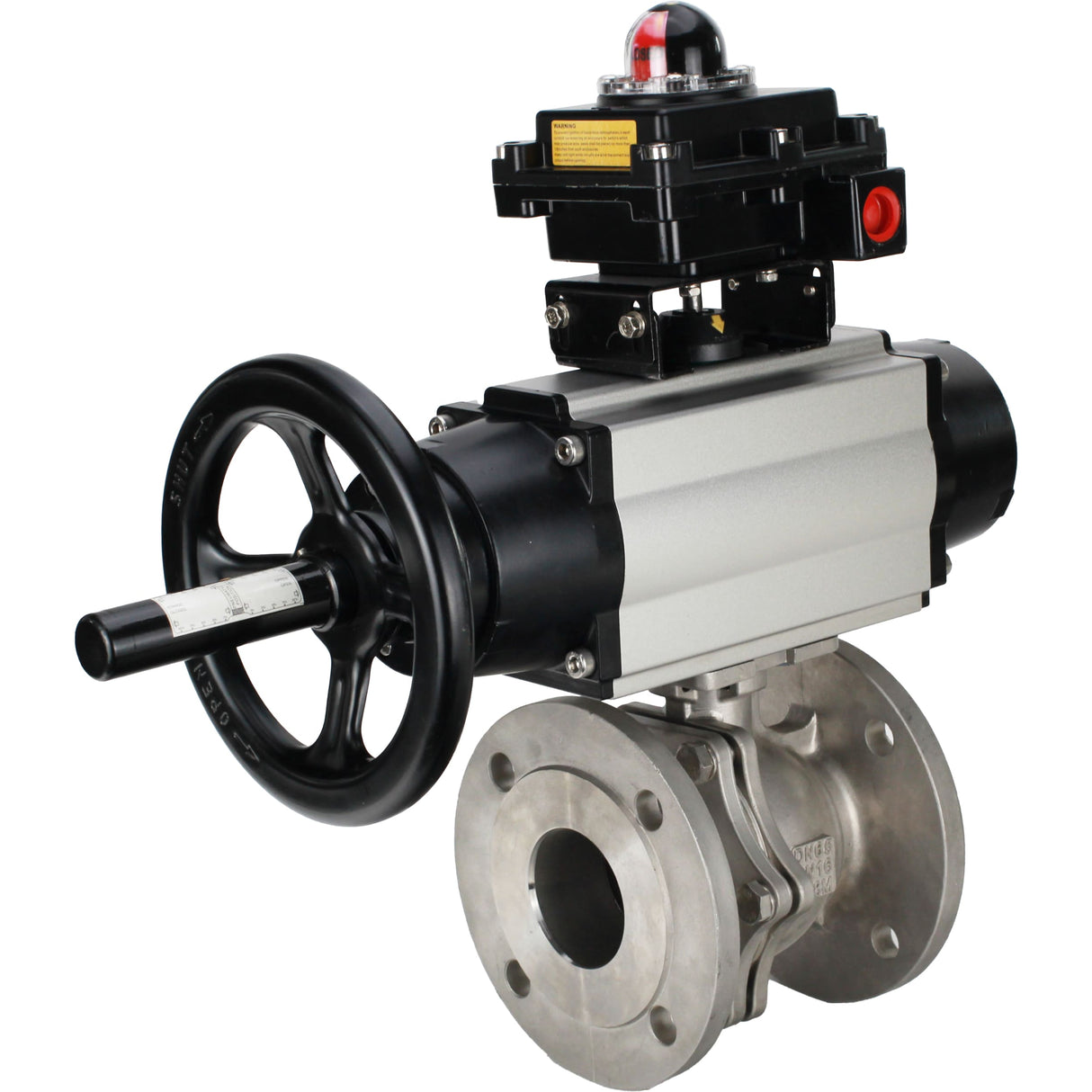

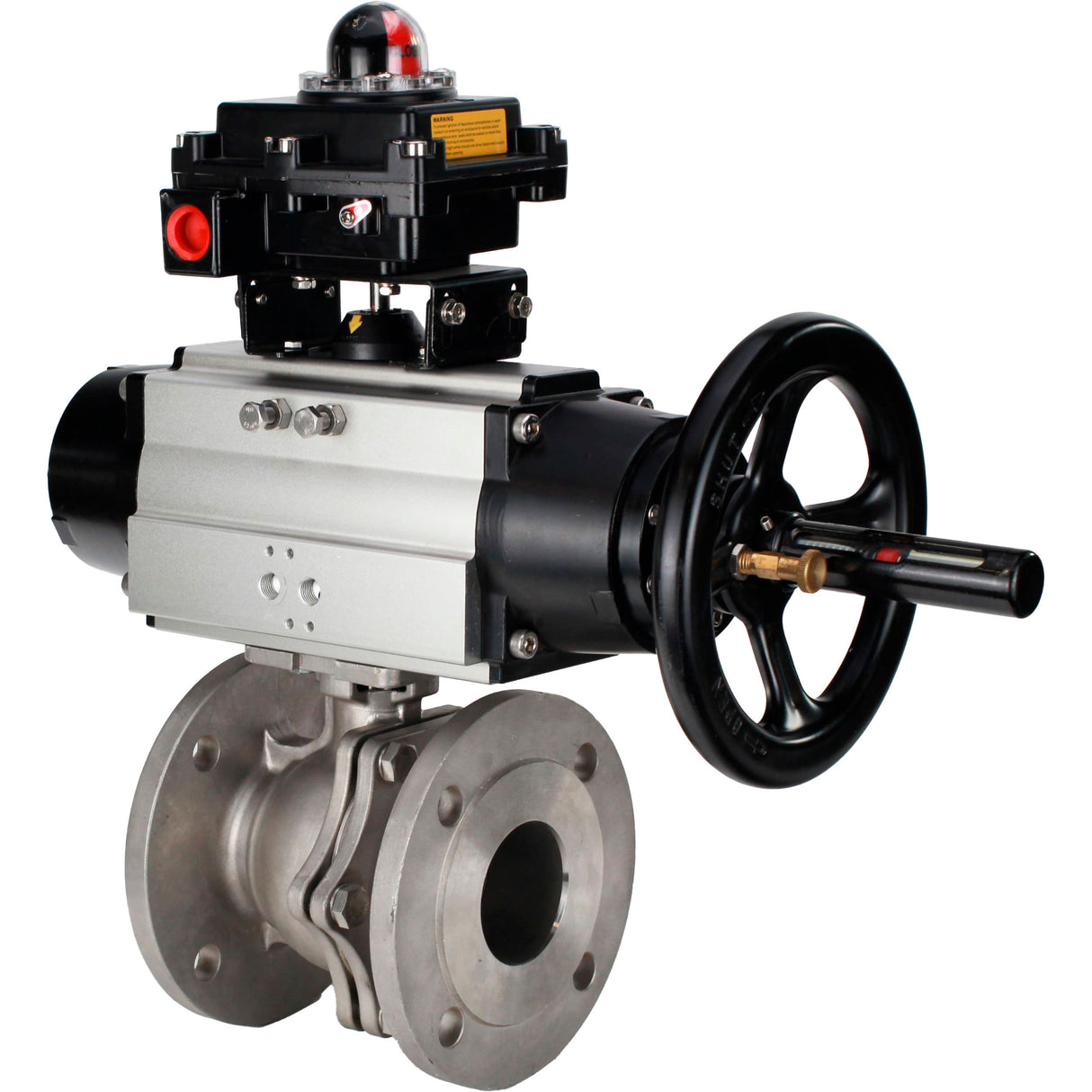

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar full bore flanged, body - stainless steel 316, seal - PTFE, with pneumatic actuator Elephant PA-DA-105-1 and LSU APL-410N EX

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. Use of ball valves as regulating valves is not allowed.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.
Limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off body of the pipeline valve. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Thanks to the use of limit switch units, it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar full bore flanged, body - stainless steel 316, seal - PTFE, with pneumatic actuator Elephant PA-DA-105-1 and limit switch unit APL-410N EX:

Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar full bore flanged, body - stainless steel 316, seal - PTFE, with pneumatic actuator Elephant PA-DA-105-1 and limit switch unit APL-410N EX:

Table of parts and materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar full bore flanged, body - stainless steel 316, seal - PTFE, with pneumatic actuator Elephant PA-DA-105-1 and limit switch unit APL-410N EX:

Technical parameters of pneumatic actuator PA-DA-105-1:

Pneumatic actuator PA-DA-105-1

Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:

Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1

PA-DA-105-1 air actuator parts and materials table:

Parts and material sketch of the PA-DA-105-1 pneumatic actuator

Technical parameters of limit switch units Elephant APL-410N EX

Passports and certificates

Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs
