Elephant | SKU: D160-39541

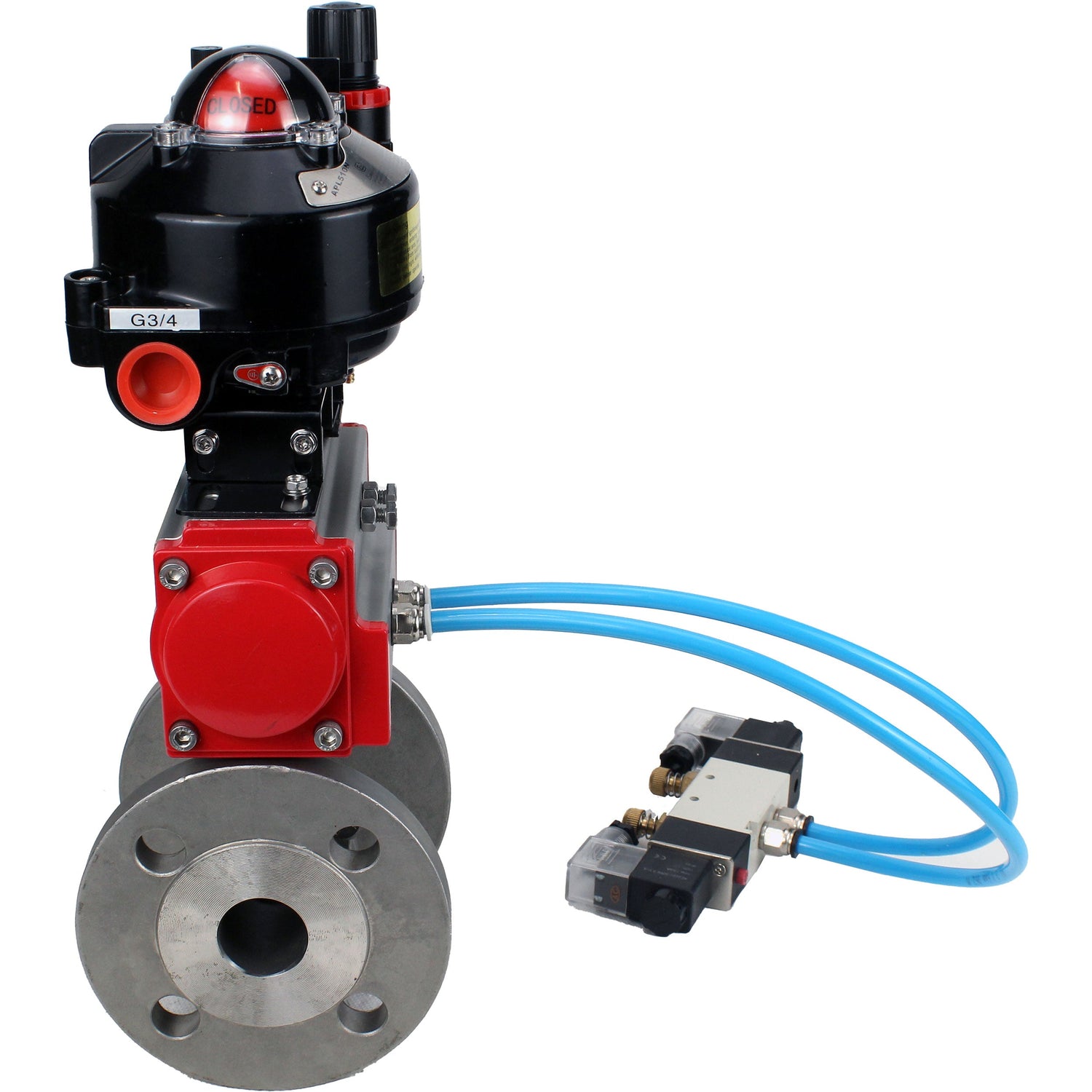

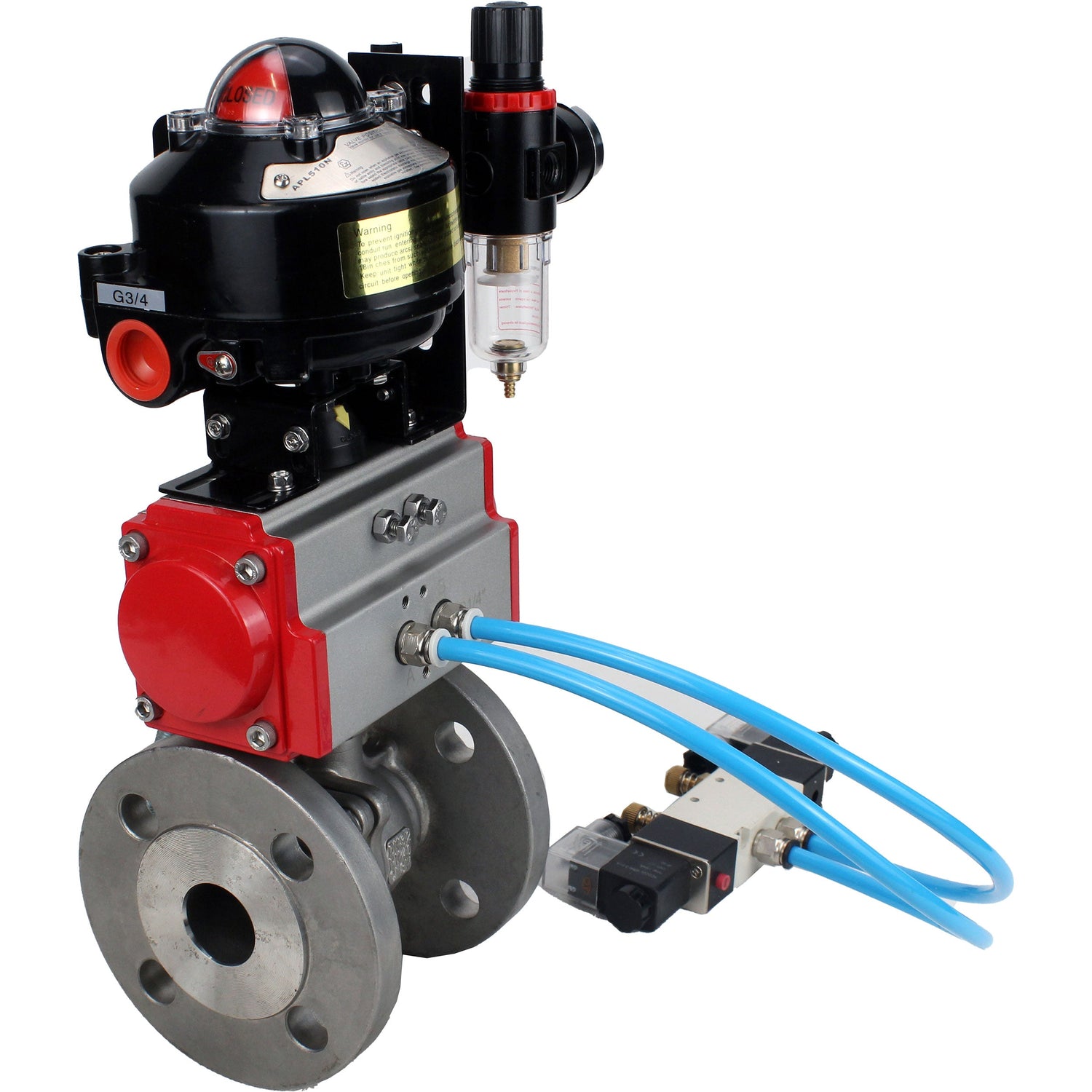

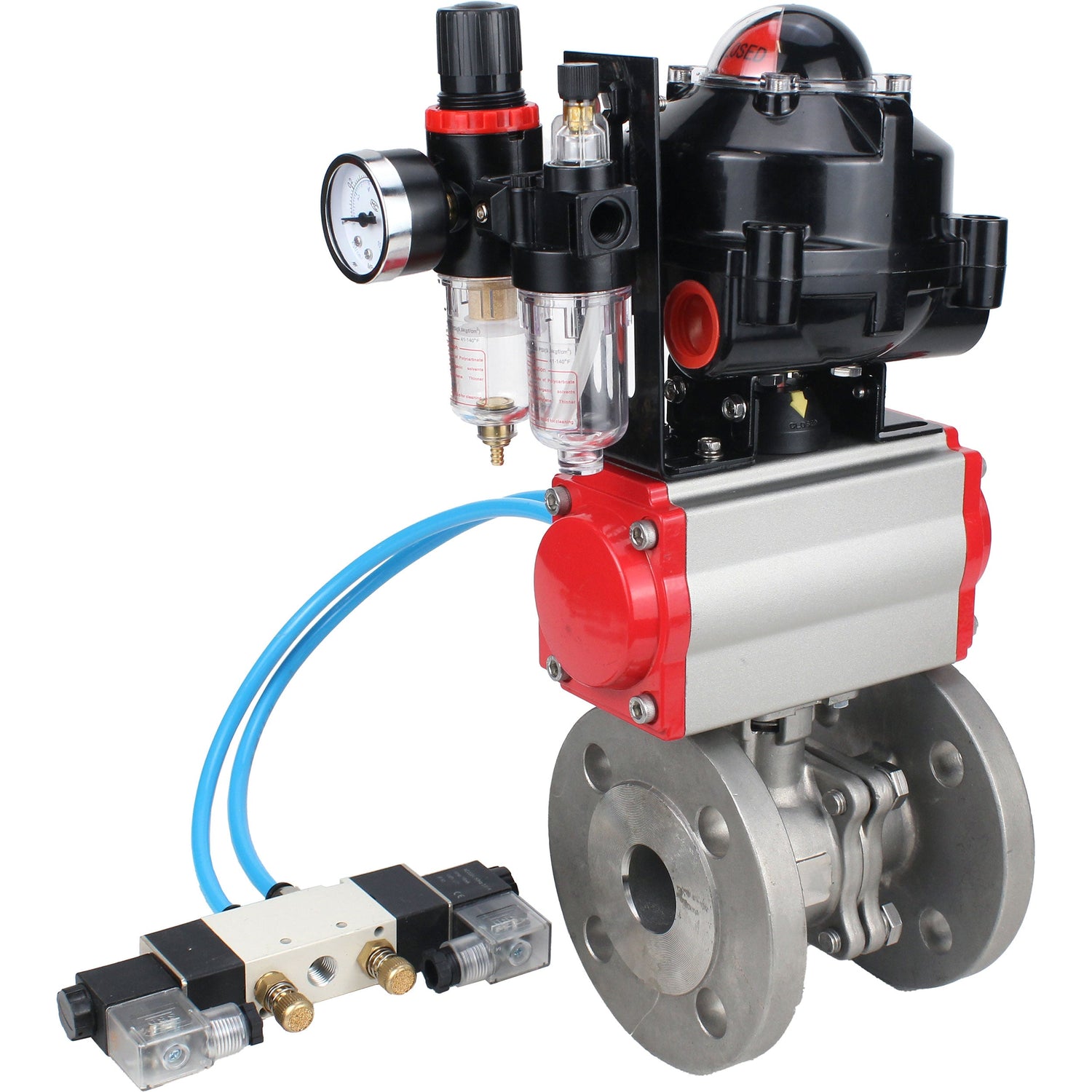

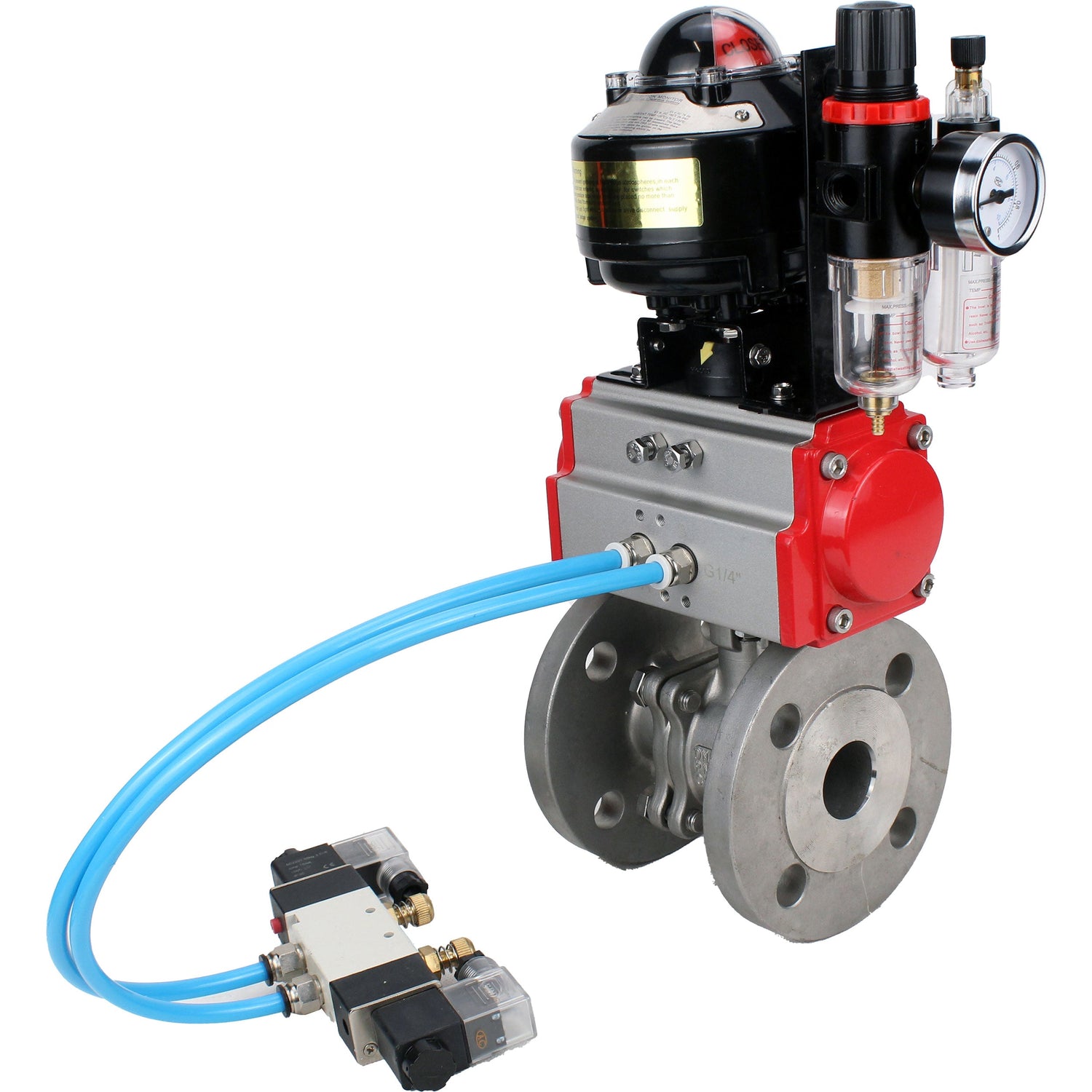

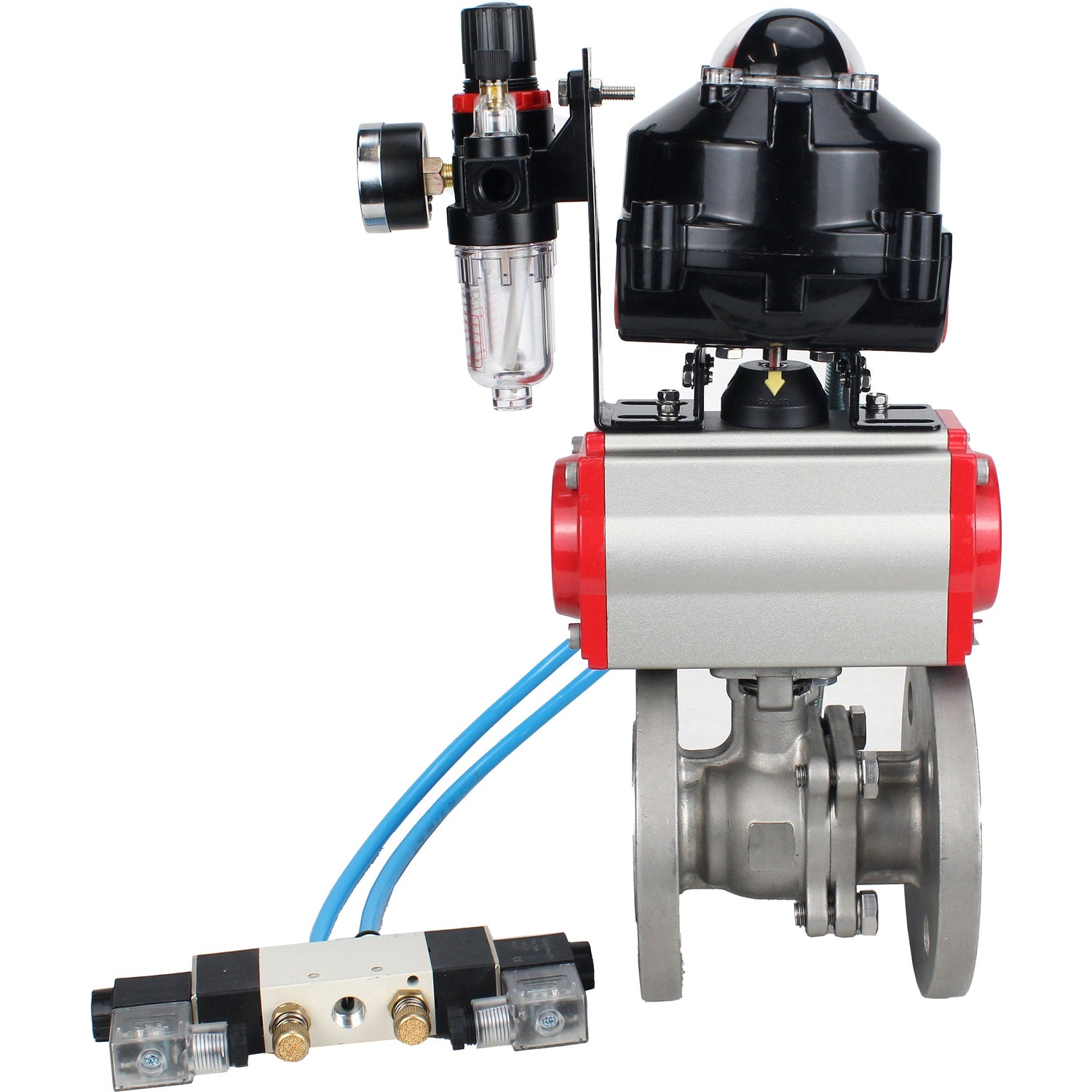

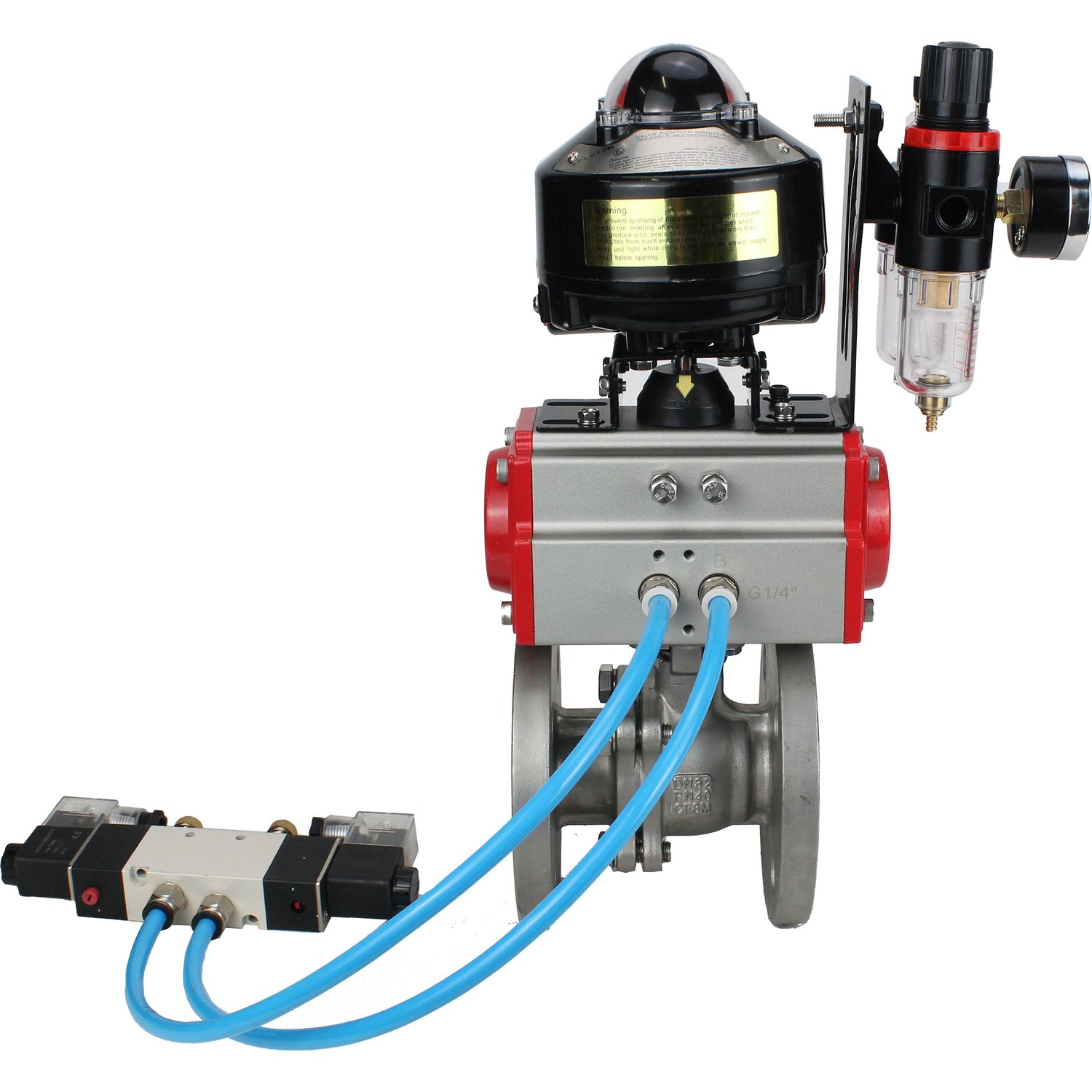

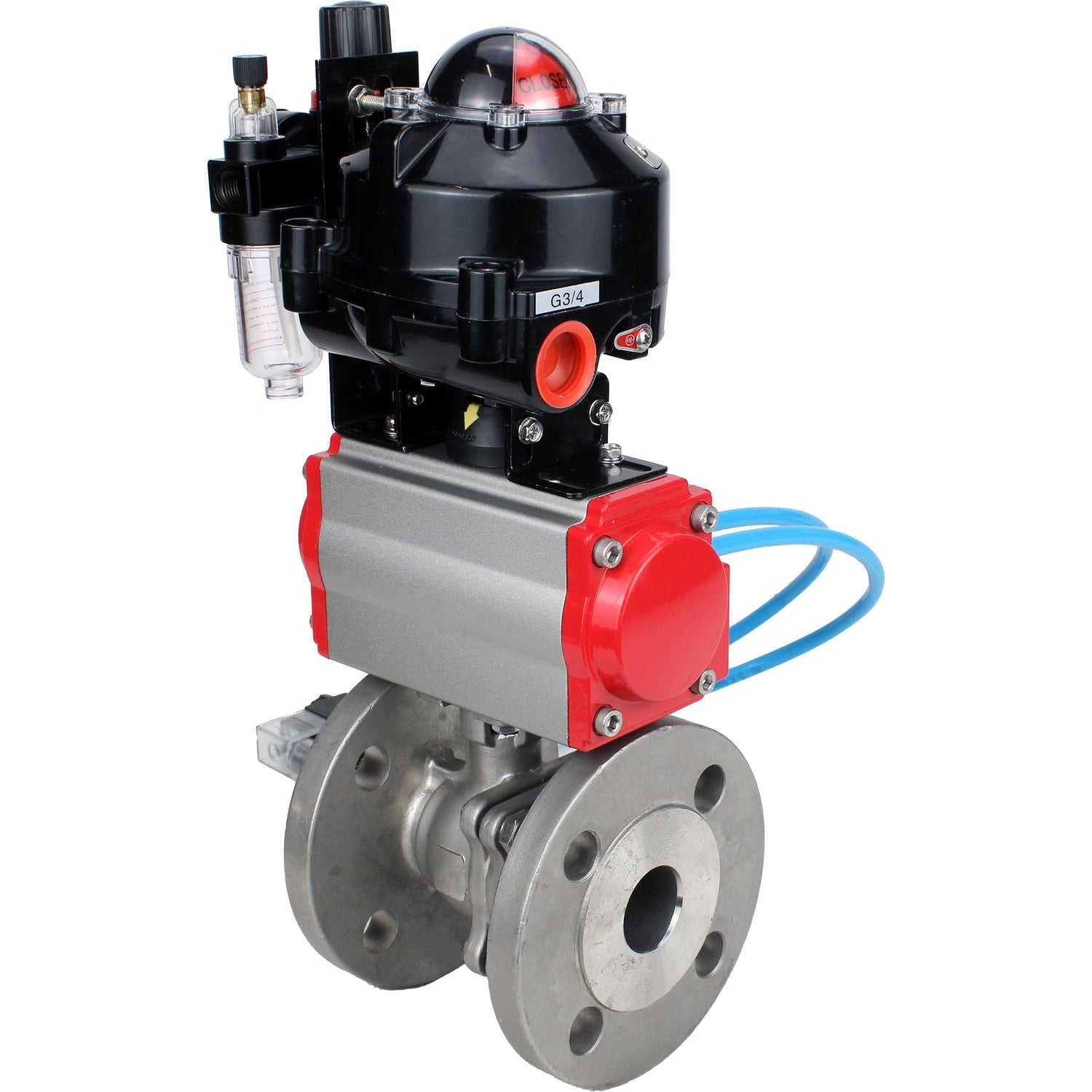

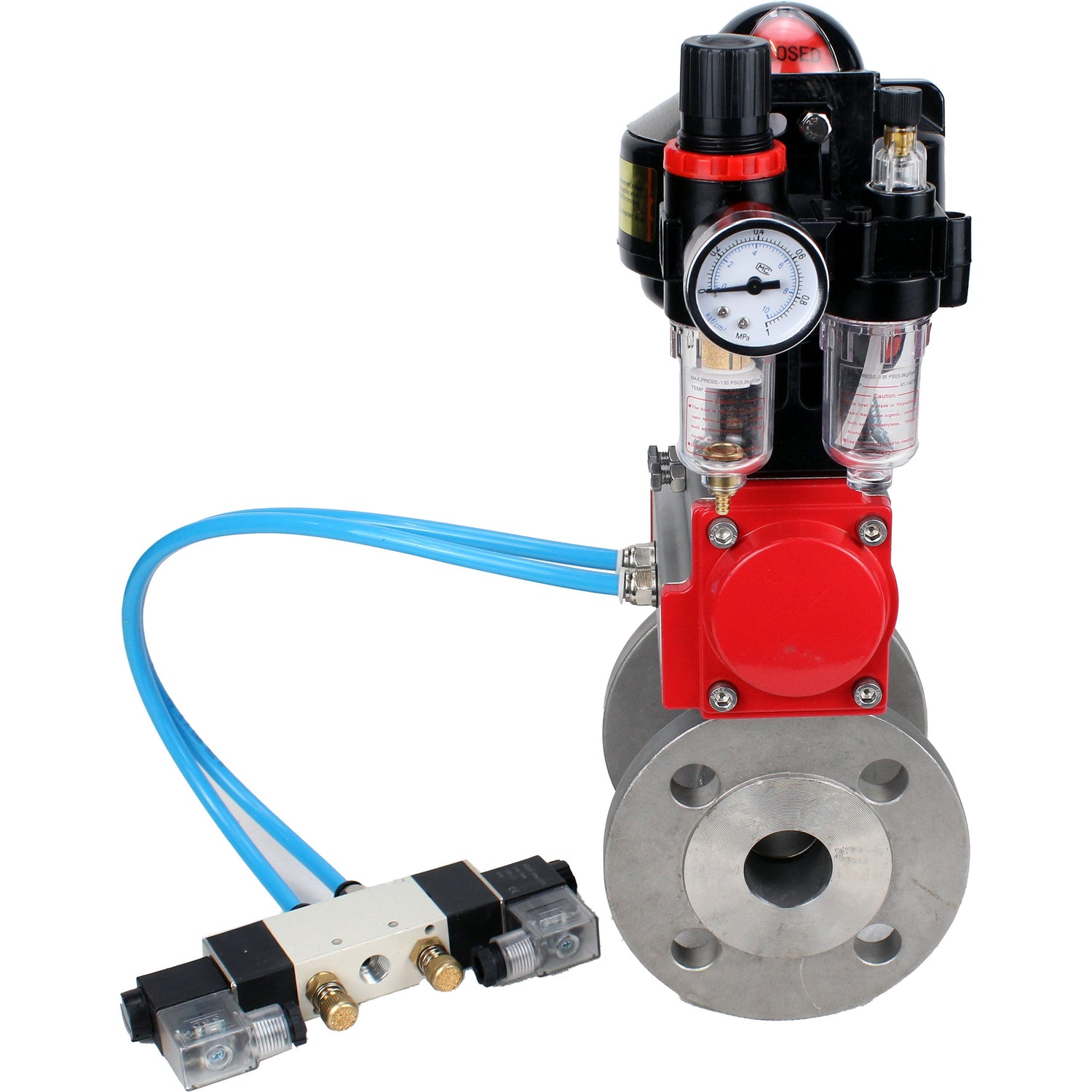

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN15-150 flanged, full bore, two-piece, stainless steel body. steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-SA 052-210 pneumatic distributor 4V320-10 ATU AFC2000 APL-510N-EX

€1.742,63

Tax included Shipping calculated at checkout.

Connection size

Pressure

Product variants

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN15-150 flanged, full bore, two-piece, stainless steel body. steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-SA 052-210 pneumatic distributor 4V320-10 ATU AFC2000 APL-510N-EX - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.
Pneumatic actuators PA-SA are designed for automation of industrial shut-off valves control process - gates, ball valves. Pneumatic actuators Elephant are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Pneumatic valves 4V320-10 220 V are used for control in pneumatic systems with NAMUR docking surface, to install the valves through holes in the housing.
Air treatment unit AFC2000 is designed to clean compressed air from moisture and solid particles, remove condensate, automatically maintain the pressure at a preset level, supply lubricant from a reservoir in the compressed air flow to the elements of the pneumatic system with a large capacity range from 500 liters/minute to 10,000 liters/minute. The lubricator adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.
Limit switch unit Elephant APL-510N-EX is an electrotechnical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Thanks to the use of BCV it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of fault detection.

Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN15-150 flanged, full bore, two-piece, stainless steel body. steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-SA 052-210 pneumatic distributor 4V320-10 ATU AFC2000 APL-510N-EX:

Nominal diameter DN, mm	40–300
Nominal pressure PN, MPa (kg/cm²)	1.6 (16)
Flow direction	Two-way
Working medium temperature t, °C	-20 to +85 for NBR -20 to +120 for EPDM -10 to +180 for PTFE
Working medium	EPDM: cold and hot water, air without oil and grease, other media neutral to the material PTFE: water, alkalis, acids, solvents and oxidizing agents NBR: water, mineral oils, hydrocarbons, oils, greases
Connection to pipeline	Interflange

Materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN15-150 flanged, full bore, two-piece, stainless steel body. steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-SA 052-210 pneumatic distributor 4V320-10 ATU AFC2000 APL-510N-EX:

№	Part	Material
1	Body	Stainless steel SS316
2	Ball seal	RPTFE
3	Ball	Stainless steel SS316
4	Bolt	Stainless steel SS304
5	Seal	PTFE
6	Nut	Stainless steel SS304
7	Spigot	Stainless steel SS316
8	Stem	Stainless steel SS316
9	Gland	PTFE
10	Stem seal	PTFE
11	Gland	Stainless steel SS304
12	Nut	Stainless steel SS304
13	Handle	Stainless steel SS316, PVC

Overall and installation dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN15-150 flanged, full bore, two-piece, stainless steel body. steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-SA 052-210 pneumatic distributor 4V320-10 ATU AFC2000 APL-510N-EX:

DN	d, mm	D, mm	D1, mm	D2, mm	C, mm	t, mm	L, mm	W, mm	H, mm	H1, mm	A, mm	B, mm	KxK (rod)	N-∅Z, pcs-mm
15	15	95	65	45	16	2	115	127	79	8	36	42	9х9	4-∅14
20	20	105	75	58	18	2	120	127	83	9	36	42	9х9	4-∅14
25	25	115	85	68	18	2	125	165	94	14	42	50	11х11	4-∅14
32	32	140	100	78	18	2	130	165	115	15	42	50	11х11	4-∅18
40	38	150	110	88	18	3	140	186	115	17	50	70	14х14	4-∅18
50	50	165	125	102	20	3	150	186	120	20	50	70	14х14	4-∅18
65	65	185	145	122	19	3	170	260	151	22	70	102	17х17	4-∅18
80	76	200	160	138	21	3	180	321	158	21	70	102	17х17	8-∅18
100	99	220	180	158	21	3	190	321	188	20	70	102	17х17	8-∅18

Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator	SA - with return springs
Nominal pressure PN, bar	12
Working pressure, bar	2...8
Working medium	filtered compressed air
Maximum particle diameter of the working medium, µm2	≤30
Ambient temperature, ⁰C	-20 to +80
Swivel angle, °	0 - 90
Swivel angle adjustment, %	±5
Position indicator	open/closed
Top connection standard	NAMUR
Air connection standard	NAMUR
Average life, cycles closed/open	70 000 (for non-aggressive media and medium pressure and temperature values)

SA pneumatic actuators rotary with return springs

Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model	A, mm	B, mm	C, mm	D, mm	E, mm	F, mm	G, mm	H, mm
PA-x-052	30	41,5	65,5	72	92	65	30	80
PA-x-065	36	47	81	88	108	72	30	80
PA-x-083	46	57	98,5	108,7	128,7	92	30	80
PA-x-105	57,5	64	122,5	133	153	109,5	30	80
PA-x-130	67,5	74,5	145,5	155	185	127,5	30	130
PA-x-140	75	77	161	172	202	137,5	30	130
PA-x-160	87	87	184	197	227	159	30	130
PA-x 210	113	113	235,5	255	285	210	30	130
PA-x-270	147	147	299	326	356	273	30	130
PA-x-300	162	174	330	350	380	312	30	130
PA-x-350	190	195	483	410	440	365	30	130

Model	A, mm	B, mm	C, mm	D, mm	E, mm	F, mm	G, mm	H, mm
PA-x-052	30	41,5	65,5	72	92	65	30	80
PA-x-065	36	47	81	88	108	72	30	80
PA-x-083	46	57	98,5	108,7	128,7	92	30	80
PA-x-105	57,5	64	122,5	133	153	109,5	30	80
PA-x-130	67,5	74,5	145,5	155	185	127,5	30	130
PA-x-140	75	77	161	172	202	137,5	30	130
PA-x-160	87	87	184	197	227	159	30	130
PA-x 210	113	113	235,5	255	285	210	30	130
PA-x-270	147	147	299	326	356	273	30	130
PA-x-300	162	174	330	350	380	312	30	130
PA-x-350	190	195	483	410	440	365	30	130

Sketch of dimensions of SA pneumatic actuators with return springs

Materials of parts of SA pneumatic actuators with return springs:

№	Part name	Material
1	Indicator screw	ABS plastic
2	Position indicator	ABS plastic
3	Spring clip	stainless steel 304
4	Metal washer	stainless steel 304
5	Pressure washer	engineering plastic
6	Housing	hard anodized extruded aluminum alloy
7	Pressure washer	engineering plastic
8	Limiter	alloy steel
9	Shaft sealing ring upper	NBR
10	Upper shaft sliding ring	engineering plastic
11	Shaft	nickel plated alloy steel
12	Shaft sliding ring lower	engineering plastic
13	Shaft O-ring lower	NBR
14	Plug	NBR
15	Seal ring of adjusting screws	NBR
16	Washer of adjusting screw	stainless steel 304
17	Lock nut of adjusting screw	stainless steel 304
18	Adjusting screw	stainless steel 304
19	Piston	die-cast aluminum alloy
20	Piston guide plate	engineering plastic
21	Piston sliding ring	engineering plastic
22	Piston O-ring	NBR
23	Spring set	spring steel
24	Cover O-ring	NBR
25	End cap	cast aluminum with polyester coating
26	Cover screw	stainless steel 304
27	Stop screw	stainless steel 304
28	Adapter	carbon steel

Material sketch of SA pneumatic actuators with return springs

Technical characteristics of pneumatic valve 4V320-10 220V:

Name	Value
Type of pneumatic valve	Spool type
Body material	Aluminum alloy and technopolymer
Control	Two-way electromagnetic
Work scheme	5/2 5 working lines; 2 positions
Effective cross-sectional area, mm²	Model 4V320-8 - 25 (Cv = 1.4) Model 4V320-10 - 30 (Cv = 1.68)
Operating port threads	Model 4V320-8 - G 1/4" Model 4V320-10 - G 3/8"
Exhaust port threads	Model 4V320-8 - G 1/4" Model 4V320-10 - G 1/4"
Working pressure, bar	1.5 ÷ 8
Maximum pressure, bar	12
Working medium	Purified air (purification fineness 40 µm)
Supply voltage, V	220
Total power, V-A	4.5
Permissible variations in supply voltage	±10%
Degree of protection/insulation class	IP65/F
Operating temperature, °C	from -5 to +50
Maximum frequency of operation	5 cycles per second
Minimum switching time, s	0.05
Flow capacity, l/min	Model 4V320-8 - 1 350 Model 4V320-10 - 2 250
Average service life, cycles	20 000 000
Weight, kg	1.2

Main parameters of air treatment unit AFC2000:

Operating pressure, bar	8
Maximum pressure, bar	10
Adjustable pressure range, bar	0,5 ÷ 9
Fracture pressure, bar	15
Air connection	1/4"
Operating temperature, ⁰C	from -5 to +60
Size of filtered particles, µm	40
Oil viscosity	ISO VG 32
Weight, kg	0,395
Set contents	filter-moisture separator, pressure regulator, lubricator, bracket

Characteristics of limit switch unit APL-510N-EX:

Parameter	Value
Body	weatherproof IP67/ NEMA4 4X,7,9 explosion-proof E EX d IIC T6
Compatible devices	- quarter-turn pneumatic actuators; - any actuators with a 90° shaft rotation
Full swivel angle	90°
Cable glands	2 x NPT 3/4”
Electrical connection	Screw terminal clamps, 8 points (0.08 – 2.5 mm²)
Cable entry thread	2 x NPT 3/4”
Type of visual indicator	two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red
Switches/sensors	two mechanical switches two proximity sensors
Nominal voltage, V	250
Nominal current, A	16
Permissible ambient temperature, °C	from -20 to +66
Average life, cycles	10 000 000
Weight, kg	1.8

Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs

Specifications

Country of origin

China
Port opening

full bore
Body material

Stainless steel AISI 316
Maximum allowable temperature

200 °C
Connection type

Flanged
Control type

Pneumatically actuated
Operating environment

Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
Type of seal

PTFE
Voltage

220V
Explosion-proof

have
Torque

176 Nm
Limit switches

have
Type of pneumatic actuator

spring loaded

Reviews (0)

Documentation

Air treatment unit AFC2000 ELEPHANT

Limit switch unit ELEPHANT APL-510N EX explosion-proof

Pneumatic valve ELEPHANT 4V320-8 or 10 AC220V

Pneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
