Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN15-150 flanged, full bo – Valve Elephant
Elephant  |  SKU: D160-37226

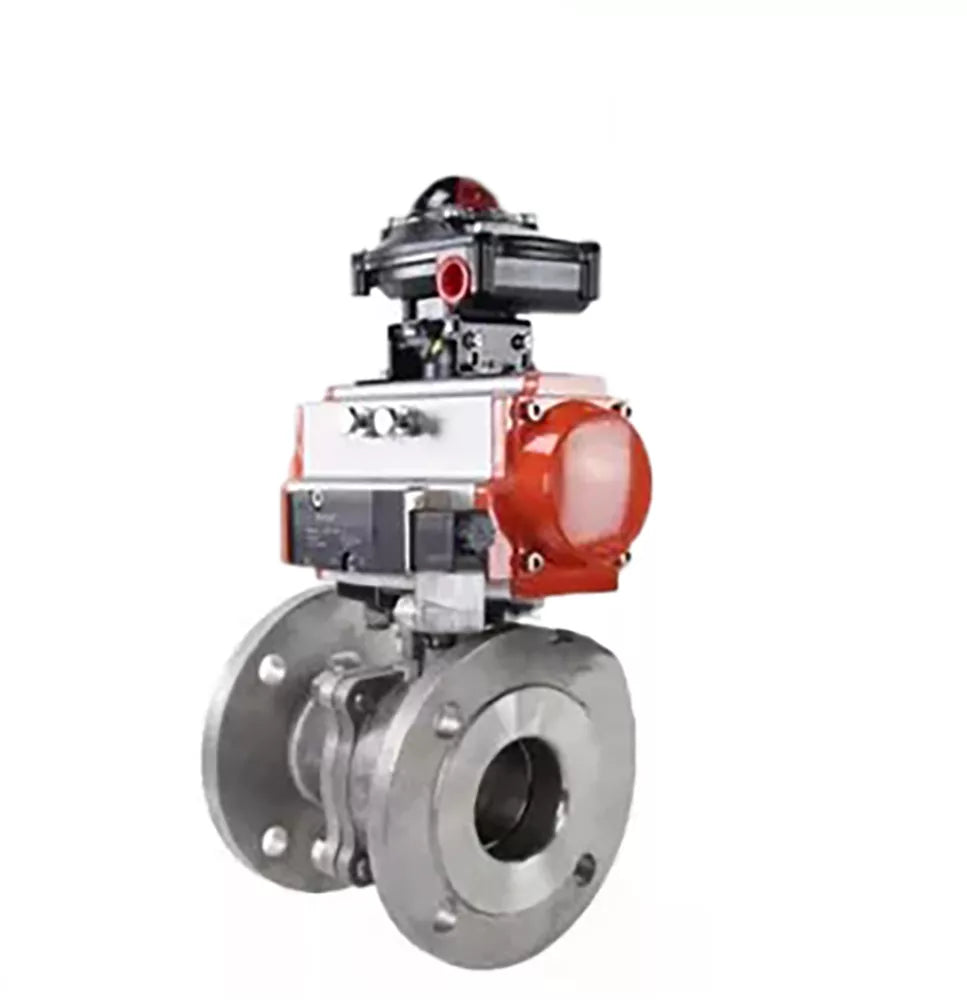

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN15-150 flanged, full bore, two-piece, body - stainless steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-SA 052-210 and LSU APL -510N-EX

€1.614,83
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN15-150 flanged, full bore, two-piece, body - stainless steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-SA 052-210 and LSU APL -510N-EX - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

Pneumatic actuators PA-SA are designed to automate the process of controlling industrial shut-off valves - valves, ball valves. Pneumatic actuators Elephant are designed for use both indoors and outdoors. All internal and external parts have an anti-corrosion coating.

The Elephant APL-510N-EX limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off element of pipeline valves. As a rule, a sealed box contains two mechanical switches rated for up to 250 V, which monitor the position of the actuator rod and signal in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color hemisphere of the visual indicator. If the connected pipeline valve is closed, then only the red part of the hemisphere with the inscription CLOSED is visible; if open, only the yellow part with the inscription OPEN. This visual indicator is clearly visible from afar, which simplifies the inspection of the equipment, and the color difference between the open and closed positions reduces the likelihood of erroneous perception of information. Thanks to the use of the LSU, it becomes possible to transmit information about the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics when faults are detected.





Technical data of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H PA-SA APL-510N Ex

Nominal diameter DN, mm 40 – 300
Nominal pressure PN, MPa (kg/cm2) 1.6 (16)
Direction of flow bilateral
Temperature of working environment t, ⁰C -20 to +85 for NBR
-20 to +120 for EPDM
-10 to +180 for PTFE
Working environment EPDM: cold and hot water, air without impurities of oil and fat, other environments neutral to the material
PTFE: water, alkalis, acids, solvents and oxidizers
NBR: water, mineral oils, hydrocarbons,
oils, fats
Connection to the pipeline interflange





Sketch of detailing of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H PA-SA APL-510N Ex



Materials of parts of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H PA-SA APL-510N Ex

No. Detail Material
1 Frame stainless steel SS316
2 Ball seal RPTFE
3 Ball stainless steel SS316
4 Bolt stainless steel SS304
5 Sealing PTFE
6 screw stainless steel SS304
7 Pipe branch stainless steel SS316
8 Stock stainless steel SS316
9 Seal PTFE
10 Rod seal PTFE
11 Seal stainless steel SS304
12 screw stainless steel SS304
13 Lever stainless steel SS316, PVC





Sketch of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H PA-SA APL-510N Ex



Overall and installation dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H PA-SA APL-510N Ex

DN d, mm D, mm D1, mm D2, mm C, mm t, mm L, mm W, mm H, mm H1, mm A, mm B, mm KxK (rod) N-∅Z, pcs-mm
15 15 95 65 45 16 2 115 127 79 8 36 42 9х9 4-∅14
20 20 105 75 58 18 2 120 127 83 9 36 42 9х9 4-∅14
25 25 115 85 68 18 2 125 165 94 14 42 50 11х11 4-∅14
32 32 140 100 78 18 2 130 165 115 15 42 50 11х11 4-∅18
40 38 150 110 88 18 3 140 186 115 17 50 70 14х14 4-∅18
50 50 165 125 102 20 3 150 186 120 20 50 70 14х14 4-∅18
65 65 185 145 122 19 3 170 260 151 22 70 102 17х17 4-∅18
80 76 200 160 138 21 3 180 321 158 21 70 102 17х17 8-∅18
100 99 220 180 158 21 3 190 321 188 20 70 102 17х17 8-∅18



Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs





Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs



Characteristics of the APL-510N-EX limit switch unit

Parameter Meaning
Frame Weatherproof IP67/ NEMA4 4X,7,9
Explosion Proof E EX d IIC T6
Compatible devices - quarter-turn pneumatic actuators;
- any actuators with a shaft rotation of 90°
Full rotation angle 90°
Cable entries 2 x NPT 3/4”
Electrical connection screw clamp terminals 8 points (0.08 – 2.5) mm2
Cable entry thread 2 x NPT 3/4”
Visual indicator type two-color hemisphere: OPEN - yellow CLOSED - red
Switches/sensors two mechanical switches two proximity sensors
Nominal voltage, V 250
Nominal current, A 16
Permissible ambient temperature, °C from -20 to +66
Average resource, cycles 10,000,000
Weight, kg 1.8

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    200 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Type of seal
    PTFE
  • Explosion-proof
    have
  • Torque
    176 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    spring loaded

Reviews (0)

Documentation
nullLimit switch unit ELEPHANT APL-510N EX explosion-proof
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-37226DN10016 bar €1.614,83 0 In stock
    D160-37225DN12516 bar €2.169,11 Sold out
    D160-37234DN1540 bar €300,99 Sold out
    D160-37224DN15016 bar €2.899,50 Sold out
    D160-37233DN2040 bar €526,96 Sold out
    D160-37232DN2540 bar €492,51 Sold out
    D160-37231DN3240 bar €609,65 Sold out
    D160-37230DN4040 bar €636,69 Sold out
    D160-37229DN5040 bar €680,69 Sold out
    D160-37228DN6516 bar €834,64 Sold out
    D160-37227DN8016 bar €1.060,43 Sold out
