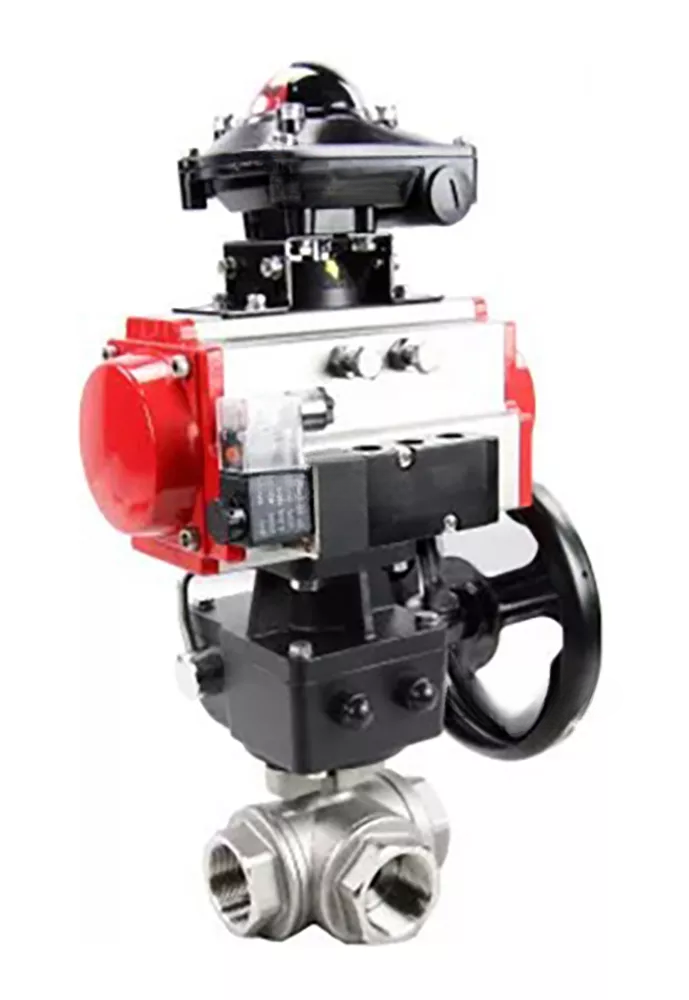

Ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-083 pneumatic distributor 4M310-08 220V gearbox MON LSU APL-510N-EX

€548,88
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-083 pneumatic distributor 4M310-08 220V gearbox MON LSU APL-510N-EX - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.
Pneumatic actuators PA-DA are designed for automation of industrial shut-off valves control process - gates, ball valves. Pneumatic actuators Elephant are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Manual doubler Elephant MON with worm gear and HDM reduction gearbox allows manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.
Limit switch unit Elephant APL-510N-EX is an electrotechnical device designed to open and close the working circuit and to visualize positions of the shut-off valve. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.







Technical parameters of ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-083 pneumatic distributor 4M310-08 220V gearbox MON LSU APL-510N-EX:

Parameter

Value

Nominal diameter DN, mm

40 – 300

Nominal pressure PN, MPa (kg/cm²)

1.6 (16)

Flow direction

Two-way

Maximum working medium temperature t, ⁰C

Up to +110

Working medium

Cold and hot water, air without oil and grease, stationary conditioning, slightly aggressive media, other media neutral to the material

Control type

Bare stem (without handle) / with handle / with electric actuator / with gearbox


Materials of ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-083 pneumatic distributor 4M310-08 220V gearbox MON LSU APL-510N-EX:

№

Part name

Material

Quantity

1

Cover

SS316

3

2

Seat rings

PPL

4

3

Connection gasket

PTFE/RPTFE

3

4

Thrust washer

PTFE/RPTFE

1

5

Seal

PTFE

1

6

Stem

SS304 / SS316

1

7

Gland

SS304

1

8

Ball

S304 / S316

1

9

Body

SS316

1





Overall and installation dimensions of ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-083 pneumatic distributor 4M310-08 220V gearbox MON LSU APL-510N-EX:


DN D, mm L±1.5, mm L1, mm H1, mm H, mm T, mm C, mm ISO
5211
10 10 71 55 13 56 100 9 F03/F04
15 12 71 55 13 55 131 9 F03/F04
20 15 82 63 10 73 131 9 F03/F04
25 18 98 72 13 78,5 167 11 F04/F05
32 25 118 92 12 90 167 11 F04/F05
40 32 122 100 20 115 193 14 F05/F07
50 38 150 119 19 122 193 14 F05/F07
65 50 178 142 20 138 242 17 F07/F10
80 64 202 163 18 163 150 17 F07/F10
100 78 231 192 25 192 154 17 F07/F10



Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical characteristics of the pneumatic distributor 4M310-08 NAMUR

Design Spool-type
Test pressure (body strength test. Not for operation!), bar 10
Working pressure (recommended range for normal operation), bar 1.5 ÷ 8
Valve type 5/2 five-port, two-position
Working medium purified air (40 µm filter fineness)
Operating temperature, °C 0 to +60
Actuation frequency 5 cycles per second
Manual override yes
Protection rating/insulation class IP65/F
Connection to pneumatic actuator NAMUR-compliant mounting surface (VDI/VDE3845)
Body material anodized aluminum
Effective cross-sectional area, mm2 25 (Cv = 1.4)
Exhaust port dimensions (vent to atmosphere) 2 - PT1/4”
Air inlet port size (to pneumatic valve) G1/4”
Air outlet port size (to pneumatic actuator) 2 x Ø19.2 mm
Response time, sec 0.05
Supply voltage, V 220AC/24DC
Coil power 220VAC – 5.5 VA/24VDC – 4.8 W
Weight, kg 0.35
Average service life, cycles 10,000,000





Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR

A C D E F G H I K L J N M
mm
40 24 28 32 40 21,5 69 45 17,5 135 29,3 40 27

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR





Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR

№ Part Name Material
1 Connector Engineering plastic
2 Nut POM + carbon steel
3 Coil Copper
4 Control Elements —
5 Plate Carbon steel
6 Piston POM
7 Control Valve Seat Engineering plastic
8 Valve Body Aluminum alloy
9 Spool Aluminum alloy
10 O-Ring Seal HNBR
11 Rear Cover Engineering plastic
12 Filter Synthetic material
13 Piston POM
14 Spring Stainless steel
15 Manual Override Engineering plastic
16 Rear Seat Aluminum alloy
17 Spring Seat Aluminum alloy
18 Type C Towing Shackle 65Mn

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR





Materials of the manual doubler Elephant-HDM

№

Name

Material

1

Stem for pneumatic actuator mounting

Steel

2

Sealing ring

EPDM

3

Locking spring

Spring steel

4

Upper end cover

Aluminum alloy

5

Screw

Steel 304

6

Locking bracket (main link)

Steel 304

7

Body

Aluminum alloy

8

Sealing ring

EPDM

9

Gearbox

Cast iron BCh50

10

Transition coupling

Cast iron BCh40

11

Gearbox stem

Cast iron BCh40





Characteristics of limit switch unit APL-510N-EX:

Parameter Value
Body weatherproof IP67/ NEMA4 4X,7,9
explosion-proof E EX d IIC T6
Compatible devices - quarter-turn pneumatic actuators;
- any actuators with a 90° shaft rotation
Full swivel angle 90°
Cable glands 2 x NPT 3/4”
Electrical connection Screw terminal clamps, 8 points (0.08 – 2.5 mm²)
Cable entry thread 2 x NPT 3/4”
Type of visual indicator two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red
Switches/sensors two mechanical switches two proximity sensors
Nominal voltage, V 250
Nominal current, A 16
Permissible ambient temperature, °C from -20 to +66
Average life, cycles 10 000 000
Weight, kg 1.8
