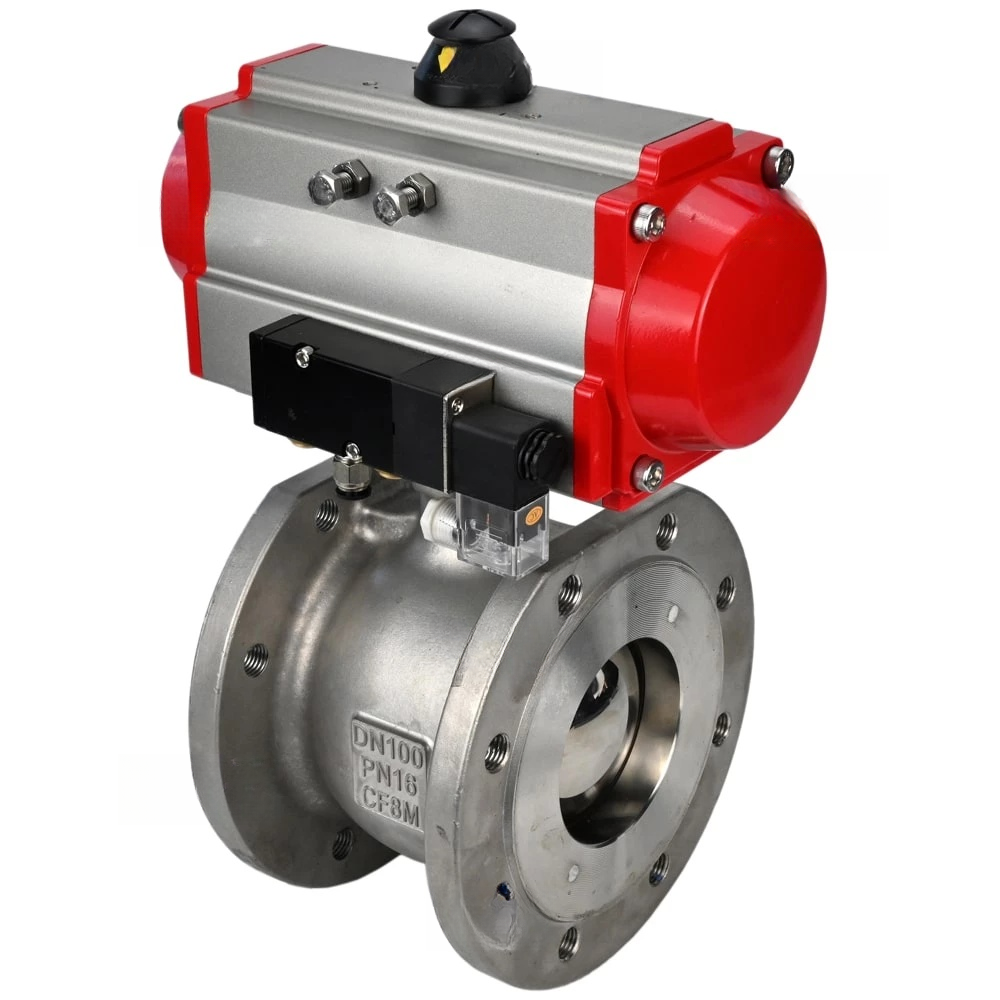

Ball valves Elephant BV3232P-FP-Fb-ISO-H DN15-100 16 bar stainless, full bore, double-acting PA-DA-052-105 pneumatic actuators with flange connections and 4M310-08 220V pneumatic distributor

€319,94
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heating and water supply systems, steam, fuel, and pneumatic systems with compressed air and neutral gases. Valves of this series can be installed in systems transporting liquid and gaseous media (water, oil, steam, air, alcohols, glycol, etc.) that are non-corrosive to the valve materials. Ball valves are not permitted for use as control valves.
PA-DA-x double-acting pneumatic actuators use two ports to supply the control fluid and create movement in both directions, both for opening and closing the valve. One port is used to move the piston in one direction, and the other to move it in the opposite direction.





Technical characteristics of ball valves Elephant BV3232P-FP-Fb-ISO-H DN15-100 16 bar

Characteristics Value
Nominal diameter 15-100 mm
Tightness class A
Seal type PTFE / Fluoroplastic / Teflon
Connection wafer
Valve device type two-way
Valve ball bore full-bore
Control type double-acting pneumatic actuator
Working fluid temperature -50 to +200 °C
Fluid water, steam, petroleum products, liquids, neutral media, gaseous media
Application area water supply, heat supply, pneumatic systems
Country of origin China





Technical characteristics of Elephant double-acting rotary pneumatic actuators PA-DA

Name Value
Pneumatic Actuator Type Double-acting
Pneumatic Actuator Operating Pressure, Bar 6.0
Actuator Rotation Angle, ° 90
Actuator Adjustment Range, ° 5
Country of Origin China
Operating Environment Indoor and outdoor use
Position Indicator Open/Closed
Coating All internal and external parts have an anti-corrosion coating





Overall and installation dimensions of ball valves Elephant BV3232P-FP-Fb-ISO-H DN15-100 16 bar

DN d, mm D2, mm L, mm Z, mm
15 15 45 42 147
20 20 58 48 147
25 25 68 50 147
32 32 78 60 147
40 36 88 65 204
50 46 102 80 204
65 58 122 110 204
80 73 138 120 204
100 90 158 150 268
