Elephant  |  SKU: D160-57780

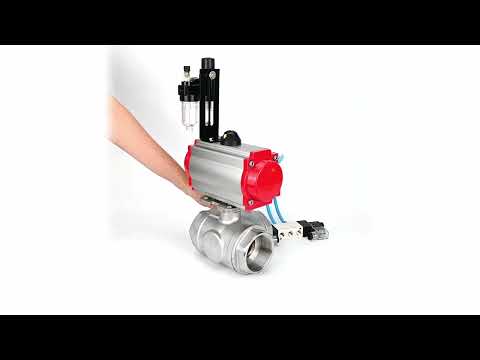

Ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H, body material - Stainless steel AISI 316, seal - PTFE / PTFE / Teflon, with pneumatic actuator with return springs PA-SA, 4V320-10 220VATU AFC2000

€260,18
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The Elephant BV3232P(4pc)-SP-3WL-T-ISO-H ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of BV3232P(4pc)-SP-3WL-T-ISO-H series valves is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the valve materials.

The pneumatic actuator Elephant PA-SA with return springs is designed to automate the process of controlling industrial shut-off valves - valves, ball valves. Elephant pneumatic actuators are designed for use both indoors and outdoors. All internal and external parts have an anti-corrosion coating.

Pneumatic distributor Elephant 4V320-10 220V is used to change the direction, start, stop the flow of compressed air in the pneumatic system depending on the external control action.

The AFC2000 air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain the pressure at a given level, supply lubricant from the tank to the compressed air flow to the pneumatic system elements with a large range of throughput from 500 liters/minute to 10,000 liters/minute. The lubricator (oil sprayer) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components - pneumatic cylinders and pneumatic distributors.





Technical parameters of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic valve 4V320-10 220V, ATU AFC2000:

Name Meaning
Working environment temperature, °C from -20 to 200
Type of crane device three-way
Three-way valve type L
Application water supply, heat supply, steam supply
Working environment water, steam, petroleum products, neutral media
Connection to the pipeline coupling (threaded)
Water intake No
Type of flow section standard pass
Control type With pneumatic drive
Joining Internal thread
Control pneumatic actuator with return springs
Availability of pneumatic distributor There is





Sketch of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic valve 4V320-10 220V, ATU AFC2000





Dimensions and sizes of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic distributor 4V320-10 220V, ATU AFC2000:

DN D, mm L±1.5, mm L1, mm H1, mm H, mm T, mm C, mm ISO
5211
10 10 71 55 13 56 100 9 F03/F04
15 12 71 55 13 55 131 9 F03/F04
20 15 82 63 10 73 131 9 F03/F04
25 18 98 72 13 78,5 167 11 F04/F05
32 25 118 92 12 90 167 11 F04/F05
40 32 122 100 20 115 193 14 F05/F07
50 38 150 119 19 122 193 14 F05/F07
65 50 178 142 20 138 242 17 F07/F10
80 64 202 163 18 163 150 17 F07/F10
100 78 231 192 25 192 154 17 F07/F10





Sketch of parts and materials of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H



Table of parts and materials of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H:

Item No. Part name Material Quantity
1 Lid SS316 3
2 Saddle rings PPL 4
3 Laying the connection PTFE/RPTFE 3
4 Thrust washer PTFE/RPTFE 1
5 Sealing PTFE 1
6 Stock SS304/SS316 1
7 Seal SS304 1
8 Ball valve S304/S316 1
9 Frame SS316 1






Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs





Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs



Technical parameters of the pneumatic distributor Elephant 4V320-10 220V

Name Meaning
Type of pneumatic distributor spool valve
Model of pneumatic distributor 4V320-10 220V
Working pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Response frequency, cycles/sec 5




Main parameters of the air preparation unit Elephant AFC2000

Working pressure, bar 8
Maximum pressure, bar 10
Adjustable pressure range, bar 0.5 ÷ 9
Destruction pressure, bar 15
Air connection 1/4"
Operating temperature, C from -5 to +60
Size of filtered particles, µm 40
Oil viscosity ISO VG 32
Weight, kg 0.395
Kit composition filter-moisture separator, pressure regulator, lubricator, bracket

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    200 °C
  • Connection type
    Threaded
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, Steam, Oil Products, Neutral Media
  • Applications
    Water Supply, Heat Supply, Steam Supply
  • Nominal pressure
    63 bar
  • Type of seal
    PTFE / PTFE / Teflon
  • Locking material
    Stainless steel AISI 316
  • Type of pneumatic actuator
    with return springs
  • Angle of rotation
    90°
