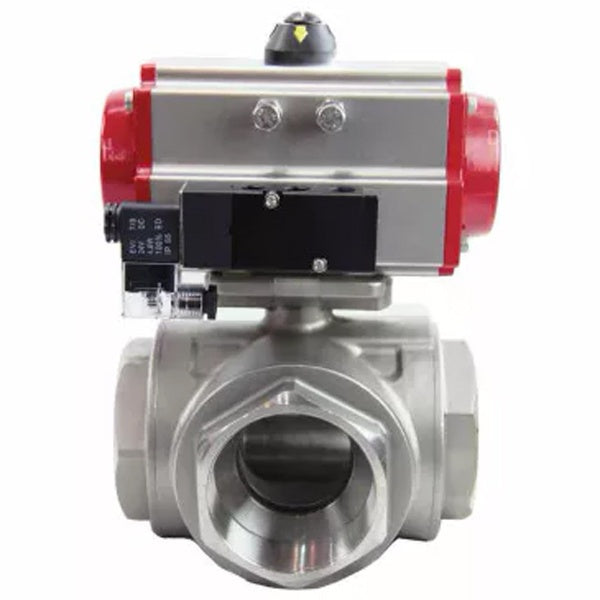

Ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H, body material - Stainless steel AISI 316, seal - PTFE / PTFE / Teflon, with pneumatic actuator double action PA-DA, 4V320-08 220V
Ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H, body material - Stainless steel AISI 316, seal - PTFE / PTFE / Teflon, with pneumatic actuator double action PA-DA, 4V320-08 220V - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Ball valve Elephant BV3232P(4pc)-SP-3WL-T-ISO-H is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves series BV3232P(4pc)-SP-3WL-T-ISO-H is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.
Double-acting pneumatic actuator Elephant PA-DA is designed for automation of control process of industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Pneumatic valve Elephant 4V320-08 220V is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.
Technical parameters of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-08 220V:
| Name | Meaning |
| Working environment temperature, °C | from -20 to 200 |
| Type of crane device | three-way |
| Three-way valve type | L |
| Application | water supply, heat supply, steam supply |
| Working environment | water, steam, petroleum products, neutral media |
| Connection to the pipeline | coupling (threaded) |
| Water intake | No |
| Type of flow section | standard pass |
| Control type | With pneumatic drive |
| Joining | Internal thread |
| Control | double acting pneumatic actuator |
| Availability of pneumatic distributor | There is |
Sketch of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-08 220V
Dimensions and dimensions of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-08 220V:
| DN, mm | L, mm | F, mm | L1, mm |
| 10 | 71 | 98 | 153 |
| 15 | 71 | 98 | 153 |
| 20 | 82 | 98 | 153 |
| 25 | 98 | 98 | 153 |
| 32 | 118 | 98 | 153 |
| 40 | 122 | 115 | 174 |
| 50 | 150 | 115 | 174 |
| 65 | 178 | 135 | 216 |
| 80 | 202 | 135 | 216 |
| 100 | 231 | 135 | 216 |
Detail and material sketch of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H
Table of parts and materials for ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H:
| Item No. | Part name | Material | Quantity |
|---|---|---|---|
| 1 | Lid | SS316 | 3 |
| 2 | Saddle rings | PPL | 4 |
| 3 | Laying the connection | PTFE/RPTFE | 3 |
| 4 | Thrust washer | PTFE/RPTFE | 1 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS304 | 1 |
| 8 | Ball valve | S304/S316 | 1 |
| 9 | Frame | SS316 | 1 |
Technical parameters of the PA-DA double-acting pneumatic actuator:
| Name | Meaning |
| Model | PA-DA |
| Design | double acting |
| Control pressure, bar | 2 ÷ 8 |
Sketch of parts and materials of Elephant PA-DA double-acting pneumatic actuator
Table of parts and materials of the pneumatic actuator Elephant PA-DA double acting:
| No. | Name | Material |
| 1 | Frame | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clamp | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjusting nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Technical parameters of the Elephant 4V320-08 220V pneumatic valve
| Name | Meaning |
| Type of pneumatic distributor | spool valve |
| Model of pneumatic distributor | 4V320-08 220V |
| Working pressure, bar | 1.5 ÷ 1.8 |
| Supply voltage, V | 220 V |
| Response frequency, cycles/sec | 5 |
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environment
-
Applications
-
Nominal pressure
-
Type of seal
-
Locking material
-
Type of pneumatic actuator
-
Angle of rotation
