Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar full – Valve Elephant
Elephant  |  SKU: D160-68117

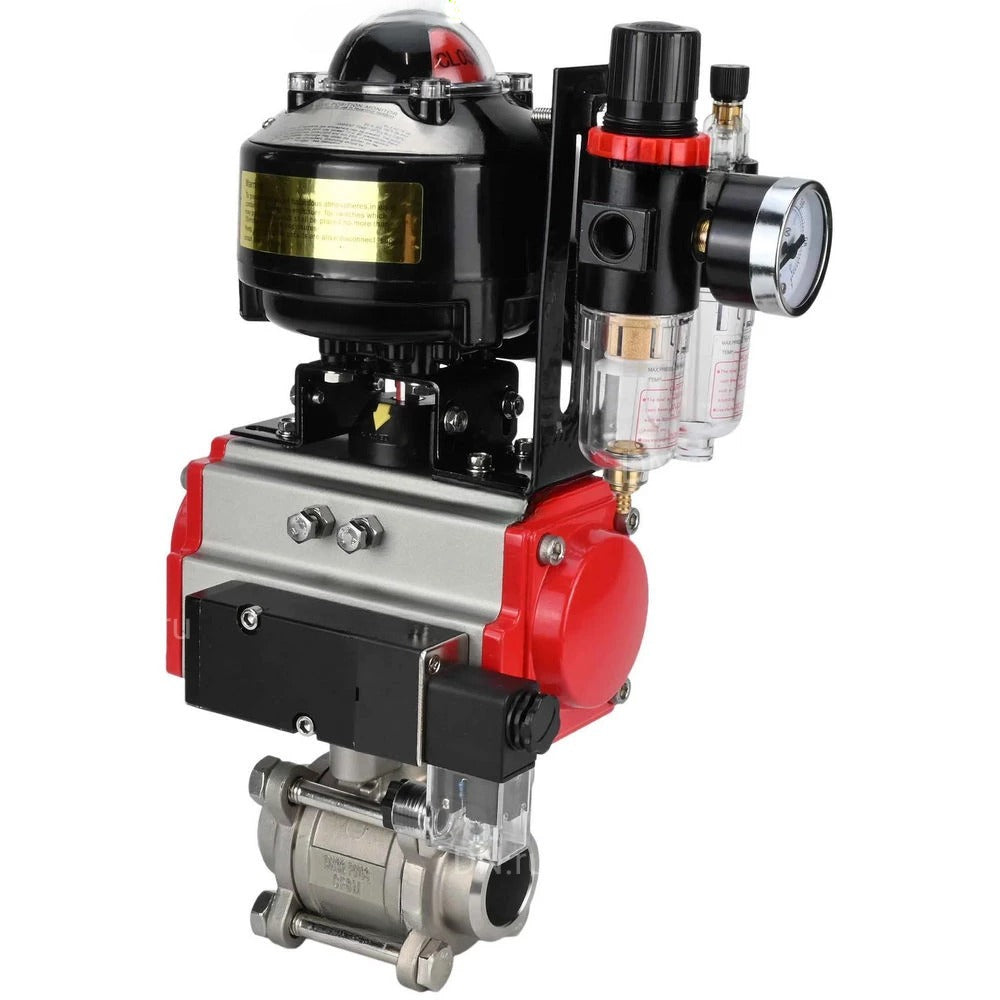

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar full bore, body - 316 stainless steel, seal - PTFE, for welding, with PA-DA pneumatic actuator, pneumatic distributor 4M310-08 220V, LSU APL-510N EX, ATU AFC2000

€366,25
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel
  • Maximum allowable temperature
    180 °C
  • Connection type
    Welded
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, Steam, Petroleum products, Neutral environments
  • Applications
    Water Supply, Heat supply, Steam supply
  • Nominal pressure
    63 bar
  • Type of seal
    PTFE / Fluoroplastic / Teflon
  • Locking material
    Stainless steel
  • Explosion-proof
    Yes
  • Limit switches
    Yes
  • Type of pneumatic actuator
    double-acting
  • Angle of rotation
    90°

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-68117DN1563 bar €366,25 Sold out
    D160-68118DN2063 bar €381,67 Sold out
    D160-68119DN2563 bar €385,56 Sold out
    D160-68120DN3263 bar €413,60 Sold out
