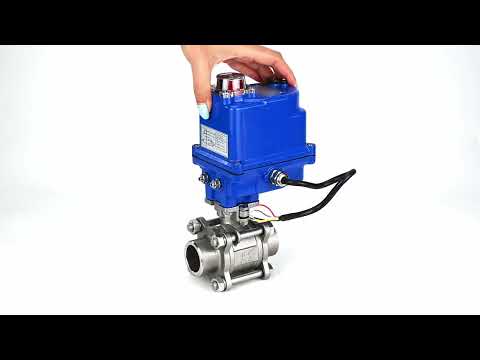

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar full bore, body - 316 stainless steel, seal - PTFE, for welding, with a 1/4-turn electric drive Elephant QT-N-EM-O1-12VDC-U1 blue

€230,71
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The Elephant BV3232P(3pc)-FP-W-ISO-H WDVF ball valve is used as a shut-off valve in heat supply systems, water supply systems, steam, fuel systems, and pneumatic systems with compressed air and neutral gases. The BV3232P(3pc)-FP-W-ISO-H WDVF series valves can be installed in systems transporting liquid and gaseous media (water, steam, petroleum products, and neutral media) that are non-corrosive to the valve materials.

The Elephant PA-DA pneumatic actuator is designed to automate the control of industrial shut-off valves, such as globe valves and ball valves. Elephant pneumatic actuators are designed for both indoor and outdoor use. All internal and external components have an anti-corrosion coating.





Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar

Name Value
Nominal pressure, bar 63
Working fluid temperature, °C -29 to 180
Valve device type Two-way
Application Water supply, heat supply, steam supply
Working fluid Water, steam, petroleum products, neutral media
Pipeline connection Welded ends
Water-drawable No
Flow area type Full bore
Tightness class A
Control type With pneumatic actuator
Connection Welded ends
Control Double-acting pneumatic actuator
Presence of limit switches No
Presence of pneumatic valve Yes
Presence of electropneumatic positioner No
Average service life, years 10
Country of manufacture China





Dimensions and sizes of the ball valve Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar

DN D, mm L, mm F, mm L1, mm
15 21,3 76 110 121
20 26,9 81 110 121
25 33,7 90 110 121
32 42,4 110 110 121

Sketch of a ball valve Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar





Table of parts and materials for a ball valve Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar

№ Part Name Material
1 Body Stainless steel AISI 316
2 Bonnet Stainless steel AISI 316
3 Ball Stainless steel AISI 316
4 Seal PTFE
5 Coupling Gasket PTFE
6 Thrust Washer PTFE
7 Packaging PTFE
8 Bushing Stainless steel AISI 304
9 Stem Stainless steel AISI 304
10 Gasket Stainless steel AISI 304
11 Washer Stainless steel AISI 304
12 Washer Stainless steel AISI 304
13 Nut Stainless steel AISI 304
14 Bolt Stainless steel AISI 304
15 Handle Stainless steel SS 201
16 Handle Cover PVC
17 Nut Stainless steel AISI 304

Краны шаровые DN.ru BV3232P(3pc)-FP-W-ISO-H WDVF Ду15-32 Ру63 полнопроходные, корпус - нержавеющая сталь 316, уплотнение - PTFE, под приварку, с пневмоприводом PA-DA, пневмораспределителем 4М310-08 220В

Sketch of the parts and materials of the ball valve Elephant BV3232P(3pc)-FP-W-ISO-H WDVF DN15-32 63 bar





Technical parameters of the Elephant QT-N-003EM-O1-12VDC-U1 blue electric drive

Name Meaning
Model QT-N-003EM-O1-12VDC-U1 blue
Pressure, bar 2 ÷ 8
Availability of a manual backup Yes
Wiring diagram for the Elephant QT-N-003EM-O1-12VDC-U1 blue electric drive

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel
  • Maximum allowable temperature
    180 °C
  • Connection type
    Welded
  • Control type
    Electric drive
  • Operating environment
    Water, Steam, Petroleum products, Neutral environments
  • Applications
    Water Supply, Heat supply, Steam supply
  • Nominal pressure
    63 bar
  • Type of seal
    PTFE / Fluoroplastic / Teflon
  • Locking material
    Stainless steel
  • Explosion-proof
    No
