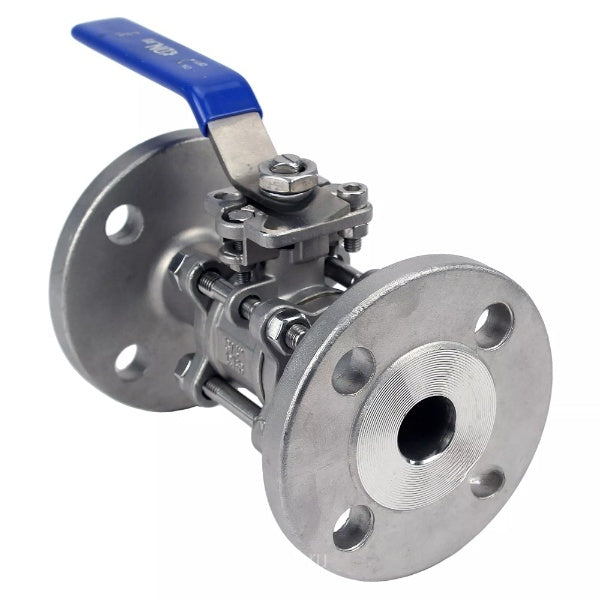

Ball Valves Elephant BV3232P(3pc)-FP-F-ISO-H, flanged, body - 316 stainless steel, full bore, sealing - PTFE, with handle

€897,71
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.





Technical parameters Ball Valves Elephant BV3232P(3pc)-FP-F-ISO-H, flanged, body - 316 stainless steel, full bore, sealing - PTFE, with handle:

Characteristic Value
Sealing class “A”
Seal type PTFE / PTFE / Teflon
Connection flanged
Valve device type two-way
Valve Ball Bore full bore
Control type handle
Medium temperature -20 to +150 °C
Medium water, steam, petroleum products, liquid media, neutral media, gaseous media
Field of application water supply, heat supply, Pneumatic systems
Manufacturer's country China

Ball Valves Elephant BV3232P(3pc)-FP-F-ISO-H, flanged, body - 316 stainless steel, full bore, sealing - PTFE, with handle





Dimensions and dimensions Ball Valves Elephant BV3232P(3pc)-FP-F-ISO-H, flanged, body - 316 stainless steel, full bore, sealing - PTFE, with handle:

DN D, mm D1, mm D2, mm W, mm L, mm b, mm f, mm A, mm B, mm KxK, mm N – ØZ, mm
65 185 145 122 260 290 22 3 Ø70 Ø102 17х17 8 – Ø18
80 200 160 138 260 310 24 3 Ø70 Ø102 17х17 8 – Ø18
100 235 190 162 300 350 26 3 Ø70 Ø102 19х19 8 – Ø22

Sketch of dimensions and dimensions Ball Valves Elephant BV3232P(3pc)-FP-F-ISO-H, flanged, body - 316 stainless steel, full bore, sealing - PTFE, with handle





Parts and materials table Ball Valves Elephant BV3232P(3pc)-FP-F-ISO-H, flanged, body - 316 stainless steel, full bore, sealing - PTFE, with handle:

№ Part name Количество, шт Material
1 Flange part 2 stainless steel AISI/SS 316
2 Stud 4/6/8 stainless steel AISI/SS 304
3 Nut 8/12/16 stainless steel AISI/SS 304
4 Gasket 8/12/16 stainless steel AISI/SS 304
5 Seal 2 PTFE
6 Ball 1 stainless steel AISI/SS 316
7 Body 1 stainless steel AISI/SS 316
8 Thrust pad 1 PTFE
9 Rod 1 stainless steel AISI/SS 316
10 Packing 3 PTFE
11 Thrust ring 1 stainless steel AISI/SS 304
12 Positioning screw 1 stainless steel AISI/SS 304
13 Movable cover 1 stainless steel AISI/SS 304
14 Positioning bolt 1 stainless steel AISI/SS 304
15 Hexagonal nut 1 stainless steel AISI/SS 304
16 Handle 1 stainless steel AISI/SS 201+PVC
17 Locking stopper 1 stainless steel AISI/SS 201

Parts and material sketch Ball Valves Elephant BV3232P(3pc)-FP-F-ISO-H, flanged, body - 316 stainless steel, full bore, sealing - PTFE, with handle

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    150 °C
  • Connection type
    flanged
  • Control type
    handle
  • Operating environment
    Water, steam, petroleum products, liquid media, neutral media, gaseous media
  • Applications
    Water supply, heat supply, Pneumatic systems
  • Nominal pressure
    40 bar
  • Type of seal
    PTFE / PTFE / Teflon
  • Locking material
    Stainless steel AISI 316
  • Valve feedback
    No
  • Explosion-proof
    No
  • Manual override
    No
  • Limit switches
    No
  • Feedback sensor
    No

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-56490DN6540 bar €897,71 Out of stock
    D160-56491DN8040 bar €1.296,70 Out of stock
    D160-56492DN10040 bar €1.446,31 Out of stock
