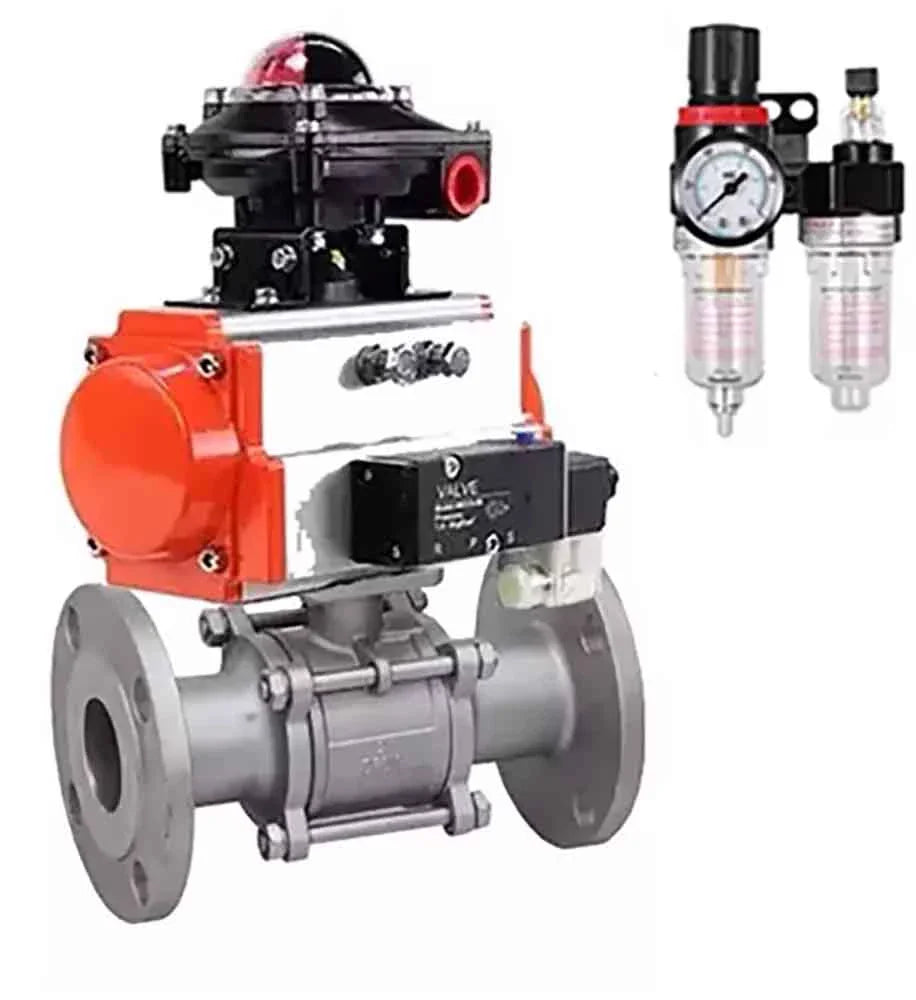

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA pneumatic distributor 4M310-08 24V, LSU APL-510N Ex, ATU AFC2000
Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA pneumatic distributor 4M310-08 24V, LSU APL-510N Ex, ATU AFC2000 - DN100 / 25 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The Elephant BV3232P(3pc)-FP-F-ISO-H ball valve is used as a shut-off valve in heating, water supply, steam, fuel, and compressed air and neutral gas pneumatic systems. BV3232P(3pc)-FP-F-ISO-H series valves can be installed in systems that transport liquid and gaseous media (water, steam, petroleum products, liquid media, neutral media, gaseous media) that are non-aggressive to the valve materials.
The Elephant PA-DA pneumatic actuator is designed to automate the control process of industrial shut-off valves - gate valves, ball valves. Elephant pneumatic actuators are designed for indoor and outdoor use. All internal and external parts have an anti-corrosion coating.
The Elephant 4M310-08 220V pneumatic distributor is used to change the direction, start, and stop compressed air flows in a pneumatic system depending on external control signals.
Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H
| Name | Value |
| Working medium temperature, °C | from -20 to 150 |
| Valve type | two-way |
| Application | water supply, heat supply, pneumatic systems |
| Working medium | water, steam, petroleum products, liquid media, neutral media, gaseous media |
| Connection to pipeline | flanged |
| Water supply | no |
| Type of passage section | full bore |
| Tightness class | A |
| Control type | With pneumatic drive |
| Connection | flanged |
| Control | double-acting pneumatic drive |
| End switches | no |
| Pneumatic distributor | yes |
| Average service life, years | 10 |
| Country of manufacture | China |
Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H
| DN mm | D, mm | L, mm | L1, mm | F, mm |
| 65 | 185 | 290 | 204 | 128,7 |
| 80 | 200 | 310 | 204 | 128,7 |
| 100 | 235 | 350 | 268 | 153 |
Ball valve sketch Elephant BV3232P(3pc)-FP-F-ISO-H
Table of ball valve parts and materials Elephant BV3232P(3pc)-FP-F-ISO-H
| № | Part name | Quantity, pcs | Material |
| 1 | Flange part | 2 | AISI 316 stainless steel |
| 2 | Pin | 4/6/8 | AISI 304 stainless steel |
| 3 | Nut | 8/12/16 | AISI 304 stainless steel |
| 4 | Gasket | 8/12/16 | AISI 304 stainless steel |
| 5 | Seal | 2 | PTFE |
| 6 | Ball | 1 | AISI 316 stainless steel |
| 7 | Housing | 1 | AISI 316 stainless steel |
| 8 | Thrust bearing | 1 | PTFE |
| 9 | Rod | 1 | AISI 316 stainless steel |
| 10 | Packing | 3 | PTFE |
| 11 | Thrust ring | 1 | AISI 304 stainless steel |
| 12 | Positioning screw | 1 | AISI 304 stainless steel |
| 13 | Movable cover | 1 | AISI 304 stainless steel |
| 14 | Positioning bolt | 1 | AISI 304 stainless steel |
| 15 | Hex nut | 1 | AISI 304 stainless steel |
| 16 | Handle | 1 | SS 201 stainless steel + PVC |
| 17 | Locking pin | 1 | SS 201 stainless steel |
Sketch of crane parts and materials Elephant BV3232P(3pc)-FP-F-ISO-H
Technical parameters of the PA-DA pneumatic actuator
| Name | Meaning |
| Model | PA-DA |
| Pressure, bar | 2 ÷ 8 |
| Availability of a manual backup | NO |
Table of parts and materials for PA-DA pneumatic actuator
| № | Part name | Material |
| 1 | Indicator screw | ABS plastic |
| 2 | Position indicator | ABS plastic |
| 3 | Spring clip | 304 stainless steel |
| 4 | Metal washer | 304 stainless steel |
| 5 | Pressure washer | Engineering plastic |
| 6 | Housing | Extruded aluminum alloy with hard anodizing |
| 7 | Pressure washer | Engineering plastic |
| 8 | Stopper | Alloy steel |
| 9 | Upper shaft seal ring | NBR |
| 10 | Upper shaft anti-friction ring | Engineering plastic |
| 11 | Shaft | Alloy steel Nickel-plated |
| 12 | Lower shaft anti-friction ring | Engineering plastic |
| 13 | Lower shaft seal ring | NBR |
| 14 | Plug | NBR |
| 15 | Adjusting screw seal ring | NBR |
| 16 | Adjusting screw washer | 304 stainless steel |
| 17 | Adjusting screw lock nut | 304 stainless steel |
| 18 | Adjusting screw | 304 stainless steel |
| 19 | Piston | Die-cast aluminum alloy |
| 20 | Piston guide plate | Engineering plastic |
| 21 | Piston anti-friction ring | Engineering plastic |
| 22 | Piston sealing ring | NBR |
| 23 | Spring set | Spring steel |
| 24 | Cover sealing ring | NBR |
| 25 | End cover | Die-cast aluminum with polyester coating |
| 26 | Cover screw | Stainless steel 304 |
| 27 | Lock screw | Stainless steel 304 |
| 28 | Adapter | Carbon steel |
Technical parameters of the Elephant 4M310-08 24V pneumatic distributor
| Name | Meaning |
| Type of pneumatic distributor | spool valve |
| Model of pneumatic distributor | 4M310-08 24V |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage | 24V |
| Operating frequency, cycles/sec | 5 |
Technical parameters of the Elephant APL-510N EX limit switch unit
| Name | Meaning |
| Limit switch block model | APL-510N EX |
| Service life, years | 10 |
Main parameters of the Elephant AFC2000 air preparation unit
Working pressure - 8 bar
Maximum pressure - 10 bar
Adjustable pressure range - 0.5 ÷ 9 bar
Burst pressure - 15 bar
Air connection - 1/4"
Operating temperature - from -5 to +60 °C
Filtered particle size - 40 μm
Oil viscosity - ISO VG 32
Weight - 0.395 kg
Kit contents - filter-moisture separator, pressure regulator, lubricator, bracket
Sketch of Elephant AFC2000
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentWater, Steam, Petroleum products, Liquid media, Neutral media, Gaseous media
-
ApplicationsWater Supply, Heat supply, Pneumatic systems
-
Type of seal
-
Locking material
-
Explosion-proof
-
Limit switches
-
Type of pneumatic actuator
-
Angle of rotation
