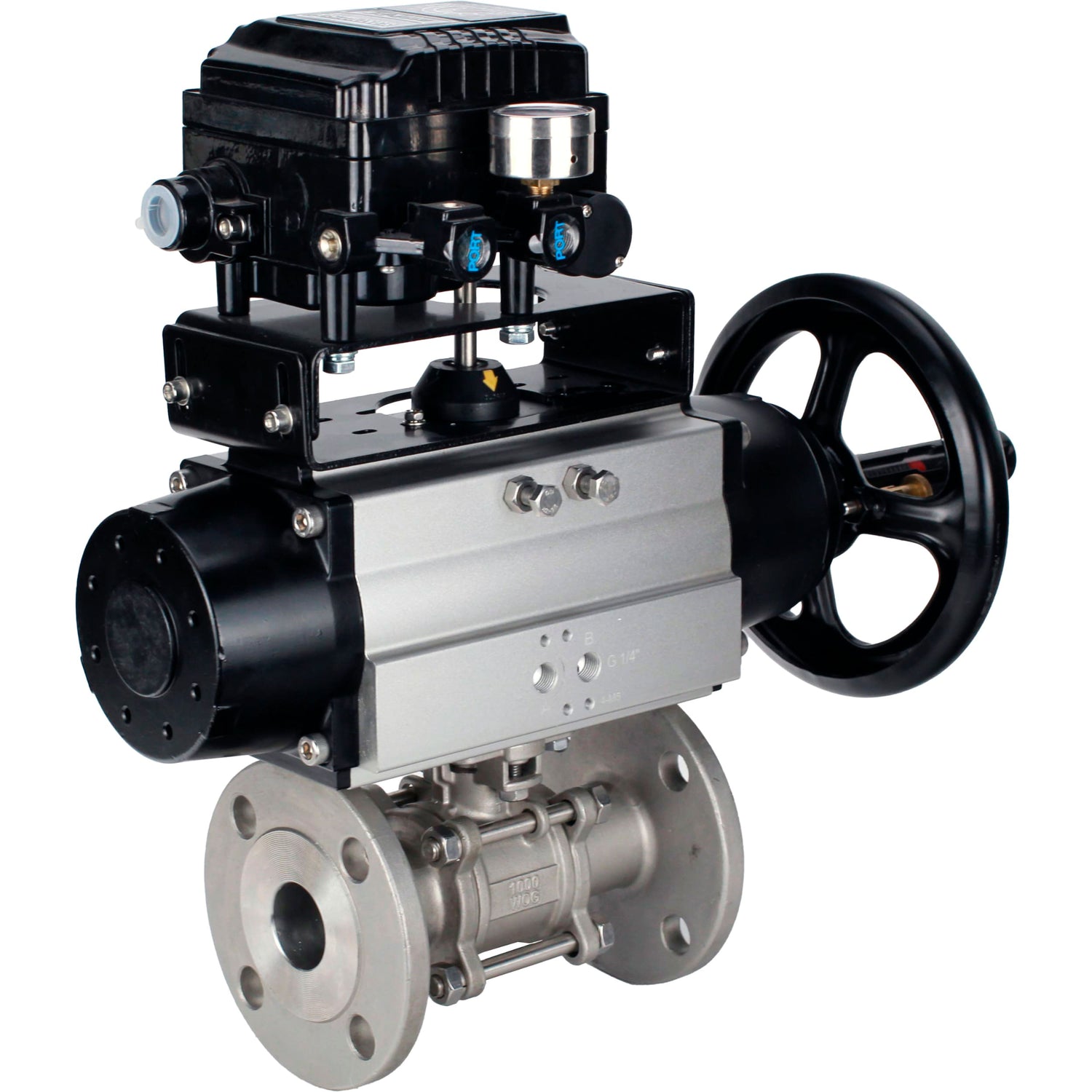

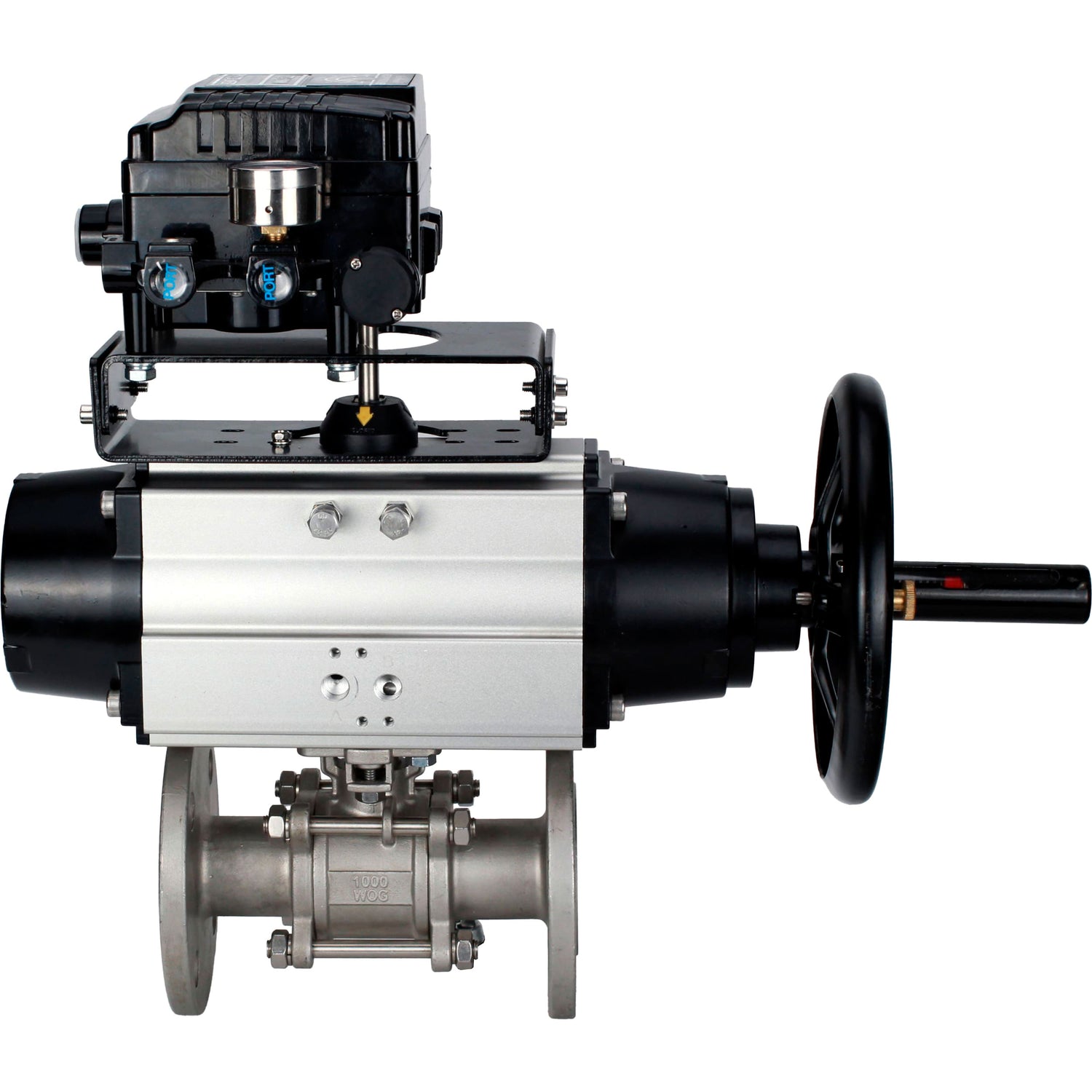

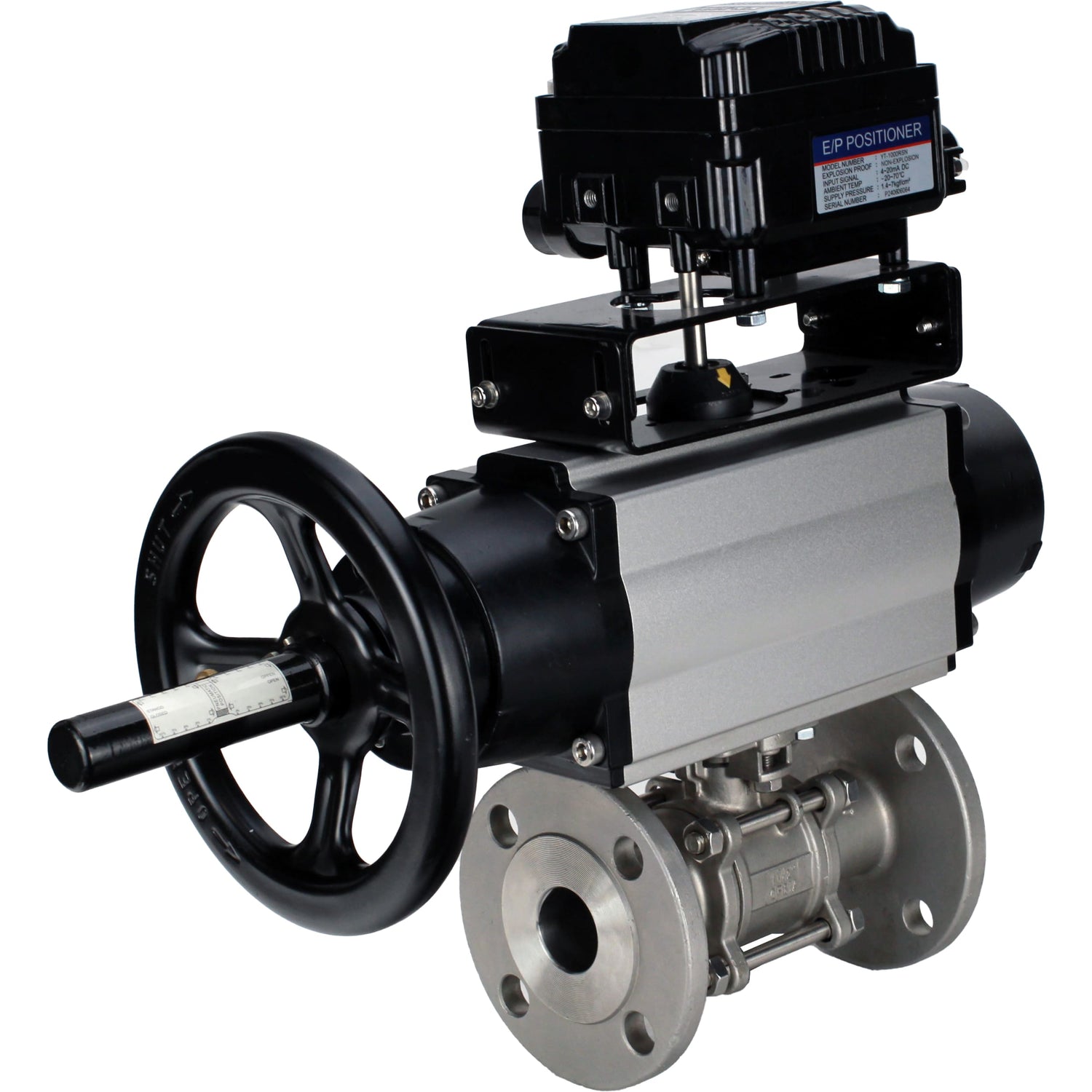

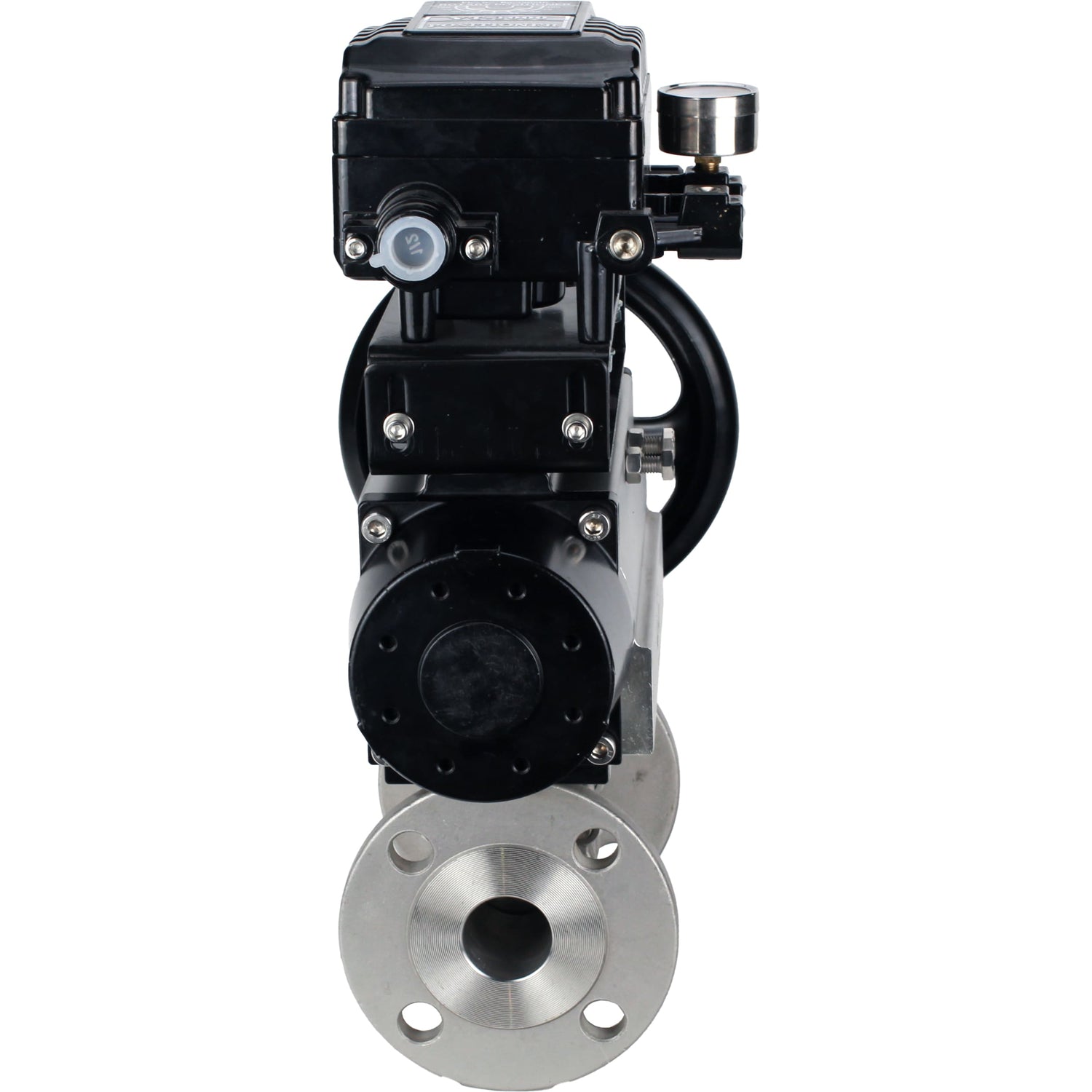

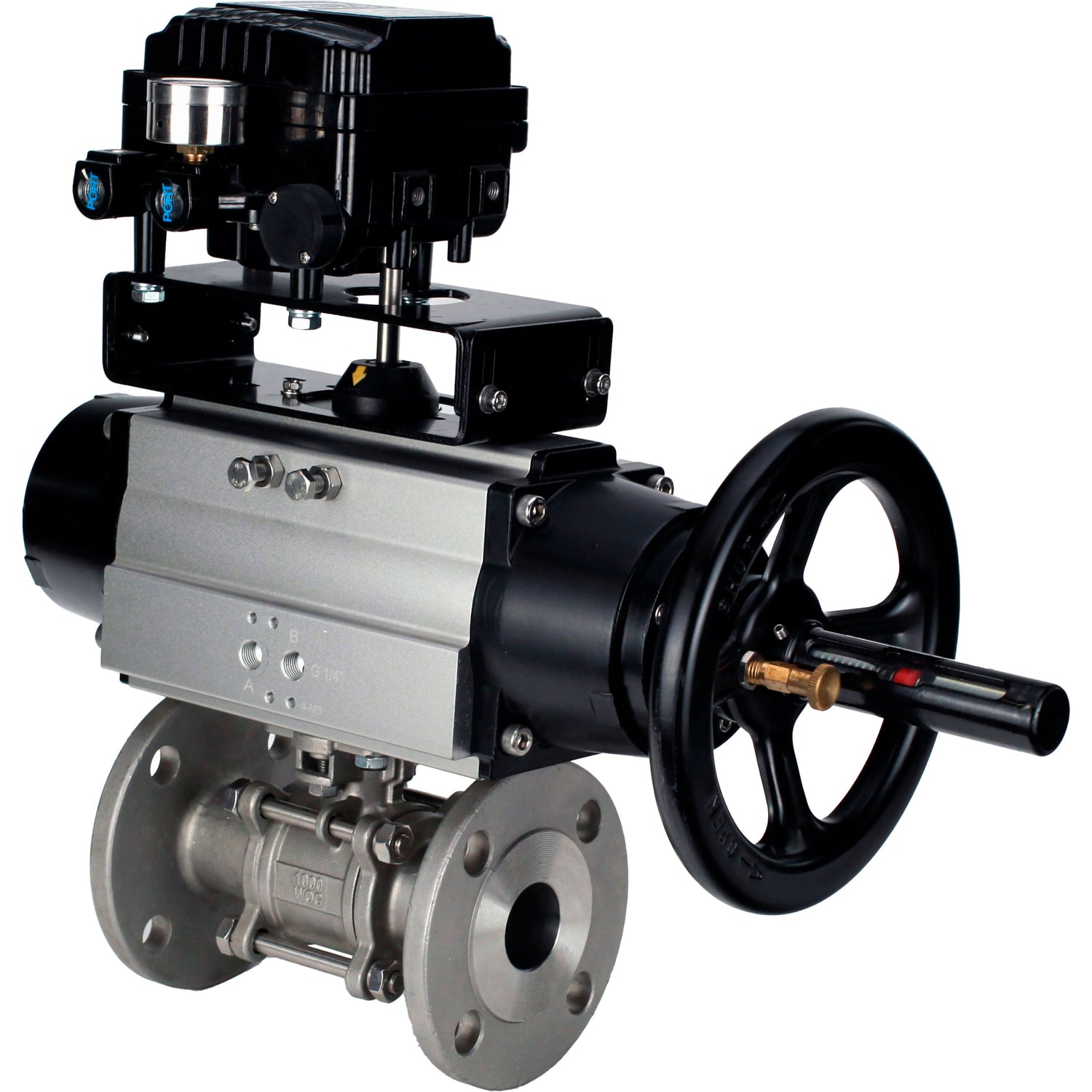

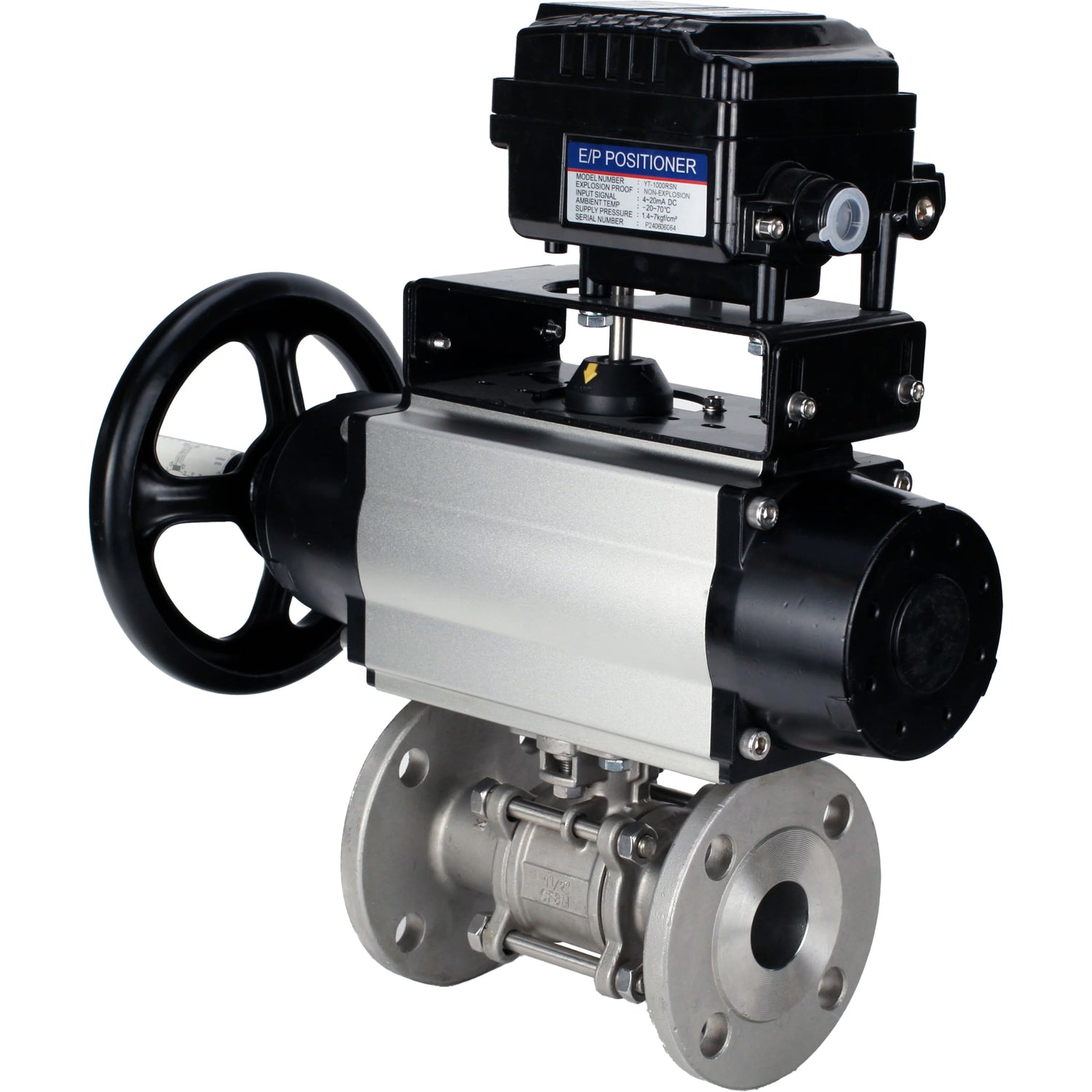

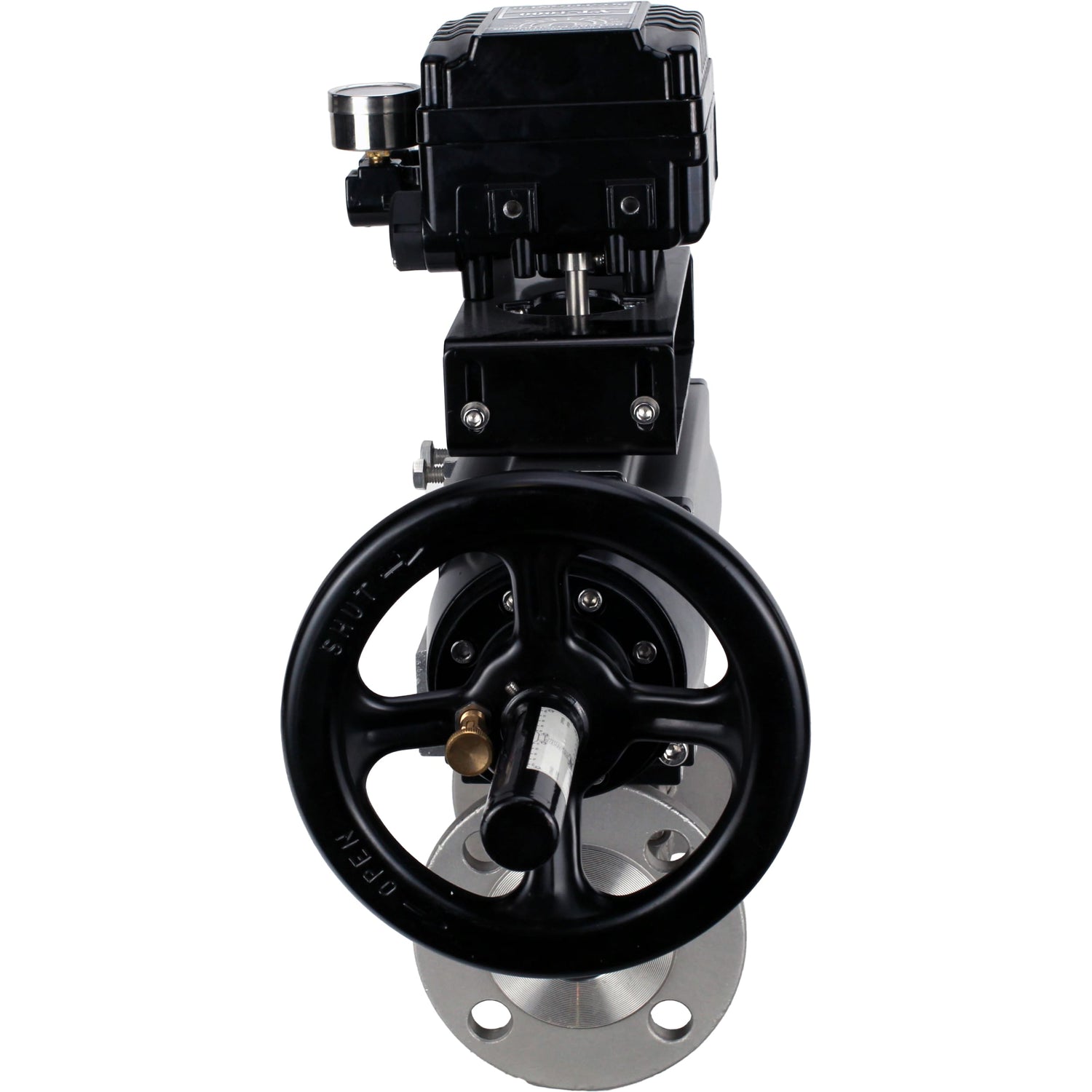

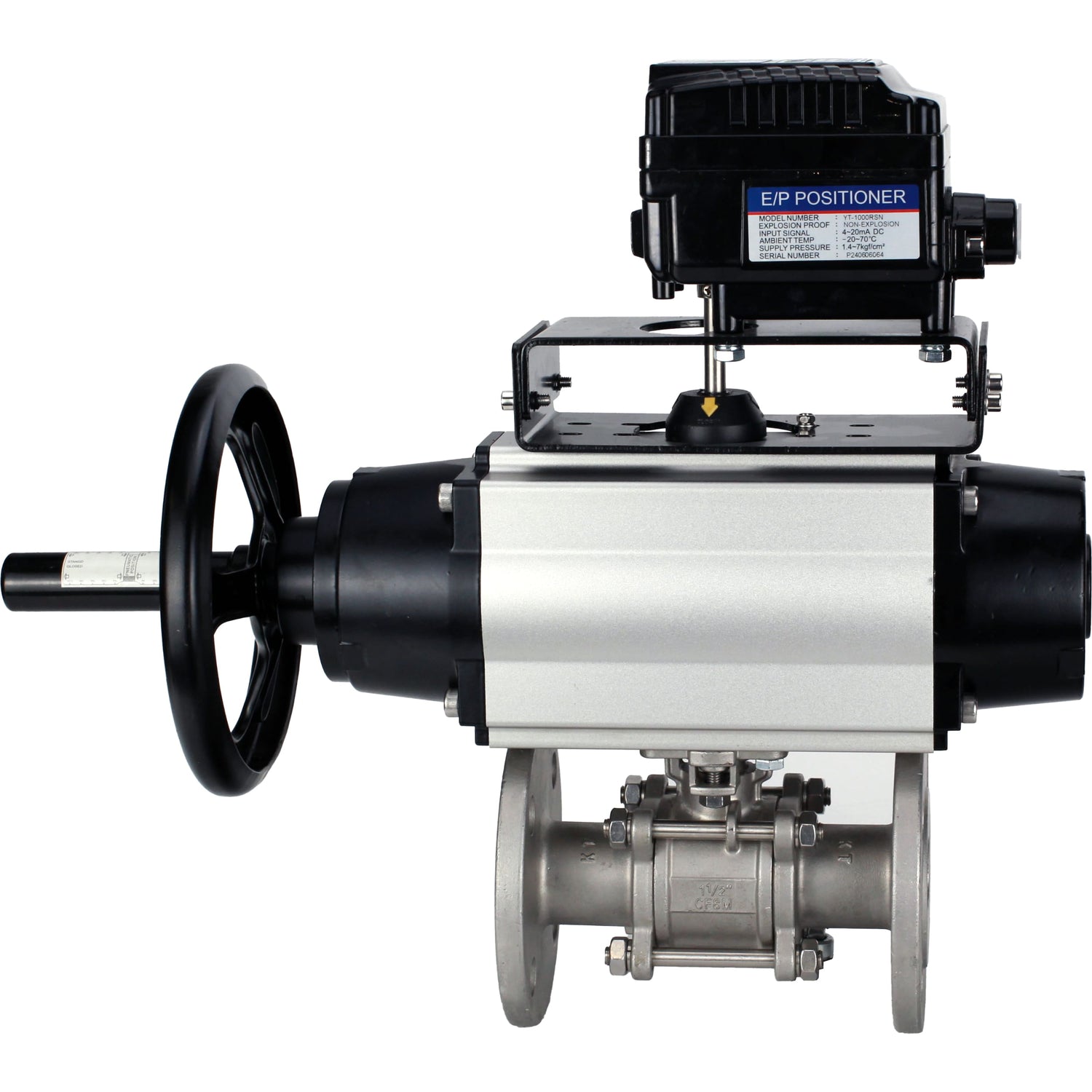

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA-105-1, YT-1000RSN electro-pneumatic positioner without feedback

€1.699,04
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

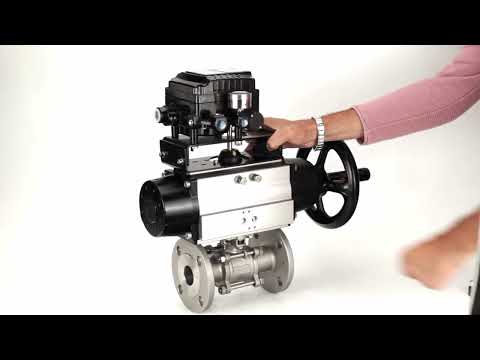

The Elephant BV3232P(3pc)-FP-F-ISO-H ball valve is used as a shut-off valve in heating, water supply, steam, fuel, and compressed air and neutral gas pneumatic systems. BV3232P(3pc)-FP-F-ISO-H series valves can be installed in systems that transport liquid and gaseous media (water, steam, petroleum products, liquid media, neutral media, gaseous media) that are non-aggressive to the valve materials.



Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H

Name Value
Working medium temperature, °C from -20 to 150
Valve type two-way
Application water supply, heat supply, pneumatic systems
Working medium water, steam, petroleum products, liquid media, neutral media, gaseous media
Connection to pipeline flanged
Water supply no
Type of passage section full bore
Tightness class A
Control type With pneumatic drive
Connection flanged
Control double-acting pneumatic drive
End switches no
Pneumatic distributor yes
Average service life, years 10
Country of manufacture China





Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H

Dn, mm D, mm L, mm L1, mm F, mm C, mm
65 185 290 495 153 117,5
80 200 310 495 153 117,5
100 235 350 495 153 117,5

Ball valve sketch Elephant BV3232P(3pc)-FP-F-ISO-H





Table of ball valve parts and materials Elephant BV3232P(3pc)-FP-F-ISO-H

№ Part name Quantity, pcs Material
1 Flange part 2 AISI 316 stainless steel
2 Pin 4/6/8 AISI 304 stainless steel
3 Nut 8/12/16 AISI 304 stainless steel
4 Gasket 8/12/16 AISI 304 stainless steel
5 Seal 2 PTFE
6 Ball 1 AISI 316 stainless steel
7 Housing 1 AISI 316 stainless steel
8 Thrust bearing 1 PTFE
9 Rod 1 AISI 316 stainless steel
10 Packing 3 PTFE
11 Thrust ring 1 AISI 304 stainless steel
12 Positioning screw 1 AISI 304 stainless steel
13 Movable cover 1 AISI 304 stainless steel
14 Positioning bolt 1 AISI 304 stainless steel
15 Hex nut 1 AISI 304 stainless steel
16 Handle 1 SS 201 stainless steel + PVC
17 Locking pin 1 SS 201 stainless steel

Sketch of crane parts and materials Elephant BV3232P(3pc)-FP-F-ISO-H





Technical parameters of the PA-DA pneumatic actuator





Table of parts and materials for PA-DA pneumatic actuator

№ Part Name Material
1 Indicator Screw ABS (plastic)
2 Position Indicator ABS (plastic)
3 Spring Clamp Stainless steel 304
4 Washer Stainless steel 304
5 Outer Washer Engineering plastic
6 Adjusting Screw Stainless steel 304
7 Nut Stainless steel 304
8 Washer Stainless steel 304
9 Housing Extruded aluminum alloy
10 Piston Die-cast aluminum alloy
11 Piston Seal NBR
12 Bearing Group Engineering plastic
13 End Cap Seal NBR
14 End Cap Cast aluminum alloy coated with polyester paint
15 Fastening Screw Stainless steel 304
16 Inner Washer Engineering plastic
17 Seal NBR
18 Bearing Engineering plastic
19 Retainer Alloy steel
20 Gear Alloy steel
21 Bearing Engineering plastic
22 Seal NBR

Sketch of parts and materials for Elephant PA-DA pneumatic actuator

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel
  • Maximum allowable temperature
    150 °C
  • Connection type
    Flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, Steam, Petroleum products, Liquid media, Neutral media, Gaseous media
  • Applications
    Water Supply, Heat supply, Pneumatic systems
  • Type of seal
    PTFE / Fluoroplastic / Teflon
  • Locking material
    Stainless steel
  • Limit switches
    No
  • Type of pneumatic actuator
    double-acting
  • Angle of rotation
    90°
