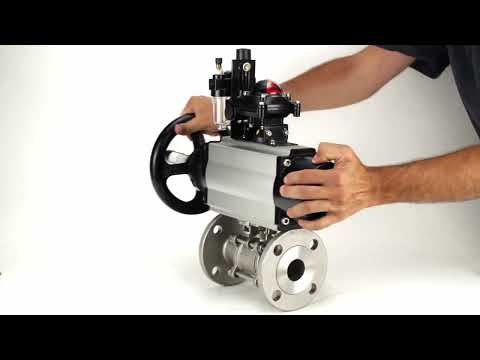

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA-105-1, pneumatic distributor 4M310-08 24V, LSU APL-210N, ATU AFC2000
Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA-105-1, pneumatic distributor 4M310-08 24V, LSU APL-210N, ATU AFC2000 - DN100 / 25 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The Elephnat BV3232P(3pc)-FP-F-ISO-H ball valve is used as a shut-off valve in heating, water supply, steam, fuel, and compressed air and neutral gas pneumatic systems. BV3232P(3pc)-FP-F-ISO-H series valves can be installed in systems that transport liquid and gaseous media (water, steam, petroleum products, liquid media, neutral media, gaseous media) that are non-aggressive to the valve materials.
The Elephnat PA-DA-105-1 pneumatic actuator is designed to automate the control process of industrial shut-off valves - gate valves, ball valves. Dn.ru pneumatic actuators are designed for indoor and outdoor use. All internal and external parts have an anti-corrosion coating.
The Elephnat 4M310-08 24V pneumatic distributor is used to change the direction, start, and stop compressed air flows in a pneumatic system depending on external control signals.
Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
| Name | Value |
| Working medium temperature, °C | from -20 to 150 |
| Valve type | Two-way |
| Application | Water supply, heat supply, pneumatic systems |
| Working medium | Water, steam, petroleum products, liquid media, neutral media, gaseous media |
| Connection to pipeline | Flanged |
| Water supply | No |
| Type of passage section | Full bore |
| Control type | With pneumatic actuator |
| Connection | Flanged |
| Control | Double-acting pneumatic actuator |
| Presence of limit switches | No |
| Presence of pneumatic distributor | Yes |
| Average service life, years | 10 |
| Country of manufacture | China |
Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
| DN | D | L | L1 | F |
| 65 | 185 | 290 | 495 | 153 |
| 80 | 200 | 310 | 495 | 153 |
| 100 | 235 | 350 | 495 | 153 |
Ball valve sketch Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
Table of ball valve parts and materials Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
| № | Part name | Quantity, pcs | Material |
| 1 | Flange part | 2 | AISI 316 stainless steel |
| 2 | Pin | 4/6/8 | AISI 304 stainless steel |
| 3 | Nut | 8/12/16 | AISI 304 stainless steel |
| 4 | Gasket | 8/12/16 | AISI 304 stainless steel |
| 5 | Seal | 2 | PTFE |
| 6 | Ball | 1 | AISI 316 stainless steel |
| 7 | Housing | 1 | AISI 316 stainless steel |
| 8 | Thrust bearing | 1 | PTFE |
| 9 | Rod | 1 | AISI 316 stainless steel |
| 10 | Packing | 3 | PTFE |
| 11 | Thrust ring | 1 | AISI 304 stainless steel |
| 12 | Positioning screw | 1 | AISI 304 stainless steel |
| 13 | Movable cover | 1 | AISI 304 stainless steel |
| 14 | Positioning bolt | 1 | AISI 304 stainless steel |
| 15 | Hex nut | 1 | AISI 304 stainless steel |
| 16 | Handle | 1 | AISI 304 stainless steel SS 201 + PVC |
| 17 | Locking pin | 1 | SS 201 stainless steel |
Ball valve sketch Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
Technical parameters of the PA-DA-105-1 pneumatic actuator
| Name | Meaning |
| Model | PA-DA-105-1 |
| Pressure, bar | 2 ÷ 8 |
| Availability of a manual backup | no |
Table of parts and materials for pneumatic actuator Elephant PA-DA-105-1
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | 304 stainless steel |
| 4 | Washer | 304 stainless steel |
| 5 | Outer washer | Engineering plastic |
| 6 | Adjusting screw | 304 stainless steel |
| 7 | Nut | 304 stainless steel |
| 8 | Washer | 304 stainless steel |
| 9 | Housing | Extruded aluminum alloy |
| 10 | Piston | Die-cast aluminum alloy |
| 11 | Piston seal ring | NBR |
| 12 | Bearing assembly | Engineering plastic |
| 13 | End cap seal ring | NBR |
| 14 | End cap | Die-cast aluminum alloy coated with polyester paint |
| 15 | Fastening screw | 304 stainless steel |
| 16 | Inner washer | Engineering plastic |
| 17 | Seal ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Seal ring | NBR |
Sketch of parts and materials for pneumatic actuator Elephant PA-DA-105-1
Technical parameters of the Elephant 4M310-08 24V pneumatic distributor
| Name | Meaning |
| Type of pneumatic distributor | spool valve |
| Pneumatic distributor model | 4М310-08 24V |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage | 24V |
| Frequency of operation, cycles/sec | 5 |
Technical parameters of the Elephant APL-210N limit switch unit
| Name | Meaning |
| Limit switch block model | APL-210N |
| Average service life, years | 10 |
Main parameters of the Elephant AFC2000 air preparation unit
Working pressure - 8 bar
Maximum pressure - 10 bar
Adjustable pressure range - 0.5 ÷ 9 bar
Burst pressure - 15 bar
Air connection - 1/4"
Operating temperature - from -5 to +60 °C
Filtered particle size - 40 μm
Oil viscosity - ISO VG 32
Weight - 0.395 kg
Kit contents - filter-moisture separator, pressure regulator, lubricator, bracket
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentWater, Steam, Petroleum products, Liquid media, Neutral media, Gaseous media
-
ApplicationsWater Supply, Heat supply, Pneumatic systems
-
Type of seal
-
Locking material
-
Explosion-proof
-
Limit switches
-
Type of pneumatic actuator
-
Angle of rotation
