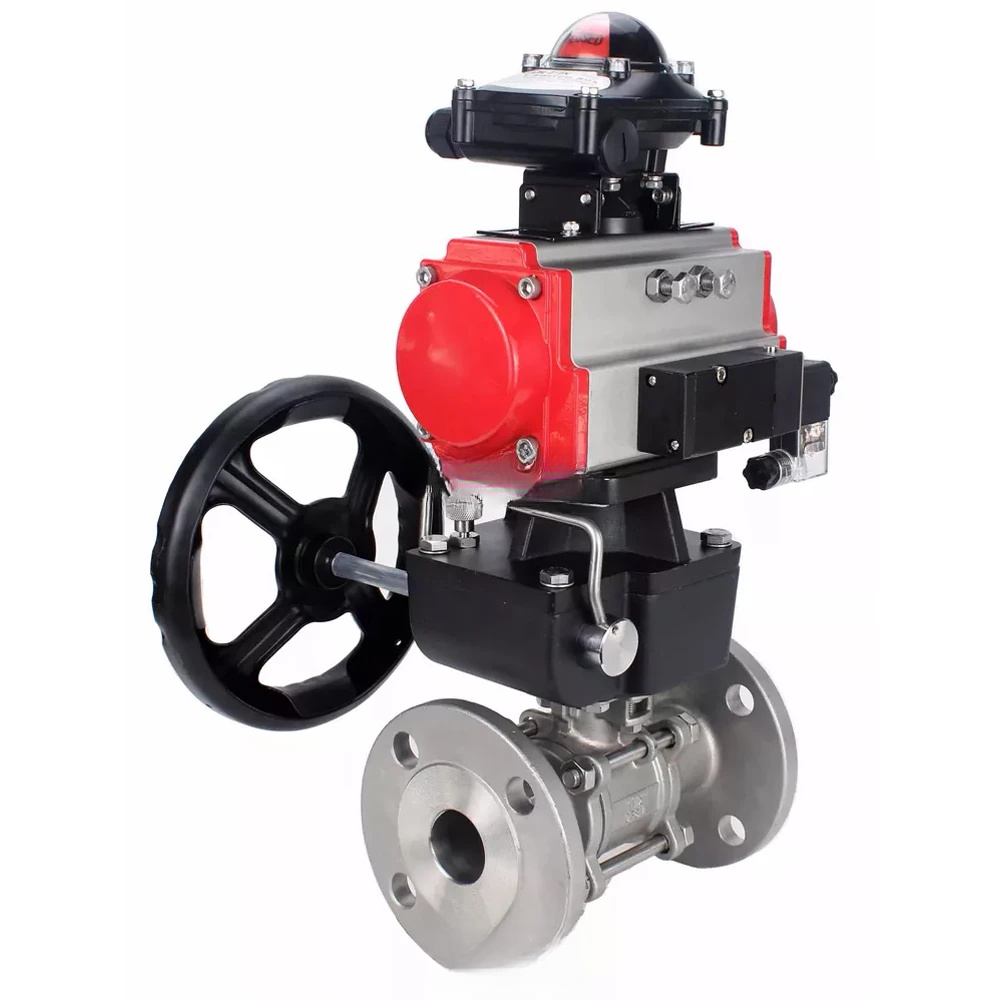

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA pneumatic distributor 4M310-08 24V, LSU APL-410N Ex, manual backup MON3-700-T38-ISO
Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA pneumatic distributor 4M310-08 24V, LSU APL-410N Ex, manual backup MON3-700-T38-ISO - DN100 / 25 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The Elephant BV3232P(3pc)-FP-F-ISO-H ball valve is used as a shut-off valve in heat supply systems, water supply systems, steam, fuel systems, and pneumatic systems with compressed air and neutral gases. The BV3232P(3pc)-FP-F-ISO-H series valves can be installed in systems transporting liquid and gaseous media (water, steam, petroleum products, liquids, neutral media, and gaseous media) that are non-corrosive to the valve materials.
The Elephant PA-DA pneumatic actuator is designed to automate the control of industrial shut-off valves, such as globe valves and ball valves. Elephant pneumatic actuators are designed for both indoor and outdoor use. All internal and external components have an anti-corrosion coating.
Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar
| Name | Value |
| Working fluid temperature, °C | from -20 to 150 |
| Tap type | two-way |
| Application | water supply, heat supply, pneumatic systems |
| Working fluid | water, steam, petroleum products, liquids, neutral media, gaseous media |
| Pipeline connection | flanged |
| Water-drawable | no |
| Flow section type | full bore |
| Tightness class | A |
| Control type | with pneumatic actuator |
| Connection | flanged |
| Control | double-acting pneumatic actuator |
| Presence of limit switches | no |
| Presence of pneumatic valve | yes |
| Average service life, years | 10 |
| Country of manufacture | China |
Dimensions and sizes of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar
| DN mm | D, mm | L, mm | L1, mm | F, mm | G, mm | E, mm |
| 65 | 185 | 290 | 204 | 128,7 | 77 | 133 |
| 80 | 200 | 310 | 204 | 128,7 | 77 | 133 |
| 100 | 235 | 350 | 268 | 153 | 77 | 180 |
Sketch of a ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar
Table of parts and materials for a ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar
| № | Part Name | Quantity, pcs | Material |
| 1 | Flange | 2 | Stainless steel AISI 316 |
| 2 | Stud | 4/6/8 | Stainless steel AISI 304 |
| 3 | Nut | 8/12/16 | Stainless steel AISI 304 |
| 4 | Gasket | 8/12/16 | Stainless steel AISI 304 |
| 5 | Seal | 2 | PTFE |
| 6 | Ball | 1 | Stainless steel AISI 316 |
| 7 | Housing | 1 | Stainless steel AISI 316 |
| 8 | Thrust Pad | 1 | PTFE |
| 9 | Plunger | 1 | Stainless steel AISI 316 |
| 10 | Packing | 3 | PTFE |
| 11 | Thrust Ring | 1 | Stainless steel AISI 304 |
| 12 | Positioning Screw | 1 | Stainless steel AISI 304 |
| 13 | Sliding Cover | 1 | Stainless steel AISI 304 |
| 14 | Positioning Bolt | 1 | Stainless steel AISI 304 |
| 15 | Hex Nut | 1 | Stainless steel AISI 304 |
| 16 | Handle | 1 | Stainless steel SS 201 + PVC |
| 17 | Lock Stopper | 1 | Stainless steel SS 201 |
Technical parameters of the PA-DA pneumatic drive
| Name | Meaning |
| Model | PA-DA |
| Pressure, bar | 2 ÷ 8 |
| Availability of a manual backup | steering wheel |
Table of parts and materials for the Elephant PA-DA pneumatic actuator
| № | Part Name | Material |
| 1 | Indicator Screw | ABS plastic |
| 2 | Position Indicator | ABS plastic |
| 3 | Spring Clamp | 304 stainless steel |
| 4 | Metal Washer | 304 stainless steel |
| 5 | Thrust Washer | Engineering plastic |
| 6 | Housing | Extruded aluminum alloy with hard anodizing |
| 7 | Thrust Washer | Engineering plastic |
| 8 | Stopper | Alloy steel |
| 9 | Upper Shaft Seal Ring | NBR |
| 10 | Upper Shaft Anti-Friction Ring | Engineering plastic |
| 11 | Shaft | Nickel-plated alloy steel |
| 12 | Lower Shaft Anti-Friction Ring | Engineering plastic |
| 13 | Lower Shaft Seal Ring | NBR |
| 14 | Plug | NBR |
| 15 | Adjusting Screw Seal Ring | NBR |
| 16 | Adjusting Screw Washer | 304 stainless steel |
| 17 | Adjusting Screw Lock Nut | 304 stainless steel |
| 18 | Adjusting Screw | 304 stainless steel |
| 19 | Piston | Die-cast aluminum alloy |
| 20 | Piston Guide Pad | Engineering plastic |
| 21 | Piston Anti-Friction Ring | Engineering plastic |
| 22 | Piston Seal Ring | NBR |
| 23 | Spring Kit | Spring steel |
| 24 | Cover Seal Ring | NBR |
| 25 | End Cover | Cast aluminum with polyester coating |
| 26 | Cover Screw | 304 stainless steel |
| 27 | Locking Screw | 304 stainless steel |
| 28 | Adapter | Carbon steel |
Sketch of parts and materials for the Elephant PA-DA pneumatic drive
Technical parameters of the pneumatic distributor Elephant 4M310-08 24V
| Name | Value |
| Pneumatic Valve Type | spool |
| Pneumatic Valve Model | 4M310-08 24V |
| Operating Pressure, Bar | 1.5 ÷ 8 |
| Supply Voltage | 220V |
| Actuation Frequency, Cycles/Sec | 5 |
Technical parameters of the Elephant APL-410N EX limit switch unit
| Name | Meaning |
| Model | APL-410N EX |
| Service life, years | 10 |
Technical parameters of manual overrides Elephant MON
| Name | Meaning |
| Degree of protection, IP | 67 |
| Connection type | ISO 5211 |
Table of parts and materials for the Elephant MON manual override
| № | Name | Material |
| 1 | Pneumatic actuator mounting rod | 45 Steel |
| 2 | O-ring | EPDM |
| 3 | Retaining spring | Spring Steel |
| 4 | Top end cap | Aluminum Alloy |
| 5 | Screw | 304 Steel |
| 6 | Retaining bracket (main rod) | 304 Steel |
| 7 | Housing | Aluminum Alloy |
| 8 | O-ring | EPDM |
| 9 | Gearbox | Cast Iron |
| 10 | Reducer coupling | Cast Iron |
| 11 | Gearbox rod | Cast Iron |
Sketch of parts and materials for the manual backup Elephant MON
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentWater, Steam, Petroleum products, Liquid media, Neutral media, Gaseous media
-
ApplicationsWater Supply, Heat supply, Pneumatic systems
-
Type of seal
-
Locking material
-
Explosion-proof
-
Limit switches
-
Type of pneumatic actuator
-
Angle of rotation
