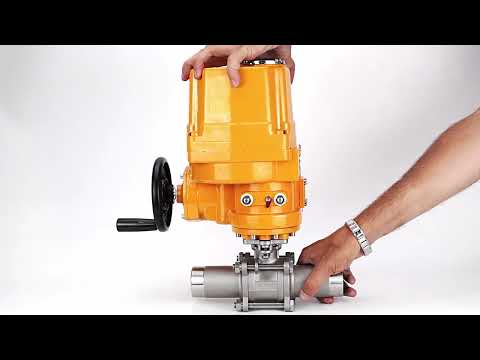

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V

€912,36
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

Explosion-proof quarter-turn electric actuators are designed for remote and local control of the rotation of a shut-off element by 0° ~ 270° of such types as a ball valve, etc. They are widely used in various sectors of the national economy: in the gas, oil, metallurgy, food industries, in housing and communal services, etc. They are suitable for use in industrial explosion-hazardous areas.





Technical characteristics of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V

Name Meaning
Connection type for welding
Control type With electric drive
Application water supply, heat supply, industry
Crane ball passage full bore
Climate performance U1
Working environment temperature, °C from -20 to 180
Joining for welding
Control Electric drive 220V
Sealing class A
Water intake No
Type of crane device two-way
Wednesday water, steam, petroleum products, neutral media, gaseous media
Warranty, g. 1
Service life, years 5





Sketch of overall dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V



Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V

Model L, mm L1, mm H, mm
DN10 130 255 265
DN15 150 255 265
DN20 155 255 265
DN25 186 255 265
DN32 195 255 265
DN40 231 255 265
DN50 243 255 265
DN65 290 280 270
DN80 302 280 270
DN100 326 310 310
DN125 360 310 310





Sketch of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V



Table of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V

Item No. Part name Material
1 Frame stainless steel 304
2 Side element (2 pcs) stainless steel 304
3 Ball stainless steel 304
4 Ball seal PTFE
5 Rod seal PTFE
6 Sleeve stainless steel 304
7 Stock stainless steel 304
8 Washer stainless steel
9 screw steel A2-70
10 Bolt steel A2-70





Electric drives Elephant



Technical parameters of electric drives:

Name Meaning
Supply voltage 220V
Ambient temperature from -20°C to 60°C
Availability of manual backup steering wheel
Limit switches There is
Degree of protection of the case IP67





Sketch of dimensions and sizes of electric drives



Dimensions and sizes of electric drives:

Drive model H1, mm L, mm A, mm D1, mm D2, mm MAX □, mm MAX ○, mm K, mm
QT-EX-010EM-O2-220VAC-U1 265 255 170 70 57 14 20 4-M8, depth 12
QT-EX-015EM-O2-220VAC-U1 265 255 170 70 57 14 20 4-M8, depth 12
QT-EX-020EM-O2-220VAC-U1 270 280 200 102 70 17 31 4-M10, depth 16
DN.ru QT-EX-030EM-O2-220VAC-U1 310 310 200 125 90 22 31 4-M10, depth 16





Electric drive device:

Item No. Details Material
1 Drive casing Aluminum
2,23,33,38,40,64 Shaft Steel 45
3,39,46,48,51,66 Sealing ring Oil resistant rubber
4.27 bracket Steel Q235
5 Insulation gasket Textolite
6,9,16 Bracket mounting screw Steel 1Cr18Ni9Ti
7.1 Plate Steel Q235
8 Screw plug Aluminum
11,14 Limit switch cam Steel Q235
12,13 Limit switch group XK06-101-2530
15.32 Sleeve Brass H62
16,30,35,41,44,61 Screw Steel 1Cr18Ni9Ti
17,18 Disk Steel Q235
19 Mechanical limiting cam Steel Q235
20 Drive casing Aluminum
21.25 Mounting screw Steel 35
22 Sight glass seal Steel 1Cr18Ni9Ti
24 Indication plate Aluminum
26 Capacitor CEM 2GR 220nJ
28 Terminal block 1Pcs T
29 Heating element NTA-1/005
31,36 Washer Stainless steel
34 Through cover MHQ50
37,39 Lock washer, sealing ring Steel 1Cr18Ni9Ti
42 Torque switch group XK06-101-2530
43,48 Torque switch mechanism Steel Q235
45 Flywheel cover Aluminum
47.69 First stage gear Zinc alloy ZQAL10-5-5
49 Limit screw Steel 35
50 Hairpin Steel 1Cr18Ni9Ti
52 Clutch handle Steel 45
53 Fork block Aluminum
54 Thrust washer Zinc alloy
55,56 Separator fork Zinc alloy ZQAL10-5-5
57 Retaining ring Steel 1Cr18Ni9Ti
58.6 Disk, main gear Zinc alloy ZQAL10-5-5
59.68 Second and first stage worm Steel 40Cr
62,67 Seal Aluminum
63 Motor -
65 Clutch Steel ZG20

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    #ИМЯ?
  • Connection type
    For welding
  • Control type
    Electrically driven
  • Operating environment
    Water, Steam, Petroleum Products, Neutral Media, Gaseous Media
  • Applications
    Water Supply
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    Yes
  • Torque
    3 Nm
  • Limit switches
    Yes
  • Actuator model
    QT-EX-010EM-O2-220VAC-U1

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-53298DN1063 bar €912,36 0 in stock
    D160-53301DN1563 bar €912,36 Out of stock
    D160-53302DN2063 bar €918,42 Out of stock
    D160-53303DN2563 bar €909,79 Out of stock
    D160-53304DN3240 bar €940,08 Out of stock
    D160-53305DN4040 bar €984,25 Out of stock
    D160-53306DN5040 bar €1.009,58 Out of stock
    D160-53307DN6525 bar €1.255,15 Out of stock
    D160-53308DN8025 bar €1.381,39 Out of stock
    D160-53299DN10016 bar €1.827,57 Out of stock
    D160-53300DN12516 bar €2.551,74 Out of stock
