Elephant  |  SKU: D160-50873

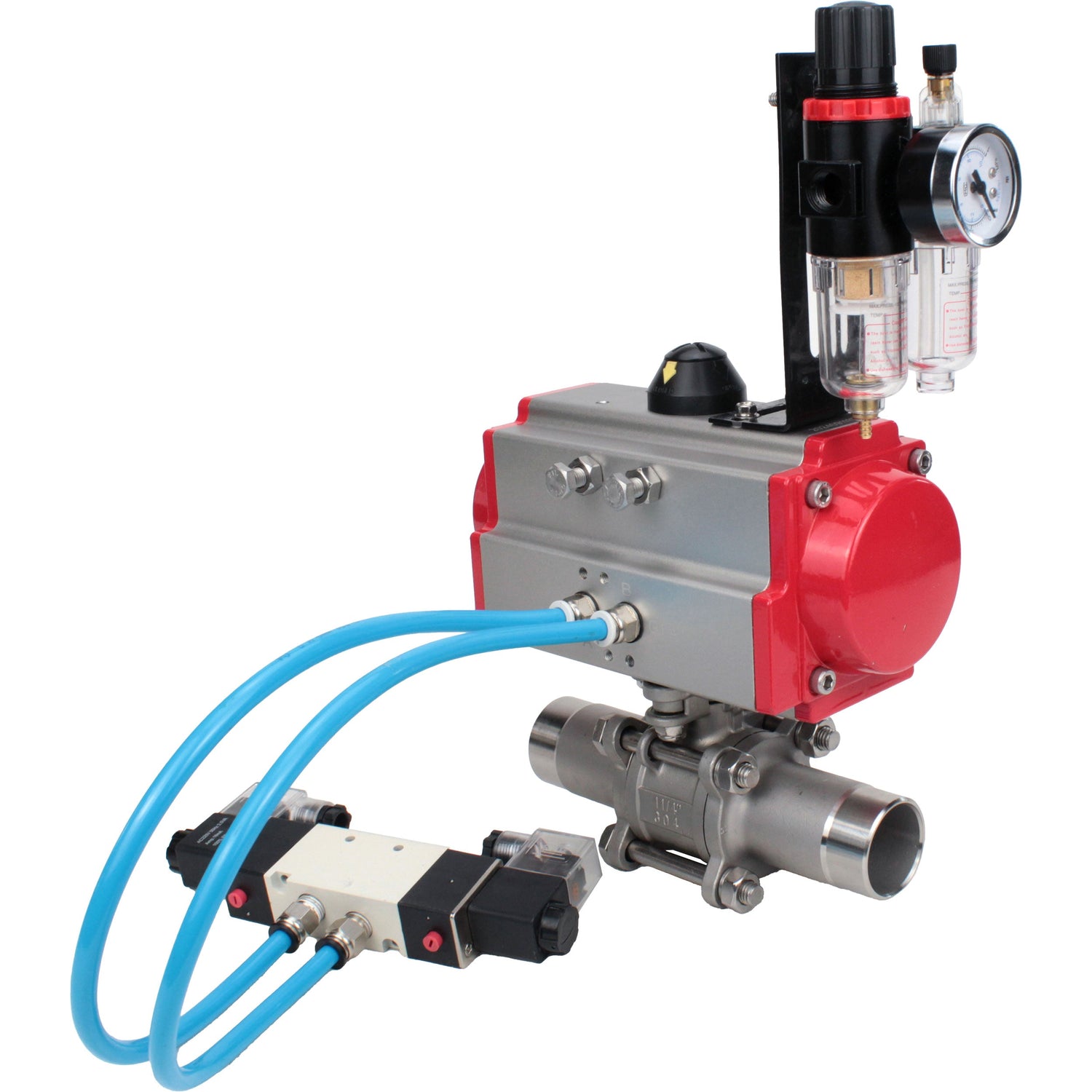

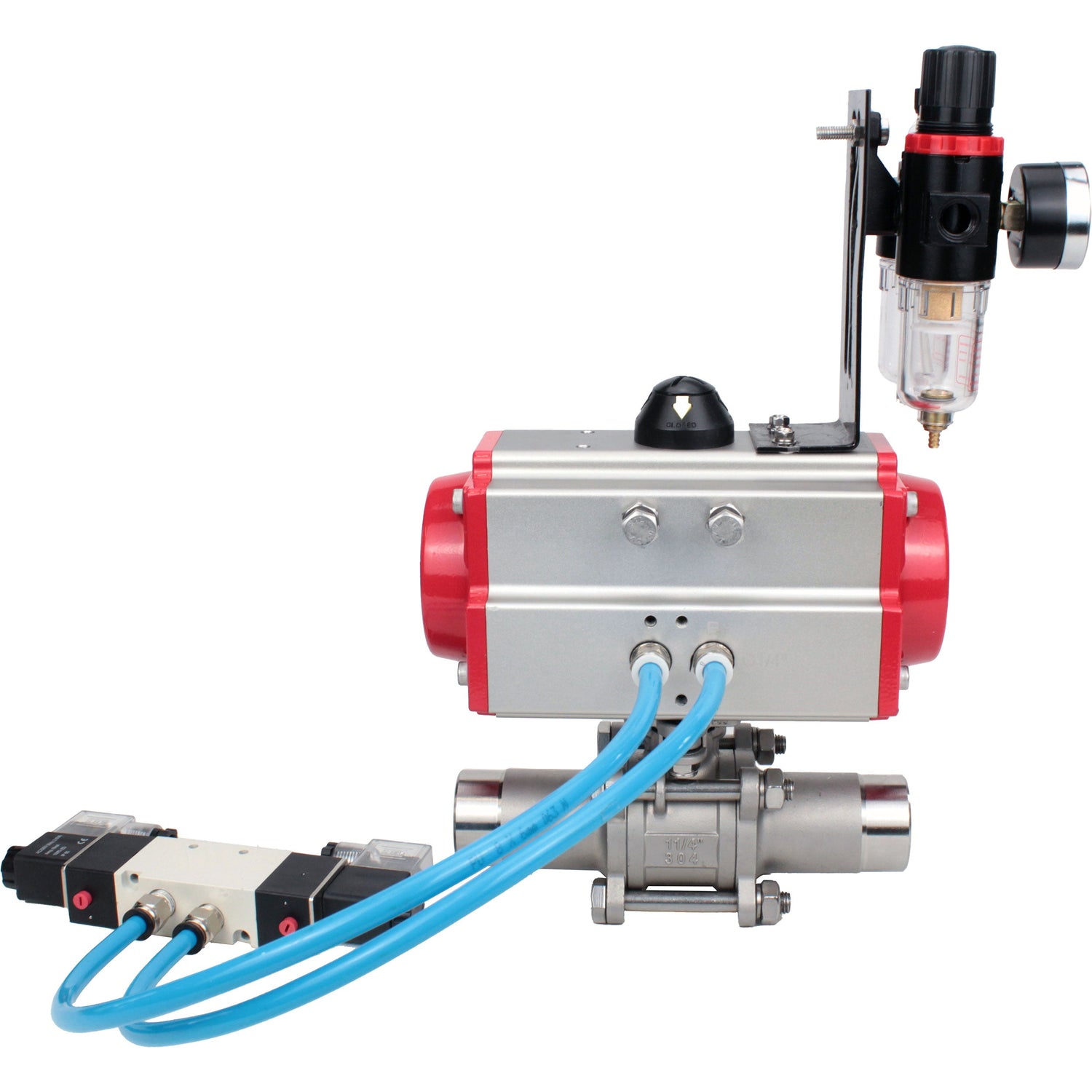

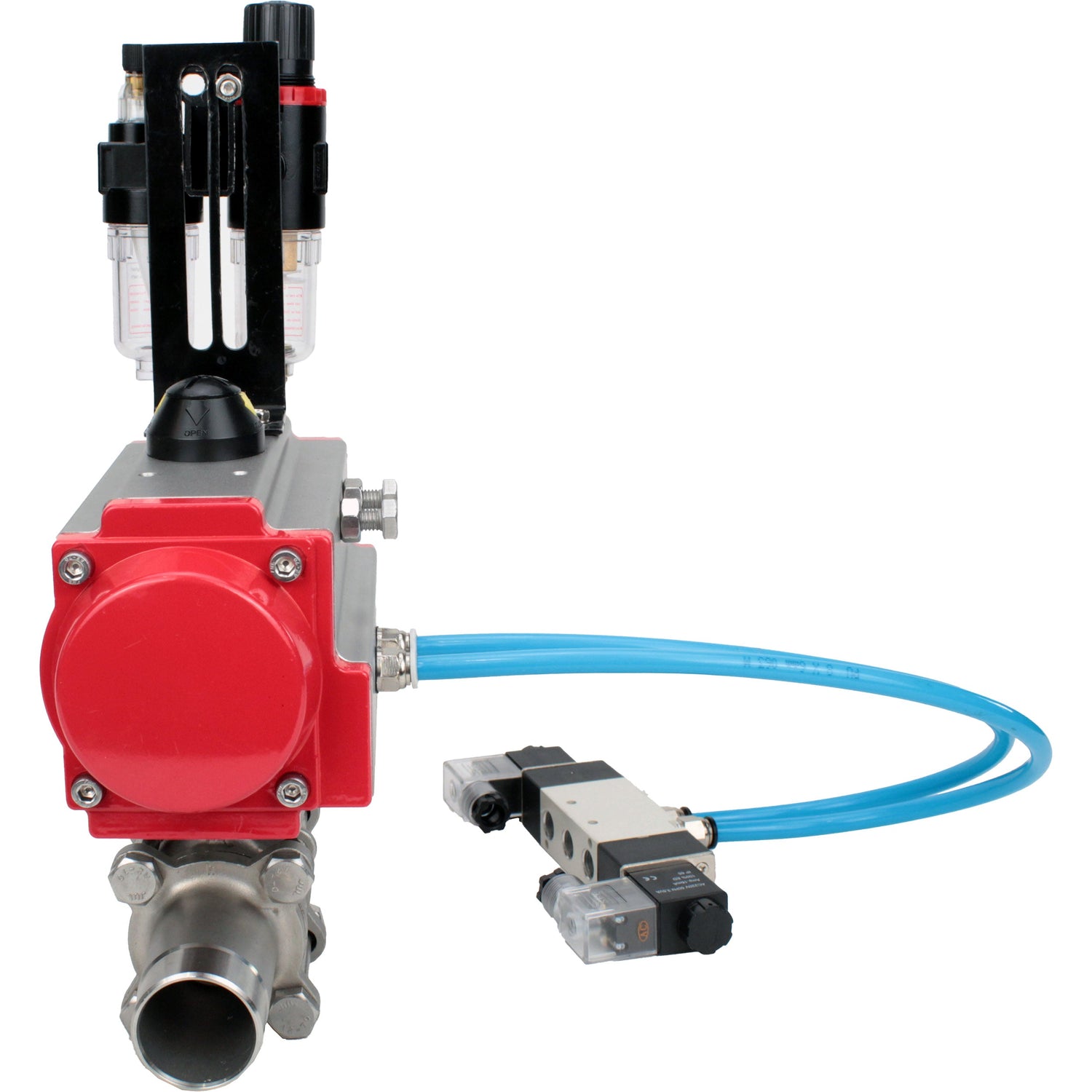

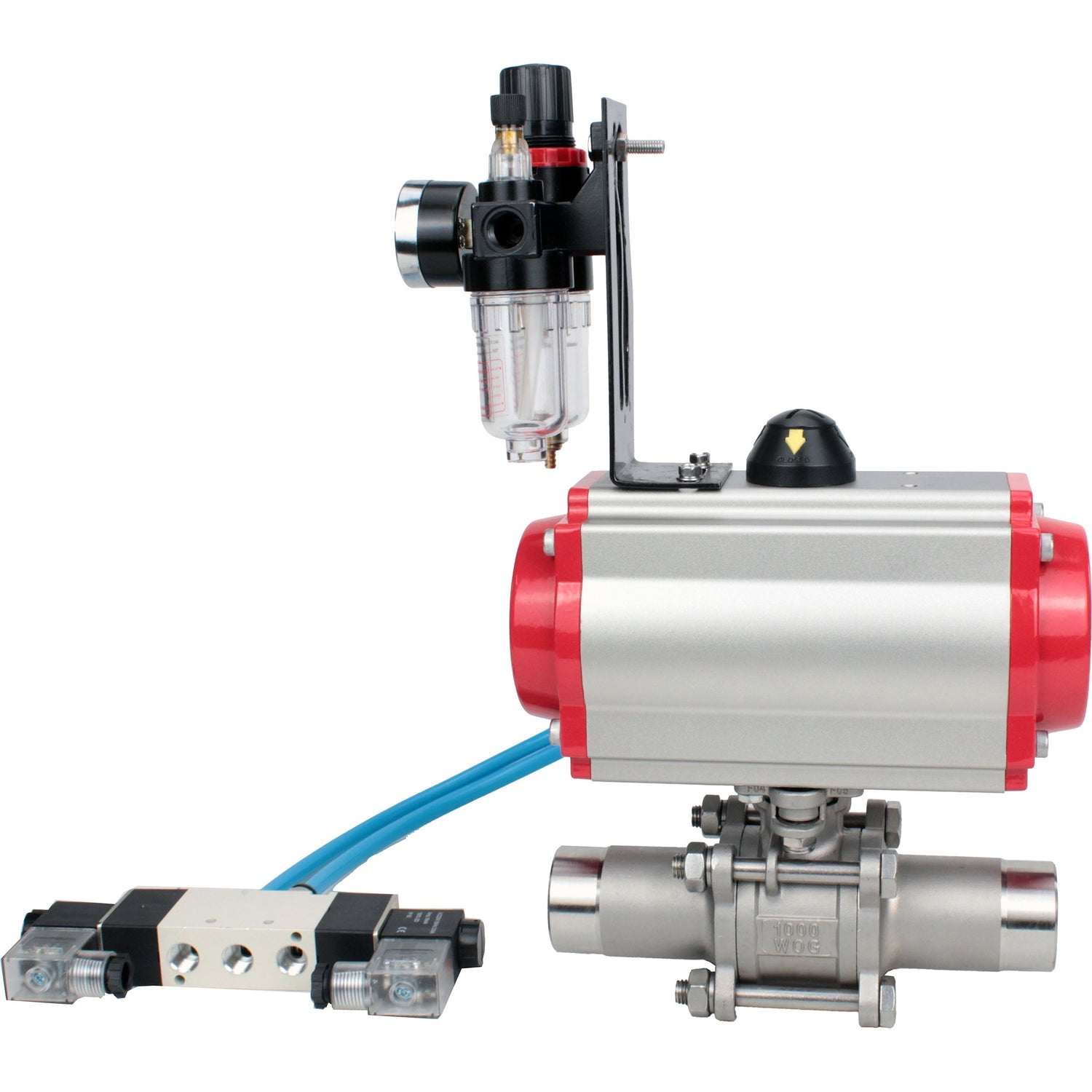

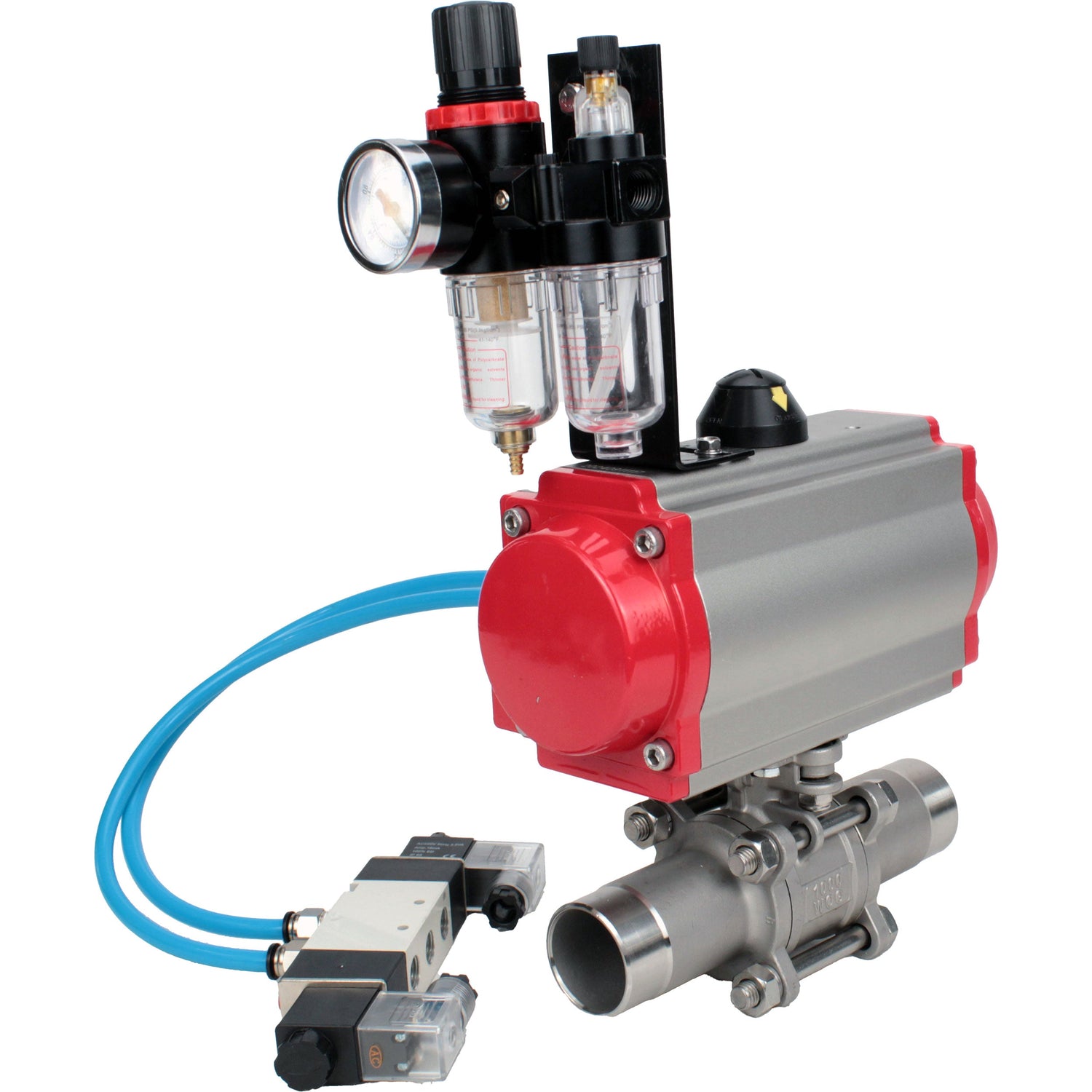

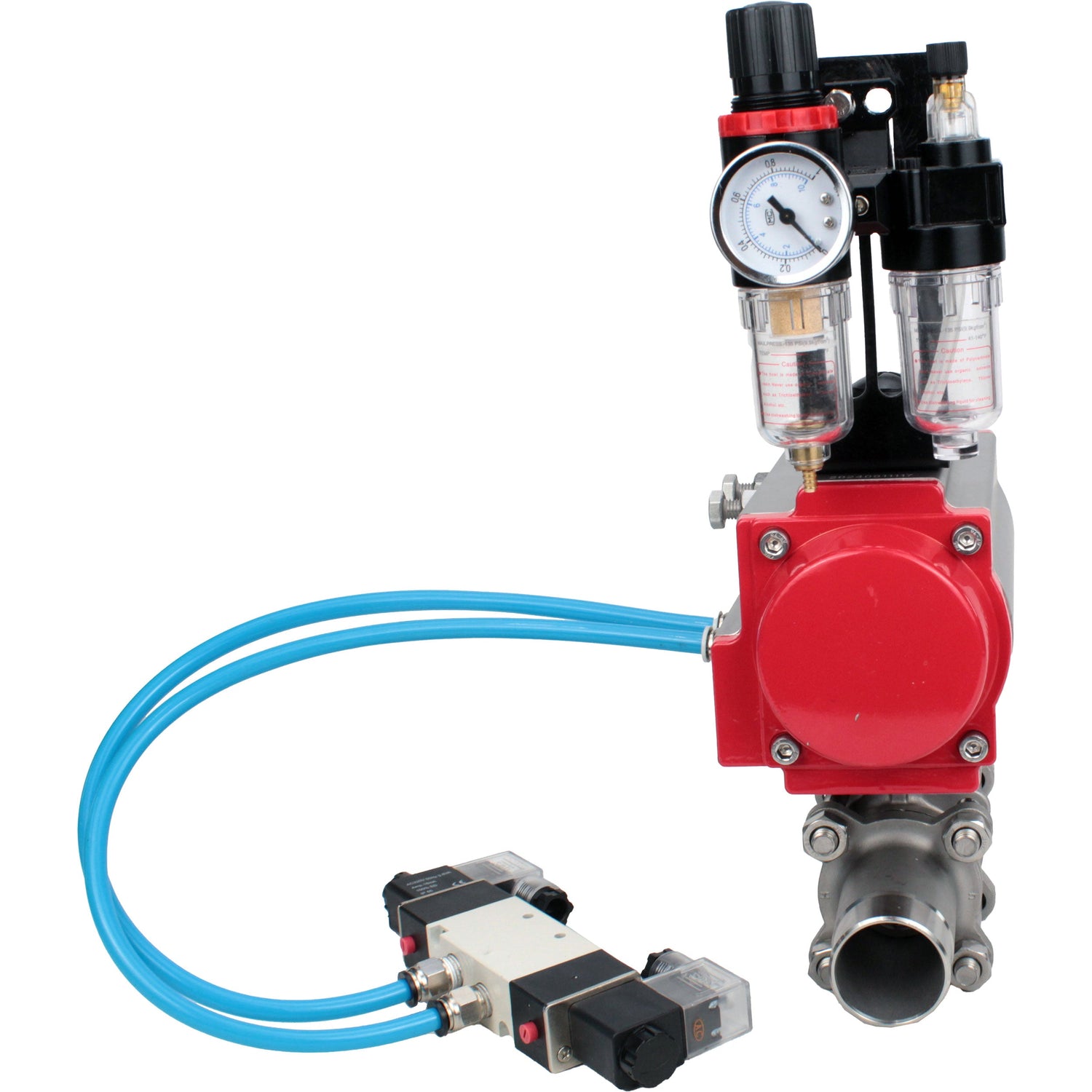

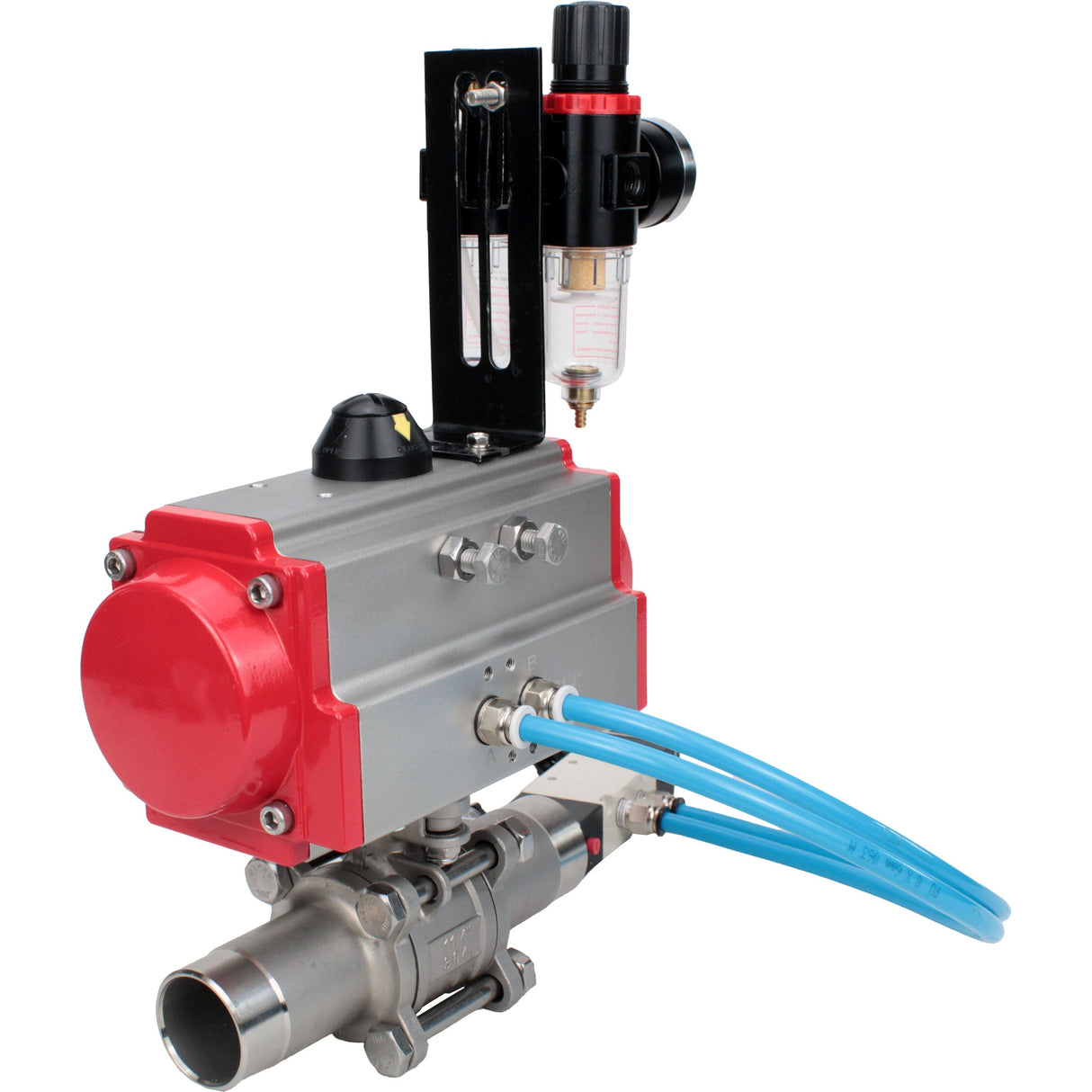

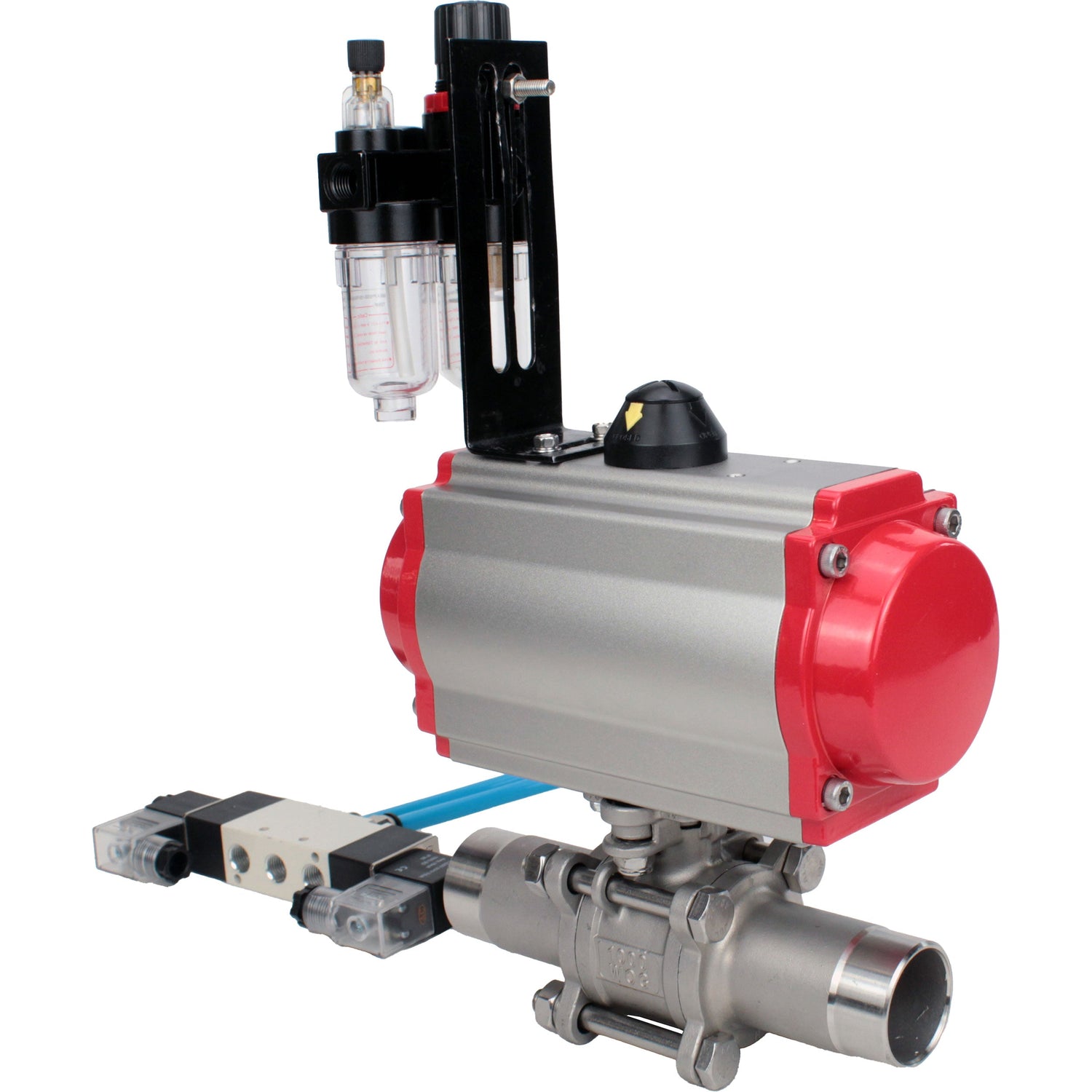

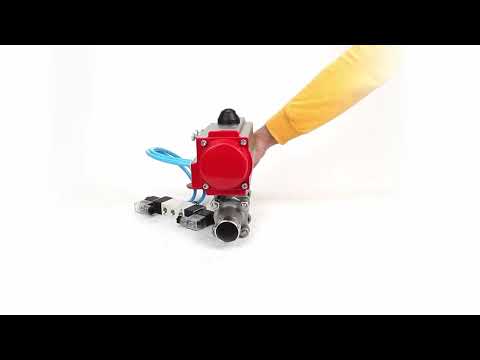

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4V320-10 220V and ATU AFC2000

€214,59
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4V320-10 220V and ATU AFC2000 - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

Elephant pneumatic double-acting rotary actuators PA-DA are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.

The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The worm gear manual doubleturn actuator with reduction gear allows the manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.

The air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure value at a preset level, supply lubricant from the tank in the compressed air flow to the pneumatic system elements.



Technical parameters of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

Name Value
Operating medium temperature, °C from -20 to 180
Valve type Two-way
Application Water supply, heating, industry
Working medium Water, steam, petroleum products, neutral media, gaseous media
Pipeline connection Welded
Water dispensing No
Flow section type Full bore
Control type With pneumatic actuator
Connection Welded
Control Double-acting pneumatic actuator
Limit switches No
Pneumatic distributor Yes
Electropneumatic positioner No
Average service life, years 5
Warranty, years 1
Country of manufacture China





Dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

DN L A E I B C
10 130 147 92 162 88 139
15 150 147 92 162 88 139
20 155 168 108 162 88 139
25 186 204 128.7 162 88 139
32 195 147 92 162 88 139
40 231 168 108 162 88 139
50 243 204 128.7 162 88 139
65 290 204 128.7 162 88 139
80 302 204 128.7 162 88 139
100 326 268 153 162 88 139
125 360 301 185 162 88 139
150 390 390 202 162 88 139

Sketch dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304





Table of parts and materials for ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

№ Part Name Material
1 Body Stainless steel 304
2 Side element (2 pcs) Stainless steel 304
3 Ball Stainless steel 304
4 Ball seal PTFE
5 Stem seal PTFE
6 Bushing Stainless steel 304
7 Stem Stainless steel 304
8 Washer Stainless steel
9 Nut Steel A2-70
10 Bolt Steel A2-70

Parts and materials sketch for ball valves BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304






Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical parameters of pneumatic valve Elephant 4V320-10 220V

Name Value
Pneumatic distributor type Spool
Pneumatic distributor model 4V320-10 220V
Operating pressure, bar 1.5 ÷ 8
Supply voltage, V 220V
Switching frequency, cycles/sec 5





Dimensions and dimensions of Elephant 4V320-10 220V pneumatic directional control valve

Model 4V320-10
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 83.4
P, mm 22
S, mm 20
T, mm 6.5
U, mm 2.4
H, mm 82.4

Sketch of dimensions and dimensions of pneumatic valve Elephant 4V320-10 220V





Technical parameters of the handwheel Elephant MON

Name Value
Manual override model MON
Climatic version U, UHL, T, OM
Mounting method Horizontal/Vertical
Protection rating, IP 67
Connection type ISO 5211





Technical parameters of Elephant AFC2000 air treatment unit

Name Value
Operating pressure, bar 8
Adjustable pressure range, bar 0.5 ÷ 9
Filtered particle size, µm 40 µm
Weight, kg 0.395





Dimensions and dimensions of Elephant AFC2000 air treatment unit

Model AFC2000
A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5

Sketch of dimensions and dimensions of Elephant AFC2000 air treatment unit

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    #ИМЯ?
  • Connection type
    For welding
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Petroleum Products, Neutral Media, Gaseous Media
  • Applications
    Water Supply
  • Type of seal
    PTFE
  • Voltage
    220V
  • Torque
    3 Nm
  • Limit switches
    no
  • Actuator model
    PA-DA-052

Reviews (0)

Documentation
nullBall valve ELEPHANT BVxxP 3pc -FP-W-ISO-H LONG DN10-150 63-16 bar stainless steel full bore welded with ISO-flange and handle

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-50873DN1063 bar €214,59 0 In stock
    D160-50876DN1563 bar €216,90 Sold out
    D160-50878DN2063 bar €279,88 Sold out
    D160-50879DN2563 bar €279,44 Sold out
    D160-50880DN3240 bar €235,53 Sold out
    D160-50881DN4040 bar €260,08 Sold out
    D160-50882DN5040 bar €322,34 Sold out
    D160-50883DN6525 bar €377,94 Sold out
    D160-50884DN8025 bar €427,04 Sold out
    D160-50874DN10016 bar €561,72 Sold out
    D160-50875DN12516 bar €976,25 Sold out
    D160-50877DN15016 bar €1.298,83 Sold out
