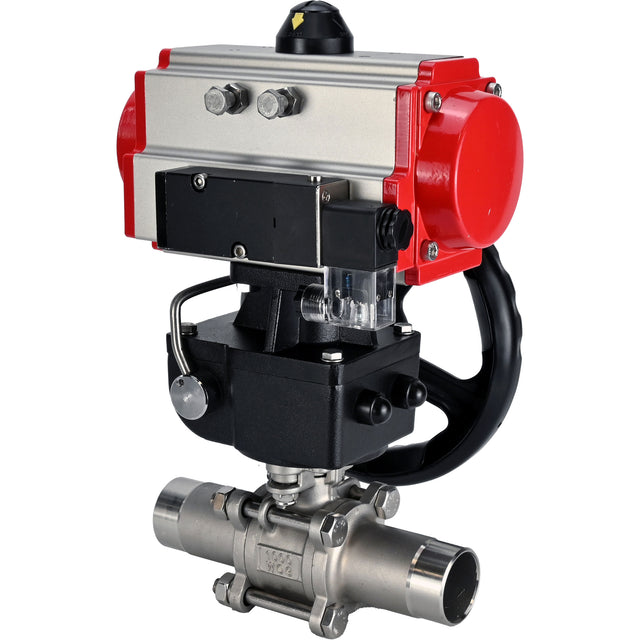

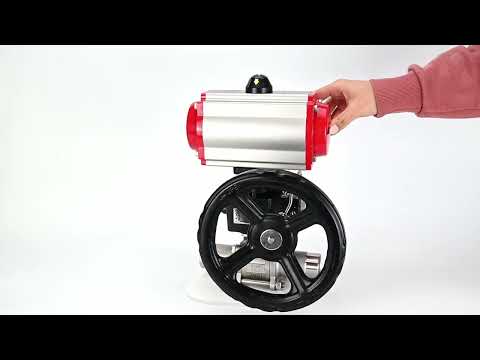

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 24V and MON reducer
Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 24V and MON reducer - DN50 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.
Elephant pneumatic double-acting rotary actuators PA-DA-XXX are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.
The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The worm gear manual doubleturn actuator with reduction gear allows the manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.
The air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure value at a preset level, supply lubricant from the tank in the compressed air flow to the pneumatic system elements.
Technical parameters of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
| Name | Value |
|---|---|
| Operating medium temperature, °C | from -20 to 180 |
| Valve type | Two-way |
| Application | Water supply, heating, industry |
| Working medium | Water, steam, petroleum products, neutral media, gaseous media |
| Pipeline connection | Welded |
| Water dispensing | No |
| Flow section type | Full bore |
| Leakage class | A according to GOST 9544 |
| Control type | With pneumatic actuator |
| Connection | Welded |
| Control | Double-acting pneumatic actuator |
| Limit switches | No |
| Pneumatic distributor | Yes |
| Electropneumatic positioner | No |
| Average service life, years | 5 |
| Warranty, years | 1 |
| Country of manufacture | China |
Dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
| DN | L | H1 | A | E |
| 50 | 243 | 133 | 216 | 109 |
| 65 | 290 | 133 | 216 | 109 |
| 80 | 302 | 133 | 216 | 109 |
| 100 | 326 | 180 | 279 | 134 |
| 125 | 360 | 180 | 308 | 157 |
| 150 | 390 | 195 | 405 | 174 |
Sketch dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
Table of parts and materials for ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
| № | Part Name | Material |
|---|---|---|
| 1 | Body | Stainless steel 304 |
| 2 | Side element (2 pcs) | Stainless steel 304 |
| 3 | Ball | Stainless steel 304 |
| 4 | Ball seal | PTFE |
| 5 | Stem seal | PTFE |
| 6 | Bushing | Stainless steel 304 |
| 7 | Stem | Stainless steel 304 |
| 8 | Washer | Stainless steel |
| 9 | Nut | Steel A2-70 |
| 10 | Bolt | Steel A2-70 |
Parts and materials sketch for ball valves BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
Technical parameters of pneumatic actuator Elephant
| Name | Value |
|---|---|
| Design | Double-acting |
| Control pressure, bar | 2 ÷ 8 |
Dimensions and dimensions of pneumatic actuator Elephant
| Model | PA-DA-83 | PA-DA-105 | PA-DA-130 | PA-DA-140 |
| A1 | 152 | 189 | 210 | 268 |
| B1 | 216 | 279 | 308 | 405 |
| C | 46 | 55 | 67.5 | 76 |
| D | 55 | 64 | 70 | 77 |
| E | 109 | 134 | 157 | 174 |
| F | 26 | 26 | 36 | 36 |
| G | 15 | 25 | 25 | 30 |
| H | F05 | F07 | F07 | F10 |
| I | F07 | F10 | F10 | F12 |
| J | 4-M6x10 | 4-M8x12 | 4-M8x12 | 4-M10x16 |
| К | 4-M8х12 | 4-M10х16 | 4-M10х16 | 4-M12х20 |
| L | 17x17 | 22x22 | 22x22 | 27x27 |
| M | 80 | 80 | 80 | 130 |
| N | 30 | 30 | 30 | 30 |
| F0 | 34 | 41 | 62 | 62 |
| Р | 20 | 20 | 30 | 30 |
Sketch of dimensions and dimensions of pneumatic actuator Elephant
Parts and materials table for pneumatic actuator Elephant
| № | Name | Qty | Material | Coating |
|---|---|---|---|---|
| 1 | Body | 1 | Extruded aluminum | Hard anodized |
| 2 | Side caps | 2 | Cast aluminum | |
| 3 | Gear | 1 | Stainless steel | Nickel-plated |
| 4 | Piston | 2 | Steel/Aluminum | Oxidation/Galvanized zinc coating |
| 5 | Plugs | 8 | Stainless steel | |
| 6 | Piston ring | 2 | NBR | |
| 7 | Springs | 0-12 | Spring steel | Epoxy coating |
| 8 | Piston bearing | 2 | Engineering plastic | |
| 9 | Piston ring | 2 | NBR | |
| 10 | Plug | 2 | NBR | |
| 11 | Stop ring | 2 | Engineering plastic | |
| 12 | Ring | 1 | Engineering plastic | |
| 13 | Washer | 1 | Stainless steel | |
| 14 | Spring clip | 2 | Stainless steel | |
| 15 | Indicator | 1 | Plastic | |
| 16 | Indicator housing | 1 | Plastic | |
| 17 | Bearing | 1 | Engineering plastic | |
| 18 | Cam | 1 | Steel | Oxidation/Galvanized zinc coating |
| 19 | Bearing | 1 | NBR | |
| 20 | Bearing | 1 | Engineering plastic | |
| 21 | Bearing | 1 | Engineering plastic | |
| 22 | Sealing ring | 2 | NBR | |
| 23 | Sealing ring | 2 | NBR | |
| 24 | Bearing | 2 | Stainless steel | |
| 25 | Adjustment nut | 2 | Stainless steel | |
| 26 | Adjustment screw | 2 | Stainless steel | |
| 27 | Bushing | 2 | Aluminum |
Technical parameters of pneumatic valve Elephant 4M310-08 24V
| Name | Value |
|---|---|
| Pneumatic distributor type | Spool |
| Pneumatic distributor model | 4M310-08 24V |
| Operating pressure, bar | 1.5 ÷ 1.8 |
| Supply voltage, V | 24V |
| Switching frequency, cycles/sec | 5 |
Dimensions and dimensions of Elephant 4M310-08 24V pneumatic directional control valve
| Name | Value |
|---|---|
| Pneumatic distributor model | 4M310-08 |
| D, mm | 32 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 45 |
| K, mm | 40 |
| L, mm | 134.5 |
| M, mm | 40 |
| N, mm | 24 |
| S, mm | 27 |
| U, mm | 2.4 |
| H, mm | 17.5 |
Sketch of dimensions and dimensions of pneumatic valve Elephant 4M310-08 24V
Technical parameters of the handwheel Elephant MON
| Name | Value |
|---|---|
| Manual override model | MON |
| Climatic version | U, UHL, T, OM |
| Mounting method | Horizontal/Vertical |
| Protection rating, IP | 67 |
| Connection type | ISO 5211 |
Dimensions and dimensions of the Elephant MON handwheel
| Model | MON2-450-T28-ISO | MON3-700-T38-ISO | MON4-1200-T54-ISO |
| b1, mm | 17 | 22 | 27 |
| N, mm | 22 | 28 | 32 |
| b2, mm | 17 | 22 | 27 |
| M, mm | 18 | 22 | 30 |
| D1, mm | Ø70 | Ø102 | Ø102 |
| 4-M1, mm | 4-M8 | 4-M10 | 4-M10 |
| D2, mm | Ø102 | Ø125 | Ø125 |
| 4-M2, mm | 4-M10 | 4-M12 | 4-M12 |
| E, mm | 95х95 | 114х114 | 129х129 |
| D3, mm | Ø70 | Ø102 | Ø125 |
| 4-Ø1, mm | 4-Ø8.5 | 4-Ø10.5 | 4-Ø12.5 |
| D4, mm | Ø102 | Ø125 | Ø140 |
| 4-Ø2, mm | 4-Ø10.5 | 4-Ø12.5 | 4-Ø16.5 |
| A, mm | 125 | 140 | 188.5 |
| B, mm | 64 | 71 | 93 |
| ØC, mm | Ø110 | Ø129 | Ø174 |
| F, mm | 135 | 166 | 202 |
| T, mm | 62.5 | 70 | 94 |
| Y, mm | 178 | 212 | 280 |
| H, mm | 133 | 180 | 195 |
| S, mm | 56.5 | 68.7 | 84 |
| K, mm | 13 | 12.5 | 15 |
| Ø helm, mm | 200 | 280 | 320 |
Sketch of dimensions and dimensions of the handwheel Elephant MON
Parts and materials table for the handwheel Elephant MON
| № | Part Name | Material |
|---|---|---|
| 1 | Stem for pneumatic actuator mounting | Steel 45 |
| 2, 8 | O-ring | EPDM |
| 3 | Retaining spring | Spring steel |
| 4 | Upper end cap | Aluminum alloy |
| 5 | Screw | Steel 304 |
| 6 | Retaining bracket (main link) | Steel 304 |
| 7 | Housing | Aluminum alloy |
| 9 | Gearbox | Ductile iron VCh50 |
| 10 | Adapter coupling | Ductile iron VCh40 |
| 11 | Gearbox stem | Ductile iron VCh40 |
Sketch of parts and materials for the Elephant MON handwheel
