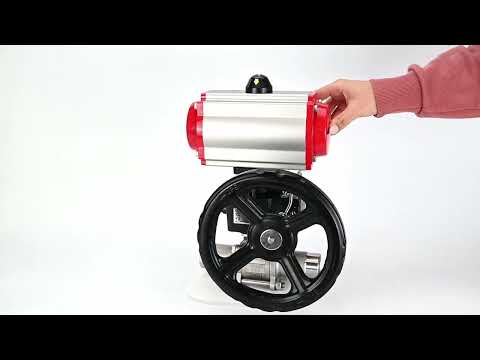

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V and MON reducer

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

Pneumatic actuators Elephant double-acting rotary PA-DA are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.

Pneumatic distributors are used for control in pneumatic systems with a NAMUR mating surface for installing distributors through through holes in the body. Electromagnetic control is carried out using voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, distributors have one-sided or two-sided control. Pneumatic distributors with electromagnetic control have a wide range of models and include common types of switching for three (3/2) and five (5/2 and 5/3) linear pneumatic distributors. Intended for use with quarter-turn pneumatic actuators.

The manual override with worm gear and reduction gear allows manual setting of the required positioning of the shut-off element by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most effective and efficient solution for the entire range of manual override tasks.

Technical parameters of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V and MON reducer

Sketch of the dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V and MON reducer

Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V and MON reducer

Model	L, mm	H1, mm	A, mm	E, mm
DN50	243	133	216	109
DN65	290	133	216	109
DN80	302	133	216	109
DN100	326	180	279	134
DN125	360	180	308	157
DN150	390	195	405	174





Sketch of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V and MON reducer



Table of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V and MON reducer

Item No.	Part name	Material
1	Frame	stainless steel 304
2	Side element (2 pcs)	stainless steel 304
3	Ball	stainless steel 304
4	Ball seal	PTFE
5	Rod seal	PTFE
6	Sleeve	stainless steel 304
7	Stock	stainless steel 304
8	Washer	stainless steel
9	screw	steel A2-70
10	Bolt	steel A2-70





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator	DA - double-acting
Nominal pressure PN, bar	12
Working pressure, bar	2...8
Working medium	filtered compressed air
Maximum particle diameter of the working medium, µm2	≤30
Ambient temperature, ⁰C	-20 to +80
Swivel angle, °	0 - 90
Swivel angle adjustment, %	±5
Position indicator	open/closed
Top connection standard	NAMUR
Air connection standard	NAMUR
Average life, cycles closed/open	70 000 (for non-aggressive media and medium pressure and temperature values)

DA pneumatic actuators double-acting rotary actuators



Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model	A, mm	B, mm	C, mm	D, mm	E, mm	F, mm	G, mm	H, mm
DA-052	30	41,5	65,5	72	92	65	30	80
DA-065	36	47	81	88	108	72	30	80
DA-083	46	57	98,5	108,7	128,7	92	30	80
DA-105	57,5	64	122,5	133	153	109,5	30	80
DA-130	67,5	74,5	145,5	155	185	127,5	30	130
DA-140	75	77	161	172	202	137,5	30	130
DA-160	87	87	184	197	227	159	30	130
DA-210	113	113	235,5	255	285	210	30	130
DA-270	147	147	299	326	356	273	30	130
DA-300	162	174	330	350	380	312	30	130
DA-350	190	195	483	410	440	365	30	130



Model	I, mm	J, mm	M, mm	N, mm	Z, mm	d, mm	K	L
DA-052	36	50	11x11	14	147	40	M5x8	M6x10
DA-065	50	70	14x14	18	168	40	M6x10	M8x13
DA-083	50	70	17x17	21	204	40	M6x10	M8x13
DA-105	70	102	22x22	26	268	40	M8x13	M10x16
DA-130	70	102	22x22	26	301	55	M8x13	M10x16
DA-140	102	125	27x27	31	390	55	M10x16	M12x20
DA-160	102	125	27x27	31	458	55	M10x16	M12x20
DA-210	-	140	36x36	40	532	80	-	M16x25
DA-270	-	165	46x46	50	718	80	-	M20x25
DA-300	-	165	46x46	50	760	80	-	M20x25
DA-350	165	254	46x46	50	920	80	M20x25	8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№	Part name	Material
1	Indicator screw	ABS plastic
2	Position indicator	ABS plastic
3	Spring clip	stainless steel 304
4	Metal washer	stainless steel 304
5	Pressure washer	engineering plastic
6	Housing	hard anodized extruded aluminum alloy
7	Pressure washer	engineering plastic
8	Limiter	alloy steel
9	Shaft sealing ring upper	NBR
10	Upper shaft sliding ring	engineering plastic
11	Shaft	nickel plated alloy steel
12	Shaft sliding ring lower	engineering plastic
13	Shaft O-ring lower	NBR
14	Plug	NBR
15	Seal ring of adjusting screws	NBR
16	Washer of adjusting screw	stainless steel 304
17	Lock nut of adjusting screw	stainless steel 304
18	Adjusting screw	stainless steel 304
19	Piston	die-cast aluminum alloy
20	Piston guide plate	engineering plastic
21	Piston sliding ring	engineering plastic
22	Piston O-ring	NBR
23	Spring set	spring steel
24	Cover O-ring	NBR
25	End cap	cast aluminum with polyester coating
26	Cover screw	stainless steel 304
27	Stop screw	stainless steel 304
28	Adapter	carbon steel

Material sketch of DA double-acting pneumatic actuators





Pneumatic distributor Elephant 4M310-08 220V



Technical parameters of the pneumatic distributor Elephant 4M310-08 220V

Name	Meaning
Type of pneumatic distributor	spool valve
Model of pneumatic distributor	4m310-08 220v
Working pressure, bar	1.5 ÷ 1.8
Supply voltage, V	220V
Response frequency, cycles/sec	5





Sketch of dimensions and sizes of pneumatic distributor Elephant 4M310-08 220V



Dimensions and sizes of pneumatic distributor Elephant 4M310-08 220V

Model of pneumatic distributor	4M310-08
D, mm	32
E, mm	69
F, mm	40
I, mm	45
K, mm	40
L, mm	134.5
M, mm	40
N, mm	24
S, mm	27
U, mm	2.4
H, mm	17.5





Manual backup Elephant MON



Technical parameters of the manual backup Elephant MON

Name	Meaning
Manual backup model	MON
Climate performance	U, UHL, T, OM
Installation method	horizontal/vertical
Degree of protection, IP	67
Connection type	ISO 5211





Sketch of dimensions and sizes of manual backup Elephant MON



Dimensions and sizes of the manual backup Elephant MON:

Model	MON2-450-T28-ISO	MON3-700-T38-ISO	MON4-1200-T54-ISO
b1, mm	17	22	27
N, mm	22	28	32
b2, mm	17	22	27
M, mm	18	22	30
D1, mm	Ø70	Ø102	Ø102
4-M1, mm	4-M8	4-M10	4-M10
D2, mm	Ø102	Ø125	Ø125
4-M2, mm	4-M10	4-M12	4-M12
E, mm	95x95	114x114	129x129
D3, mm	Ø70	Ø102	Ø125
4-Ø1, mm	4-Ø8.5	4-Ø10.5	4-Ø12.5
D4, mm	Ø102	Ø125	Ø140
4-Ø2, mm	4-Ø10.5	4-Ø12.5	4-Ø16.5
A, mm	125	140	188.5
B, mm	64	71	93
ØC, mm	Ø110	Ø129	Ø174
F, mm	135	166	202
T, mm	62.5	70	94
Y, mm	178	212	280
H, mm	133	180	195
S, mm	56.5	68.7	84
K, mm	13	12.5	15
Ø steering wheel, mm	200	280	320



Sketch of parts and materials of manual backup Elephant MON

Table of parts and materials of the manual backup Elephant MON:

Item No.	Details	Material
1	Rod for mounting pneumatic actuator	steel 45
2, 8	Sealing ring	EPDM
3	Locking spring	spring steel
4	Top end cap	aluminum alloy
5	Screw	steel 304
6	Fixing bracket (main rod)	steel 304
7	Frame	aluminum alloy
9	Reducer	cast iron VCh50
10	Transition coupling	cast iron VCh40
11	Gearbox rod	cast iron VCh40
